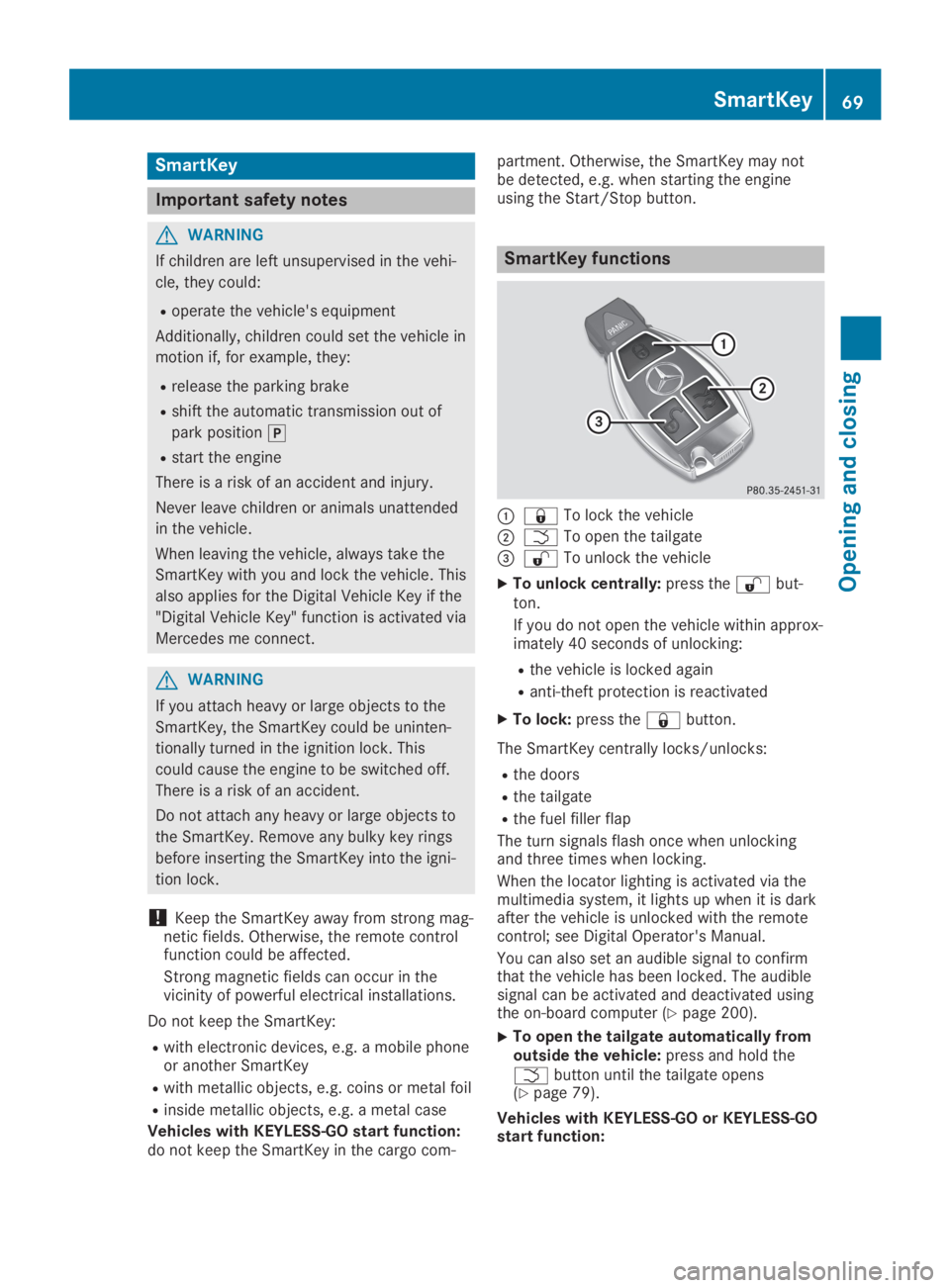

SmartKey
Important safety notes
GWARNING
If children are left unsupervised in the vehi-
cle, they could:
Roperate the vehicle's equipment
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake
Rshift the automatic transmission out of
park position]
Rstart the engine
There is a risk of an accident and injury.
Never leave children or animals unattended
in the vehicle.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. This
also applies for the Digital Vehicle Key if the
"Digital Vehicle Key" function is activated via
Mercedes me connect.
GWARNING
If you attach heavy or large objects to the
SmartKey, the SmartKey could be uninten-
tionally turned in the ignition lock. This
could cause the engine to be switched off.
There is a risk of an accident.
Do not attach any heavy or large objects to
the SmartKey. Remove any bulky key rings
before inserting the SmartKey into the igni-
tion lock.
!Keep the SmartKey away from strong mag-netic fields. Otherwise, the remote controlfunction could be affected.
Strong magnetic fields can occur in thevicinity of powerful electrical installations.
Do not keep the SmartKey:
Rwith electronic devices, e.g. a mobile phoneor another SmartKey
Rwith metallic objects, e.g. coins or metal foil
Rinside metallic objects, e.g. a metal case
Vehicles with KEYLESS-GO start function:do not keep the SmartKey in the cargo com-
partment. Otherwise, the SmartKey may notbe detected, e.g. when starting the engineusing the Start/Stop button.
SmartKey functions
C7To lock the vehicle
DTTo open the tailgate

KEYLESS-GO start function
General notes
Bear in mind that the engine can be started byany of the vehicle occupants if there is aSmartKey in the vehicle.
Changing the settings of the locking
system
You can change the settings of the lockingsystem. This means that only the driver's doorand the fuel filler flap are unlocked when thevehicle is unlocked. This is useful if you fre-quently travel on your own.
XTo change the setting:press and hold the6and7buttons simultaneously forapproximately six seconds until the batteryindicator lamp flashes twice (Ypage 72).
If the setting of the locking system is changedwithin the signal range of the vehicle, pressingthe7or6button:
Rlocks or
Runlocks the vehicle
The SmartKey now functions as follows:
XTo unlock:press the6button once.
XTo unlock centrally:press the6buttontwice.
XTo lock centrally:press the7button.
The KEYLESS-GO function is changed as fol-lows:
XTo unlock the driver's door:touch theinner surface of the door handle on the driv-er's door.
XTo unlock centrally:touch the inner sur-face of the door handle on the front-passenger door or the rear door.
XTo lock centrally:touch the outer sensorsurface on one of the door handles.
XTo restore the factory settings:press andhold the6and7buttons simultane-ously for approximately six seconds until thebattery check lamp flashes twice(Ypage 72).
Mechanical key
General notes
If the vehicle can no longer be locked orunlocked with the SmartKey or KEYLESS-GO,use the mechanical key.
If you use the mechanical key to unlock andopen the driver's door or the trunk lid, theanti-theft alarm system will be triggered(Ypage 68).
There are several ways to turn off the alarm:
XTo deactivate the alarm with the key:press the6or7button on the key.
or
XInsert the SmartKey into the ignition lock.
or
XTo deactivate the alarm with KEYLESS-GO:press the Start/Stop button in the igni-tion lock. The SmartKey must be in the vehi-cle.
or
XLock or unlock the vehicle using KEYLESS-GO. The SmartKey must be outside the vehi-cle.
If you unlock the vehicle using the mechanicalkey, the fuel filler flap will not be unlockedautomatically.
XTo unlock the fuel filler flap:insert theSmartKey into the ignition lock.
Removing the mechanical key
SmartKey71
Opening and closing
Z

ProblemPossible causes/consequences andPPSolutions
You can no longer lockor unlock the vehicleusing KEYLESS-GO.
The SmartKey battery is discharged or nearly discharged.
XCheck the SmartKey battery (Ypage 72) and replace it if neces-sary (Ypage 72).
If this does not work:
XUnlock (Ypage 76) or lock (Ypage 77) the vehicle using themechanical key.
There is interference from a powerful source of radio waves.
XUnlock (Ypage 76) or lock (Ypage 77) the vehicle using themechanical key.
KEYLESS-GO is malfunctioning.
XLock/unlock the vehicle using the remote control function of theSmartKey.
XHave the vehicle and SmartKey checked at a qualified specialistworkshop.
If the vehicle can also not be locked/unlocked using the remotecontrol function:
XUnlock (Ypage 76) or lock (Ypage 77) the vehicle using themechanical key.
XHave the vehicle and SmartKey checked at a qualified specialistworkshop.
The engine cannot bestarted using the Smart-Key.
The on-board voltage is too low
XSwitch off non-essential consumers, e.g. seat heating or interiorlighting, and try to start the engine again.
If this does not work:
XCheck the starter battery and charge it if necessary(Ypage 294).
or
XJump-start the vehicle (Ypage 295).
or
XConsult a qualified specialist workshop.
The engine cannot bestarted using the Start/Stop button. The Smart-Key is in the vehicle.
The vehicle is locked.
XUnlock the vehicle and try to start the vehicle again.
The SmartKey battery is discharged or nearly discharged.
XCheck the SmartKey battery (Ypage 72) and replace it if neces-sary (Ypage 72).
If this does not work:
XStart your vehicle with the SmartKey in the ignition lock.
There is interference from a powerful source of radio waves.
XStart your vehicle with the SmartKey in the ignition lock.
74SmartKey
Opening and closing

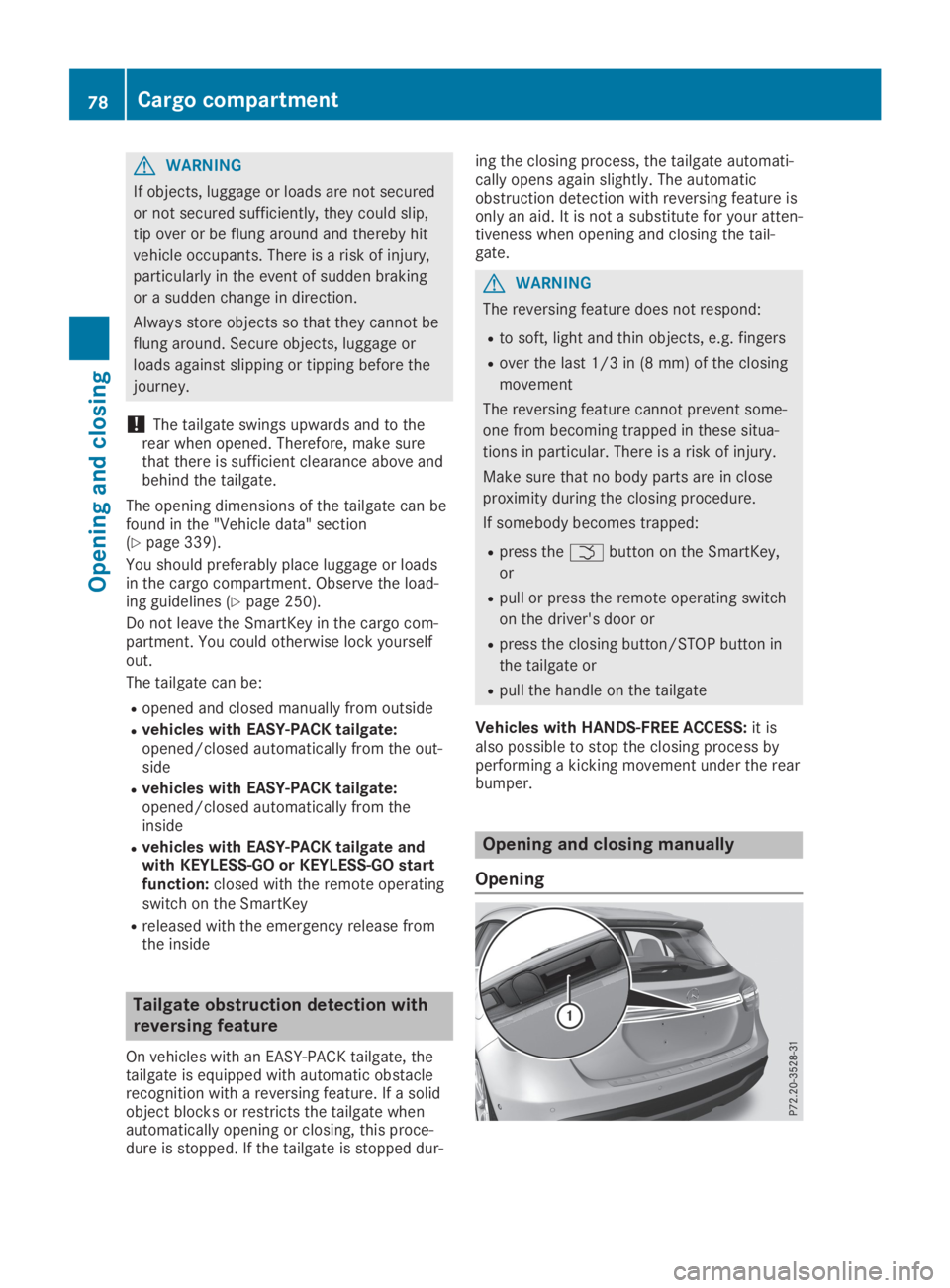

GWARNING
If objects, luggage or loads are not secured
or not secured sufficiently, they could slip,
tip over or be flung around and thereby hit
vehicle occupants. There is a risk of injury,
particularly in the event of sudden braking
or a sudden change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
!The tailgate swings upwards and to therear when opened. Therefore, make surethat there is sufficient clearance above andbehind the tailgate.
The opening dimensions of the tailgate can befound in the "Vehicle data" section(Ypage 339).
You should preferably place luggage or loadsin the cargo compartment. Observe the load-ing guidelines (Ypage 250).
Do not leave the SmartKey in the cargo com-partment. You could otherwise lock yourselfout.
The tailgate can be:
Ropened and closed manually from outside
Rvehicles with EASY-PACK tailgate:opened/closed automatically from the out-side
Rvehicles with EASY-PACK tailgate:opened/closed automatically from theinside
Rvehicles with EASY-PACK tailgate andwith KEYLESS-GO or KEYLESS-GO startfunction:closed with the remote operatingswitch on the SmartKey
Rreleased with the emergency release fromthe inside
Tailgate obstruction detection with
reversing feature
On vehicles with an EASY-PACK tailgate, thetailgate is equipped with automatic obstaclerecognition with a reversing feature. If a solidobject blocks or restricts the tailgate whenautomatically opening or closing, this proce-dure is stopped. If the tailgate is stopped dur-
ing the closing process, the tailgate automati-cally opens again slightly. The automaticobstruction detection with reversing feature isonly an aid. It is not a substitute for your atten-tiveness when opening and closing the tail-gate.
GWARNING
The reversing feature does not respond:
Rto soft, light and thin objects, e.g. fingers
Rover the last 1/3 in (8 mm) of the closing
movement
The reversing feature cannot prevent some-
one from becoming trapped in these situa-
tions in particular. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped:
Rpress theTbutton on the SmartKey,
or
Rpull or press the remote operating switch
on the driver's door or
Rpress the closing button/STOP button in
the tailgate or
Rpull the handle on the tailgate
Vehicles with HANDS-FREE ACCESS:it isalso possible to stop the closing process byperforming a kicking movement under the rearbumper.
Opening and closing manually
Opening
78Cargo compartment
Opening and closing

XTo close:press buttonCon the tailgate.
or
XVehicles with EASY-PACK tailgate andKEYLESS-GO or KEYLESS-GO start func-tion:if the SmartKey is located in the imme-diate vicinity of the vehicle, press theTbutton on the SmartKey.You can release the button as soon as thetailgate starts to close.
XTo stop the closing process: press but-tonCon the tailgate again.
or
XPull the handle in the tailgate.
or
XPress theTbutton on the SmartKeyuntil the tailgate stops.
or
XPress or pull the remote operating switch onthe driver's door.
HANDS-FREE ACCESS
Important safety notes
GWARNING
The vehicle exhaust system can become
very hot. If you use HANDS-FREE ACCESS,
you could burn yourself by touching the
exhaust system. There is a risk of injury.
Always ensure that you make the kicking
movement only within the detection range of
the sensors.
!If the SmartKey is within the rear detectionrange of KEYLESS-GO, the following situa-tions, for example, could lead to the unin-tentional opening of the tailgate:
Rwhen using an automatic car wash
Rwhen using a power washer
Make sure that the SmartKey is at least10 ft (3m) away fromthe vehicle.
iYou can also deactivate KEYLESS-GO. Fur-ther information on deactivating and activat-ing KEYLESS-GO (Ypage 70).
General notes
With KEYLESS-GO and HANDS-FREE ACCESS,you can open or close the tailgate or stop theprocedure without using your hands. This isuseful if you have your hands full. To do this,make a kicking movement under the bumperwith your foot.
Observe the following points:
RCarry your KEYLESS-GO key about your per-son. The SmartKey must be at the rear ofthe vehicle in the detection range of KEY-LESS-GO.
RWhen making the kicking movement, makesure that you are standing firmly on theground and that there is sufficient clearanceto the rear of the vehicle. You could other-wise lose your balance, for example on ice.
RAlways ensure that you only make the kick-ing movement within the detection range ofsensorsC.
RStand at least 12 in (30 cm) away from therear area while doing so.
RDo not come into contact with the bumperwhile making the kicking movement. Other-wise, the sensors may not function cor-rectly.
RHANDS-FREE ACCESS does not functionduring engine start.
RDirt caused by road salt or snow aroundsensorsCmay restrict functionality.
Using the HANDS-FREE ACCESS with aprosthetic leg may restrict functionality.
RIf a KEYLESS-GO key is at the rear of thevehicle in the detection range of KEYLESS-GO, HANDS-FREE ACCESS could be trig-
80Cargo compartment
Opening and closing

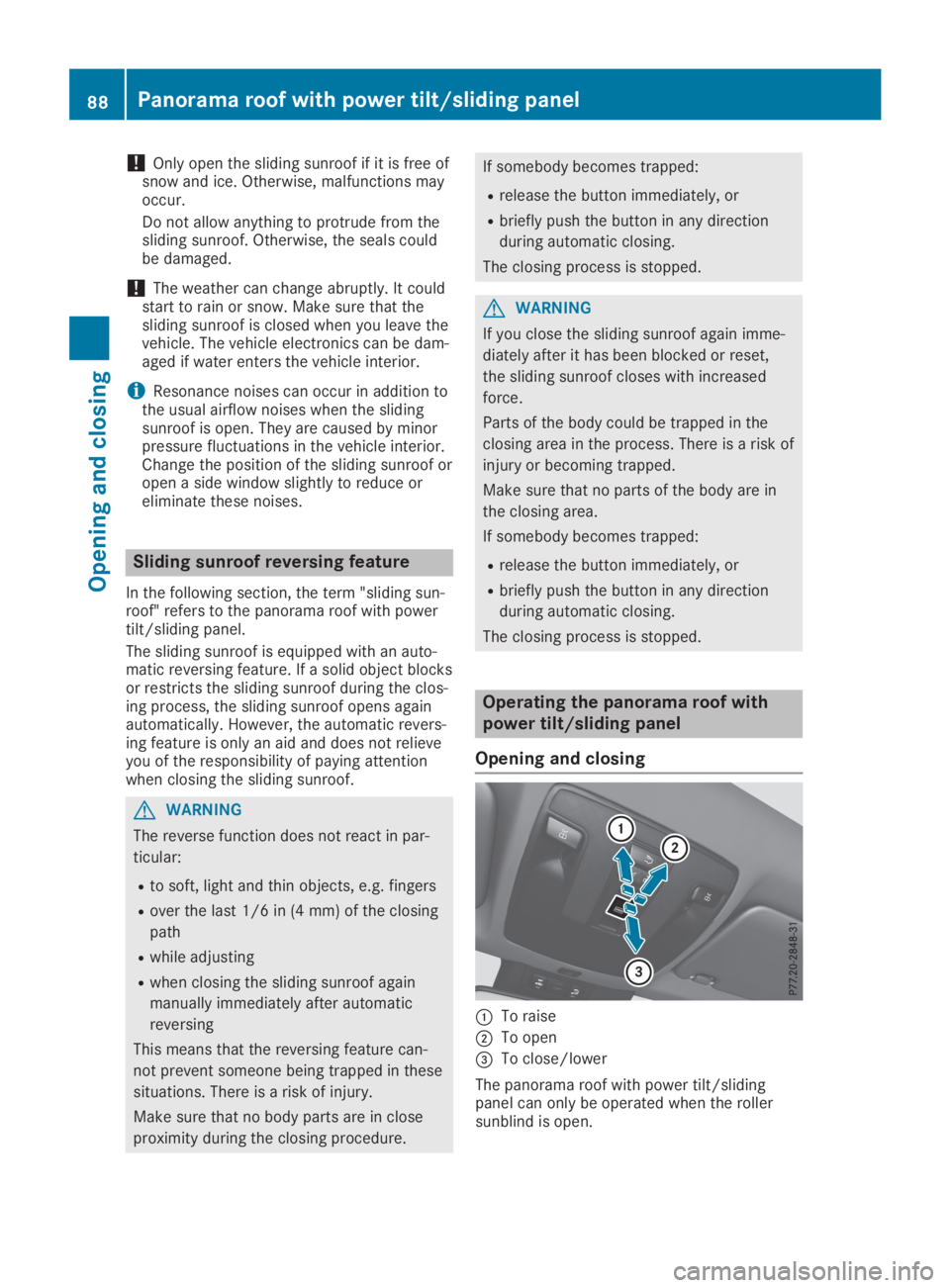

!Only open the sliding sunroof if it is free ofsnow and ice. Otherwise, malfunctions mayoccur.
Do not allow anything to protrude from thesliding sunroof. Otherwise, the seals couldbe damaged.
!The weather can change abruptly. It couldstart to rain or snow. Make sure that thesliding sunroof is closed when you leave thevehicle. The vehicle electronics can be dam-aged if water enters the vehicle interior.
iResonance noises can occur in addition tothe usual airflow noises when the slidingsunroof is open. They are caused by minorpressure fluctuations in the vehicle interior.Change the position of the sliding sunroof oropen a side window slightly to reduce oreliminate these noises.
Sliding sunroof reversing feature
In the following section, the term "sliding sun-roof" refers to the panorama roof with powertilt/sliding panel.
The sliding sunroof is equipped with an auto-matic reversing feature. If a solid object blocksor restricts the sliding sunroof during the clos-ing process, the sliding sunroof opens againautomatically. However, the automatic revers-ing feature is only an aid and does not relieveyou of the responsibility of paying attentionwhen closing the sliding sunroof.
GWARNING
The reverse function does not react in par-
ticular:
Rto soft, light and thin objects, e.g. fingers
Rover the last 1/6 in (4 mm) of the closing
path
Rwhile adjusting
Rwhen closing the sliding sunroof again
manually immediately after automatic
reversing
This means that the reversing feature can-
not prevent someone being trapped in these
situations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped:
Rrelease the button immediately, or
Rbriefly push the button in any direction
during automatic closing.
The closing process is stopped.
GWARNING
If you close the sliding sunroof again imme-
diately after it has been blocked or reset,
the sliding sunroof closes with increased
force.
Parts of the body could be trapped in the
closing area in the process. There is a risk of
injury or becoming trapped.
Make sure that no parts of the body are in
the closing area.
If somebody becomes trapped:
Rrelease the button immediately, or
Rbriefly push the button in any direction
during automatic closing.
The closing process is stopped.
Operating the panorama roof with
power tilt/sliding panel
Opening and closing
CTo raise
DTo open

XTurn the SmartKey to positionGorHinthe ignition lock (Ypage 125).
XPress or pull theWswitch in the corre-sponding direction.
If you press/pull theWswitch beyond thepoint of resistance, automatic operation isstarted in the corresponding direction. Youcan stop automatic operation by pressing/pulling the switch again.
After opening the sliding sunroof, the rollersunblind closes slightly automatically. Thisreduces drafts in the vehicle interior.
If the sliding sunroof is raised at the rear, itlowers slightly automatically at higher speeds.The noise level in the vehicle interior isreduced as a result.
At low speeds it raises again automatically.
You can also temporarily deactivate automaticlowering. To do so, press theWswitch. Thesliding sunroof raises again automatically.
You can continue to operate the sliding sun-roof after switching off the engine or removingthe SmartKey from the ignition lock. This func-tion remains active for five minutes or untilyou open a front door.
The sliding sunroof cannot be opened if a roofcarrier is installed. In order to allow ventilationof the vehicle interior, you can raise the slidingsunroof.
If contact is made with a roof carrier approvedby Mercedes-Benz, the sliding sunroof lowersslightly but remains raised at the rear.
Rain-closing feature
The rain-closing feature is only available forvehicles with a rain sensor.
When the SmartKey is in positionZin theignition lock or is removed, the sliding sunroofcloses automatically:
Rif it starts to rain.
Rat extreme outside temperatures.
Rafter six hours.
Rif there is a malfunction in the power supply.
The panorama roof with power tilt/slidingpanel remains raised at the rear in order toallow ventilation of the vehicle interior.
If the panorama roof with power tilt/slidingpanel is obstructed while being closed by therain-closing feature, it opens again slightly.The rain-closing feature is then deactivated.
The panorama roof with power tilt/slidingpanel does not close if:
Rit is raised at the rear.
Rit is blocked.
Rno rain is falling on the area of the wind-shield being monitored by the rain sensor. Ifthe vehicle, for example, is under a bridge orin a carport, the field of the sensor may becovered.
Operating the roller sunblind for the
panorama roof with power tilt/slid-
ing panel
Important safety notes
GWARNING
Parts of the body could become trapped
between the roller sunblind and frame or
sliding sunroof during automatic opening or
closing. There is a risk of injury.
When opening or closing, make sure that no
body parts are in the sweep of the roller
sunblind.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be
stopped.
The roller sunblind shields the vehicle interiorfrom sunlight. The roller sunblind can only beopened and closed when the panorama roofwith power tilt/sliding panel is closed.
Roller sunblind reversing feature
The roller sunblind is equipped with an auto-matic reversing feature. If a solid object blocksor restricts the roller sunblind during the clos-ing process, the roller sunblind opens againautomatically. The automatic reversing featureis only an aid and is not a substitute for yourattentiveness when closing the roller sunblind.
Panorama roof with power tilt/sliding panel89
Opening and closing
Z

ual. You will see the current settings of thevarious climate control functions.
DYNAMIC SELECT button (except
Mercedes-AMG vehicles)
You can choose between various drive pro-grams with the DYNAMIC SELECT button(Ypage 132).
If you have selected drive programE:
Rwhen heating, the electrical heater boosteris deactivated and in the warming-up phaseheat output is reduced
Rthe rear window defroster running time isreduced
Depending on the configuration, climate set-tings may also be influenced in the drive pro-gramI.
If you have selected drive programCorS, cli-mate settings are not influenced.
ECO start/stop function
During automatic engine switch-off, the cli-mate control system only operates at areduced capacity. If you require the full cli-mate control output, you can switch off theECO start/stop function by pressing the ECObutton (Ypage 130).
Operating the climate control sys-
tems
Activating/deactivating climate con-
trol
General notes
When the climate control is switched off, theair supply and air circulation are also switchedoff. The windows could fog up. Therefore,switch off climate control only briefly
Air-conditioning system
XTurn the SmartKey to positionHin the igni-tion lock (Ypage 125).
XTo switch on:turn control
