Opening/closing the garage door .. 270
Problems when programming ........ 270
Programming (button in the rear-
view mirror) ................................... 268
Synchronizing the rolling code .......269
Gasoline............................................. 335
Gear indicator (on-board com-
puter, Mercedes-AMG vehicles)....... 200
Genuine parts...................................... 25
Glove box...........................................251
Google™ Local Search
see also Digital Operator's Man-
ual ..................................................242
H
Handling control system
see ESP®(Electronic Stability Program)
HANDS-FREE ACCESS.......................... 80
Hazard warning lamps
Display message ............................ 228
Switching on/off ........................... 104
Head restraints
Adjusting ......................................... 95
Adjusting (manually) ........................ 95
Adjusting (rear) ................................ 96
Headlamps
Fogging up ..................................... 105
see Automatic headlamp mode
Heating
see Climate control
High beam flasher.............................104
High-beam headlamps
Display message ............................ 215
Replacing bulbs .............................107
Switching on/off ........................... 104
Hill start assist.................................. 128
HOLD function
Activating ....................................... 166
Activation conditions ..................... 165
Deactivating ................................... 166
Display message ............................ 219
Function/notes .............................165
Home address
see also Digital Operator's Man-
ual ..................................................242
Hood
Closing ...........................................274
Display message ............................ 228
Important safety notes .................. 273
Opening ......................................... 273
Horn...................................................... 31
Hydroplaning..................................... 152
I
Ignition key
see SmartKey
Ignition lock
see Key positions
Immobilizer.......................................... 67
Indicator lamp
Replacing bulbs (rear) .................... 108
Indicator lamps
see Warning and indicator lamps
Indicators
see Turn signals
Instrument cluster
Overview .......................................... 32
Settings ......................................... 198
Warning and indicator lamps ........... 32
Instrument cluster lighting.............. 188
Interior lighting
Control ...........................................105
Overview ........................................ 105
Reading lamp ................................. 105
iPod®
see also Digital Operator's Man-
ual ..................................................242
J
Jack
Storage location ............................ 287
Using ............................................. 327
Jump starting (engine)......................295
K
Key positions
Start/Stop button .......................... 125
KEYLESS-GO
Convenience closing feature ............ 85
Deactivation ..................................... 70
Locking ............................................ 70
Unlocking ......................................... 70
12Index

the system is not operational. Contact anauthorized Mercedes-Benz Center or call1-800-FOR-MERCedes (in the USA) or1-800-387-0100 (in Canada).
ATA (anti-theft alarm system)
XTo arm:lock the vehicle with the SmartKeyor KEYLESS-GO.Indicator lampCflashes. The alarm systemis armed after approximately 15 seconds.
XTo disarm:unlock the vehicle with theSmartKey or KEYLESS-GO.
or
XInsert the SmartKey into the ignition lock.
A visual and audible alarm is triggered if thealarm system is armed and you open:
Ra door
Rthe vehicle with the mechanical key
Rthe tailgate
Rthe hood
XTo switch the alarm off with the Smart-Key:press the6or7button on theSmartKey.The alarm is stopped.
or
XVehicles with KEYLESS-GO start-func-tion or KEYLESS-GO:remove the Start/Stop button from the ignition lock(Ypage 125).
XInsert the SmartKey into the ignition lock.The alarm is stopped.
XTo stop the alarm using KEYLESS-GO:grasp the outside door handle. The Smart-Key must be outside the vehicle.The alarm is stopped.
or
XPress the Start/Stop button on the dash-board. The SmartKey must be inside thevehicle.The alarm is stopped.
The alarm is not stopped, even if you close theopen door that triggered it, for example.
iIf the alarm stays on for more than30 seconds, the Mercedes me connectemergency call system automatically sendsa message to the Customer Center. This isdone either by text message or data con-nection.
The emergency call system sends the mes-sage or data provided that:
Ryou have subscribed to the Mercedes meconnect service
Rthe Mercedes me connect service hasbeen activated properly
Rthe necessary mobile phone network isavailable
68Protection against theft
Safety

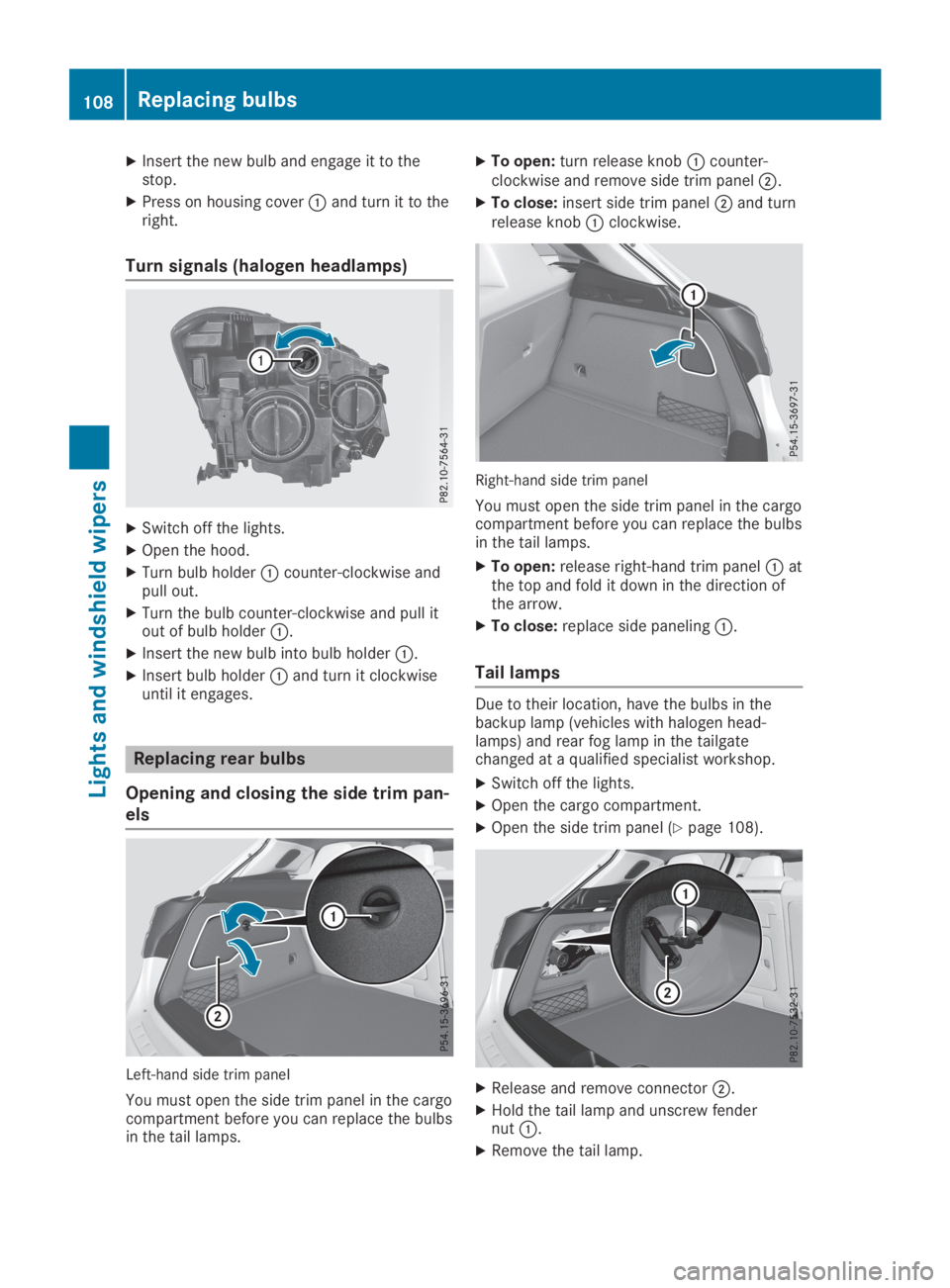

XInsert the new bulb and engage it to thestop.
XPress on housing coverCand turn it to theright.
Turn signals (halogen headlamps)
XSwitch off the lights.
XOpen the hood.
XTurn bulb holderCcounter-clockwise andpull out.
XTurn the bulb counter-clockwise and pull itout of bulb holderC.
XInsert the new bulb into bulb holderC.
XInsert bulb holderCand turn it clockwiseuntil it engages.
Replacing rear bulbs
Opening and closing the side trim pan-
els
Left-hand side trim panel
You must open the side trim panel in the cargocompartment before you can replace the bulbsin the tail lamps.
XTo open:turn release knobCcounter-clockwise and remove side trim panelD.
XTo close:insert side trim panelDand turnrelease knobCclockwise.
Right-hand side trim panel
You must open the side trim panel in the cargocompartment before you can replace the bulbsin the tail lamps.
XTo open:release right-hand trim panelCatthe top and fold it down in the direction ofthe arrow.
XTo close:replace side panelingC.
Tail lamps
Due to their location, have the bulbs in thebackup lamp (vehicles with halogen head-lamps) and rear fog lamp in the tailgatechanged at a qualified specialist workshop.
XSwitch off the lights.
XOpen the cargo compartment.
XOpen the side trim panel (Ypage 108).
XRelease and remove connectorD.
XHold the tail lamp and unscrew fendernutC.
XRemove the tail lamp.
108Replacing bulbs
Lights and windshield wipers

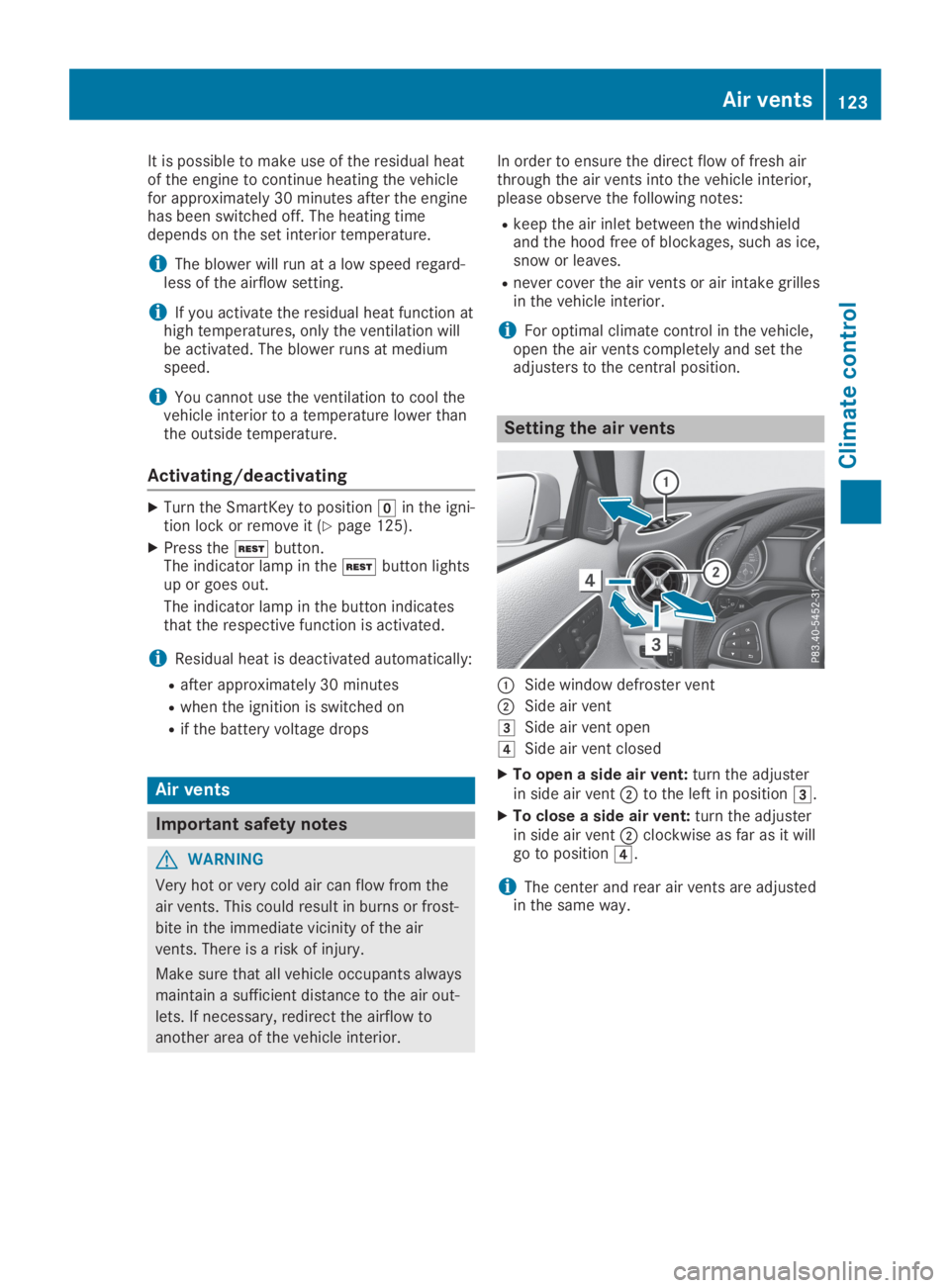

It is possible to make use of the residual heatof the engine to continue heating the vehiclefor approximately 30 minutes after the enginehas been switched off. The heating timedepends on the set interior temperature.
iThe blower will run at a low speed regard-less of the airflow setting.
iIf you activate the residual heat function athigh temperatures, only the ventilation willbe activated. The blower runs at mediumspeed.
iYou cannot use the ventilation to cool thevehicle interior to a temperature lower thanthe outside temperature.
Activating/deactivating
XTurn the SmartKey to positionZin the igni-tion lock or remove it (Ypage 125).
XPress theKbutton.The indicator lamp in theKbutton lightsup or goes out.
The indicator lamp in the button indicatesthat the respective function is activated.
iResidual heat is deactivated automatically:
Rafter approximately 30 minutes
Rwhen the ignition is switched on
Rif the battery voltage drops
Air vents
Important safety notes
GWARNING
Very hot or very cold air can flow from the
air vents. This could result in burns or frost-
bite in the immediate vicinity of the air
vents. There is a risk of injury.
Make sure that all vehicle occupants always
maintain a sufficient distance to the air out-
lets. If necessary, redirect the airflow to
another area of the vehicle interior.
In order to ensure the direct flow of fresh airthrough the air vents into the vehicle interior,please observe the following notes:
Rkeep the air inlet between the windshieldand the hood free of blockages, such as ice,snow or leaves.
Rnever cover the air vents or air intake grillesin the vehicle interior.
iFor optimal climate control in the vehicle,open the air vents completely and set theadjusters to the central position.
Setting the air vents
CSide window defroster vent
DSide air vent
ISide air vent open
JSide air vent closed
XTo open a side air vent:turn the adjusterin side air ventDto the left in positionI.
XTo close a side air vent:turn the adjusterin side air ventDclockwise as far as it willgo to positionJ.
iThe center and rear air vents are adjustedin the same way.
Air vents123
Climate control
Z

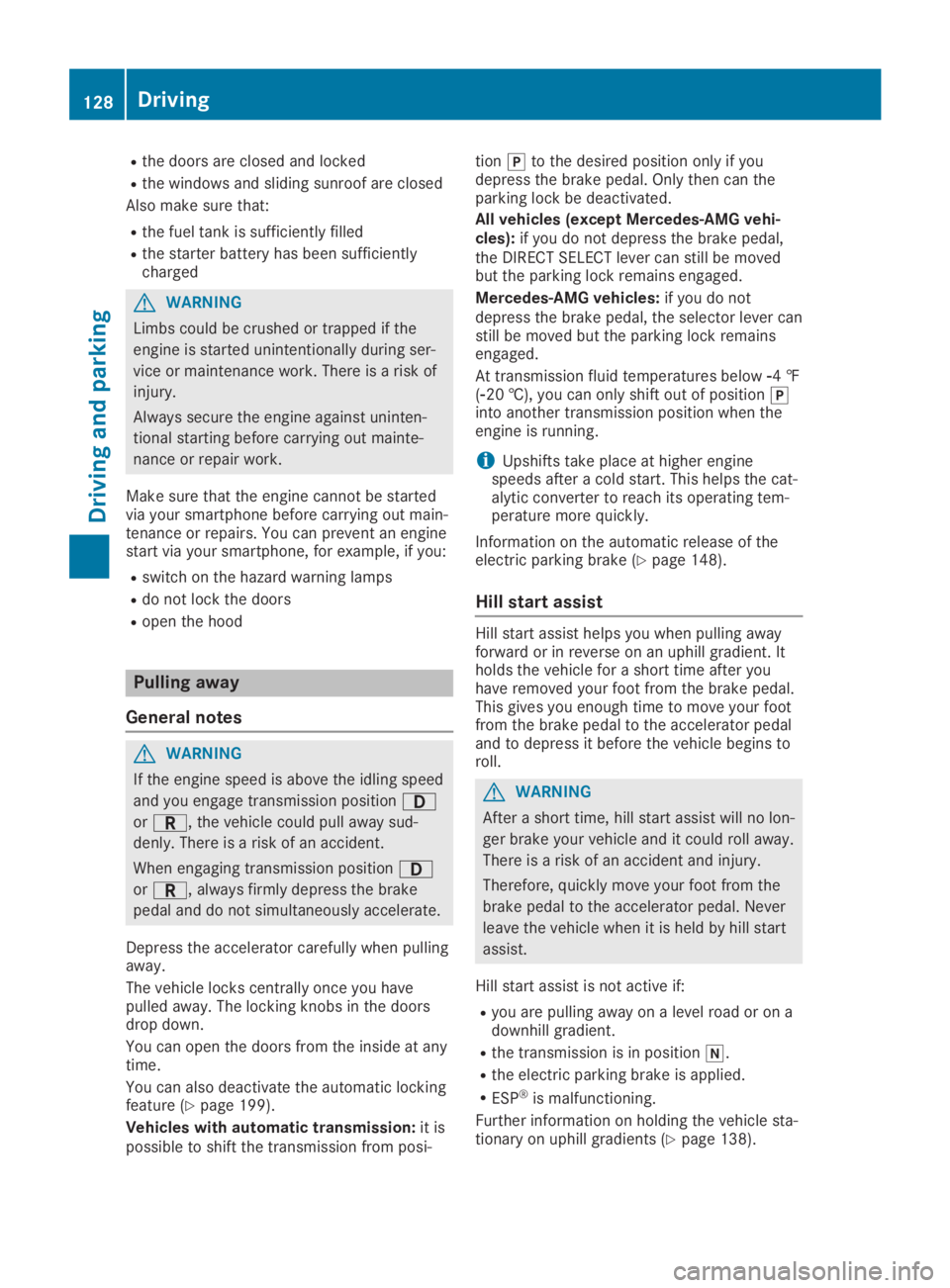

Rthe doors are closed and locked
Rthe windows and sliding sunroof are closed
Also make sure that:
Rthe fuel tank is sufficiently filled
Rthe starter battery has been sufficientlycharged
GWARNING
Limbs could be crushed or trapped if the
engine is started unintentionally during ser-
vice or maintenance work. There is a risk of
injury.
Always secure the engine against uninten-
tional starting before carrying out mainte-
nance or repair work.
Make sure that the engine cannot be startedvia your smartphone before carrying out main-tenance or repairs. You can prevent an enginestart via your smartphone, for example, if you:
Rswitch on the hazard warning lamps
Rdo not lock the doors
Ropen the hood
Pulling away
General notes
GWARNING
If the engine speed is above the idling speed
and you engage transmission position:
orF, the vehicle could pull away sud-
denly. There is a risk of an accident.
When engaging transmission position:
orF, always firmly depress the brake
pedal and do not simultaneously accelerate.
Depress the accelerator carefully when pullingaway.
The vehicle locks centrally once you havepulled away. The locking knobs in the doorsdrop down.
You can open the doors from the inside at anytime.
You can also deactivate the automatic lockingfeature (Ypage 199).
Vehicles with automatic transmission:it ispossible to shift the transmission from posi-
tion]to the desired position only if youdepress the brake pedal. Only then can theparking lock be deactivated.
All vehicles (except Mercedes-AMG vehi-cles):if you do not depress the brake pedal,the DIRECT SELECT lever can still be movedbut the parking lock remains engaged.
Mercedes-AMG vehicles:if you do notdepress the brake pedal, the selector lever canstill be moved but the parking lock remainsengaged.
At transmission fluid temperatures below

The outside temperature display is in the mul-tifunction display (Ypage 191).
There is a short delay before a change in out-side temperature appears in the multifunctiondisplay.
Coolant temperature gauge
GWARNING
Opening the hood when the engine is over-
heated or when there is a fire in the engine
compartment could expose you to hot gases
or other service products. There is a risk of
injury.
Let an overheated engine cool down before
opening the hood. If there is a fire in the
engine compartment, keep the hood closed
and contact the fire department.
!A display message is shown if the coolanttemperature is too high.
If the coolant temperature is over 248 ‡(120 †), do not continue driving. Theengine will otherwise be damaged.
The coolant temperature gage is in the instru-ment cluster on the right-hand side(Ypage 32).
TheHmarking in the coolant temperaturegauge corresponds to a coolant temperatureof approximately 248 ‡ (120 †).
Under normal operating conditions and at thecorrect coolant level, the coolant temperaturegauge may rise to theHmarking.
Operating the on-board computer
Overview
CMultifunction display
DRight control panel

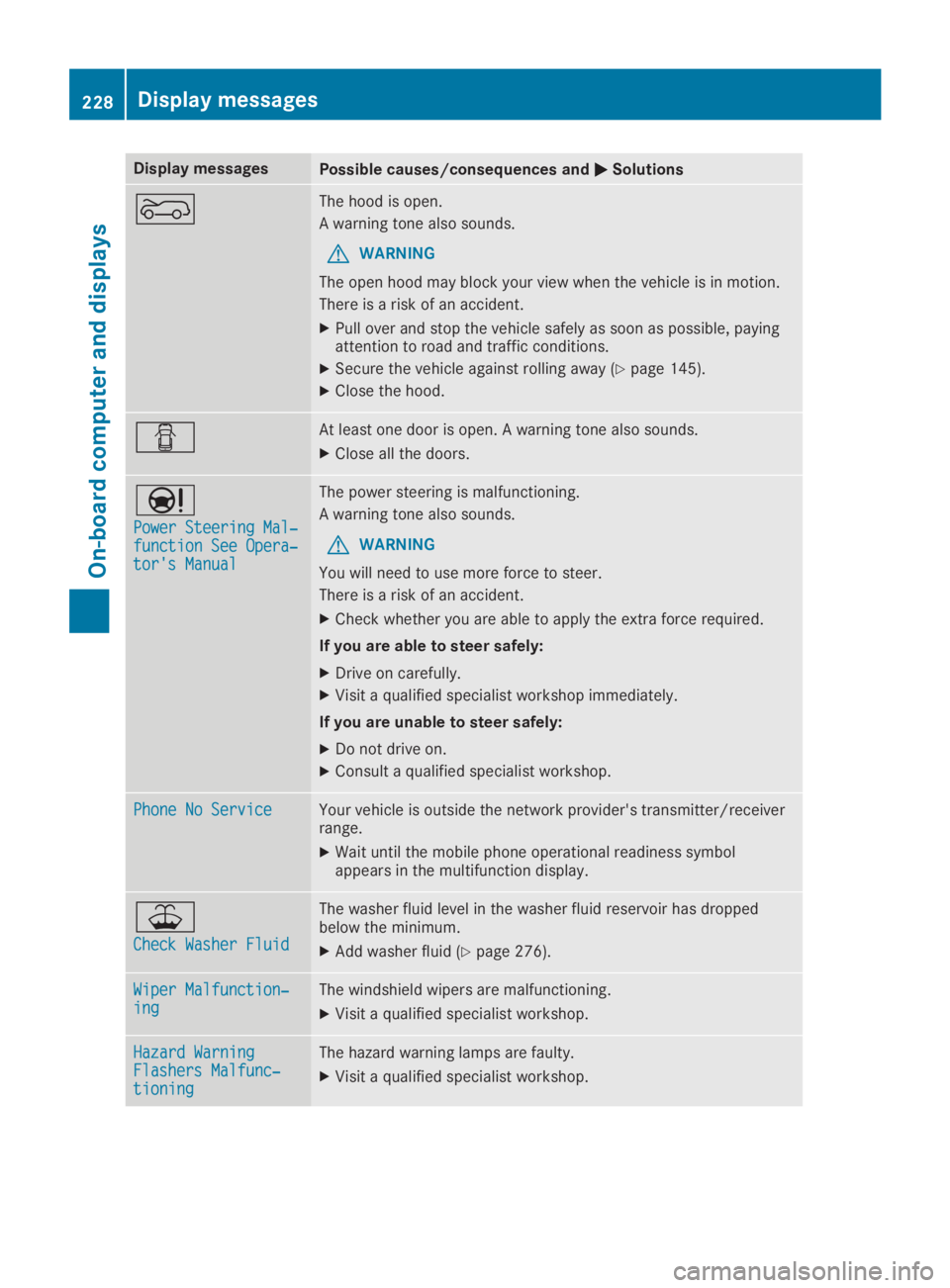

Display messagesPossible causes/consequences andPPSolutions
fThe hood is open.
A warning tone also sounds.
GWARNING
The open hood may block your view when the vehicle is in motion.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, payingattention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 145).
XClose the hood.
QAt least one door is open. A warning tone also sounds.
XClose all the doors.

Engine compartment
Hood
Important safety notes
GWARNING
If the hood is unlatched, it may open up
when the vehicle is in motion and block your
view. There is a risk of an accident.
Never unlatch the hood while driving. Before
every trip, ensure that the hood is locked.
GWARNING
When opening and closing the hood, it may
suddenly fall into the closed position. There
is a risk of injury to persons within range of
movement of the hood.
Open and close the hood only when no one
is within its range of movement.
GWARNING
Opening the hood when the engine is over-
heated or when there is a fire in the engine
compartment could expose you to hot gases
or other service products. There is a risk of
injury.
Let an overheated engine cool down before
opening the hood. If there is a fire in the
engine compartment, keep the hood closed
and contact the fire department.
GWARNING
The engine compartment contains moving
components. Certain components, such as
the radiator fan, may continue to run or start
again suddenly when the ignition is off.
There is a risk of injury.
If you need to do any work inside the engine
compartment:
Rswitch off the ignition
Rnever reach into the area where there is a
risk of danger from moving components,
such as the fan rotation area
Rremove jewelry and watches
Rkeep items of clothing and hair, for exam-
ple, away from moving parts
GWARNING
The ignition system and the fuel injection
system work under high voltage. If you
touch components which are under voltage,
you could get an electric shock. There is a
risk of injury.
Never touch components of the ignition sys-
tem or fuel injection system when the igni-
tion is switched on.
To ensure the flow of fresh air through the airvents into the vehicle interior, please observethe following notes (Ypage 123):
Opening the hood
GWARNING
Certain components in the engine compart-
ment, such as the engine, radiator and parts
of the exhaust system, can become very
hot. Working in the engine compartment
poses a risk of injury.
Where possible, let the engine cool down
and touch only the components described in
the following.
GWARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured
by the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
!Make sure that the windshield wipers arenot folded away from the windshield. Youcould otherwise damage the windshield wip-ers or the hood.
Engine compartment273
Maintenance and care
Z
