2019 MERCEDES-BENZ AMG GT ROADSTER start stop button

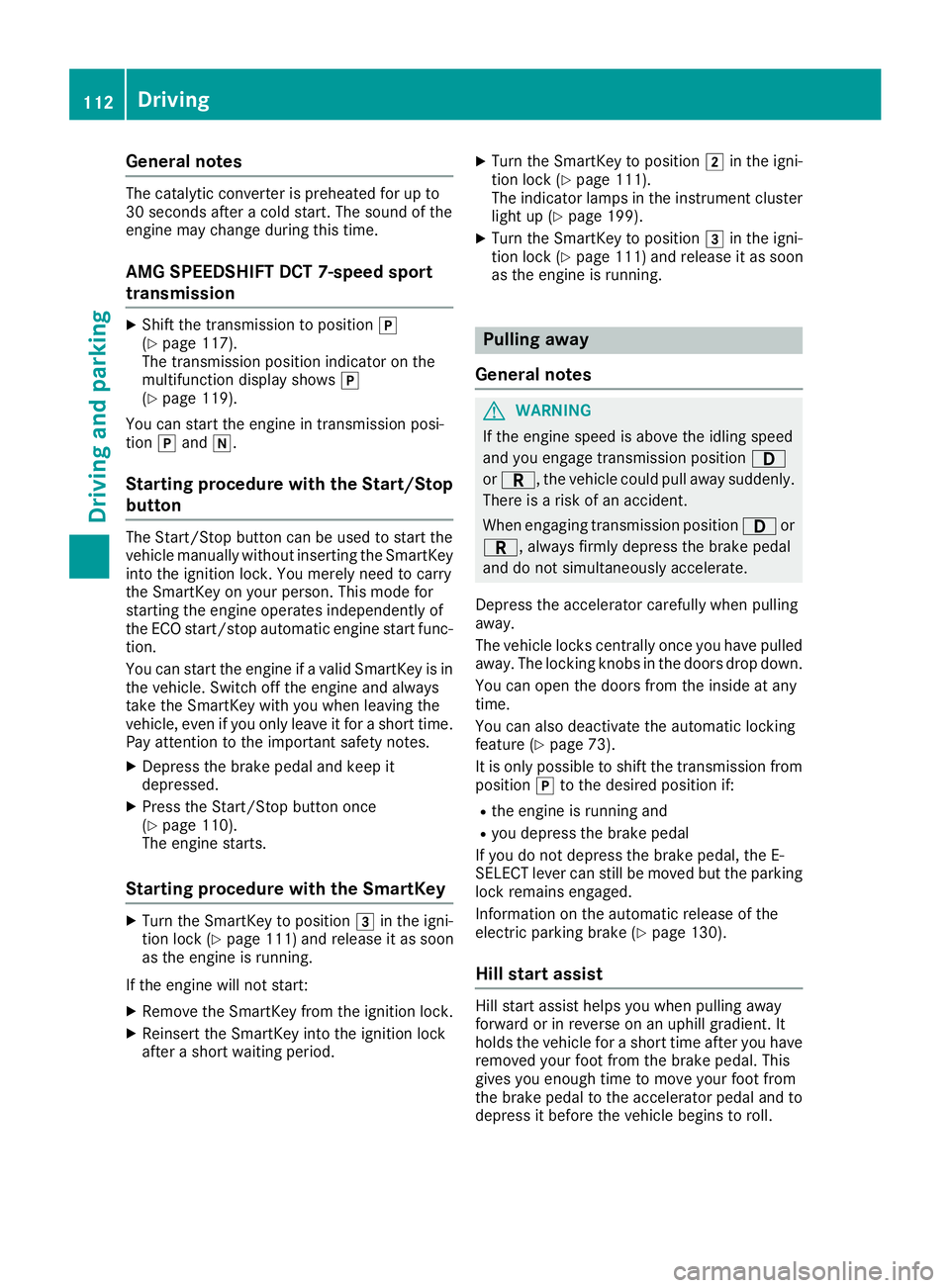

General notes
The catalytic converter is preheated for up to
30 seconds after a cold start. The sound of the
engine may change during this time.
AMG SPEEDSHIFT DCT 7-speed sport
transmission X
Shift the transmission to position 005D
(Y page 117).
The transmission position indicator on the
multifunction display shows 005D
(Y page 119).
You can start the engine in transmission posi-
tion 005Dand 005C.
Starting procedure with the Start/Stop button The Start/Stop button can be used to start the
vehicle manually without inserting the SmartKey into the ignition lock. You merely need to carry
the SmartKey on your person. This mode for
starting the engine operates independently of
the ECO start/stop automatic engine start func- tion.
You can start the engine if a valid SmartKey is in
the vehicle. Switch off the engine and always
take the SmartKey with you when leaving the
vehicle, even if you only leave it for a short time.
Pay attention to the important safety notes.
X Depress the brake pedal and keep it
depressed.
X Press the Start/Stop button once
(Y page 110).
The engine starts.
Starting procedure with the SmartKey X
Turn the SmartKey to position 0049in the igni-
tion lock (Y page 111) and release it as soon
as the engine is running.
If the engine will not start: X Remove the SmartKey from the ignition lock.
X Reinsert the SmartKey into the ignition lock
after a short waiting period. X
Turn the SmartKey to position 0048in the igni-
tion lock (Y page 111).
The indicator lamps in the instrument cluster light up (Y page 199).
X Turn the SmartKey to position 0049in the igni-
tion lock (Y page 111) and release it as soon
as the engine is running. Pulling away
General notes G
WARNING
If the engine speed is above the idling speed
and you engage transmission position 003A
or 0046, the vehicle could pull away suddenly.
There is a risk of an accident.
When engaging transmission position 003Aor
0046, always firmly depress the brake pedal
and do not simultaneously accelerate.
Depress the accelerator carefully when pulling
away.
The vehicle locks centrally once you have pulled
away. The locking knobs in the doors drop down.
You can open the doors from the inside at any
time.
You can also deactivate the automatic locking
feature (Y page 73).
It is only possible to shift the transmission from position 005Dto the desired position if:
R the engine is running and
R you depress the brake pedal
If you do not depress the brake pedal, the E-
SELECT lever can still be moved but the parking
lock remains engaged.
Information on the automatic release of the
electric parking brake (Y page 130).
Hill start assist Hill start assist helps you when pulling away
forward or in reverse on an uphill gradient. It
holds the vehicle for a short time after you have removed your foot from the brake pedal. This
gives you enough time to move your foot from
the brake pedal to the accelerator pedal and to
depress it before the vehicle begins to roll. 112
DrivingDriving and parking

G

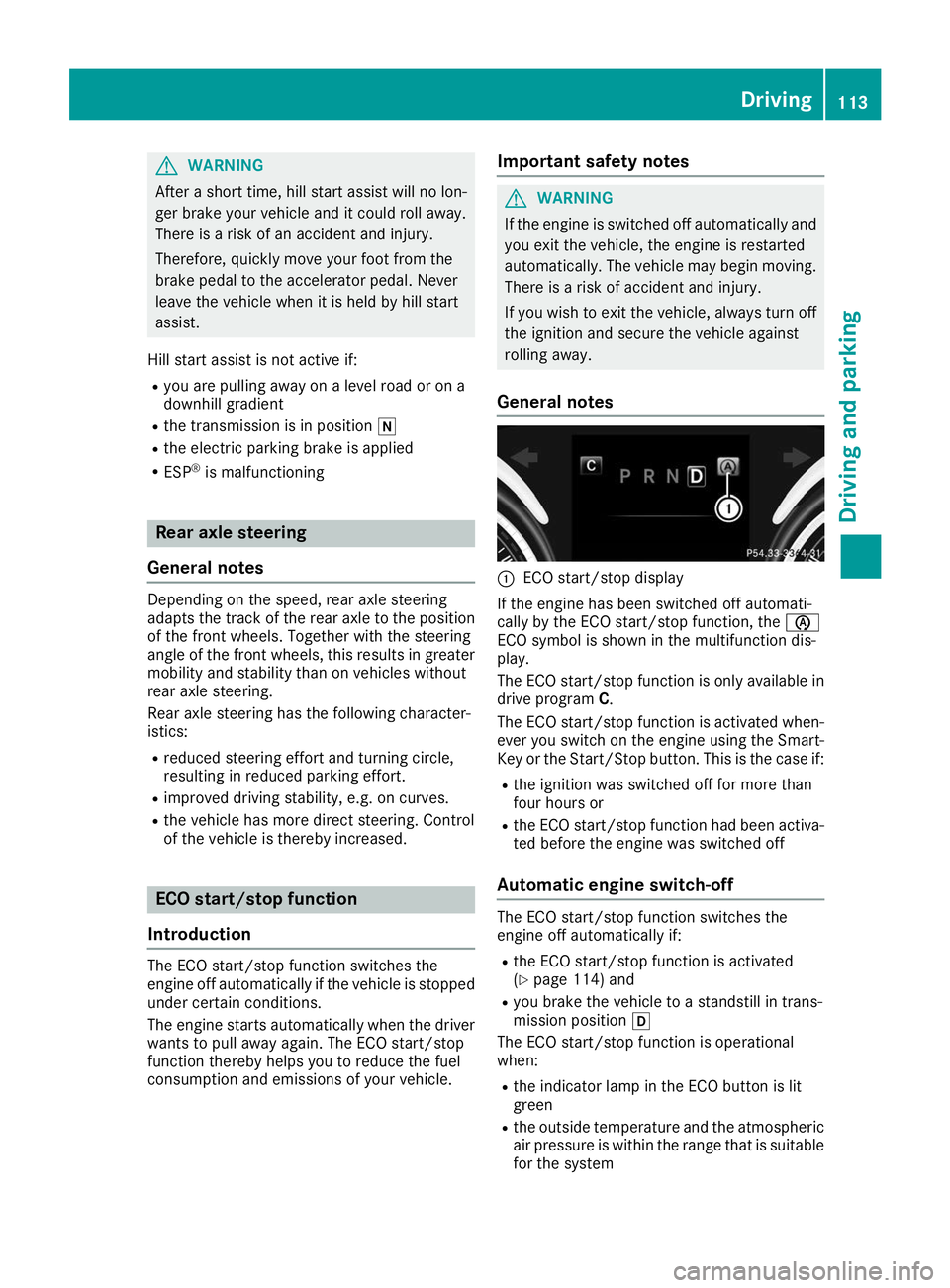

WARNING
After a short time, hill start assist will no lon-
ger brake your vehicle and it could roll away.
There is a risk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
Hill start assist is not active if:
R you are pulling away on a level road or on a
downhill gradient
R the transmission is in position 005C
R the electric parking brake is applied
R ESP ®
is malfunctioning Rear axle steering
General notes Depending on the speed, rear axle steering
adapts the track of the rear axle to the position
of the front wheels. Together with the steering
angle of the front wheels, this results in greater mobility and stability than on vehicles without
rear axle steering.
Rear axle steering has the following character-
istics:
R reduced steering effort and turning circle,
resulting in reduced parking effort.
R improved driving stability, e.g. on curves.
R the vehicle has more direct steering. Control
of the vehicle is thereby increased. ECO start/stop function
Introduction The ECO start/stop function switches the
engine off automatically if the vehicle is stopped
under certain conditions.
The engine starts automatically when the driver
wants to pull away again. The ECO start/stop
function thereby helps you to reduce the fuel
consumption and emissions of your vehicle. Important safety notes G
WARNING
If the engine is switched off automatically and you exit the vehicle, the engine is restarted
automatically. The vehicle may begin moving. There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against
rolling away.
General notes 0043
ECO start/stop display
If the engine has been switched off automati-
cally by the ECO start/stop function, the 00D6
ECO symbol is shown in the multifunction dis-
play.
The ECO start/stop function is only available in drive program C.
The ECO start/stop function is activated when-
ever you switch on the engine using the Smart-
Key or the Start/Stop button. This is the case if:
R the ignition was switched off for more than
four hours or
R the ECO start/stop function had been activa-
ted before the engine was switched off
Automatic engine switch-off The ECO start/stop function switches the
engine off automatically if:
R the ECO start/stop function is activated
(Y page 114) and
R you brake the vehicle to a standstill in trans-
mission position 005B
The ECO start/stop function is operational
when:
R the indicator lamp in the ECO button is lit
green
R the outside temperature and the atmospheric
air pressure is within the range that is suitable
for the system Driving
113Driving and parking Z

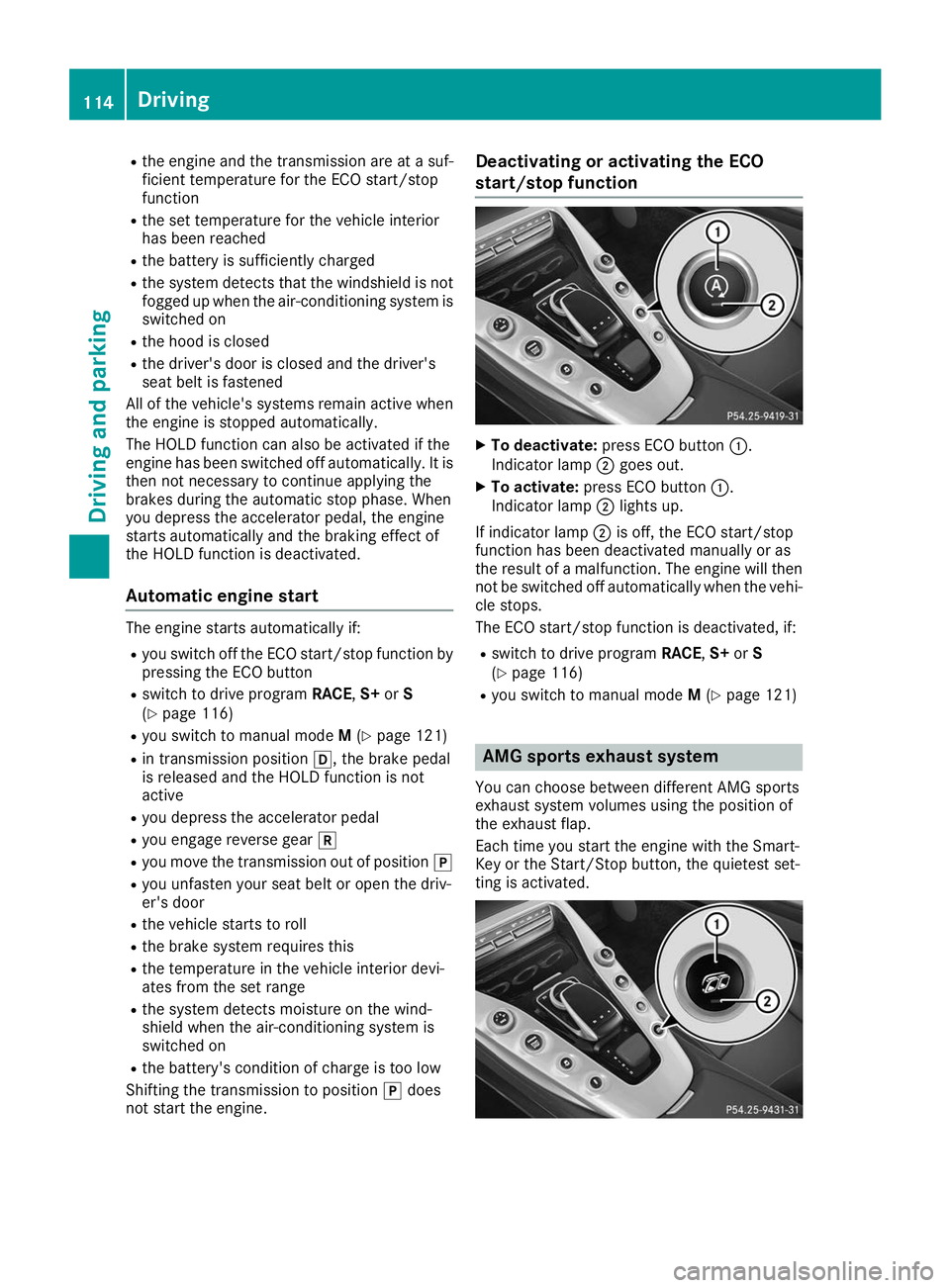

R
the engine and the transmission are at a suf-
ficient temperature for the ECO start/stop
function
R the set temperature for the vehicle interior
has been reached
R the battery is sufficiently charged
R the system detects that the windshield is not
fogged up when the air-conditioning system is switched on
R the hood is closed
R the driver's door is closed and the driver's
seat belt is fastened
All of the vehicle's systems remain active when
the engine is stopped automatically.
The HOLD function can also be activated if the
engine has been switched off automatically. It is then not necessary to continue applying the
brakes during the automatic stop phase. When
you depress the accelerator pedal, the engine
starts automatically and the braking effect of
the HOLD function is deactivated.
Automatic engine start The engine starts automatically if:
R you switch off the ECO start/stop function by
pressing the ECO button
R switch to drive program RACE,S+orS
(Y page 116)
R you switch to manual mode M(Y page 121)
R in transmission position 005B, the brake pedal
is released and the HOLD function is not
active
R you depress the accelerator pedal
R you engage reverse gear 005E
R you move the transmission out of position 005D
R you unfasten your seat belt or open the driv-
er's door
R the vehicle starts to roll
R the brake system requires this
R the temperature in the vehicle interior devi-
ates from the set range
R the system detects moisture on the wind-
shield when the air-conditioning system is
switched on
R the battery's condition of charge is too low
Shifting the transmission to position 005Ddoes
not start the engine. Deactivating or activating the ECO
start/stop function
X
To deactivate: press ECO button 0043.
Indicator lamp 0044goes out.
X To activate: press ECO button 0043.
Indicator lamp 0044lights up.
If indicator lamp 0044is off, the ECO start/stop
function has been deactivated manually or as
the result of a malfunction. The engine will then
not be switched off automatically when the vehi- cle stops.
The ECO start/stop function is deactivated, if:
R switch to drive program RACE,S+orS
(Y page 116)
R you switch to manual mode M(Y page 121) AMG sports exhaust system
You can choose between different AMG sports
exhaust system volumes using the position of
the exhaust flap.
Each time you start the engine with the Smart-
Key or the Start/Stop button, the quietest set-
ting is activated. 114
DrivingDriving an
d parking

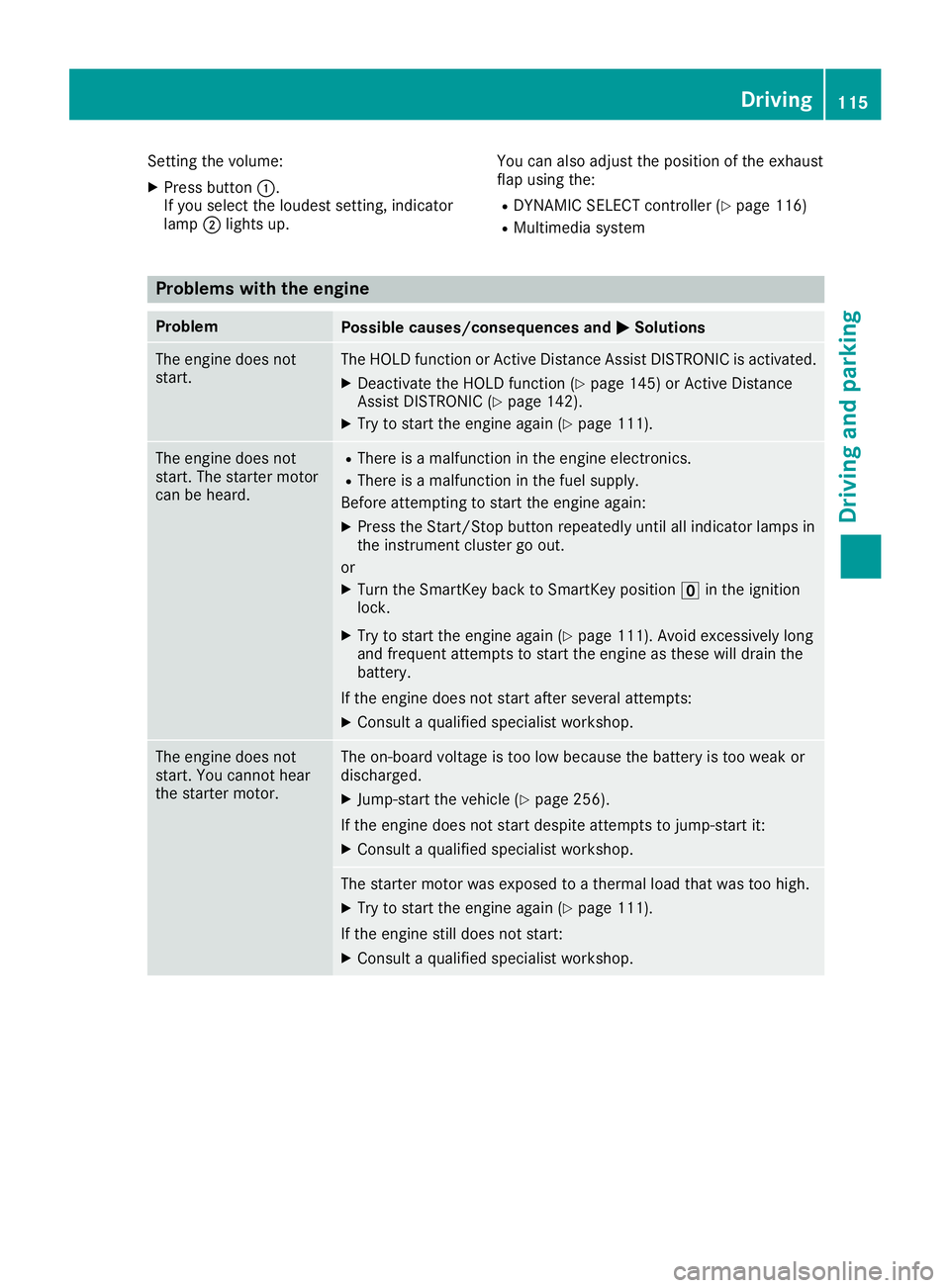

Setting the volume:
X Press button 0043.
If you select the loudest setting, indicator
lamp 0044lights up. You can also adjust the position of the exhaust
flap using the:
R DYNAMIC SELECT controller (Y page 116)
R Multimedia system Problems with the engine
Problem
Possible causes/consequences and
0050 0050Solutions The engine does not
start. The HOLD function or Active Distance Assist DISTRONIC is activated.
X Deactivate the HOLD function (Y page 145) or Active Distance
Assist DISTRONIC (Y page 142).
X Try to start the engine again (Y page 111).The engine does not
start. The starter motor
can be heard. R
There is a malfunction in the engine electronics.
R There is a malfunction in the fuel supply.
Before attempting to start the engine again:
X Press the Start/Stop button repeatedly until all indicator lamps in
the instrument cluster go out.
or X Turn the SmartKey back to SmartKey position 0092in the ignition
lock.
X Try to start the engine again (Y page 111). Avoid excessively long
and frequent attempts to start the engine as these will drain the
battery.
If the engine does not start after several attempts: X Consult a qualified specialist workshop. The engine does not
start. You cannot hear
the starter motor. The on-board voltage is too low because the battery is too weak or
discharged.
X Jump-start the vehicle (Y page 256).
If the engine does not start despite attempts to jump-start it:
X Consult a qualified specialist workshop. The starter motor was exposed to a thermal load that was too high.
X Try to start the engine again (Y page 111).
If the engine still does not start:
X Consult a qualified specialist workshop. Driving
115Driving and parking Z

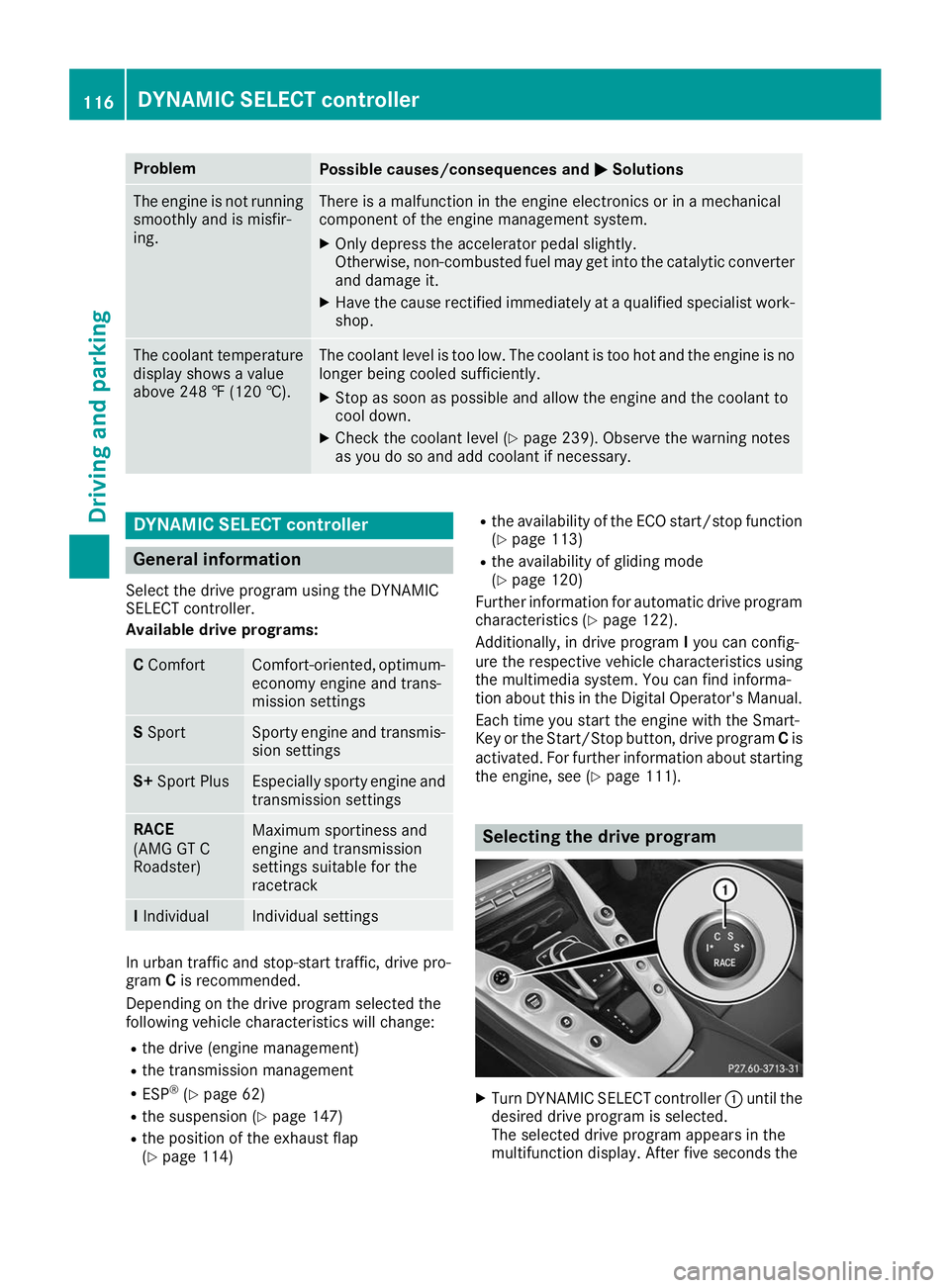

Problem
Possible causes/consequences and
0050
0050Solutions The engine is not running
smoothly and is misfir-
ing. There is a malfunction in the engine electronics or in a mechanical
component of the engine management system.
X Only depress the accelerator pedal slightly.
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it.
X Have the cause rectified immediately at a qualified specialist work-
shop. The coolant temperature
display shows a value
above 248 ‡ (120 †). The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently.
X Stop as soon as possible and allow the engine and the coolant to
cool down.
X Check the coolant level (Y page 239). Observe the warning notes
as you do so and add coolant if necessary. DYNAMIC SELECT controller
General information
Select the drive program using the DYNAMIC
SELECT controller.
Available drive programs: C
Comfort Comfort-oriented, optimum-
economy engine and trans-
mission settings S
Sport Sporty engine and transmis-
sion settings S+
Sport Plus Especially sporty engine and
transmission settings RACE
(AMG GT C
Roadster)
Maximum sportiness and
engine and transmission
settings suitable for the
racetrack
I
Individual Individual settings
In urban traffic and stop-start traffic, drive pro-
gram
Cis recommended.
Depending on the drive program selected the
following vehicle characteristics will change:
R the drive (engine management)
R the transmission management
R ESP ®
(Y page 62)
R the suspension (Y page 147)
R the position of the exhaust flap
(Y page 114) R
the availability of the ECO start/stop function
(Y page 113)
R the availability of gliding mode
(Y page 120)
Further information for automatic drive program characteristics (Y page 122).
Additionally, in drive program Iyou can config-
ure the respective vehicle characteristics using
the multimedia system. You can find informa-
tion about this in the Digital Operator's Manual.
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program Cis
activated. For further information about starting
the engine, see (Y page 111). Selecting the drive program
X
Turn DYNAMIC SELECT controller 0043until the
desired drive program is selected.
The selected drive program appears in the
multifunction display. After five seconds the 116
DYNAMIC SELECT controllerDriving and parking

display goes out and the symbol of the selec-
ted drive program appears.
The drive program indicator on DYNAMIC
SELECT controller 0043lights up in red.
In addition, the current drive program settings
are displayed in the multimedia system dis-

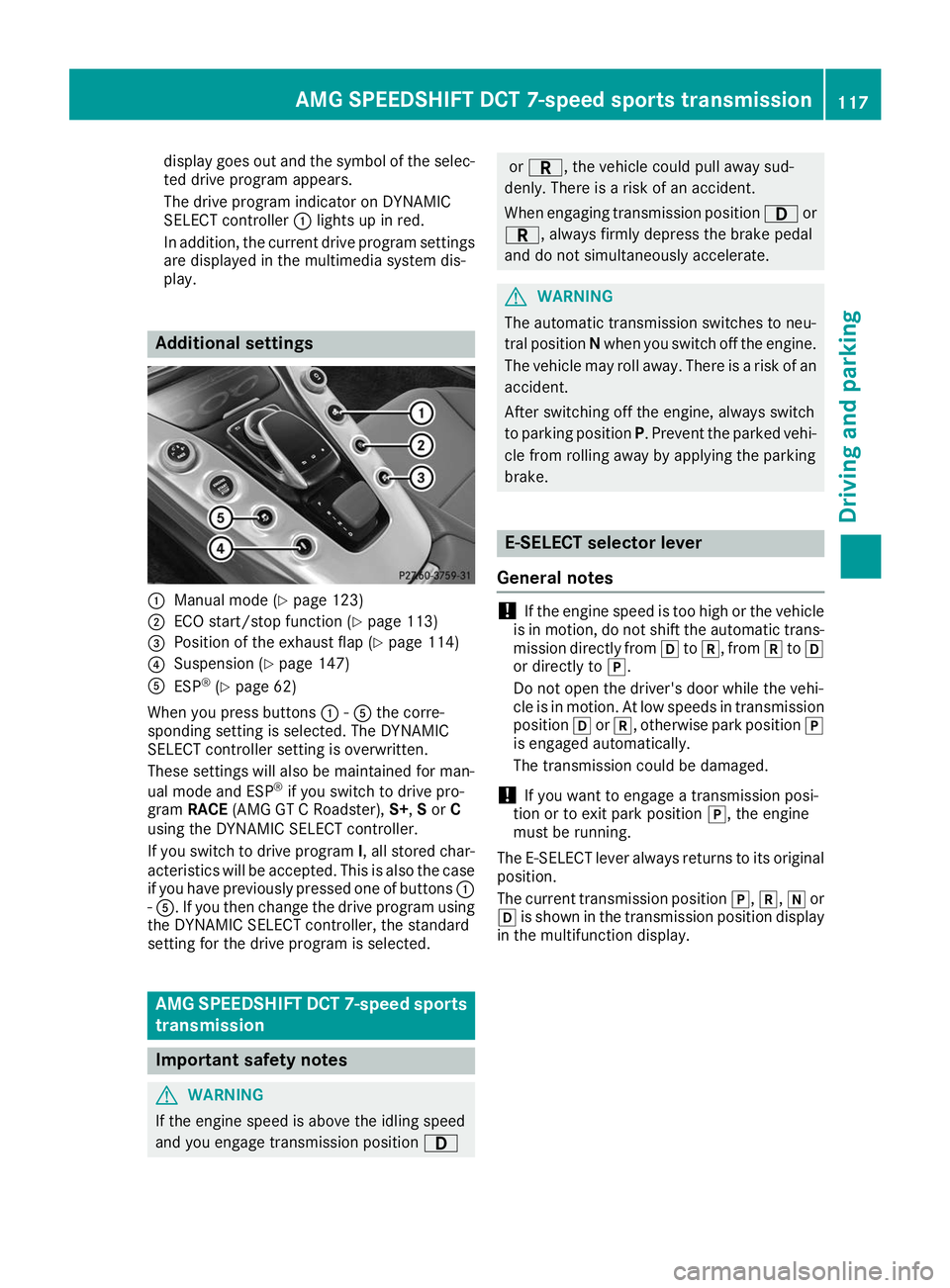

play. Additional settings
0043
Manual mode (Y page 123)
0044 ECO start/stop function (Y page 113)
0087 Position of the exhaust flap (Y page 114)
0085 Suspension (Y page 147)
0083 ESP ®
(Y page 62)
When you press buttons 0043-0083 the corre-
sponding setting is selected. The DYNAMIC
SELECT controller setting is overwritten.
These settings will also be maintained for man-
ual mode and ESP ®
if you switch to drive pro-
gram RACE (AMG GT C Roadster), S+,S or C
using the DYNAMIC SELECT controller.
If you switch to drive program I, all stored char-
acteristics will be accepted. This is also the case
if you have previously pressed one of buttons 0043
- 0083. If you then change the drive program using
the DYNAMIC SELECT controller, the standard
setting for the drive program is selected. AMG SPEEDSHIFT DCT 7-speed sports
transmission Important safety notes
G
WARNING
If the engine speed is above the idling speed
and you engage transmission position 003A or
0046, the vehicle could pull away sud-
denly. There is a risk of an accident.
When engaging transmission position 003Aor
0046, always firmly depress the brake pedal
and do not simultaneously accelerate. G
WARNING
The automatic transmission switches to neu-
tral position Nwhen you switch off the engine.
The vehicle may roll away. There is a risk of an
accident.
After switching off the engine, always switch
to parking position P. Prevent the parked vehi-
cle from rolling away by applying the parking
brake. E-SELECT selector lever
General notes !
If the engine speed is too high or the vehicle
is in motion, do not shift the automatic trans- mission directly from 005Bto005E, from 005Eto005B
or directly to 005D.
Do not open the driver's door while the vehi-
cle is in motion. At low speeds in transmission
position 005Bor005E, otherwise park position 005D
is engaged automatically.
The transmission could be damaged.
! If you want to engage a transmission posi-
tion or to exit park position 005D, the engine
must be running.
The E-SELECT lever always returns to its original position.
The current transmission position 005D,005E, 005Cor
005B is shown in the transmission position display
in the multifunction display. AMG SPEEDSHIFT DCT 7-speed sports transmission
117Driving and parking Z

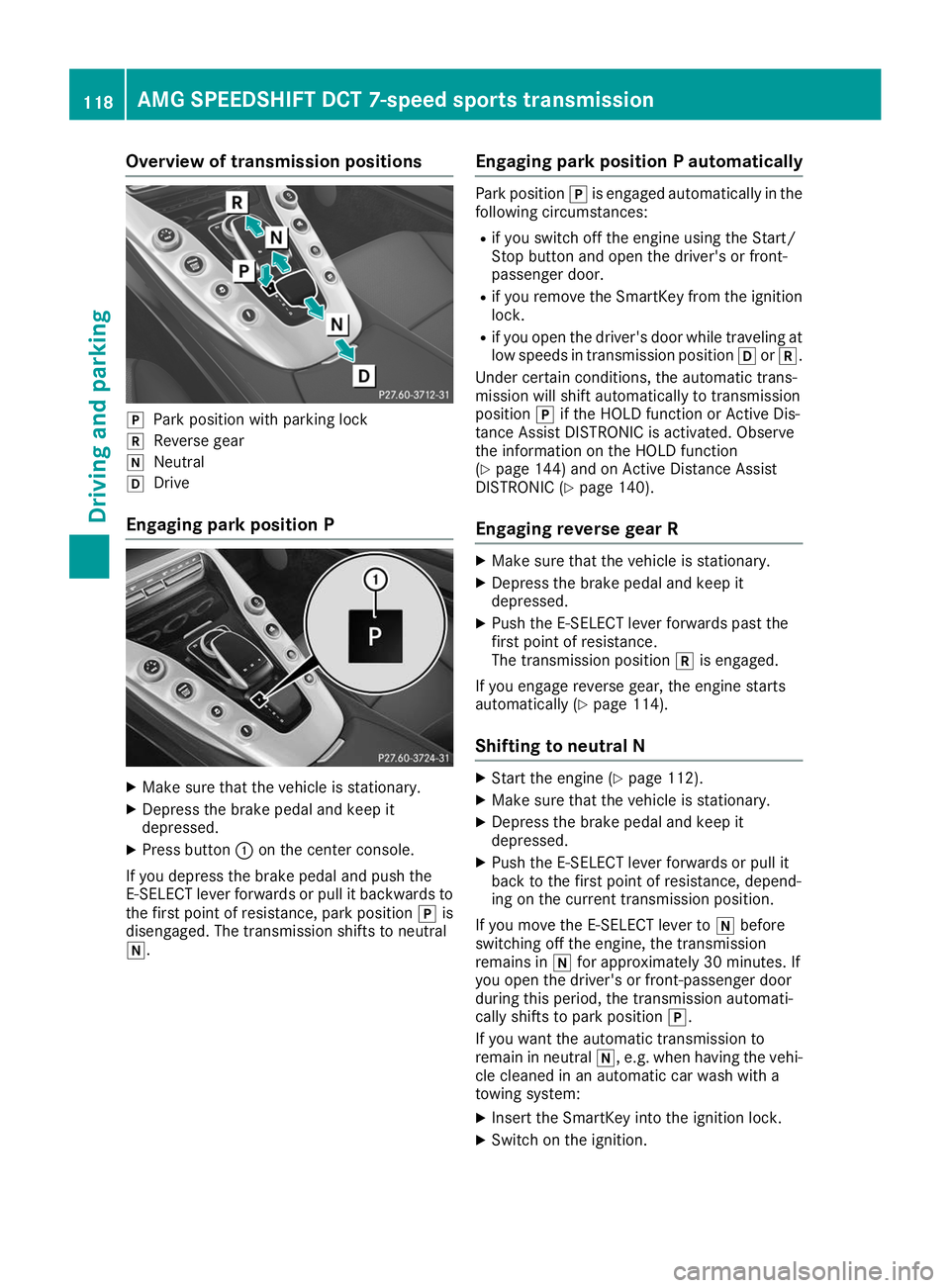

Overview of transmission positions
005D
Park position with parking lock
005E Reverse gear
005C Neutral
005B Drive
Engaging park position P X
Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Press button 0043on the center console.
If you depress the brake pedal and push the
E‑SELECT lever forwards or pull it backwards to
the first point of resistance, park position 005Dis
disengaged. The transmission shifts to neutral
005C. Engaging park position P automatically Park position
005Dis engaged automatically in the
following circumstances:
R if you switch off the engine using the Start/
Stop button and open the driver's or front-
passenger door.
R if you remove the SmartKey from the ignition
lock.
R if you open the driver's door while traveling at
low speeds in transmission position 005Bor005E.
Under certain conditions, the automatic trans-
mission will shift automatically to transmission
position 005Dif the HOLD function or Active Dis-
tance Assist DISTRONIC is activated. Observe
the information on the HOLD function
(Y page 144) and on Active Distance Assist
DISTRONIC (Y page 140).
Engaging reverse gear R X
Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever forwards past the
first point of resistance.
The transmission position 005Eis engaged.
If you engage reverse gear, the engine starts
automatically (Y page 114).
Shifting to neutral N X
Start the engine (Y page 112).
X Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever forwards or pull it
back to the first point of resistance, depend-
ing on the current transmission position.
If you move the E-SELECT lever to 005Cbefore
switching off the engine, the transmission
remains in 005Cfor approximately 30 minutes. If
you open the driver's or front-passenger door
during this period, the transmission automati-
cally shifts to park position 005D.
If you want the automatic transmission to
remain in neutral 005C, e.g. when having the vehi-
cle cleaned in an automatic car wash with a
towing system:
X Insert the SmartKey into the ignition lock.
X Switch on the ignition. 118
AMG SPEEDSHIFT DCT 7-speed sports transmissionDriving and parking

X
Depress the brake pedal and keep it
depressed.
X Shift to neutral 005C.
X Release the brake pedal.
X Release the electric parking brake.
X Switch the ignition off.
X Turn the SmartKey to position 0048and leave it
in the ignition lock.
You can find further information under "Car
wash" (Y page 242).

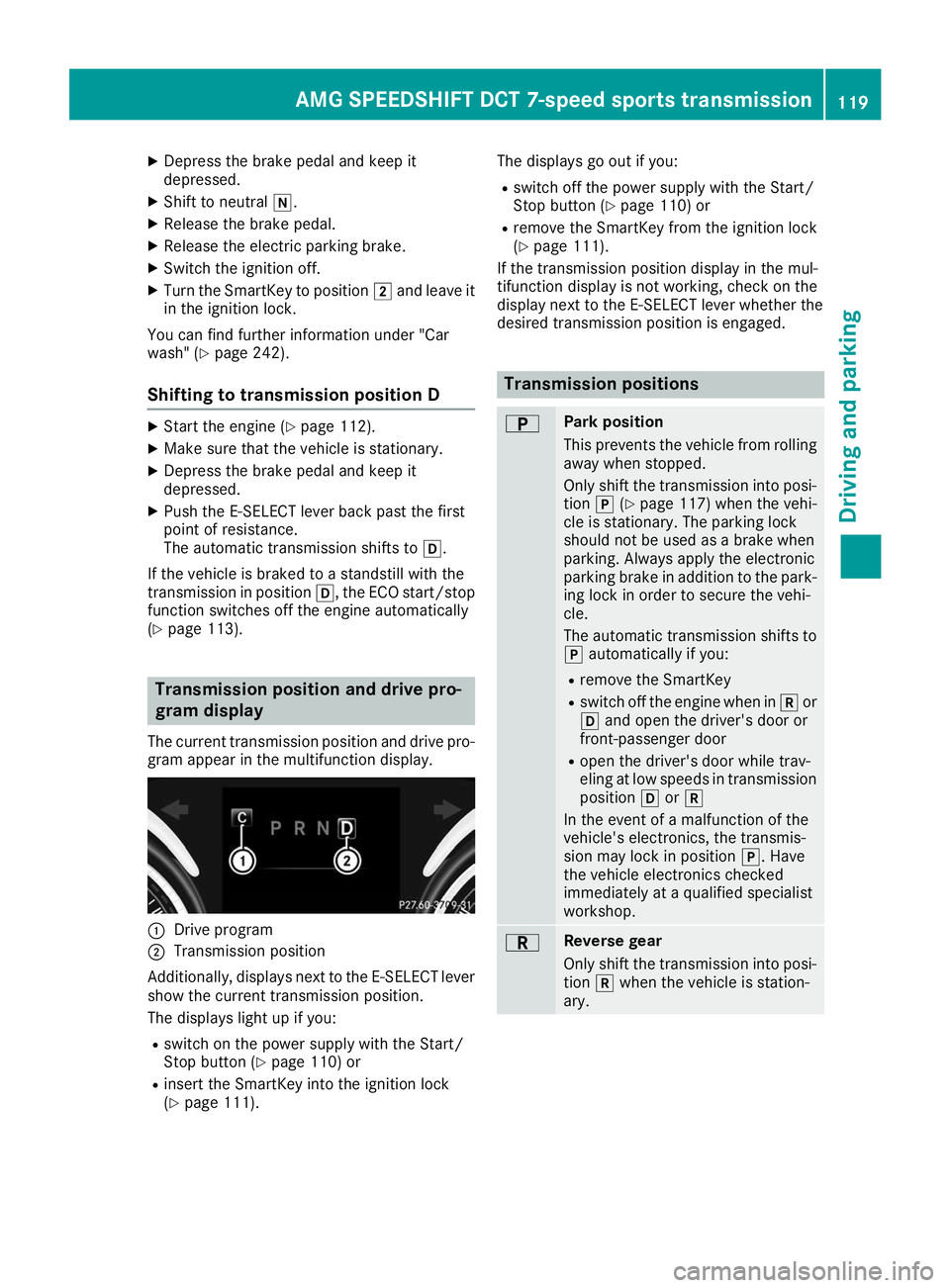

Shifting to transmission position D X
Start the engine (Y page 112).
X Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever back past the first
point of resistance.
The automatic transmission shifts to 005B.
If the vehicle is braked to a standstill with the
transmission in position 005B, the ECO start/stop
function switches off the engine automatically
(Y page 113). Transmission position and drive pro-
gram display
The current transmission position and drive pro-
gram appear in the multifunction display. 0043
Drive program
0044 Transmission position
Additionally, displays next to the E ‑SELECT lever
show the current transmission position.
The displays light up if you:
R switch on the power supply with the Start/
Stop button (Y page 110) or
R insert the SmartKey into the ignition lock
(Y page 111). The displays go out if you:
R
switch off the power supply with the Start/
Stop button (Y page 110) or
R remove the SmartKey from the ignition lock
(Y page 111).
If the transmission position display in the mul-
tifunction display is not working, check on the
display next to the E-SELECT lever whether the
desired transmission position is engaged. Transmission positions
0045 Park position
This prevents the vehicle from rolling away when stopped.
Only shift the transmission into posi-
tion 005D(Ypage 117) when the vehi-
cle is stationary. The parking lock
should not be used as a brake when
parking. Always apply the electronic
parking brake in addition to the park-
ing lock in order to secure the vehi-
cle.
The automatic transmission shifts to 005D automatically if you:
R remove the SmartKey
R switch off the engine when in 005Eor
005B and open the driver's door or
front-passenger door
R open the driver's door while trav-
eling at low speeds in transmission
position 005Bor005E
In the event of a malfunction of the
vehicle's electronics, the transmis-
sion may lock in position 005D. Have
the vehicle electronics checked
immediately at a qualified specialist
workshop. 0046 Reverse gear
Only shift the transmission into posi-
tion 005Ewhen the vehicle is station-
ary. AMG SPEEDSHIFT
DCT 7-speed sports transmission
119Driving and parking Z
