2019 LEXUS LX570 Owners Manual

561
LX570_OM_OM60R07U_(U) 8Vehicle specifications 8-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 562
Fuel information.......................... 570
Tire information .......................... 573
8-2. Customization
Customizable features ............584
8-3. Initialization
Items to initialize .........................598

562
LX570_OM_OM60R07U_(U) 8-1. Specifications
Maintenance data (fuel, oil level, etc.)
* 1
: Unladen vehicles
* 2
: Vehicles with roof antenna
* 3
: Vehicles with 20-inch tires
* 4
: Vehicles with 21-inch tiresDimensions and weights Overall length 200.0 in. (5080 mm)
Overall width 78.0 in. (1980 mm)
Overall height
* 1
73.4 in. (1865 mm)
75.2 in. (1910 mm)
* 2
Wheelbase 112.2 in. (2850 mm)
Tread Front 64.8 in. (1645 mm)
* 3
65.0 in. (1650 mm)
* 4
Rear 64.6 in. (1640 mm)
* 3
65.0 in. (1650 mm)
* 4
Vehicle capacity weight
(Occupants + luggage) 1285 lb. (580 kg)
TWR
(trailer weight +
cargo weight) With brake 7000 lb. (3175 kg)
Without
brake 1000 lb. (454 kg)

LX570_OM_OM60R07U_(U) 5638-1. Specifications
8
Vehicle specifications ■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
■
Engine number
The engine number is stamped on
the engine block as shown.Vehicle identification

564

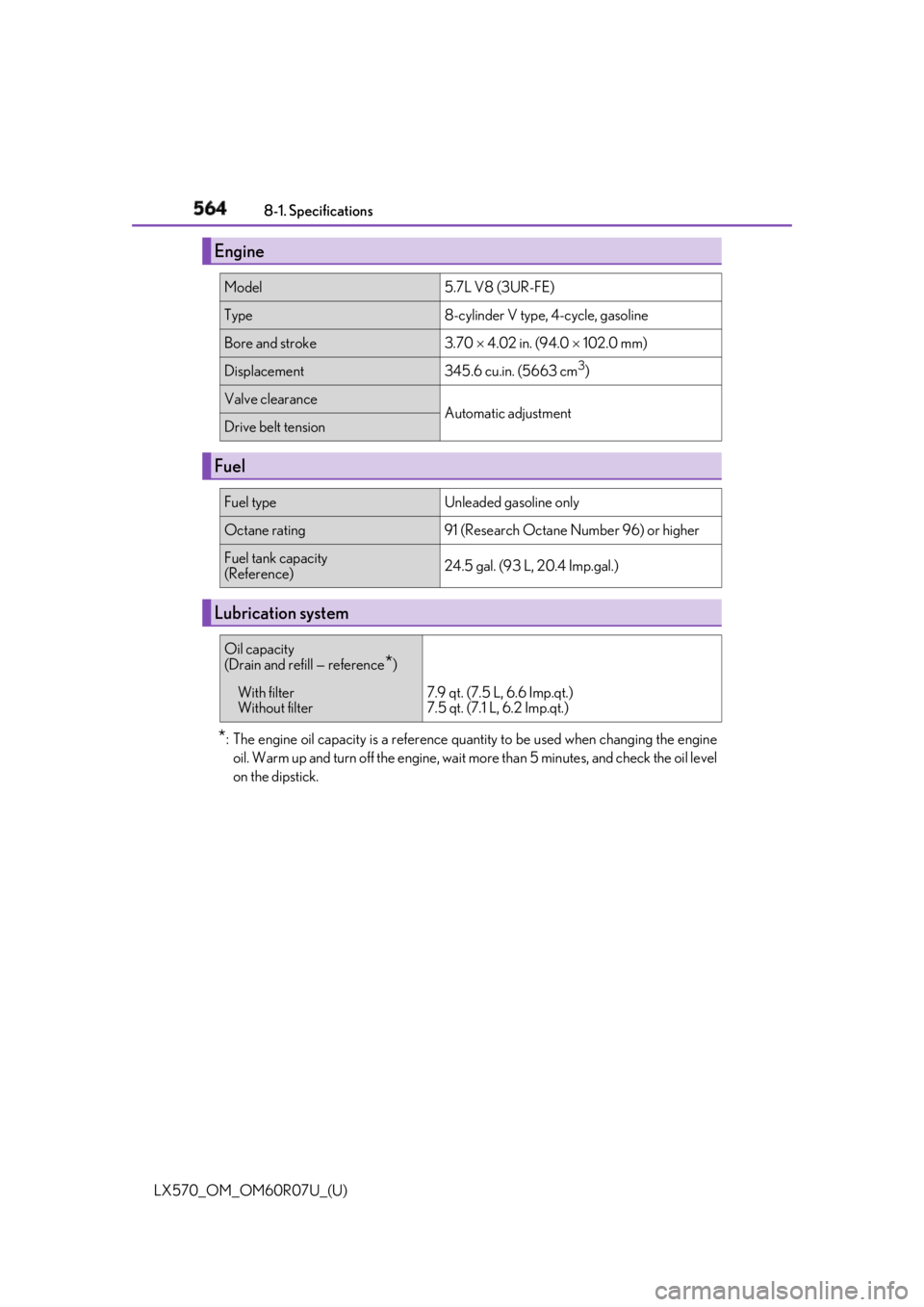

LX570_OM_OM60R07U_(U) 8-1. Specifications
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.Engine Model 5.7L V8 (3UR-FE)
Type 8-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement 345.6 cu.in. (5663 cm 3
)
Valve clearance
Automatic adjustment
Drive belt tension
Fuel Fuel type Unleaded gasoline only
Octane rating 91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference) 24.5 gal. (93 L, 20.4 Imp.gal.)
Lubrication system Oil capacity
(Drain and refill — reference
* )
With filter
Without filter 7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)

LX570_OM_OM60R07U_(U) 5658-1. Specifications
8
Vehicle specifications ■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the ve hicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi cation Advisory Committee (ILSAC) Cer-
tification Mark is added to some oil cont ainers to help you select the oil you
should use. Outside te mperature

566
LX570_OM_OM60R07U_(U) 8-1. Specifications
Cooling system Capacity (Reference) 17.1 qt. (16.2 L, 14.3 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system Spark plug
Make
Gap DENSO SK20HR11
0.043 in. (1.1 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Electrical system Battery
Open voltage at 68  F
(20  C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates 5 A max.

LX570_OM_OM60R07U_(U) 5678-1. Specifications
8
Vehicle specifications Your Lexus vehicle is filled with “Toyot a Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Ge nuine Differential Gear O il” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
The fluid capacity is the quantity of refe rence. If replacement is necessary, con-
tact your Lexus dealer.Differential Oil capacity
Front
Rear 2.01 qt. (1.90 L, 1.67 Imp.qt.)
4.44 qt. (4.20 L, 3.70 Imp.qt.)
Oil type and viscosity Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Automatic transmission Fluid capacity 10.7 qt. (10.1 L, 8.9 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE ■
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.

568

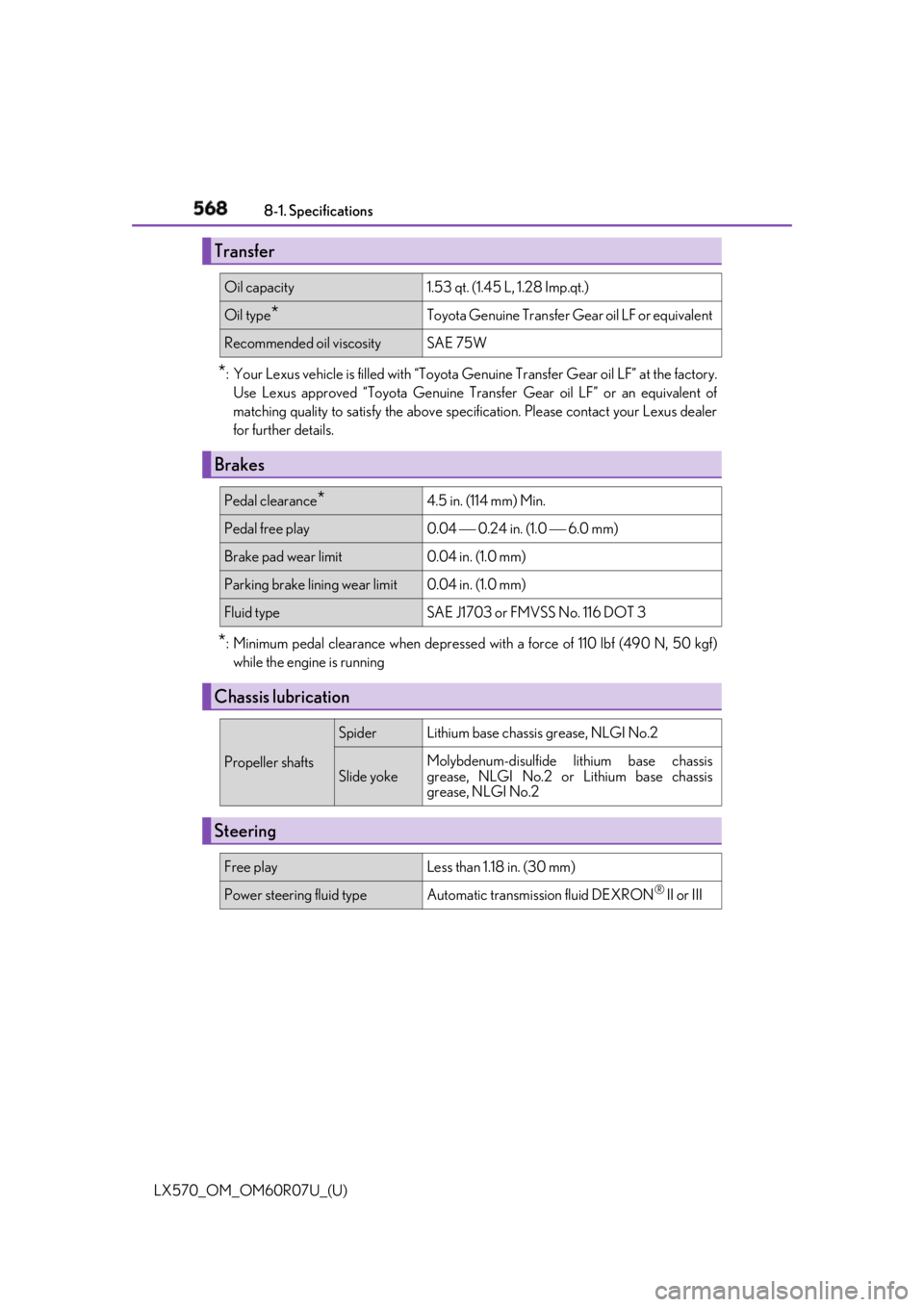

LX570_OM_OM60R07U_(U) 8-1. Specifications
* : Your Lexus vehicle is filled with “Toyota Ge nuine Transfer Gear oil LF” at the factory.
Use Lexus approved “Toyota Genuine Transf er Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
* : Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50 kgf)
while the engine is runningTransfer Oil capacity 1.53 qt. (1.45 L, 1.28 Imp.qt.)
Oil type
* Toyota Genuine Transfer Gear oil LF or equivalent
Recommended oil viscosity SAE 75W
Brakes Pedal clearance
* 4.5 in. (114 mm) Min.
Pedal free play 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Chassis lubrication Propeller shafts Spider Lithium base chassis grease, NLGI No.2
Slide yoke Molybdenum-disulfide lithium base chassis
grease, NLGI No.2 or Lithium base chassis
grease, NLGI No.2
Steering Free play Less than 1.18 in. (30 mm)
Power steering fluid type Automatic transmission fluid DEXRON ®
II or III
