2019 HONDA CIVIC SEDAN Owner's Manual (in English)

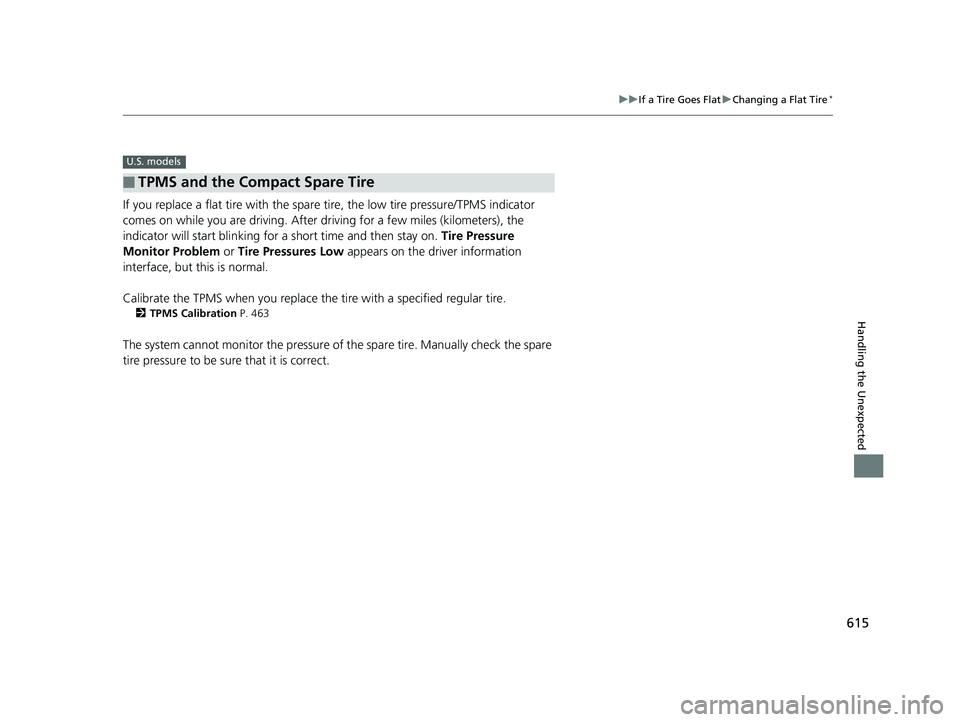

615
uuIf a Tire Goes Flat uChanging a Flat Tire*
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem or Tire Pressures Low appears on the driver information
interface, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 463
The system cannot monitor the pressure of the spare tire. Manually check the spare
tire pressure to be sure that it is correct.
■TPMS and the Compact Spare Tire
U.S. models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 615 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

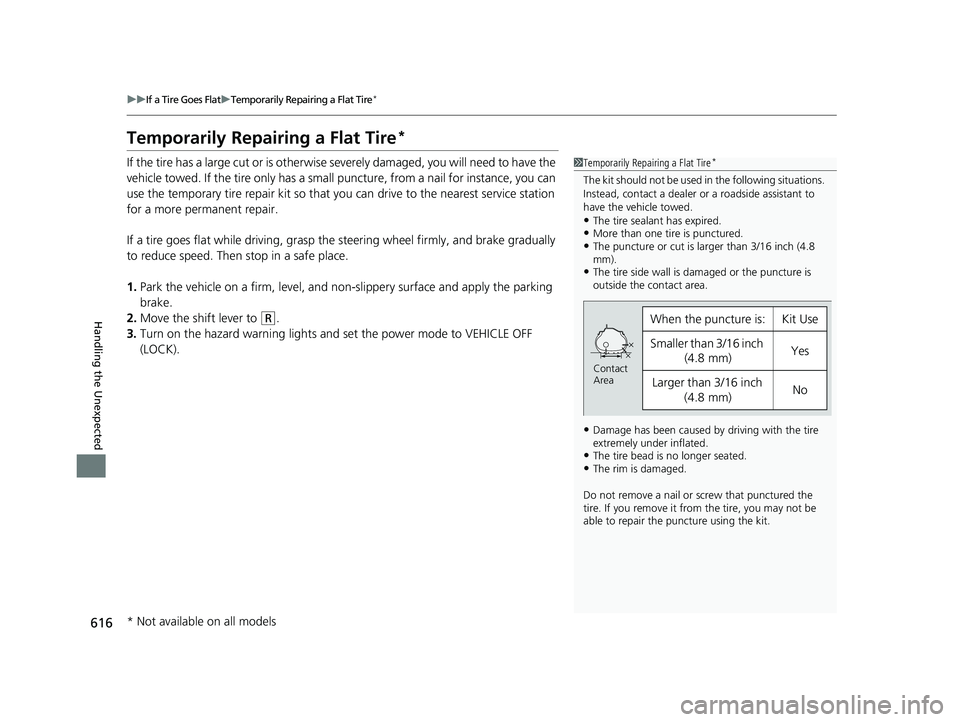

616
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
Temporarily Repairing a Flat Tire*
If the tire has a large cut or is otherwise se verely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire*
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4.8
mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4.8 mm)Yes
Larger than 3/16 inch
(4.8 mm)No
Contact
Area
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 616 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

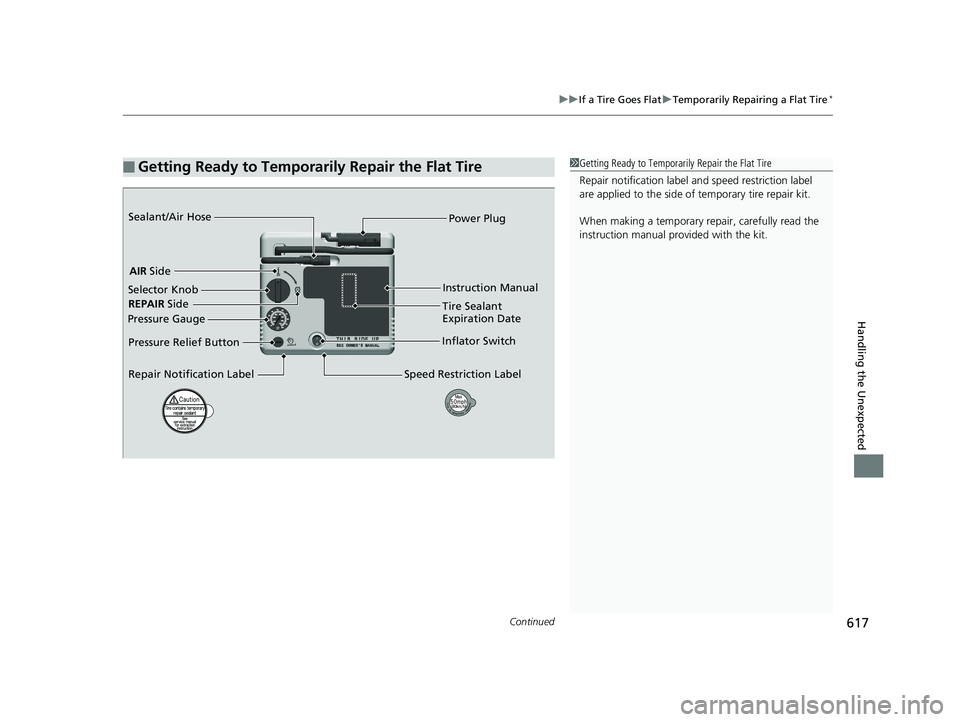

Continued617
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
psi/kPapsi/kPa
Selector Knob
Speed Restriction Label
Repair Notification Label Pressure Relief Button Inflator SwitchInstruction Manual
REPAIR Side
Sealant/Air Hose
AIR Side Power Plug
Pressure Gauge Tire Sealant
Expiration Date
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 617 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

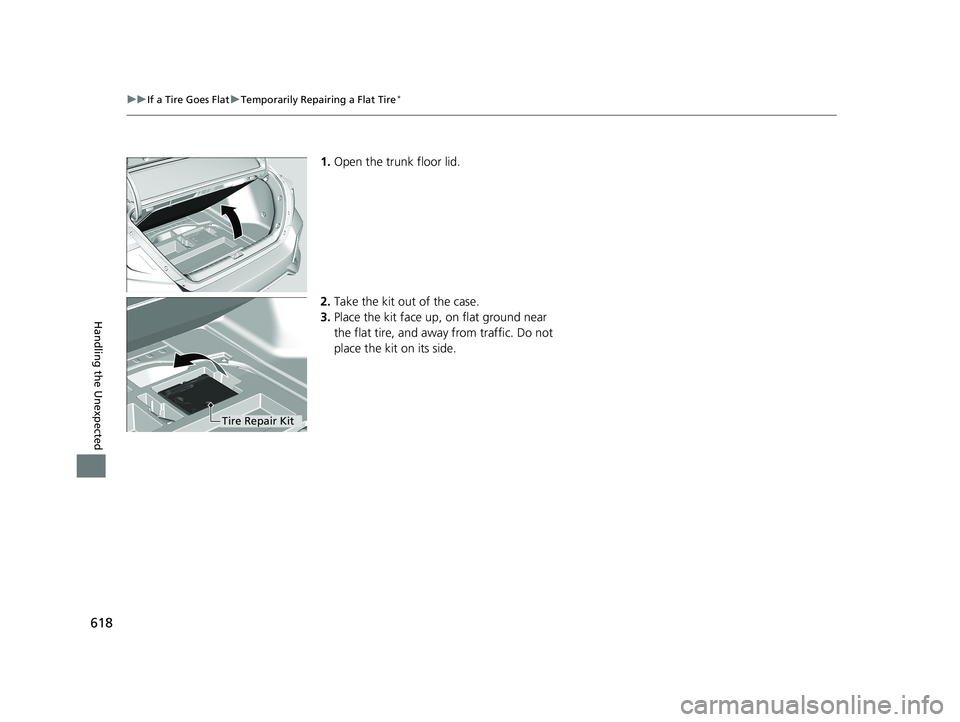

618
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tire Repair Kit
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 618 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

Continued619
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/
Air Hose
Tire Valve Stem
Sealant/Air Hose
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 619 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*

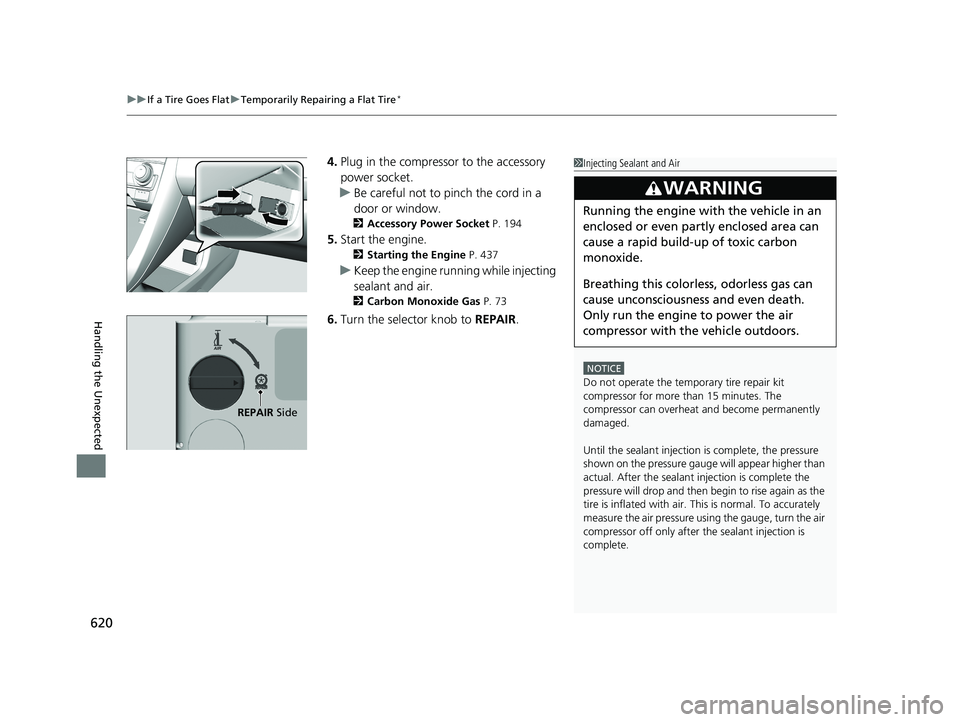

620
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 194
5.Start the engine.
2 Starting the Engine P. 437
uKeep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 73
6.Turn the selector knob to REPAIR.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
REPAIR Side
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 620 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

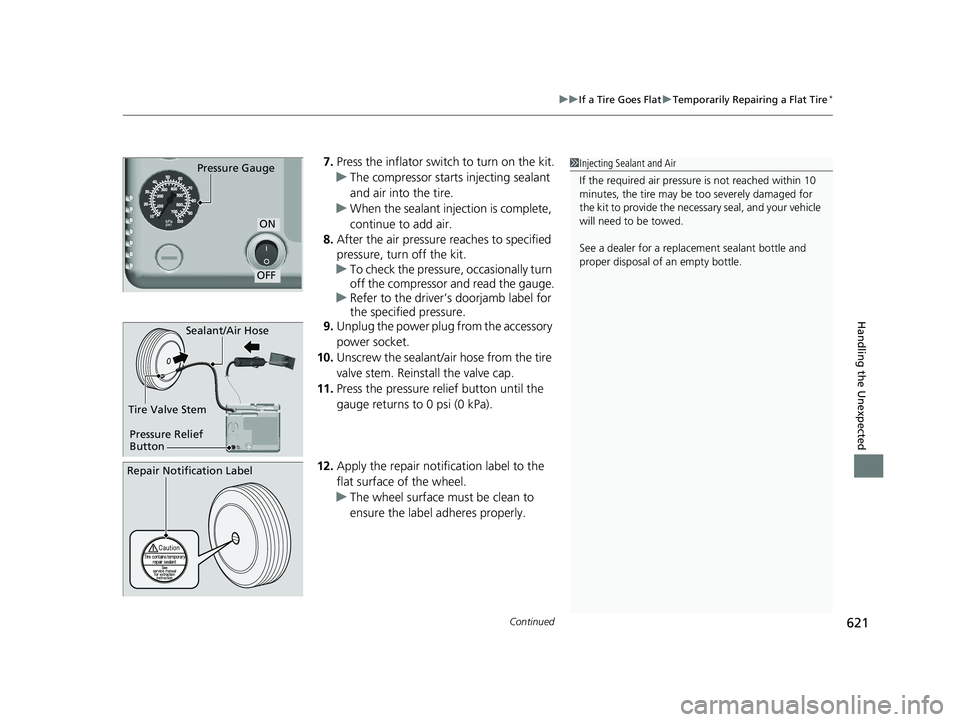

Continued621
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
7. Press the inflator switch to turn on the kit.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the air pressure reaches to specified
pressure, turn off the kit.
u To check the pressure, occasionally turn
off the compressor and read the gauge.
u Refer to the driver’s doorjamb label for
the specified pressure.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.Pressure Gauge
OFF
ON
1Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See a dealer for a replacement sealant bottle and
proper disposal of an empty bottle.
Sealant/Air Hose
Tire Valve Stem
Pressure Relief
Button
Repair Notification Label
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 621 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

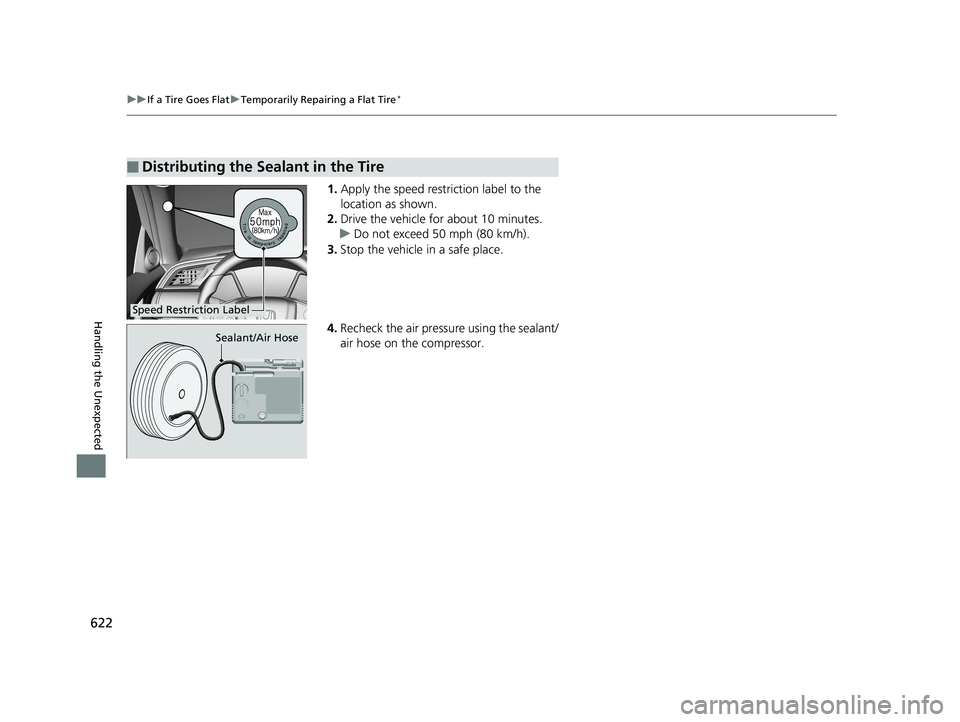

622
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
4. Recheck the air pressure using the sealant/
air hose on the compressor.
■Distributing the Sealant in the Tire
Speed Restriction Label
Sealant/Air Hose
