2019 HONDA CIVIC SEDAN Owner's Manual (in English)

95
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (d isplay/information) button to see the message
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or th e trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 571
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 553
●Appears when there is a problem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2Checking the Battery P. 594
●Appears along with the ba ttery charging system
indicator when the battery is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 637
Canadian models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 95 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

96
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 635
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver’s seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 532
Continuously
variable
transmission models
Manual
transmission
models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 96 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

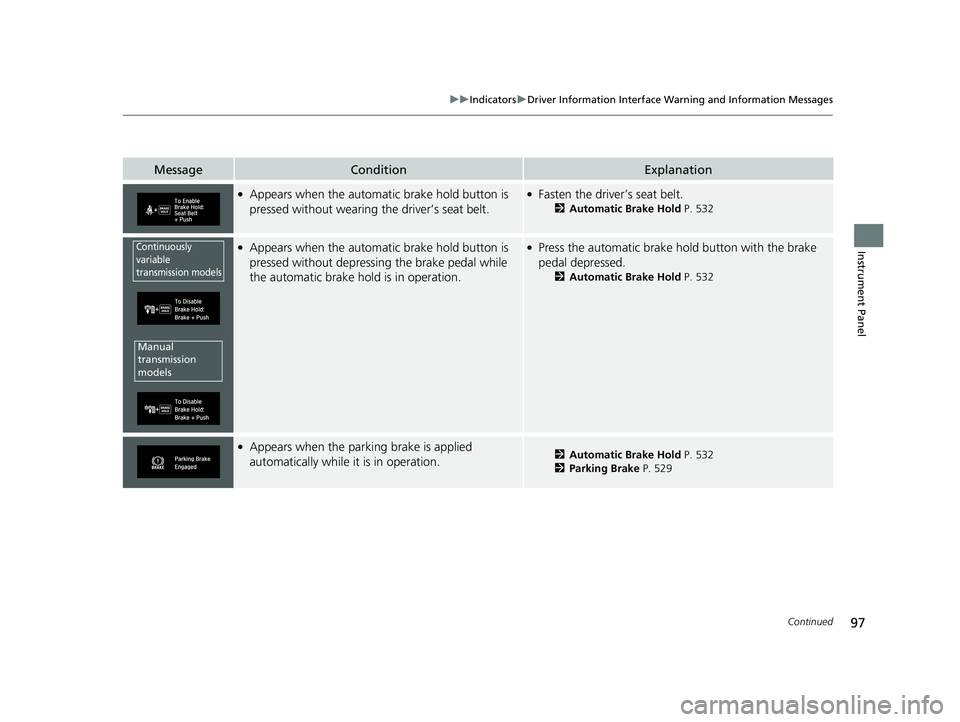

97
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 532
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2Automatic Brake Hold P. 532
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 532
2 Parking Brake P. 529
Continuously
variable
transmission models
Manual
transmission
models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 97 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

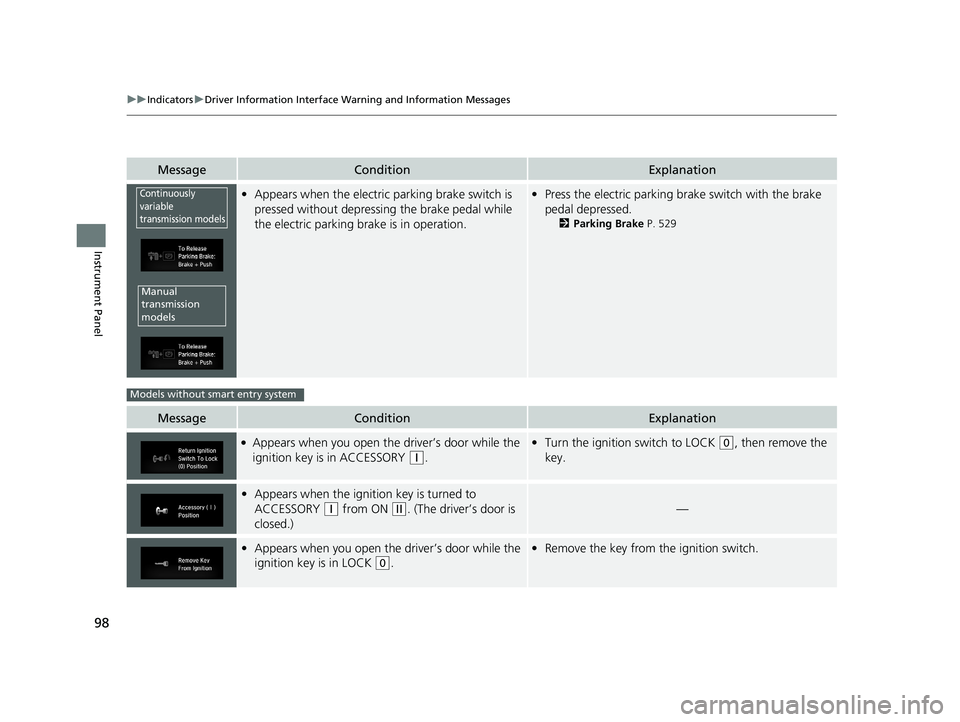

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.• Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 529
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
•Turn the ignition switch to LOCK (0, then remove the
key.
• Appears when the igniti on key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
• Appears when you open th e driver’s door while the
ignition key is in LOCK
(0.
• Remove the key from the ignition switch.
Continuously
variable
transmission models
Manual
transmission
models
Models without smart entry system
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 98 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 437
●Appears when the steering wheel is locked.●Move the steering wheel left an d right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission
models
Manual
transmission
models
Except U.S.
models with
continuously
variable
transmission
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 99 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 161
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 163
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 596
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 629
Models with smart entry system
Continuously
variable
transmission
modelsU.S. models
Canadian models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 100 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and clutch pedal (manual
transmission only), and manu ally start the engine.
Have your vehicle checked by a dealer.
• Appears as soon as a prob lem is detected in the
smart entry system or push button starting system.•Appears constantly - Have your vehicle checked by a
dealer.
MessageConditionExplanation
•Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
Models with smart entry system
U.S.
Canada
Models with LED headlights
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 101 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF* has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with LSF* to cancel improves. Press the RES/
+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF
* is in operation.
●ACC with LSF* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC with LSF* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with LSF.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 102 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
