2019 HONDA CIVIC SEDAN Owner's Manual (in English)

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the VSA® or traction control function
operates while ACC with LSF* is in operation.
●ACC with LSF* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with LSF.●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
●Appears when the shift le ver is moved into any
position other than
(D or (S while ACC with LSF is
in operation.
●ACC with LSF has been au tomatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 103 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

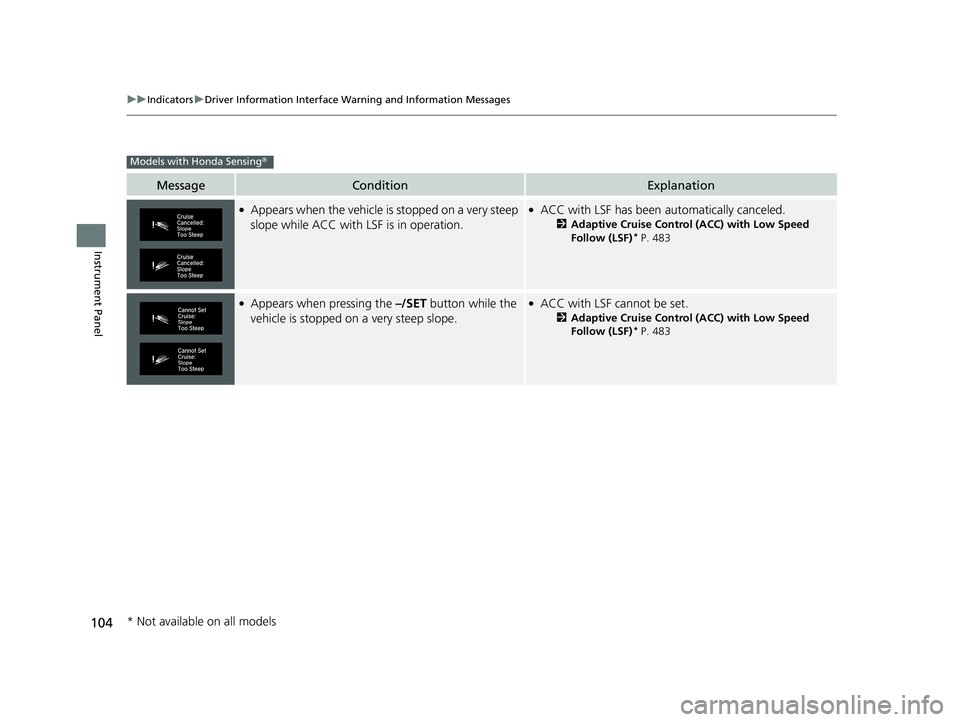

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 104 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

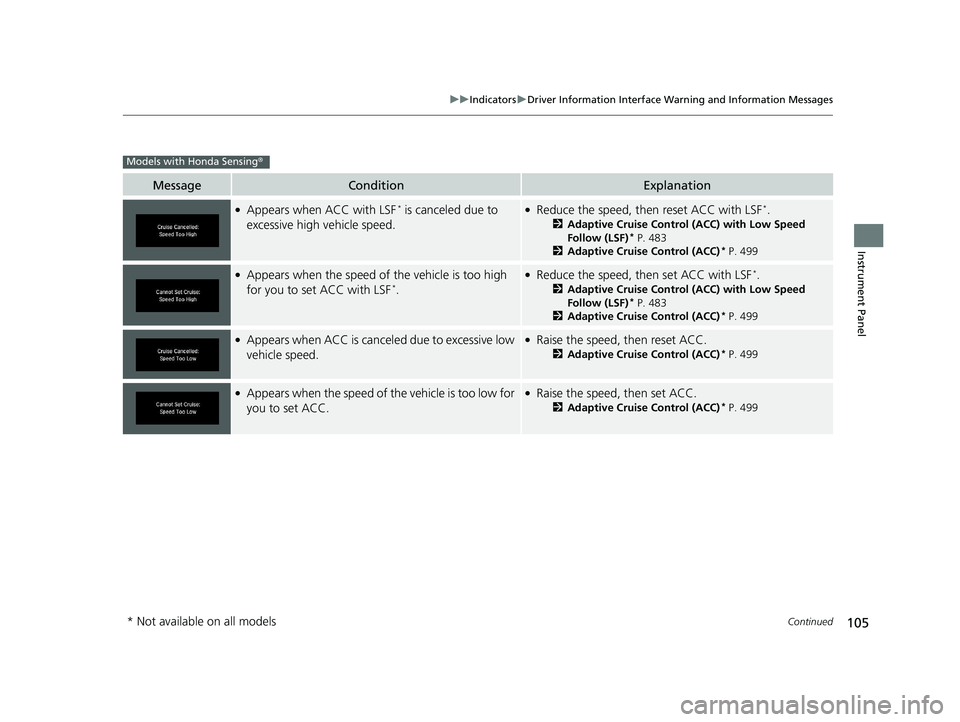

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF* is canceled due to
excessive high vehicle speed.●Reduce the speed, then reset ACC with LSF*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when the speed of the vehicle is too high
for you to set ACC with LSF*.
●Reduce the speed, then set ACC with LSF*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when ACC is cancel ed due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC)* P. 499
●Appears when the speed of the vehicle is too low for
you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC)* P. 499
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 105 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

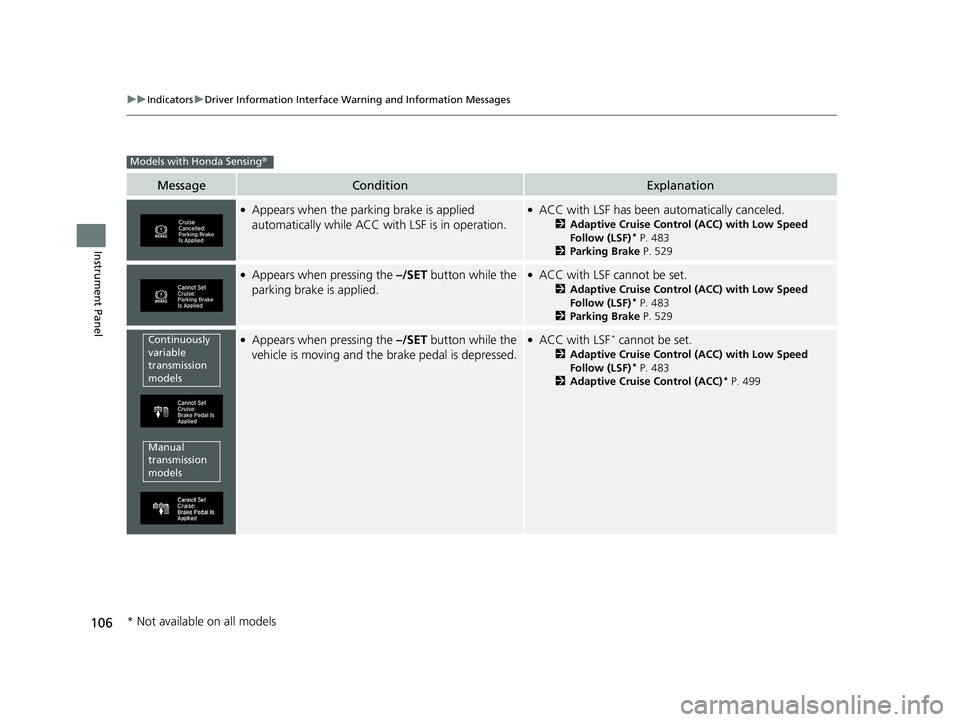

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Parking Brake P. 529
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Parking Brake P. 529
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC with LSF* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
Models with Honda Sensing ®
Continuously
variable
transmission
models
Manual
transmission
models
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 106 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

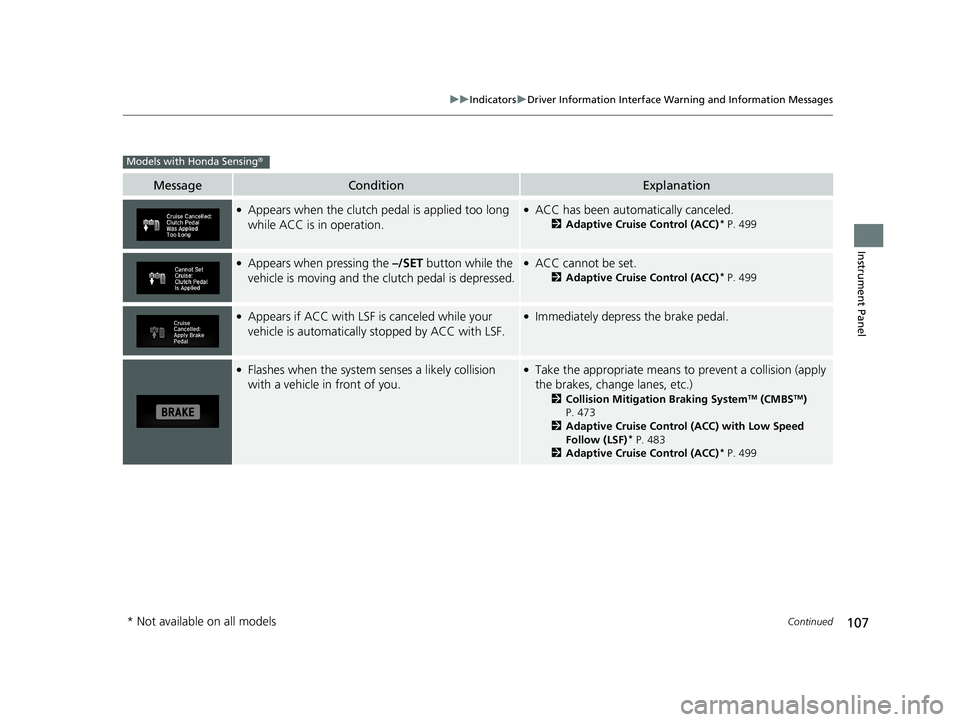

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the clutch pedal is applied too long
while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC)* P. 499
●Appears when pressing the –/SET button while the
vehicle is moving and the clutch pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 499
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.●Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 473
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 483
2 Adaptive Cruise Control (ACC)* P. 499
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 107 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 514
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 522●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 124, 337
●Blinks when you fail to st eer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the VSA®,
ABS and brake system, take appropriate action.
2 Indicators P. 76
Models with Honda Sensing ®
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 108 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even a fter you clean the sensor
cover.
2 Radar Sensor P. 528
2 Honda Sensing ®* P. 470
•Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.•Use the climate control system to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 526
2 Honda Sensing ®* P. 470
2 Auto High-Beam* P. 170
•Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 526
2 Honda Sensing ®* P. 470
2 Auto High-Beam* P. 170
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 109 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a pr oblem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high beam headlights when
this happens, the headlights are changed to low beams.
MessageConditionExplanation
•Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2 Remote Engine Start with Vehicle Feedback* P. 439
MessageConditionExplanation
•Appears if there is a pr oblem with the adaptive
damper system.• Have your vehicle checked by a dealer. With this message
appeared, your vehicle has normal damping ability
without the adaptive damper feature.
• Appears if the drive mode cannot be changed due
to certain situations, such as a system error or
adverse driving conditions.
2 SPORT Mode* P. 453
Models with auto high-beam
Models with remote engine starter
Models with SPORT mode
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 110 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
