2019 HONDA CIVIC SEDAN Owner's Manual (in English)

575
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Fog lights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen fog lights
Models with LED fog lights
Tab
CouplerBulb
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 575 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

576
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 576 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

577
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Continued
Maintenance

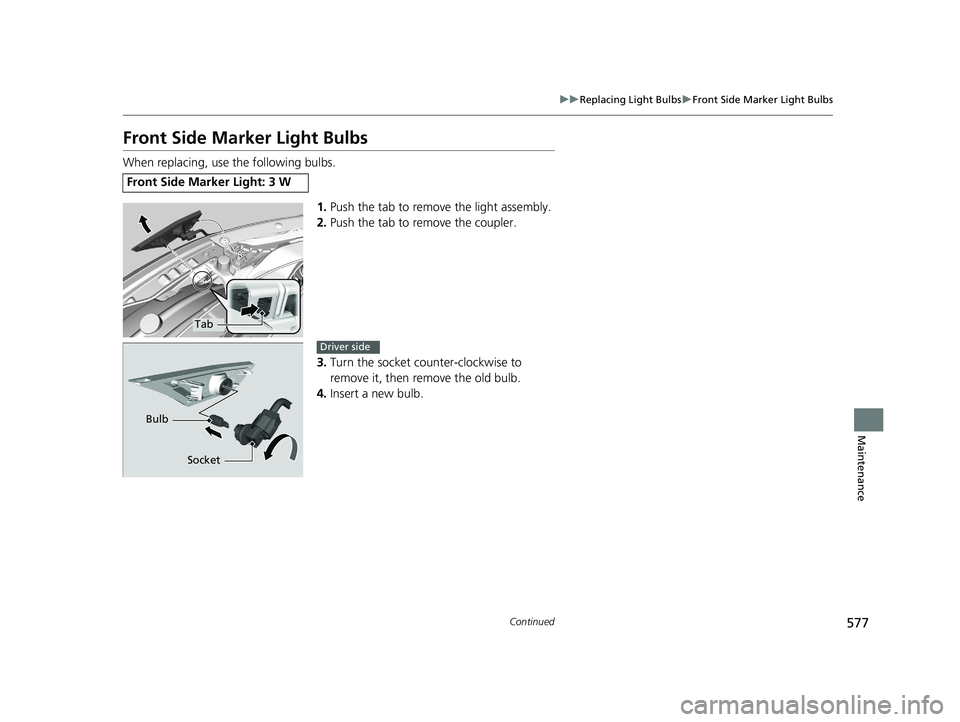

Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Push the tab to remove the light assembly.
2. Push the tab to remove the coupler.
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
Tab
Socket
Bulb
Driver side
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 577 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

578

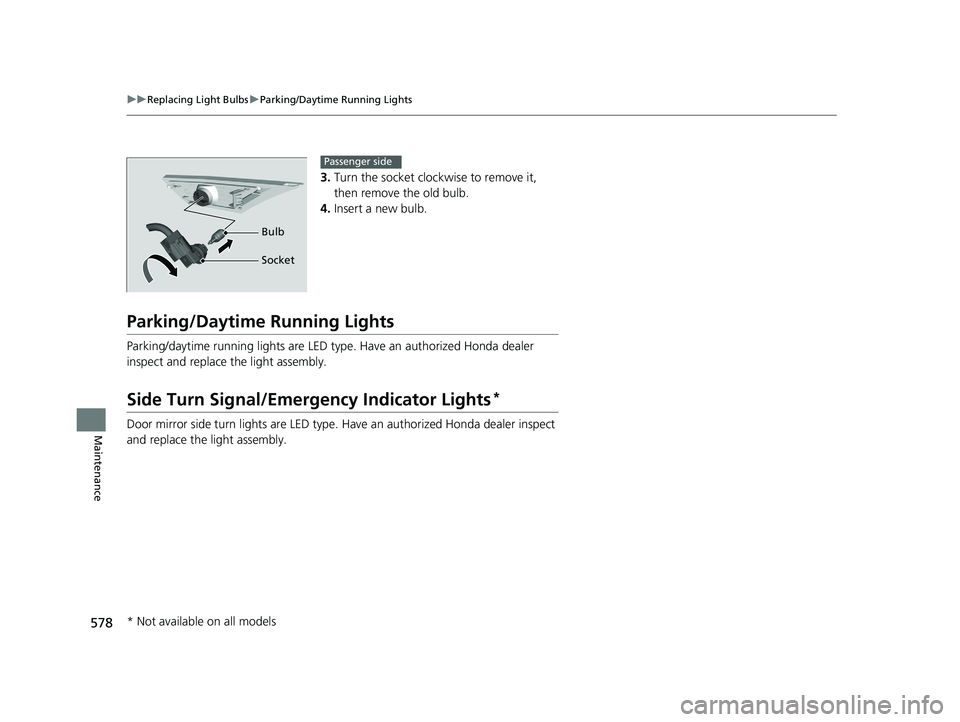

uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 578 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

579
uuReplacing Light Bulbs uBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance

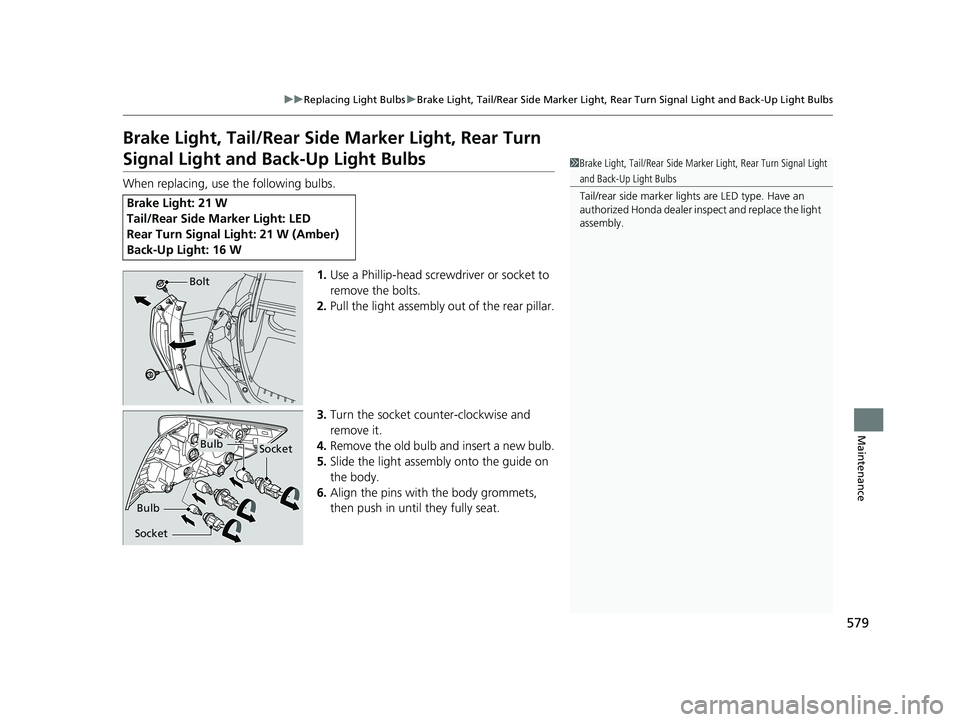

Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
BulbSocket
Bulb
Socket
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 579 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

580

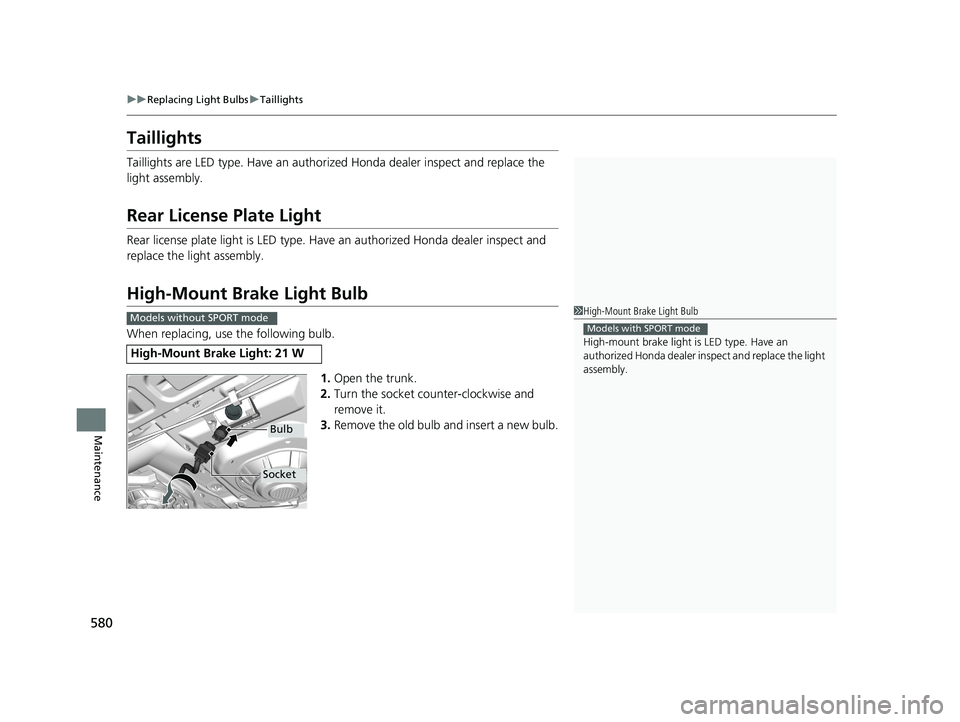

uuReplacing Light Bulbs uTaillights
Maintenance
Taillights
Taillights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light Bulb
When replacing, use the following bulb.
1.Open the trunk.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
High-Mount Brake Light: 21 W
1High-Mount Brake Light Bulb
High-mount brake light is LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with SPORT modeModels without SPORT mode
Bulb
Socket
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 580 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

581Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 581 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

582

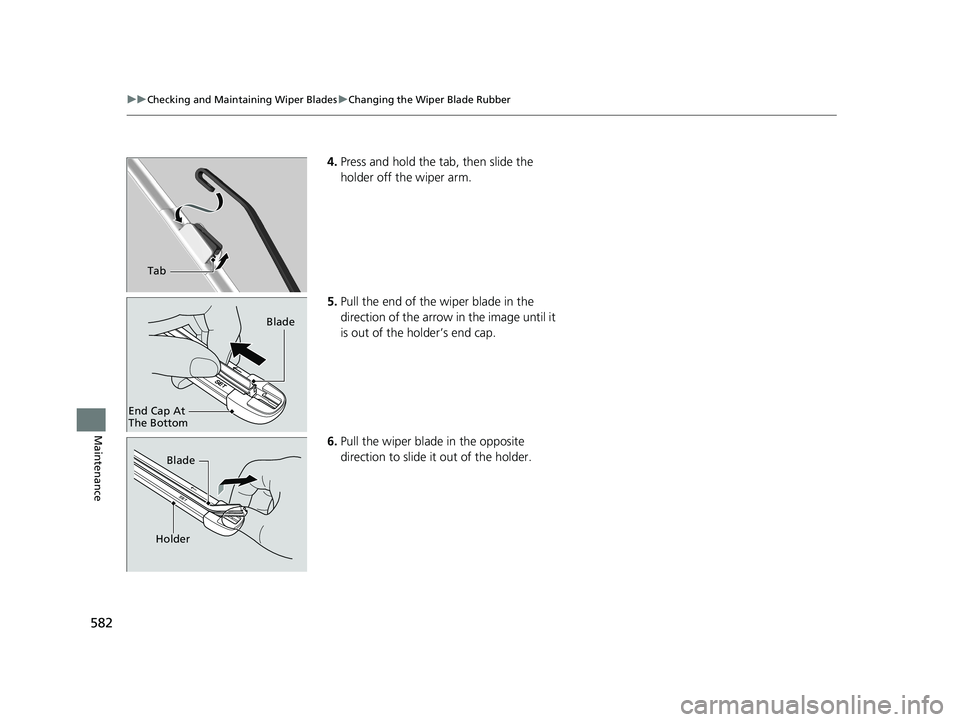

uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
4. Press and hold the tab, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Blade
End Cap At
The Bottom
Blade
Holder
