2019 HONDA CIVIC SEDAN Owner's Manual (in English)

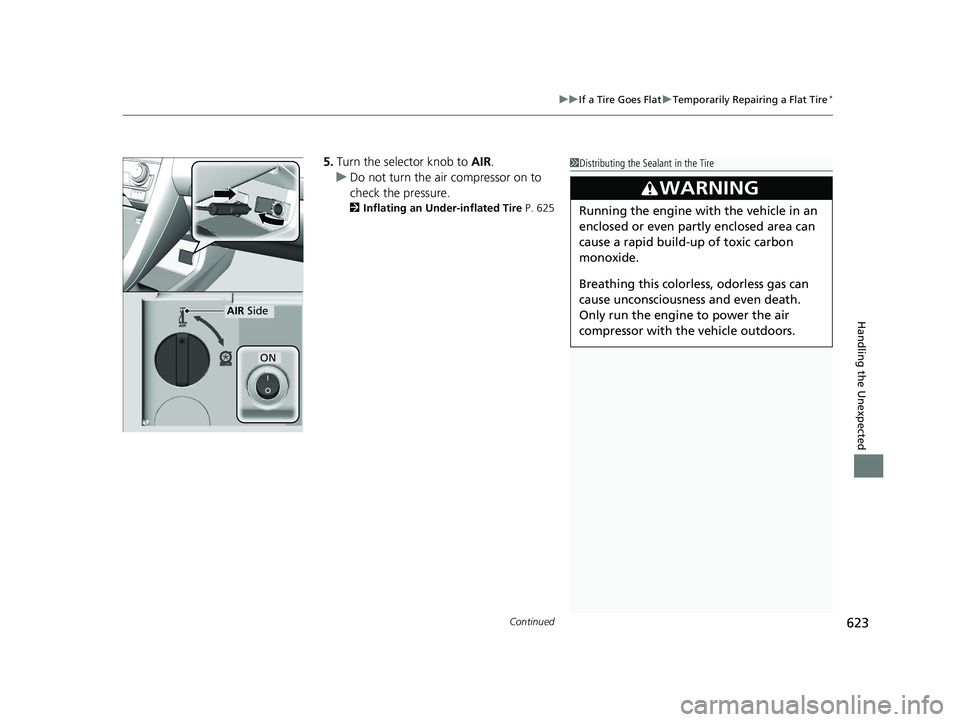

Continued623
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
5. Turn the selector knob to AIR.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 625
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR Side
ON
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 623 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

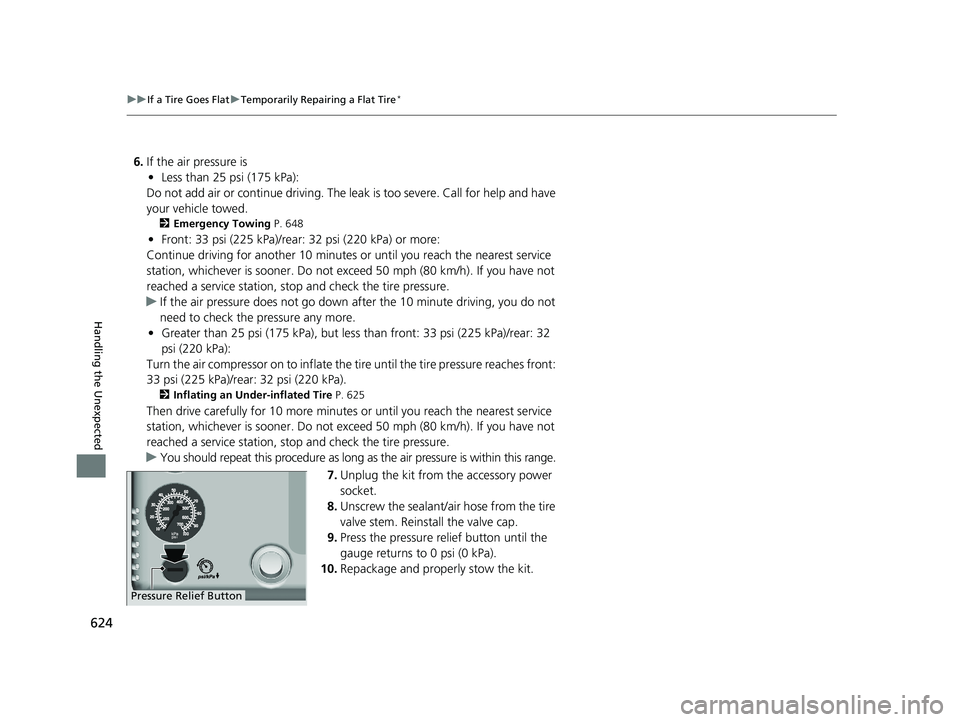

624
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 648
•Front: 33 psi (225 kPa)/rear: 32 psi (220 kPa) or more:
Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exce ed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u If the air pressure does not go down after the 10 minute dr iving, you do not
need to check the pressure any more.
• Greater than 25 psi (175 kPa), but less than front: 33 psi (225 kPa)/rear: 32
psi (220 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
33 psi (225 kPa)/rear: 32 psi (220 kPa).
2 Inflating an Under-inflated Tire P. 625
Then drive carefully for 10 more minute s or until you reach the nearest service
station, whichever is sooner. Do not exce ed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u You should repeat this procedure as long as the air pressure is within this range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 624 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

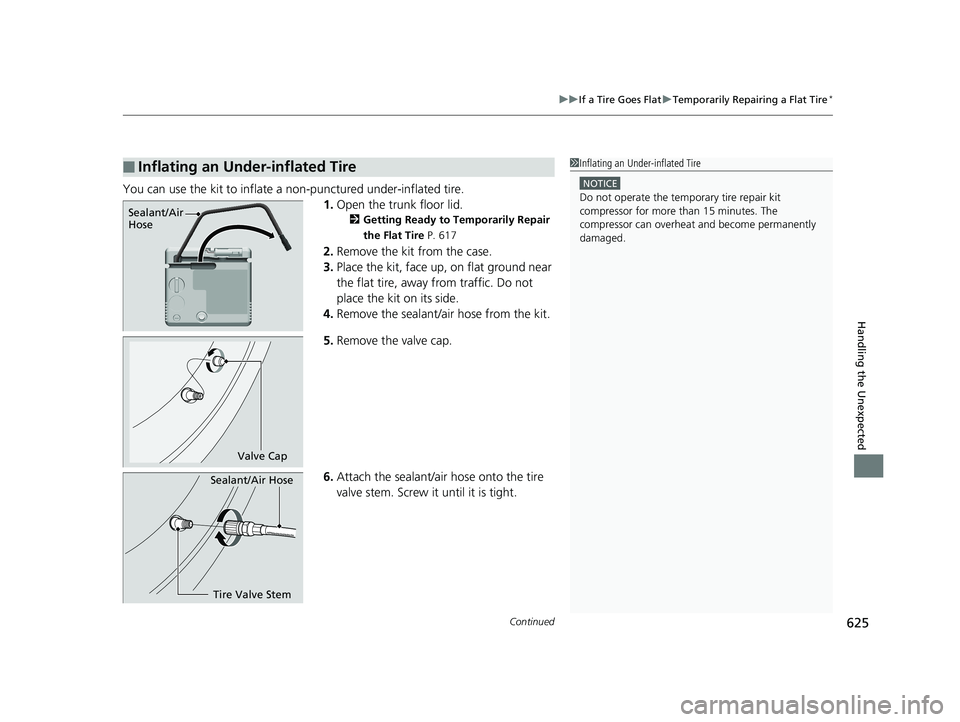

Continued625
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 617
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the sealant/air hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Sealant/Air
Hose
Valve Cap
Tire Valve Stem
Sealant/Air Hose
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 625 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

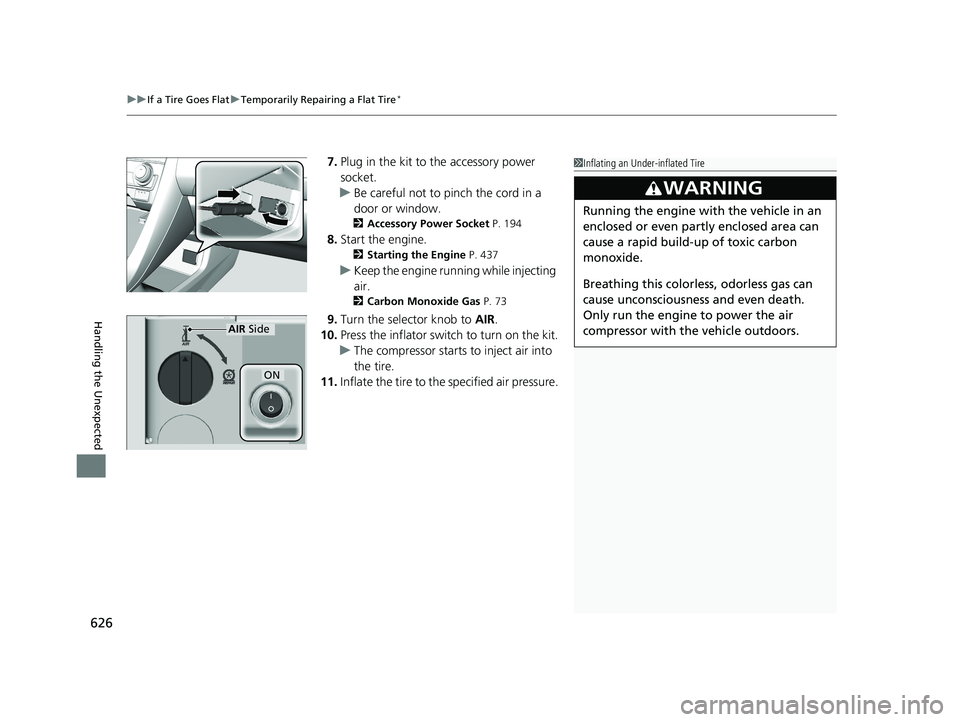

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
626
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 194
8.Start the engine.
2 Starting the Engine P. 437
uKeep the engine running while injecting
air.
2 Carbon Monoxide Gas P. 73
9.Turn the selector knob to AIR.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR Side
ON
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 626 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

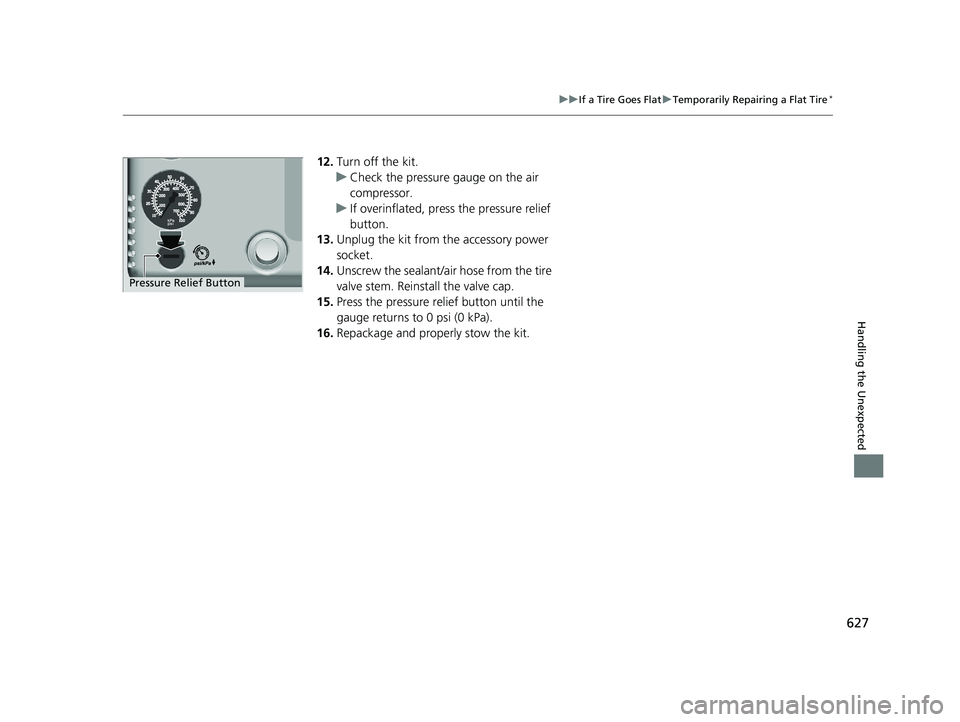

627
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 627 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

628
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the dr iver information interface.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 629
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 161
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 594●If the interior lights come on normally2 Fuses P. 643
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 434, 437
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 153
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 111
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 647
If the problem continues:2Emergency Towing P. 648
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 631
Models with smart entry system
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 628 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

629
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t start. Start the engine as follows: 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 629 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

630
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to
(P after the vehicle
comes to a complete stop.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal.
The power mode changes to VEHICLE OFF.
Models with smart entry system
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Continuously variable transmission models
Canadian continuously variable transmission models
Manual transmission models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 630 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
