2019 HONDA CIVIC SEDAN Owner's Manual (in English)

655
uuSpecifications u
Continued
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.7 US qt (3.5 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Except SPORT models
*2: SPORT models
Regular
Size215/55R16 93H*1
235/40R18 91W*2
Pressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])*1
33 (250 [2.3])*2
Rear32 (220 [2.2])*1, *2
Compact
Spare Size
T125/80D16 97M
*1
T125/70R17 98M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
18 x 8J*2
Compact Spare16 x 4T*1
17 x 4T*2
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 655 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

656
uuSpecifications u
Information
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
*3: Models without detachable towing hook
*4: Models with detachable towing hook
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity
12.39 US gal (46.9 L)*3
12.4 US gal (47.0 L)*4
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models without SPORT mode with 215/50R17 tires
*2: U.S. model with SPORT mode
*3: Models without SPORT mode with 235/40R18 tires
*4: Canadian model with SPORT mode
*5: Except Canadian TOURING model
*6: Canadian TOURING model
*7: Models without SPORT mode
*8: Models with SPORT mode
*9: Models with detachable towing hook
*10: Models without detachable towing hook
Headlights (Low Beam)55 W (H11)*1, *2
LED*3, *4
Headlights (High Beam) 60 W (HB3)*1, *2
LED*3, *4
Fog Lights35 W (H8)*5
LED*6
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1, *2
LED*3, *4
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W*7
LED*8
Rear License Plate Light LEDInterior Lights
Map Lights8 W*9
5 W*10
Ceiling Light8 WVanity Mirror Lights*2 WGlove Box LightLEDTrunk Light5 W
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 656 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

657
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
*3: Models without detachable towing hook
*4: Models with detachable towing hook
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)
*2, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.30 US gal (4.92 L)
*4
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
■ Tire
*1: Models without SPORT mode except TOURING
*2: TOURING models
*3: Models with SPORT mode
*4: U.S. model with SPORT mode with optional 235/40R18 95Y
tires
*5: U.S. model with SPORT mode with optional spare tire
*6: Canadian model with SPORT mode
Regular
Size215/50R17 91H*1
235/40R18 91W*2, *3
235/40R18 95Y*4
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])*1
33 (225 [2.3])*2, *3, *4
Rear
32 (220 [2.2])*1, *2, *3, *4
Compact
Spare*
Size T125/80D16 97M*1
T125/70R17 98M*2, *5, *6
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2, *3, *4
Compact Spare*16 x 4T*1
17 x 4T*2, *5, *6
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 657 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

658
Information

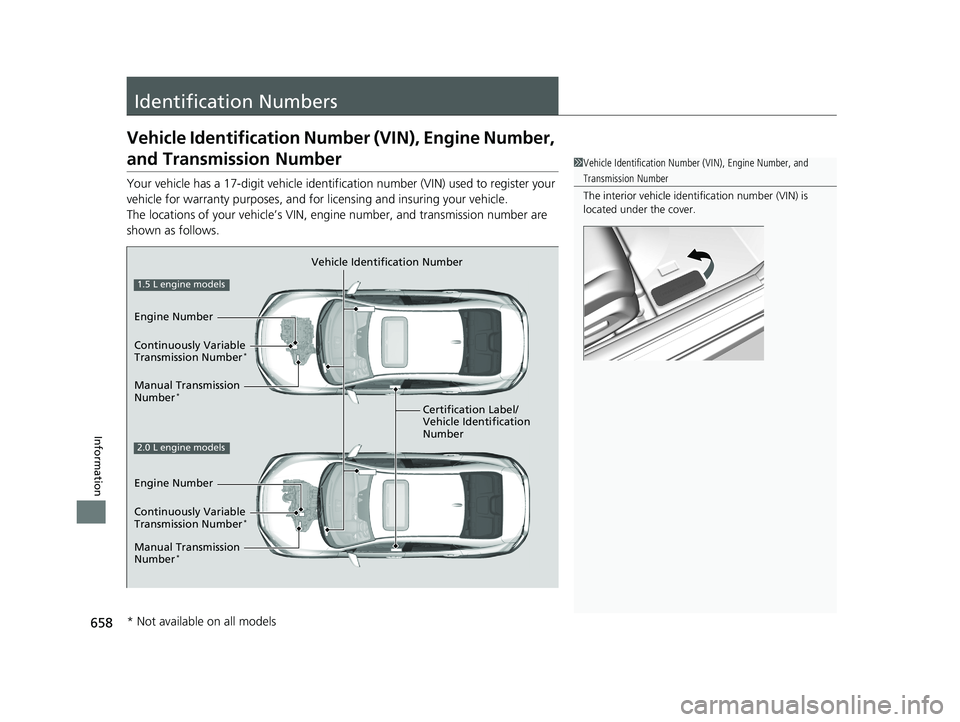

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Manual Transmission
Number
*
Continuously Variable
Transmission Number*
Manual Transmission
Number*
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 658 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

659
Information

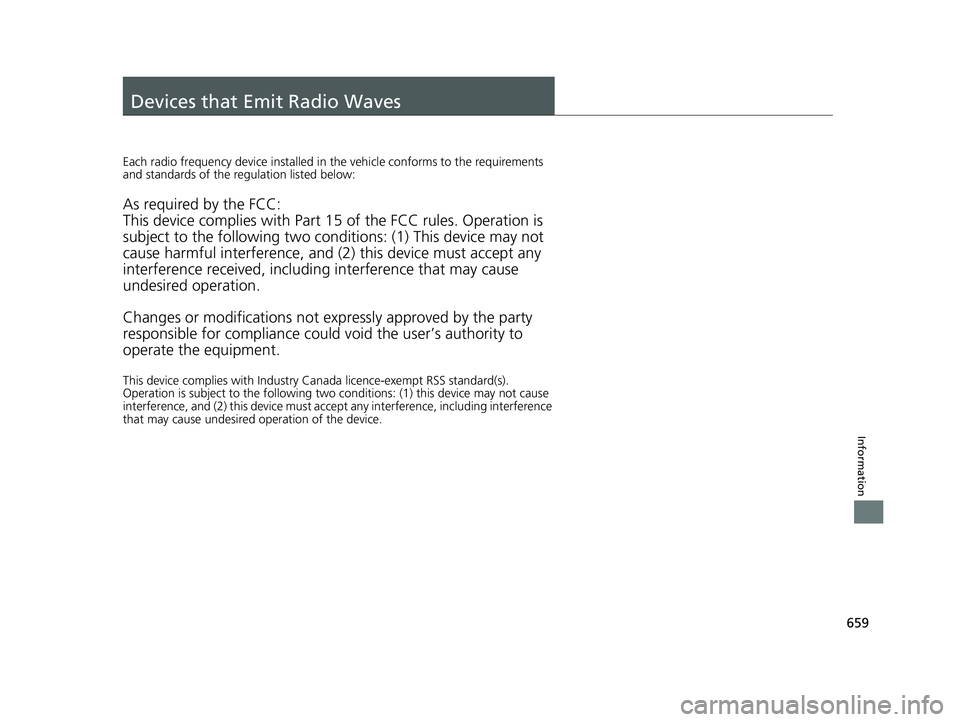

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 659 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

660
Information

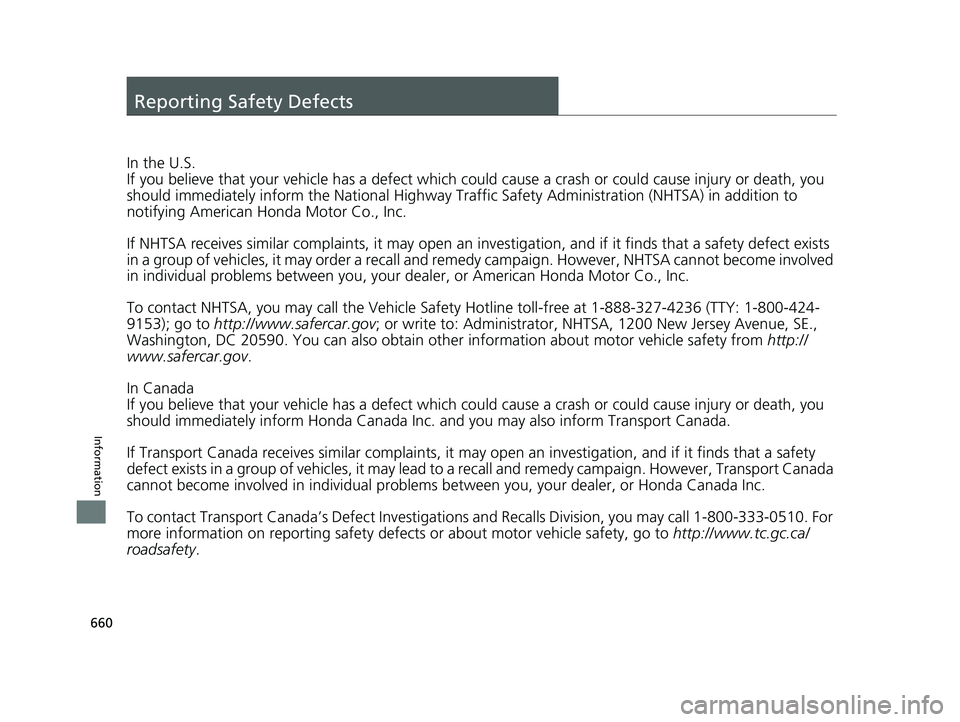

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 660 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

661Continued
Information

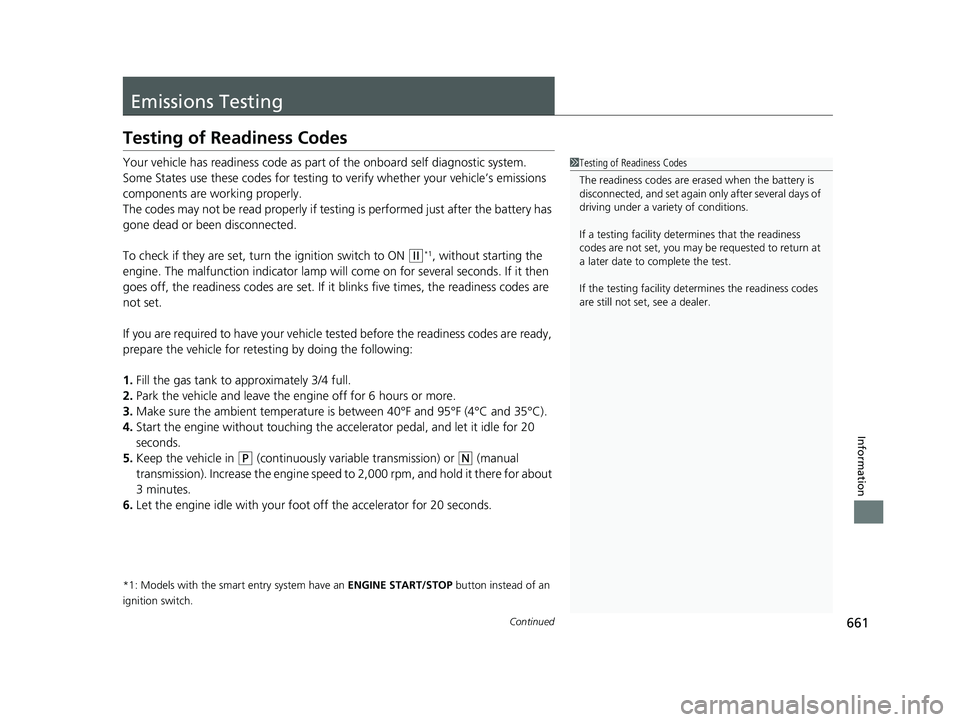

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 661 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

662

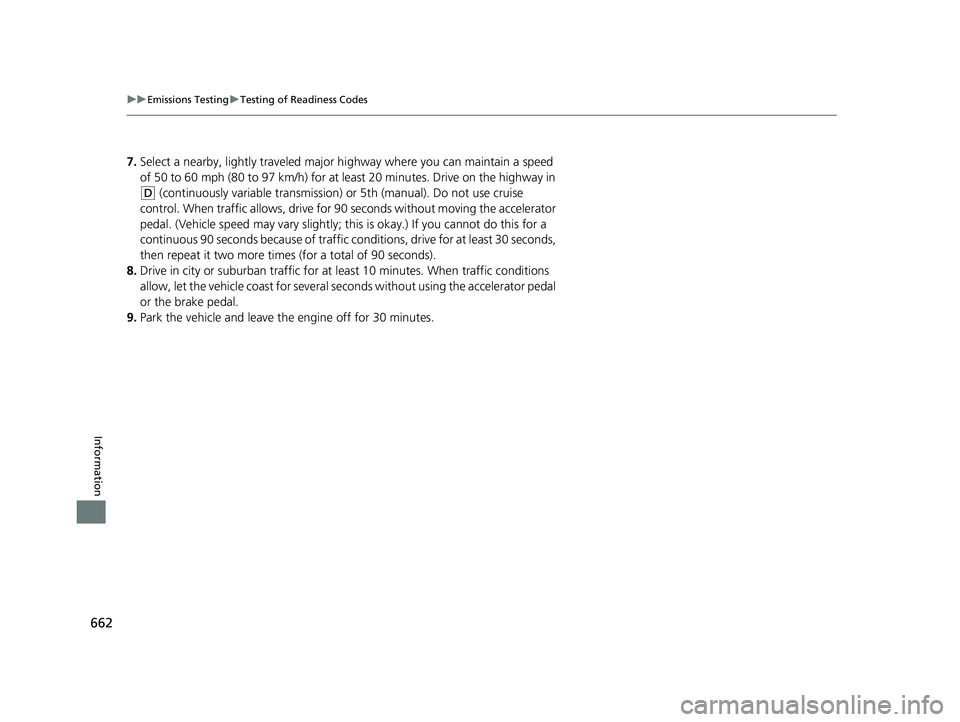

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows , drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 662 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
