Warning/indicator lampStateCause Actions/Observations
+
+ SCR emissions
control system
Fixed when the
ignition is switched on,
accompanied by an
audible signal and a
message. A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. Depending on the message
displayed, you can continue
driving for up to 685
miles
(1,100
km) before the engine
starting prevention system is
triggered. Carry out (3) as soon as possible to avoid running
out of fuel
.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a fault with the
emissions control system).
To restart the engine, carry out (2).
1
Instruments

24
Warning/indicator lampStateCause Actions/Observations
Service Temporarily on,
accompanied by the
display of a message. One or more minor faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with certain anomalies yourself, for
example an open door or the start of saturation of the
particle filter.
For any other problems, such as a fault with the tyre
under-inflation detection system, carry out (3).
Fixed, accompanied
by the display of a
message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel, then carry out (3).
+ Service warning lamp
fixed and ser vice
spanner flashing then
fixed.Service is overdue.
Only with BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Fixed, accompanied
by the message
‘Parking brake fault’.
Automatic release of the electric
parking brake is unavailable.
Carry out (2).
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
Instruments

25

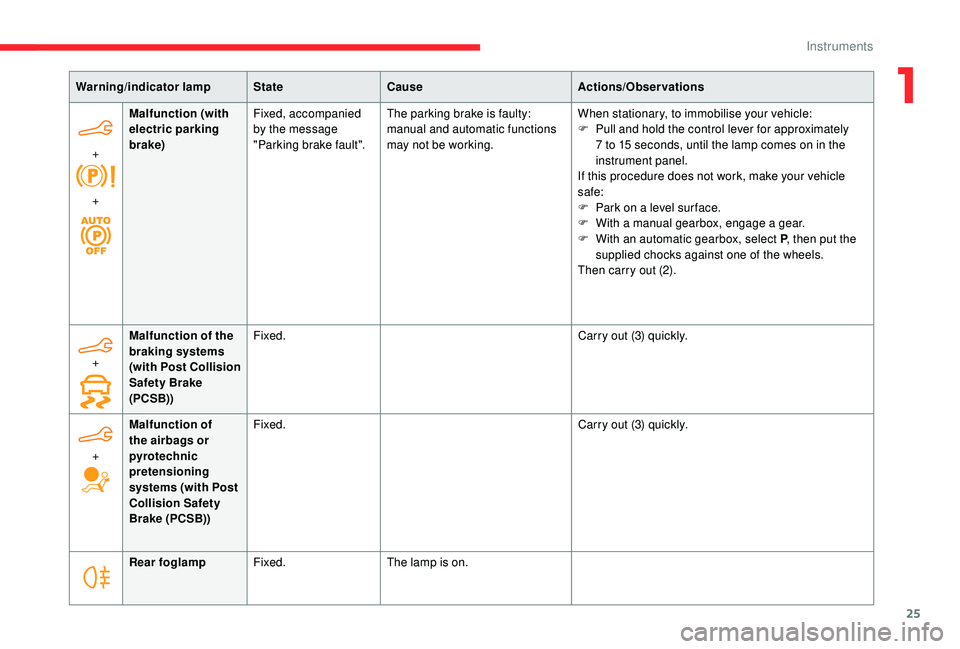

Warning/indicator lampStateCause Actions/Observations
+
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". The parking brake is faulty:
manual and automatic functions
may not be working. When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately
7 to 15
seconds, until the lamp comes on in the
instrument panel.
If this procedure does not work, make your vehicle
safe:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select P, then put the
supplied chocks against one of the wheels.
Then carry out (2).
Rear foglamp Fixed. The lamp is on.
+
Malfunction of the
braking systems
(with Post Collision
Safety Brake
(PCSB)) Fixed.
Carry out (3) quickly.
+ Malfunction of
the airbags or
pyrotechnic
pretensioning
systems (with Post
Collision Safety
Brake (PCSB)) Fixed.
Carry out (3) quickly.
1
Instruments

26
Warning/indicator lampStateCause Actions/Observations
Green warning/indicator lamps
Stop & Star tFixed.When the vehicle stops, the Stop & Start puts
the engine into STOP mode.
Flashing
temporarily. STOP mode is momentarily unavailable or
START mode is automatically triggered.
Hill Assist Descent
Control Fixed.
The system has been activated, but the
conditions for regulation are not met (gradient,
speed too high, gear engaged).
Flashing. The function is starting regulation. The vehicle is being braked; the brake lamps
come on during the descent.
Eco mode Fixed.ECO mode is active. Certain parameters are adjusted with a view
to reducing fuel consumption.
Automatic wiping Fixed.Automatic front wiping is activated.
Front foglamps Fixed.The front foglamps are on.
Sidelamps Fixed.The lamps are on.
Direction
indicators Flashing with
audible signal.The direction indicators are on.
Instruments

27
Warning/indicator lampStateCause Actions/Observations
Dipped beam headlampsFixed.The lamps are on.
+
or Automatic
headlamp dipping
Fixed.
The function has been activated via the touch
screen (Vehicle/Driving menu).
The lighting control stalk is in the "AUTO"
position.
Blue warning/indicator lamps
Main beam headlampsFixed.The lamps are on.
Black/white warning/indicator lamps
Foot on the brake Fixed.Omission or insufficient pressure on the brake
pedal. With an automatic gearbox, with the engine
running, before releasing the parking brake, to
move out of position P
.
Foot on the clutch Fixed.Stop & Start: the change to START mode is
rejected because the clutch pedal is not fully
depressed. Fully depress the clutch pedal.
Automatic wiping Fixed.Automatic front wiping is activated.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a CITROËN dealer or a qualified
workshop.
(2): Contact a CITROËN dealer or a qualified
workshop.
1
Instruments

28
Indicators
Service indicator
The ser vice indicator is displayed in the
instrument panel. Depending on the vehicle
version:
-
t
he distance recorder display line indicates
the distance remaining before the next
ser vice is due, or the distance travelled
since it was due preceded by the "-" sign.
Warning/indicator lamp StateCauseActions/
Observations
The distance indicated (in miles or
kilometres) is calculated according to the
distance covered and the time elapsed
since the last ser vice.
The alert may be triggered close to a due
date.
Service spanner Lights up temporarily
when the ignition is
switched on.
Between 1,860 miles
( 3,000 km) and
620
miles (1,000 km)
remain before the
next ser vice is due.
Fixed, when the
ignition is switched on. The service
is due in less
than 620
miles
(1,000


km).Have your vehicle
serviced very soon.
+ Service spanner
flashing
Flashing then fixed,
when the ignition is
switched on.
(For BlueHDi Diesel
versions, associated
with the Ser vice
warning lamp). The servicing
inter val has been
exceeded.
Have your vehicle
ser viced as soon
as possible.
Resetting the service indicator- an alert message indicates the distance
remaining, as well as the period before the
next ser vice is due or how long it is overdue. The ser vice indicator must be reset after each
service.
F

S
witch off the ignition.
F

P
ress and hold this button.
F

S
witch on the ignition; the distance recorder
display begins a countdown,
F

R
elease the button when =0 is displayed;
the spanner disappears.
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the reset
to be registered.
Retrieving the service information
You can access the ser vice information at any
time.
Instruments

29
F Press this button.
The ser vice information is displayed for a few
seconds, then disappears.
Instrument panel display screen
When stationary, use the left-hand dial on
the steering wheel or the " SET" button in
the instrument panel to navigate through the
menus to configure certain vehicle settings.
Operation of the dial:
-

P
ress: go to the Main menu , confirm the
selection.
-

R
otate (other than in a menu): scroll through
the list of active functions available.
-

R
otate (in a menu): move up or down in the
menu.
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver. Resetting the trip recorder
F

W
ith the ignition on, press the button until
dashes appear.
Engine coolant temperature
With the engine running, when the needle or
bar graph (depending on version) is:
-

i
n zone A , the temperature of the engine
coolant is correct,
1
Instruments

30
- in zone B, the temperature of the engine
coolant is too high; the maximum
temperature and central STOP warning
lamps come on, accompanied by an audible
signal and a warning message.
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a CITROËN dealer or a qualified
workshop.
Checking
After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
F

w
ait at least one hour for the engine to cool,
F

u
nscrew the cap by two turns to allow the
pressure to drop,
F

w
hen the pressure has dropped, remove the
cap,
F

t
op up the level to the "MA X" mark.
For more information on Checking levels ,
refer to the corresponding section.
Be aware of the risk of scalding when
topping up the coolant. Do not fill above
the maximum level (indicated on the
reservoir).
Engine oil level indicator
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds when the ignition is switched on, at
the same time as the ser vicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been stopped for more than
30


minutes.
Oil level correct
This is indicated by a message in the
instrument panel.
Low oil level
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
This is indicated by a message in the
instrument panel.
Oil level indicator fault
Dipstick
To locate the dipstick and the oil filler
cap for the Diesel engine , refer to the
corresponding section.
A = maximum; never
exceed this level.
B = minimum; top up
the level via the oil filler
hole, with the oil type
that is suitable for your
engine.
This is indicated by a message in the
instrument panel. Contact a CITROËN dealer
or a qualified workshop.
