2019 CITROEN BERLINGO VAN Handbook (in English)

15
90°CMaximum coolant
temperature Fixed (warning lamp or
LED) and needle in the
red zone (depending
on version). The temperature of the cooling
system is too high.
Carry out (1), then wait until the engine has cooled
down before topping up the coolant, if necessary. If
the problem persists, carry out (2).
Battery charge Fixed. The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, etc.). Clean and retighten the terminals. If the warning lamp
does not go off when the engine is started, carry out
(2).
Power steering Fixed. The power steering has a fault. Drive carefully at moderate speed, then carry out (3).
Seat belt not
fastened/
unfastened Fixed or flashing
accompanied by an
audible signal. A seat belt has not been
fastened or has been unfastened
(depending on version).
Door open Fixed, associated with
a message identifying
the access.
An audible signal
supplements the alert
if the speed is higher
than 6
mph (10 km/h).A door, the boot, the tailgate or
the tailgate screen is still open
(depending on version).
Close the access.
If your vehicle is equipped with a right-hand side-
hinged door, its opening will not
be indicated by this
warning lamp.
Warning/indicator lamp
StateCause Actions/Observations
Electric parking
brake Fixed.
The electric parking brake is
applied.
1
Instruments

16
Warning/indicator lampStateCause Actions/Observations
Orange warning/indicator lamps
Automatic
functions (with
electric parking
brake)Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated. Activate the functions again.
+ Automatic
application (with
electric parking
brake) Fixed, accompanied
by the message
"Parking brake fault".
The automatic application is not
available, the parking brake can
only be used manually. Use the electric parking brake control lever.
If automatic release is also not available, use manual
release.
+
+
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". The parking brake is not
operating at maximum efficiency
and cannot ensure parking the
vehicle in complete safety in all
situations. Make your vehicle safe:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, with P selected, place
the supplied chocks against one of the wheels.
Then carry out (2).
+
+ Malfunction (with
electric parking
brake)
Flashing, when the
vehicle is started.
The parking brake has not been
properly released. Carry out (1) and try to completely release the parking
brake using the control lever, with your foot on the
brake pedal.
If the problem persists, carry out (2).
Instruments

17
/2
1 1
Warning/indicator lamp
State CauseActions/Observations
Low fuel level Fixed (warning lamp or LED) and
needle in the red zone (depending on
version), accompanied by an audible
signal and a message.
The audible warning and the
message are repeated with
increasing frequency as the fuel level
drops towards zero. When it first comes on, there
remains less than 6
litres of fuel in
the tank. Refuel without delay to avoid running
out of fuel.
Never drive until completely
empty
, this could damage the
emissions and injection systems.
Presence of water
in Diesel filter Fixed (with LCD symbols instrument
panel). The Diesel filter contains water. Risk of damage to the injection
system: carry out (2) without delay.
Engine diagnostic
system Flashing.
The engine management system has
a fault.There is a risk that the catalytic
converter will be destroyed.
Carry out (2) without fail
.
Fixed. The emissions control system has
a fault.The warning lamp should go off
when the engine is started.
Carry out (3) quickly.
+ Fixed.
A minor engine fault has been
detected.Carry out (3).
+ Fixed.
A major engine fault has been
detected.Carry out (1) and then (2).
1
Instruments

18
Diesel engine pre-
heatingFixed.
The period of
illumination depends on
the climatic conditions.The ignition is on.Wait until the warning lamp goes off before starting.
If the engine does not start, switch the ignition off and
then on, wait until the lamp goes off again, then start
the engine.
Warning/indicator lamp
StateCause Actions/Observations
Under-inflation Fixed, accompanied
by an audible signal
and a message. The pressure in one or more
wheels is too low.
Check the pressure of the tyres as soon as possible.
Reinitialise the detection system after adjusting the
pressure.
+ Under-inflation
warning lamp flashing
then fixed and Ser vice
warning lamp fixed.The system is faulty: tyre
pressures are no longer
monitored.
As soon as possible, check the pressure of the tyres
and carry out (3).
Anti-lock braking
system (ABS) Fixed.
The anti-lock braking system has
a fault. The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry out (3).
Collision Risk
Aler t /Active Safety
Brake Fixed, accompanied
by the display of a
message. The system has been deactivated
via the vehicle configuration
menu.
Flashing. The system is operating. The vehicle brakes briefly so as to reduce the speed of
collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Carry out (3).
+ Collision Risk
Aler t /Active Safety
Brake
Fixed.
The system has a fault. If these lamps come on after the engine is switched
off and restarted, carry out (3).
Instruments

19
Warning/indicator lampStateCause Actions/Observations
Par ticle filter
(Diesel) Fixed, accompanied
by an audible signal
and a message about
the risk of particle filter
blockage. The particle filter is beginning to
saturate.
As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 37
mph (60 km/h)
until the lamp goes off.
Fixed, accompanied
by an audible signal
and a message
signalling that the
additive level in the
particle filter is too low. The minimum level of the additive
reservoir has been reached.
Top up as soon as possible: carry out (3).
Airbags Fixed. One of the airbags or seat belt
pretensioners is faulty. Carry out (3).
Front passenger
airbag (ON) Fixed.
The front passenger airbag is
activated.
The control is in the "ON"
position. In this case, do NOT install a "
rearward facing"
child seat on the front passenger seat – Risk of
serious injury!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag is
deactivated.
The control is in the "OFF"
position. You can install a "rear ward facing" child seat, unless
there is a fault with the airbags (Airbags warning lamp
o n).
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Fixed.
The system is deactivated. Press the button to reactivate it.
The DSC/ASR system is activated automatically
when the vehicle is started, and from around 30
mph
(50


km/h).
1
Instruments

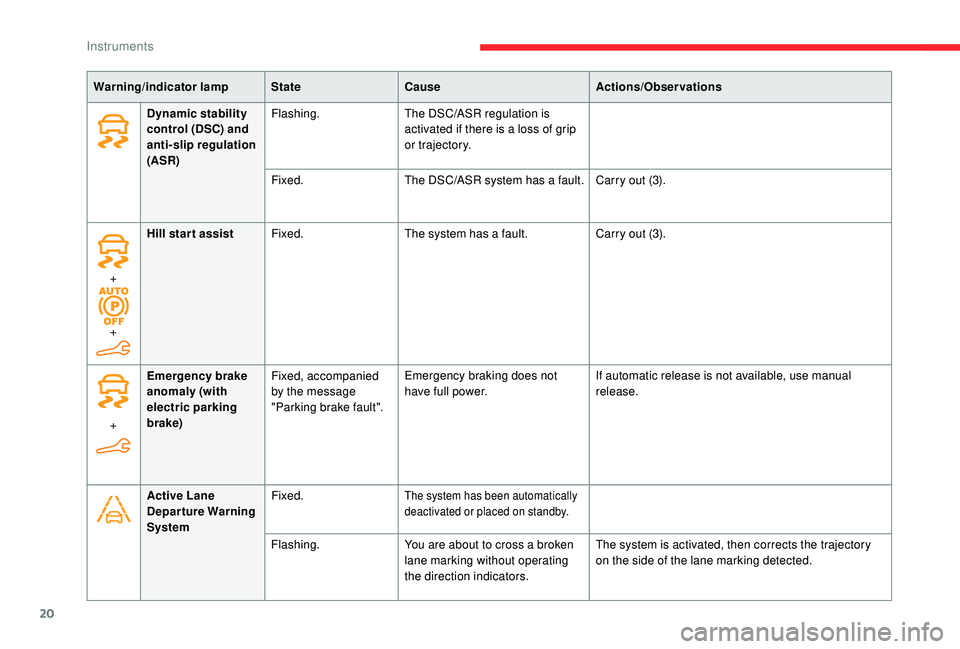

20
Warning/indicator lampStateCause Actions/Observations
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Flashing.
The DSC/ASR regulation is
activated if there is a loss of grip
or trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
+ Emergency brake
anomaly (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not
have full power.
If automatic release is not available, use manual
release.
Active Lane
Departure Warning
System Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing.
You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+

+ Hill start assist
Fixed. The system has a fault. Carry out (3).
Instruments

21
+Active Lane
Departure Warning
System
Fixed.
The system has a fault. Carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
AdBlue
® (with 1.6
BlueHDi Euro 6.1) Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 375 miles
(2,400 and 600 km).
Top up the AdBlue® as soon as possible, or carry out
(3).
+ AdBlue
® warning lamp
flashing and Service
warning lamp fixed,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
375
miles (600 km).Yo u must
top up the AdBlue® to avoid a breakdown ,
or carry out (3).
AdBlue
® warning lamp
flashing and Service
warning lamp fixed,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue® tank is empty: the
starting inhibition system required
by legislation prevents starting of
the engine. To restart the engine, top up the AdBlue® or carry out
(2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
1
Instruments

22
Warning/indicator lampStateCause Actions/Observations
AdBlue
®
(with 1.5 BlueHDi
Euro 6.2) On for around
30
seconds every time
the vehicle is started,
accompanied by a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 500
miles
(2,400 and 800 km).Top up the AdBlue
®.
Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 500 and 60 miles (800
and 100 km).
Top up the AdBlue
® as soon as possible
, or carry
out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
60

miles (100

km). Yo u must
top up the AdBlue
® to avoid a breakdown ,
or carry out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty:
the starting prevention system
required by legislation prevents
starting of the engine. To restart the engine, top up the AdBlue®, or carry out
(2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
