Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.TIPIf a torque wrench is not available when in-
stalling the spark plug, a good estimate of the
correct torque is 1/4–1/2 turn past finger tight.
However, the spark plug should be tightened
to the specified torque as soon as possible. NOTICEECB02900Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler may be damaged. The spark
plug cap may be difficult to remove be- cause the rubber seal on the end of the cap
fits tightly. To remove the spark plug cap,
simply twist it back and forth while pulling
it out; to install it, twist it back and forth
while pushing it in.
EBU35423Air filter maintenanceThis model is equipped with two air filter ele-
ments, a primary foam-type air filter and a
secondary paper-type air filter.
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug:13 N·m (1.3 kgf·m, 9.6 lb·ft)

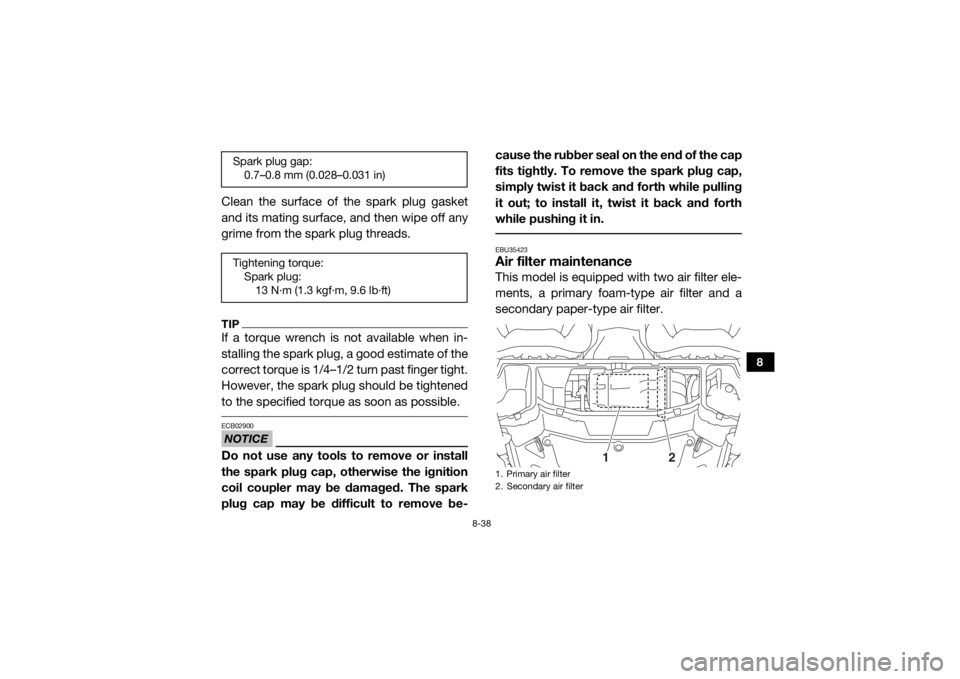

1. Primary air filter
2. Secondary air filter
1
2
UB0F7AE0.book Page 38 Monday, November 6, 2017 2:30 PM

8-39
8
The primary air filter is easily accessed and
should be cleaned and oiled every 300–600
km (200–400 mi).
The secondary air filter is more difficult to ac-
cess, cannot be cleaned, and should be re-
placed by a Yamaha dealer every 2000–5000
km (1200–3000 mi).TIPService the air filters more frequently when
operating in wet or dusy environments. Whenever air filter maintenance is performed:
check the air inlet for obstructions and the
air filter case for dirt and foreign matter.
 check the air filter case check hoses for dirt
or water and clean as necessary.
 check the air filter cas e joints and the rub-
ber joints to and from the throttle body for
proper fit and sealing.
 tighten all fittings securely to avoid the pos-
sibility of unfiltered air entering the engine.
NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
Additionally, the fuel injection system
would be affected, resulting in poor engine
performance and possible overheating. Clean the primary air filter as follows.
1. Remove panel C (page 8-11).
2. Remove the air filter case cover by turn- ing the air filter case cover lock counter-
clockwise.TIPMake sure that the match mark on the cover
lock is aligned with the open match mark on
the air filter case cover.
UB0F7AE0.book Page 39 Monday, November 6, 2017 2:30 PM

8-40
8
3. Remove the foam air filter.4. Remove the foam air filter element from
the air filter frame.1. Air filter case cover
2. Air filter case cover lock
3. Match mark
2 1
3
1. Foam air filter
1
UB0F7AE0.book Page 40 Monday, November 6, 2017 2:30 PM

8-41
8
5. Wash the foam material gently but thor-oughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
6. Squeeze out the excess solvent. NOTICE: Do not twist the foam materi-
al when squeezing it.
[ECB02970]
7. Wash the foam material in warm soapy water to remove remaining solvent, then
rinse thoroughly with plain warm water.
8. Squeeze out the excess water. NOTICE:
Do not twist the foam material when
squeezing it.
[ECB02970]
9. Allow the foam air filter to dry thoroughly. Inspect for wear and tear and replace if
damaged or heavily worn.
1. Foam air filter element
2. Air filter frame
1
2
UB0F7AE0.book Page 41 Monday, November 6, 2017 2:30 PM

8-42
8
10. Thoroughly apply Yamalube foam air fil-ter oil (or other quality liquid foam air fil-
ter—do not use a spray-type product) to
the foam material. The foam air filter ele-
ment should be wet but not dripping.
11. Pull the foam air filter element over its frame.
12. Install the air filter.
13. Install the air filter case cover and lock it
into place by turning the air filter case
cover lock clockwise.
TIPMake sure that the match mark on the cover
lock is aligned with the close match mark on
the air filter case cover. 14. Install the panel.EBU35130Cleaning the air filter case check hosesThere is a check hose on each side of the air
filter case. If dust or water collects in a check
hose, empty the hose and clean the air filter
element and air filter case.1. Match mark
1
UB0F7AE0.book Page 42 Monday, November 6, 2017 2:30 PM

8-43
8
EBU35141Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe cover by removingthe tailpipe cover bolts.
1. Air filter case check hose
1. Air filter case check hose
1
1
1. Tailpipe cover
2. Tailpipe cover bolt
1
2
2
UB0F7AE0.book Page 43 Monday, November 6, 2017 2:30 PM

8-44
8
2. Remove the tailpipe bolts.
3. Remove the tailpipe by pulling it out ofthe muffler, and then remove the gasket.
4. Tap the tailpipe lightly, and then use a wire brush to remove any carbon depos-
its from the spark arrester portion of the
tailpipe and inside of the tailpipe housing. 5. Install the gasket, and then insert the tail-
pipe into the muffler and align the bolt
holes.
6. Install the tailpipe bolts and tighten them
to the specified torque.
7. Install the tailpipe cover.1. Tailpipe bolt
1
1
1. Gasket
2. Spark arrester
3. TailpipeTightening torque:
Tailpipe bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
2
1
3
UB0F7AE0.book Page 44 Monday, November 6, 2017 2:30 PM

8-45
8
8. Install the tailpipe cover bolts and tightenthem to the specified torque.EBU32460Valve clearanceThe correct valve clearance changes with
use, resulting in improper fuel/air supply or
engine noise. To preven t this, the valve clear-
ance must be adjusted regularly. This adjust-
ment however, should be left to a
professional Yamaha service technician.EBU32470BrakesReplacement of brake components requires
professional knowledge. Brake service
should be performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or ad-
justed brakes could lead to a loss in brak-
ing ability and an accident. EBU35150Checking the front and rear brake padsCheck each brake pad for damage and mea-
sure the lining thickness. If a brake pad is
damaged or if the lining thickness is less than
1.0 mm (0.04 in), have a Yamaha dealer re-
place the brake pads as a set.
The wheels need to be removed to check the
brake pads. (See pages 8-55, 8-57 for wheel
removal and installation procedures.)
Tightening torque: Tailpipe cover bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
