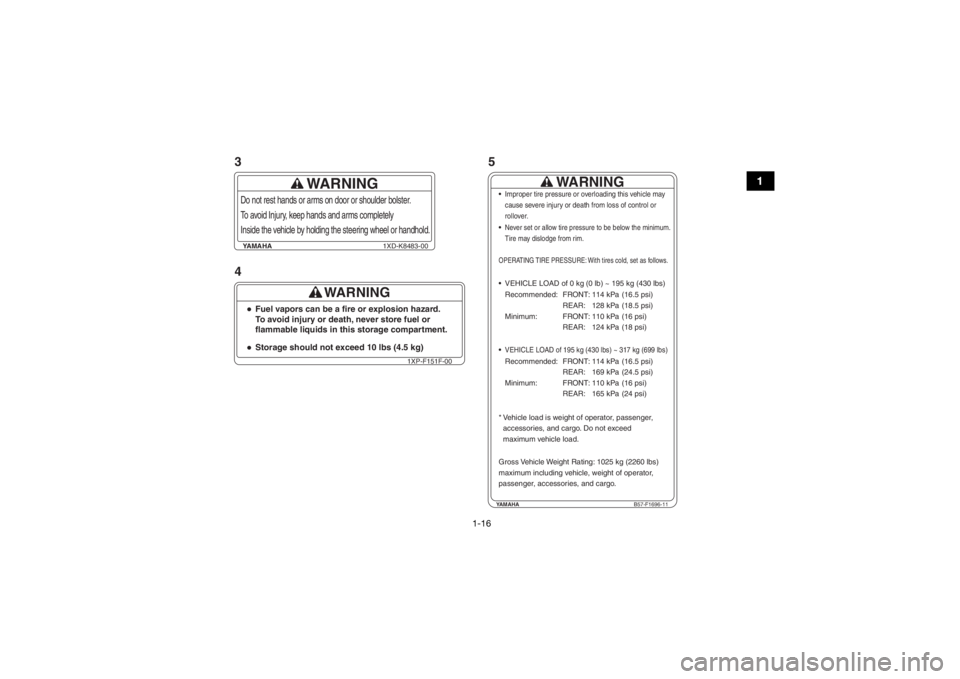

2018 YAMAHA YXZ1000R SS Owners Manual

1-16
1
YAMAHA1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To a void Inju ry, keep hands and arms completely
Inside the v ehicle by holding the steering wheel or handhold.
WARNING
Stora ge should not exceed 10 lbs (4.5 kg)Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this stora ge compartment.
1XP-F151F-00
YAMAHA B57-F1696-11
WARNING
Improper tire pressure or overloading this v ehicle may
cause se vere injury or death from loss of control or
rollo ver.Ne ver set or allo w tire pressure to be belo w the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 l b) ~ 195 kg (430 lbs)
Recommended: FRO NT:
REAR:
Minim um: FRONT:
REAR:114 kPa
128 kPa
110 kPa
124 kPa
VEHICLE LOAD of 195 kg (430 l bs) ~ 317 kg (699 lbs)Recommended: FRONT:
REAR:
Minim um: FRONT:
REAR:114 kPa
169 kPa
110 kPa
165 kPa (16.5 psi)
(18.5 psi)
(16 psi)
(18 psi)
(16.5 psi)
(24.5 psi)
(16 psi)
(24 psi)
* V ehicle load is w eight of operator, passenger,
accessories, and cargo. Do not exceed
maxim um vehicle load.
Gross Vehicle Weight Rating: 1025 kg (2260 l bs)
maxim um including v ehicle, weight of operator,
passenger, accessories, and cargo.OPERATING TIRE PRESSURE: With tires cold, set as follows.
3
4 5
UB0F7AE0.book Page 16 Monday, November 6, 2017 2:30 PM

1-17
1
YAMAHAB57-F4897-01
WARNING
Load may affect handling and stability.
Do not exceed the maxim um load ratings for the
cargo bed, or v ehicle.
When loaded with cargo:
uce speed and allo w more room to stop.
urn gradually and slo wly.
void hills and rough terrain.
Secure cargo so that it
will not shift - a loose load
could change handling unexpectedly or be thro wn
for ward and strike occupants.
Keep w eight in the cargo bed centered side to side and
as lo w as possib le. Top-heavy loads increase the risk of a
rollo ver.
Read Owner’s Man ual before loading cargo bed.
Improper use of cargo
bed or
cage/frame can result
in se vere injury or
death from loss of
control, o verturn or
other accidents.
Maxim um Load in Cargo Bed: 300 l bs (136 kg)
Maxim um Vehicle Load:
699 lb
s (317 kg)
Ne
ver carry
passengers
in cargo bed.
Any part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on
the floorboards,
and keep your
hands on the
handholds.
Do not try to stop a
vehicle tipover
using your arm or
leg.
5B4-K7762-00
WARNING!
WARNING
AVERTISSEMENT
Moving parts can crush
and cut.
Do not operate engine
with guard removed.
2HC-77762-00
Les pièces mobiles
peuvent entrainer des
coupures et des blessures
par écrasement.
Ne pas faire fonctionner le
moteur si le carter de
protection est déposé.
7 8
6
UB0F7AE0.book Page 17 Monday, November 6, 2017 2:30 PM

1-18
1
YAMAHA2MB-F1568-00
WARNING
DRIVERDRIVERUNDERUNDER1616DRIVER
UNDER16
Improper Use of Off-High way Vehicle Can Cau se Severe Inju ry or Death
Read Ow ner’s Man ual
Read Tips Gu ide for the Recreational Off-Highw ay Vehicle Driv er
Follo w All Instr uction and Warnings
Be Prepared
Driv
e Responsib ly If you
think or feel the v ehicle may tip or roll,
redu ce you r risk to inju ry:
Pay Attention and Plan Ahead
Do not allo w careless or reckless driv ing.
Do you
r part to pre vent inju ries:
Requ
ire Proper Use of Yo ur Vehicle
Rollo vers ha ve caused
se vere injuries and death,
e ven on flat, open areas.
Stay completely inside the
vehicle.
Passenger m
ust b e ab le to reach the handhold while
keeping feet flat on floor and sitting upright with
b ac
k against seat.
Dr

iv
er m ust b e ab le to comfortab ly reach all controls
w hile sitting u pright with back against seat.
W
ear an appro ved helmet, eye protection and protecti ve gear.
Fasten seat b
elts.

Do not allo w anyone to ride in the cargo b ed.
A
void side hilling (riding across slopes).
Plan for hills, rou
gh terrain, ruts, and other changes
in traction and terrain. A void pa ved su rfaces.
A
void hard acceleration w hen turning, e ven from a stop.
Slo
w do wn b efore entering a tu rn.
A
void ab ru pt maneuv ers, sideways sliding, skidding,
or fishtailing, and ne ver do don uts.
A
void loss of control and rollo vers: Do not p
ut an y part of you
r
body ou tside of
the v ehicle for any reason.
Keep a firm grip on the steering w
heel
or handhold and b race yourself.

Do not exceed seating capacity: 1 passenger.
Do not allo
w operation on pub lic roads
( u nless designated for off-highw ay vehicle access)
— collisions w ith cars and trucks can occu r.
Do not let people dri
ve or ride
after u sing alcohol or dr ugs.
Make su
re operators are 16 or older
w ith v alid driv er’s license.


1XD-F8446-00
Be Prepared
Adju
st, lock and ne ver remo ve handhold.
Alw ays u se handhold, N ever hold cage.
Alw ays w ear seatb elt and helmet.
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protectiv
e clothing.HandsInside v
ehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
9
10
11
UB0F7AE0.book Page 18 Monday, November 6, 2017 2:30 PM

2-1
2
EBU31150
SAFETY INFORMATION
SAFETY INFORMATION
EBU36821Be a responsible owner
As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha
YXZ1000R. While understanding all parts of this manual are important for vehicle ownership, be
sure to read this chapter an d the instructions in Chapter 7 before operating your Yamaha
YXZ1000R. Also use these two chapters and the labels on the vehicle to instruct new operators
and passengers. Do not allow anyone else to operate your vehicle or ride as a passenger if you
are unsure whether he or she is willing and able to follow these instructions.
Get to know your vehicle
This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars
and grounds-keeping vehicles. Follow these instructions to reduce your risk of an accident and
to reduce the risk of serious injury or death in the event of an accident.UB0F7AE0.book Page 1 Monday, November 6, 2017 2:30 PM

2-2
2
Before you operate your Yamaha YXZ1000R
 Prepare yourself and your passenger:
• This vehicle is intended for use only by an op erator 16 or older with a valid motor vehicle li-
cense. Check country laws fo r minimum age requirements.
• This vehicle is designed to carry the driver and one passenger. Never carry passengers in the cargo bed.
• Both driver and passenger shou ld wear seat belts properly.
• Both driver and passenger must be able to put both feet flat on the floorboard while seated
upright with their backs against the backrests. Passenger must be able to reach and hold
the passenger handhold in front of them.
• Both driver and passenger should wear an appr oved motorcycle helmet that fits properly.
Both driver and passenger should also wear eye protection (goggles or a face shield), gloves,
over-the-ankle boots, long-sleeved shirt or jacket, and long pants.
DRIVER
UNDER
16
UB0F7AE0.book Page 2 Monday, November 6, 2017 2:30 PM

2-3
2
• Do not drive or ride as passenger after using drugs or alcohol.
Prepare your vehicle
Perform the pre-operation checks each time you use the vehicle to make sure it is in safe oper-
ating condition. Failure to inspect or maintain th e vehicle properly increases the possibility of an
accident or equipment damage. See page 5-1 for a list of pre-operation checks.
Prepare your load
Carrying heavy or over-sized loads can affect hand ling, stability, and cause the risk of overturns
or other accidents.
 Read “Loading” on page 6-12 before loading the cargo bed.
 Do not overload the vehicle or cargo bed.
 Refer to the labels on the vehicle for specific loading limits and recommended tire air pressure.
 Keep heavier objects and the load in general cent ered side to side, and as low and as far for-
ward in the cargo bed as possible.
 Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be
thrown forward and strike occupants.
 This vehicle is not designed to tow or pull objects. Towing a trailer or pulling another vehicle or
other object will affect handling, stability, an d increase the risk of overturns and accidents.
Towing or pulling can also cause frame and vehicle damage.
UB0F7AE0.book Page 3 Monday, November 6, 2017 2:30 PM

2-4
2
While using your Yamaha YXZ1000R
Keep your body completely inside the vehicle at all times. Keep both hands on the steering
wheel. Be sure the passenger is seated, belted, and holding onto the passenger handhold.
Close doors before driving. Any part of your body (arms, legs, and head) outside the vehicle
can be struck by objects your vehicle is passing or crushed by the vehicle itself in a rollover
accident.
 Watch for branches, brush, or other hazards that could enter the vehicle.
 Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control,
including rollovers. The YXZ1000R has higher ground clearance and other features to handle
rugged terrain, and, as a result, can overturn in situations where some other vehicles may not.
 Avoid rollovers:
• Use care when turning:
• Turning the steering wheel too far or too fast can result in a rollover.
• Avoid sideways sliding, skidding, or fishtailing (rear-wheel sliding), and never do donuts.
• Slow down before entering a turn and avoid hard braking in a turn.
• When making tight turns from a stop or at sl ow speeds, avoid sudden or hard acceleration.UB0F7AE0.book Page 4 Monday, November 6, 2017 2:30 PM

2-5
2
• Drive straight up and down inclines, not across them. If crossing a hill is unavoidable, drive
slowly and turn downhill immediately if you feel the vehicle may tip.
• Avoid paved surfaces. Turn gradually and go slowly if you must drive on pavement. This vehicle is designed for off-road use only.
 If you think or feel that the vehicle may tip or ro ll, keep your body completely inside the protec-
tive structure of the vehicle:
• Brace yourself by pressing your feet firmly on the floorboard and keep a firm grip on the
steering wheel or passenger handhold.
• Do not put your hands or feet outside of the vehicle for any reason. Your arm or leg could be
crushed.
• Do not try to stop a vehicle tipover using your arm or leg.
 Do not operate this vehicle on any public street, road, or highway, even if dirt or gravel.
UB0F7AE0.book Page 5 Monday, November 6, 2017 2:30 PM
