2018 TOYOTA AURIS display

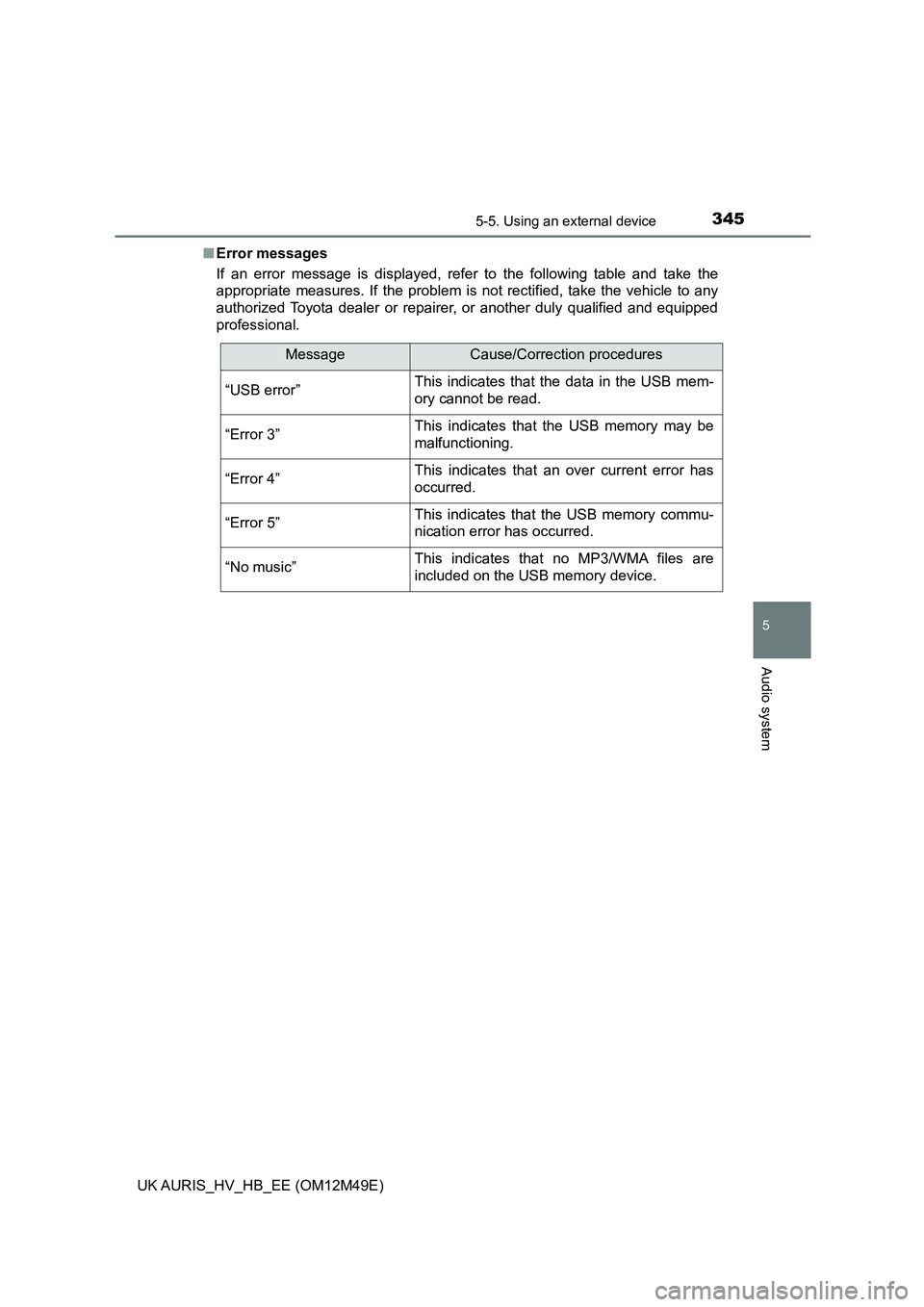

3455-5. Using an external device
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
MessageCause/Correction procedures
“USB error”This indicates that the data in the USB mem-
ory cannot be read.
“Error 3”This indicates that the USB memory may be
malfunctioning.
“Error 4”This indicates that an over current error has
occurred.
“Error 5”This indicates that the USB memory commu-
nication error has occurred.
“No music”This indicates that no MP3/WMA files are
included on the USB memory device.

3495-5. Using an external device
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
P. 3 2 0
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
Using the AUX port
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers. Press the “MODE” but-
ton until “AUX” is displayed.
Connecting a portable player

3525-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
Bluetooth® connection status
If “BT” is not displayed, the
Bluetooth® audio/phone cannot
be used.
Display
A message, name, number, etc.
is displayed.
Lower-case characters and special
characters cannot be displayed.
Displays the set up menu/inputs the selected item
Select items such as menu and number
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Displays information that is too long to be displayed at one time on
the display (press and hold)
Select speed dials
Audio unit
1
2
Microphone
3
4
5
6
7
8

3535-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
To enter a menu, press the “SETUP/ENTER” button and navigate
menus by using the “” and “SETUP/ENTER” but-
tons:
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing”-
Register a
Bluetooth®
device
“List phone”-
List the regis-
tered cellular
phones
“List audio”-
List the regis-
tered portable
players
“Passkey”-Change the
passkey
“BT power”-
Set automatic
connection of the
device on or off
“Bluetooth* info”
“Device Name”
“Device
Address”
Display the
device status
“Display setting”-
Set the auto-
matic connec-
tion confirmation
display on or off
“Reset”-Initialize the set-
tings

3555-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
Vo l u m e
The voice guidance volume
cannot be adjusted using these
buttons.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Talk switch
A message will be displayed.
Using the steering wheel switches
The steering wheel switches can be used to operate a connected
cellular phone or portable digita l audio player (portable player).
Operating a Bluetooth® phone using the steering wheel switches
1
2
3
4

3565-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
Press the “SETUP/ENTER” button and select “Bluetooth*” using
the “” button.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Press the “SETUP/ENTER” button a nd select “Pairing” using the
“” button.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairin g) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be register ed at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is press ed and the “PHONE” or “TEL” mode is
entered when no phones have been registered, the registration
screen will be automatically displayed.
Registering a Bluetooth® device
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

357
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
5-7. “SET UP” menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Pairing” using the “” and “SETUP/
ENTER” buttons ( P. 353), and perform the procedure for registering
a portable player. ( P. 356)
Select “List phone” using the “” and “SETUP/
ENTER” buttons. ( P. 353) The list of registered cellular phones will
be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “< SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Press “Yes”.
Using the “SET UP” menu (“Bluetooth*”
menu)
Registering a Bluetooth® device in the system allows the system
to function. The following functi ons can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3

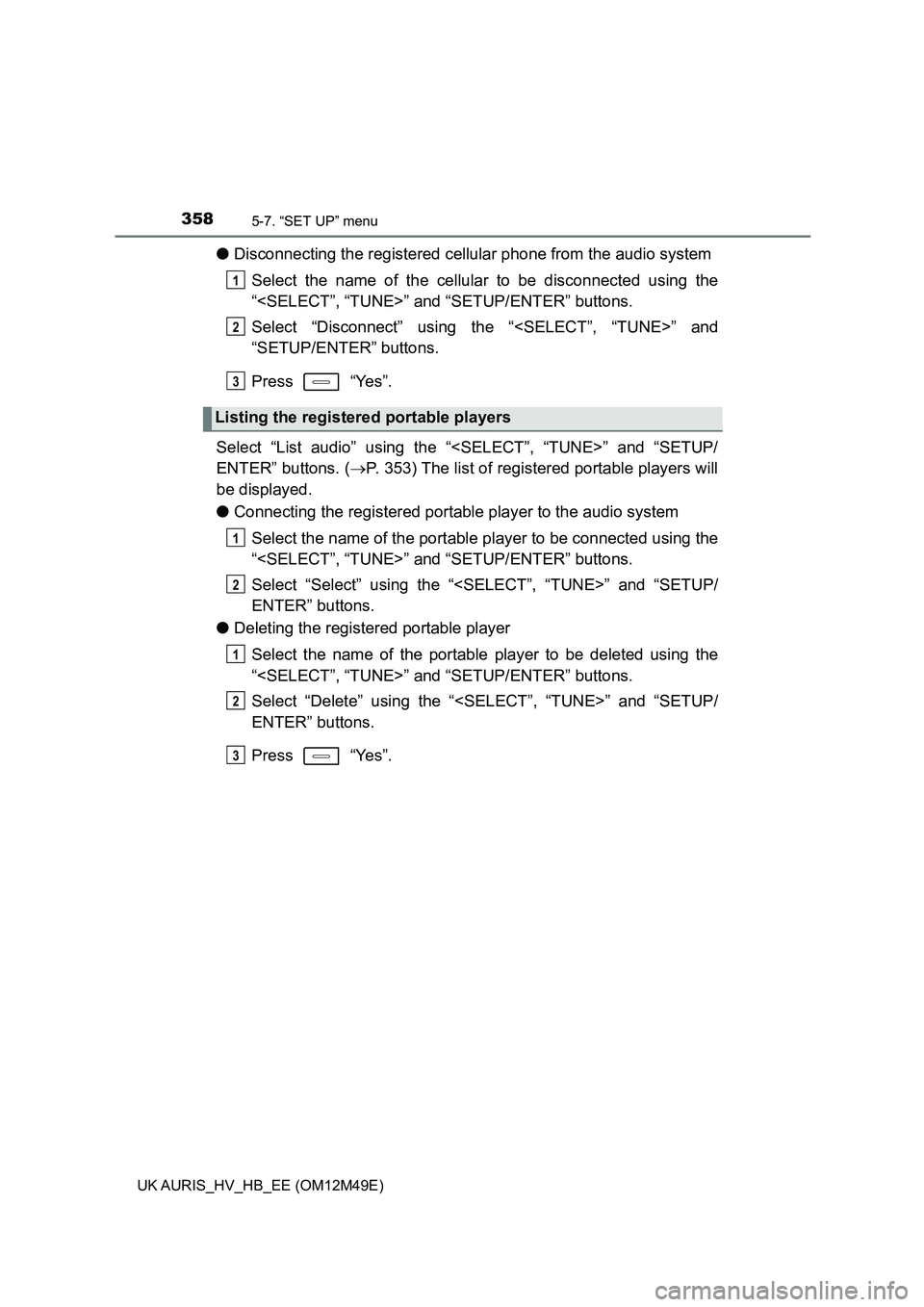

3585-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
●Disconnecting the registered cellular phone from the audio system
Select the name of the cellular to be disconnected using the
“” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
Select “List audio” using the “” and “SETUP/
ENTER” buttons. ( P. 353) The list of registered portable players will
be displayed.
● Connecting the registered portable player to the audio system
Select the name of the portable pl ayer to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “< SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Press “Yes”.
Listing the registered portable players
1
2
3
1
2
1
2
3
