2018 TOYOTA AURIS display

3605-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
If “BT power” is set to on, the registered device will be connected
automatically when the power switch is turned to ACCESSORY
mode.
Select “BT power” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
Select “On” or “Off” using the “SETUP/ENTER” button.
Select “Bluetooth* info” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
●Displaying the device name
Select “Device name” using the “” and
“SETUP/ENTER” buttons.
● Displaying the device address
Select “Device address” using the “” and
“SETUP/ENTER” buttons.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the power switch is turned to ACCESSORY
or ON mode.
Select “Display setting” using the “” and
“SETUP/ENTER” buttons. ( P. 353)
Select “On” or “Off” using the “SETUP/ENTER” button.
Setting automatic connection of the device on or off
Displaying the device status
Setting the automatic connecti on confirmation display to on or
off
1
2
1
2

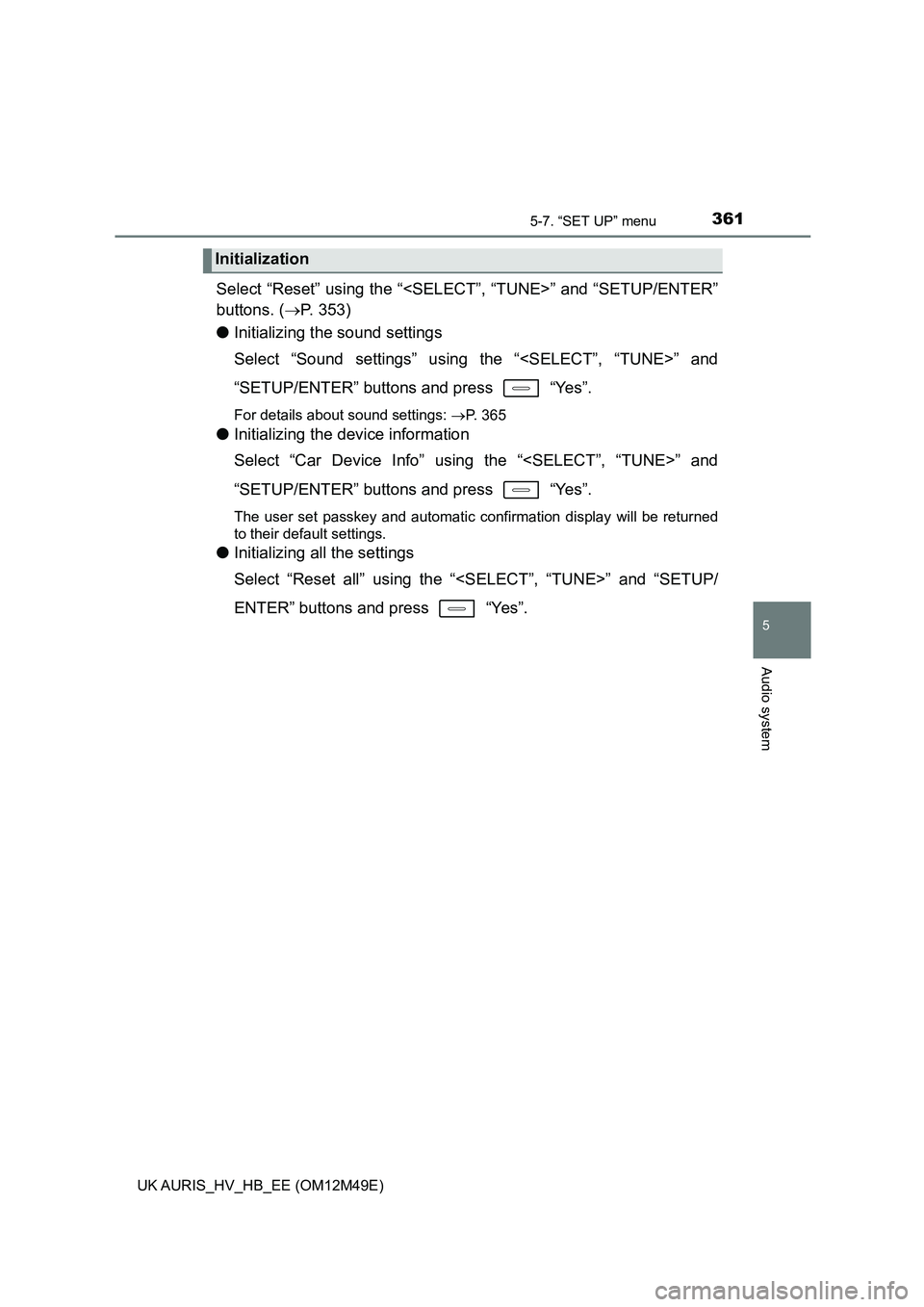

3615-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
Select “Reset” using the “” and “SETUP/ENTER”
buttons. ( P. 353)
● Initializing the sound settings
Select “Sound settings” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
For details about sound settings: P. 365
●Initializing the device information
Select “Car Device Info” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
The user set passkey and automatic confirmation display will be returned
to their default settings.
● Initializing all the settings
Select “Reset all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Initialization

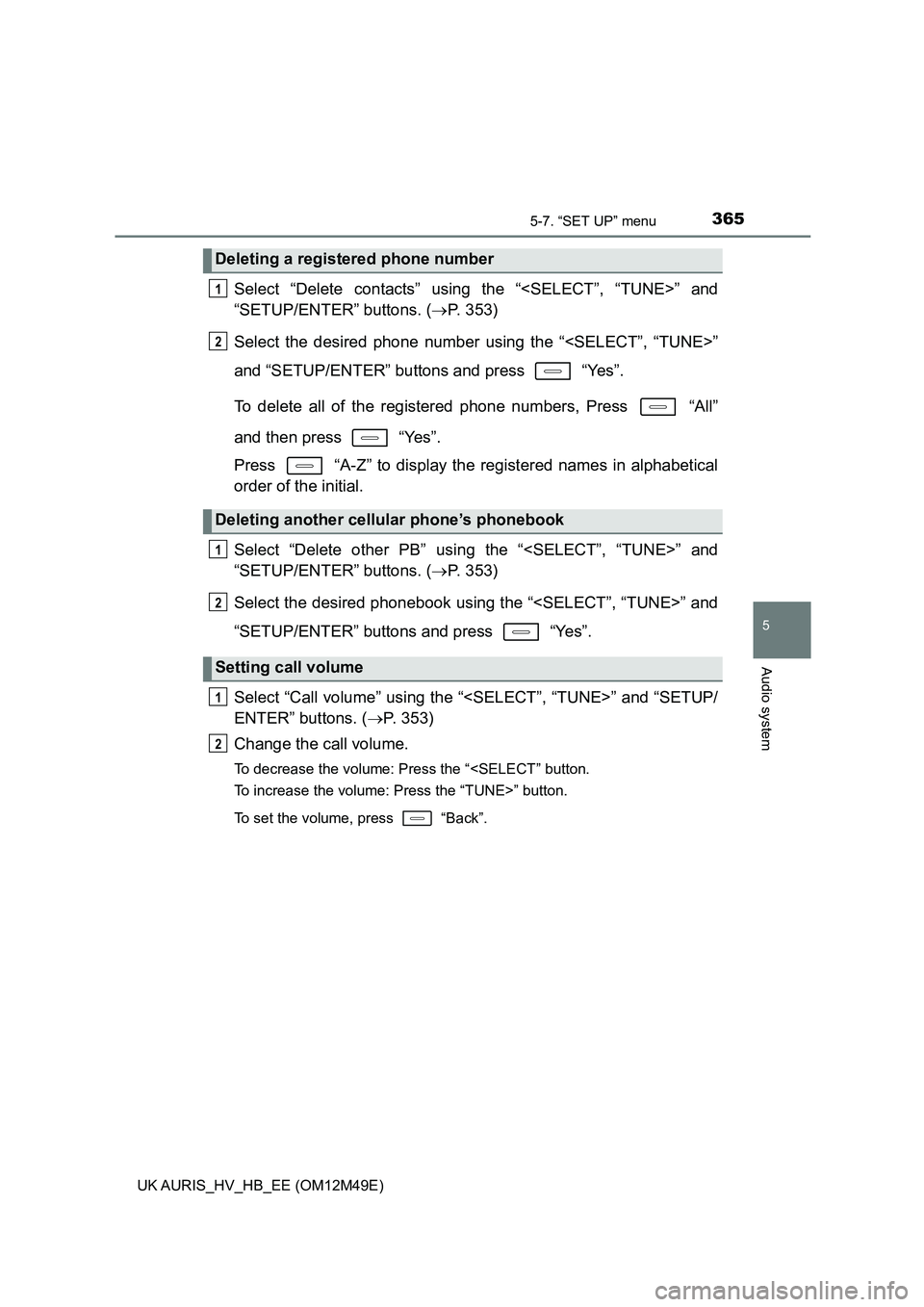

3655-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
Select “Delete contacts” using the “” and
“SETUP/ENTER” buttons. ( P. 353)
Select the desired phone number using the “”
and “SETUP/ENTER” buttons and press “Yes”.
To delete all of the registered phone numbers, Press “All”
and then press “Yes”.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Delete other PB” usin g the “” and
“SETUP/ENTER” buttons. ( P. 353)
Select the desired phonebook using the “” and
“SETUP/ENTER” buttons and press “Yes”.
Select “Call volume” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
Change the call volume.
To decrease the volume: Press the “ To increase the volume: Press the “TUNE>” button.
To set the volume, press “Back”.
Deleting a registered phone number
Deleting another cellular phone’s phonebook
Setting call volume
1
2
1
2
1
2

367
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
5-8. Bluetooth® Audio
Operating a Bluetooth® enabled portable
player
Display text message
Playback/pause
Select an album
Repeat play
Random playback
Playback
Select a track, fast-forward or
reverse
Vo l u m e
Power
1
2
3
4
5
6
7
8
9

3695-8. Bluetooth® Audio
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
Pressing “RPT” changes the repeat play mode in the following
order:
Track repeat  Album repeat  Off
Press “Text”.
Track title and artist name are displayed on the display.
To return to the previous display, press “Text” or “Back”.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Repeat play
Switching the display

370
UK AURIS_HV_HB_EE (OM12M49E)
5-9. Bluetooth® Phone
Select “Phonebook” using the “” and “SETUP/
ENTER” buttons.
Select the desired name using the “” and
“SETUP/ENTER” buttons and press the off-hook switch.
By pressing “Add S. Dial” and then one of the speed dial but-
tons while the desired name is se lected, the selected item can be reg-
istered as a speed dial.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the “” and “SETUP/
ENTER” buttons.
Press the desired pres et button and press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button press “Delete” and then press “Yes”.
Select “Dial by number” using the “” and
“SETUP/ENTER” buttons.
Enter the phone number and press the off-hook switch.
Making a phone call
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
Dialing by entering the number
1
2
1
2
1
2

380
UK AURIS_HV_HB_EE (OM12M49E)
6-1. Using the air conditioning system and defogger
Without dual control mode
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
The illustrations below are fo r left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive
vehicles.
Also, the display and button pos itions will differ depending on
the type of the system.
Air conditioning controls

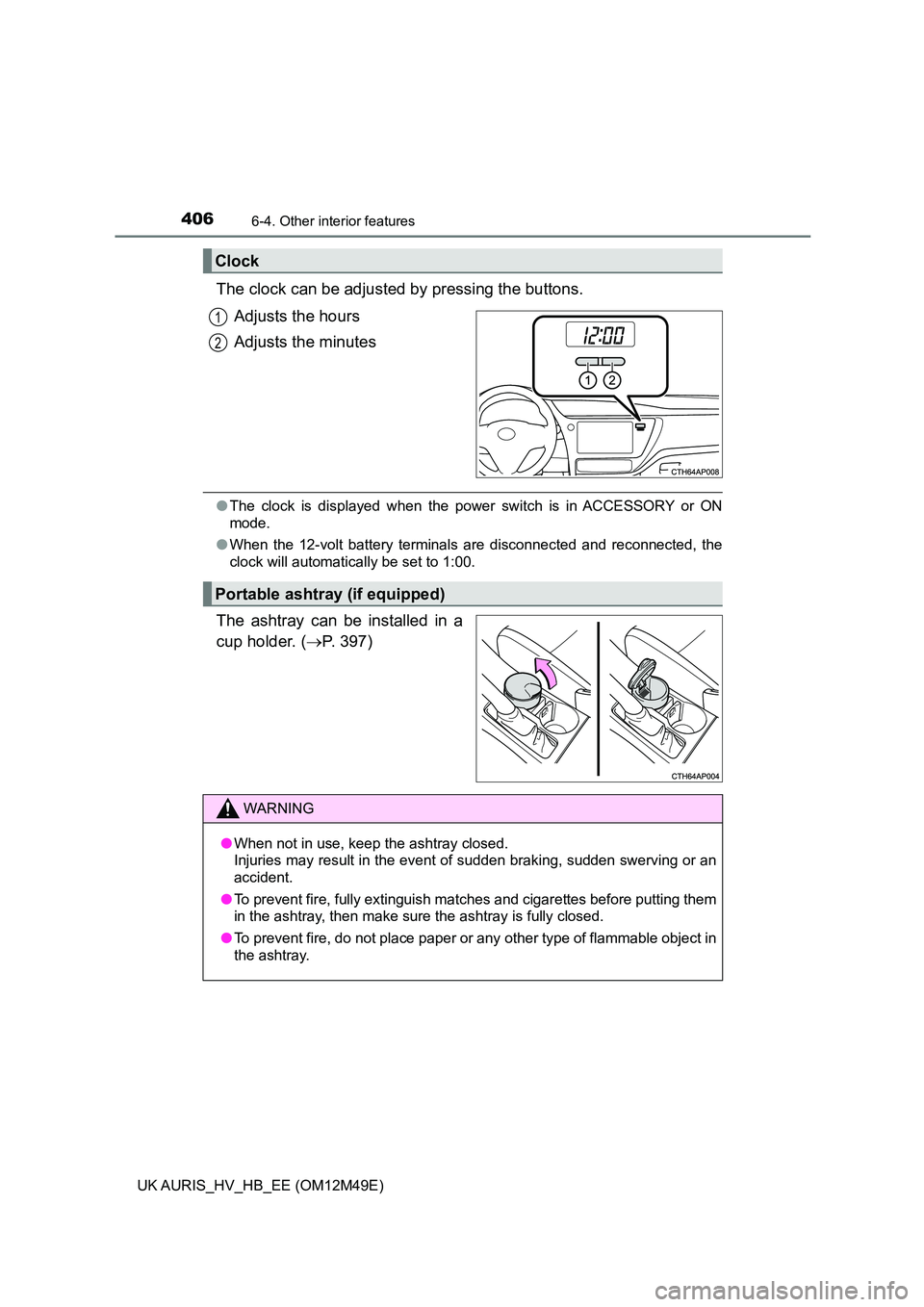

4066-4. Other interior features
UK AURIS_HV_HB_EE (OM12M49E)
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When the 12-volt battery terminals are disconnected and reconnected, the
clock will automatically be set to 1:00.
The ashtray can be installed in a
cup holder. ( P. 397)
Clock
1
2
Portable ashtray (if equipped)
WARNING
●When not in use, keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
● To prevent fire, fully extinguish matches and cigarettes before putting them
in the ashtray, then make sure the ashtray is fully closed.
● To prevent fire, do not place paper or any other type of flammable object in
the ashtray.
