2018 TOYOTA AURIS display

5468-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)

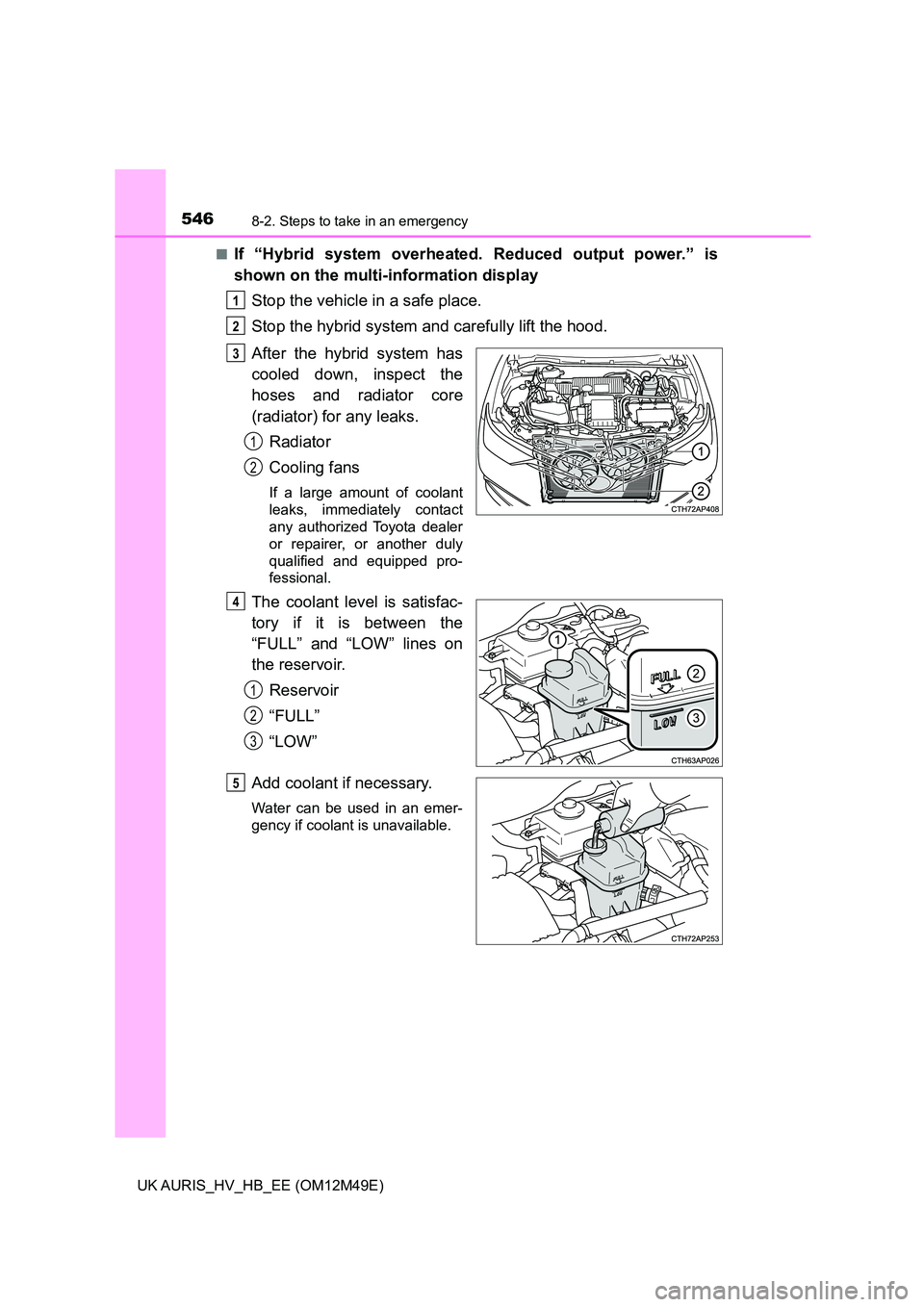

■If “Hybrid system overheated. Reduced output power.” is
shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

5478-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
Start the hybrid system and check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and cont act any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
6

5579-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

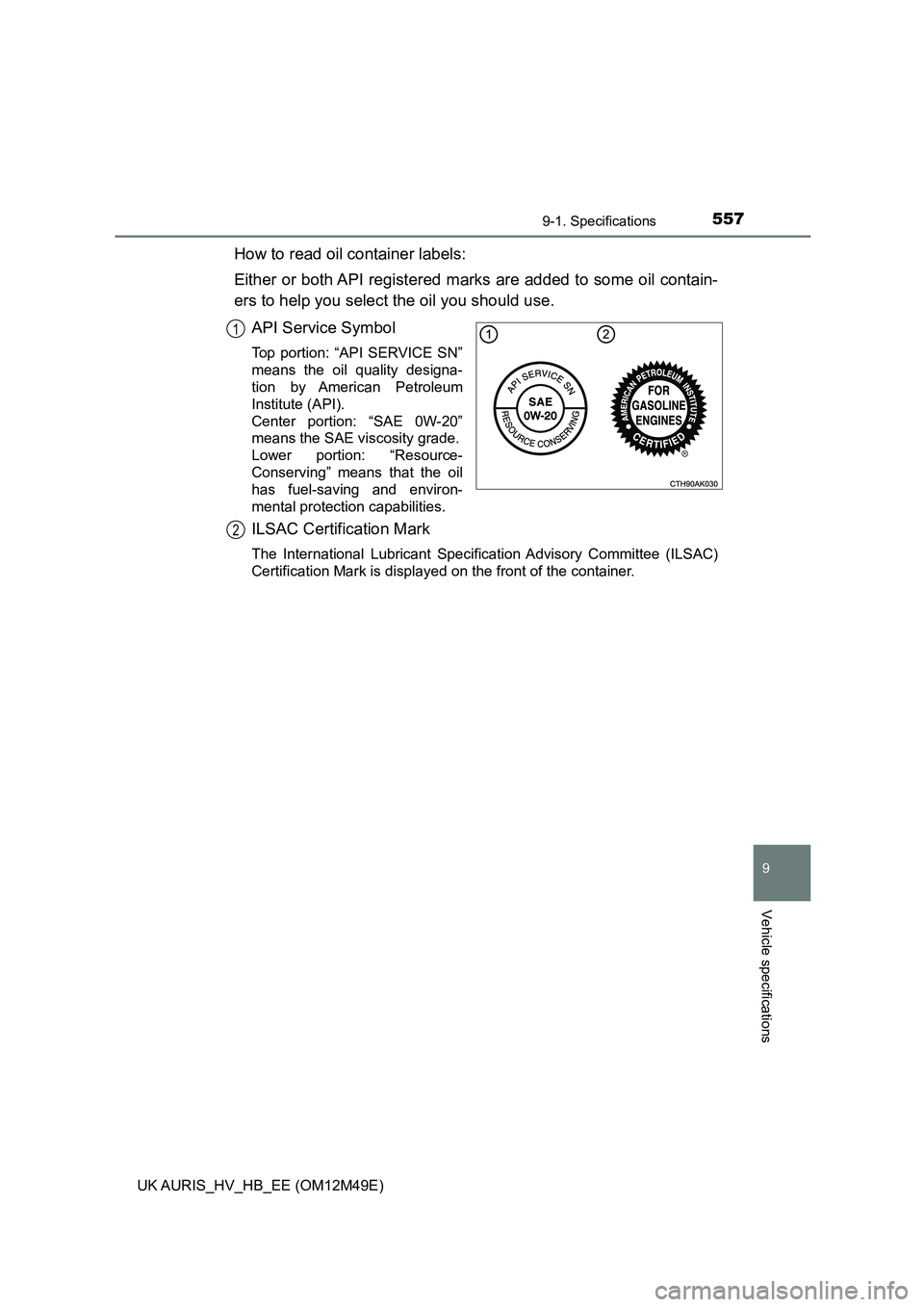

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5679-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

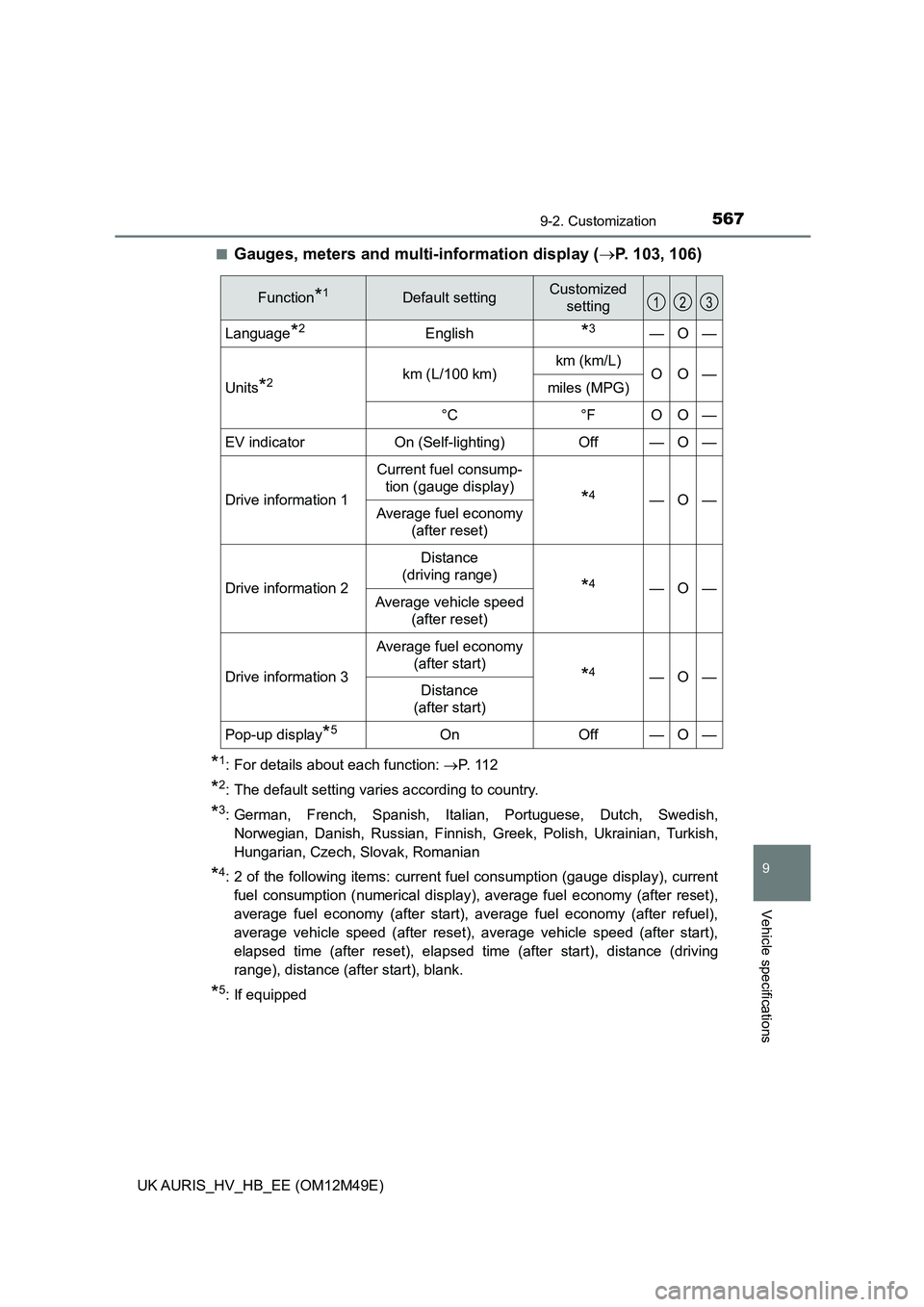

■Gauges, meters and multi-information display (P. 103, 106)
*1: For details about each function: P. 1 1 2
*2: The default setting varies according to country.
*3: German, French, Spanish, Italian, Portuguese, Dutch, Swedish,
Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish,
Hungarian, Czech, Slovak, Romanian
*4: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (after start),
elapsed time (after reset), elapsed time (after start), distance (driving
range), distance (after start), blank.
*5: If equipped
Function*1Default settingCustomized
setting
Language*2English*3—O—
Units*2km (L/100 km)km (km/L)OO—miles (MPG)
°C°FOO—
EV indicatorOn (Self-lighting)Off—O—
Drive information 1
Current fuel consump-
tion (gauge display)*4—O—Average fuel economy
(after reset)
Drive information 2
Distance
(driving range)*4—O—Average vehicle speed
(after reset)
Drive information 3
Average fuel economy
(after start)*4—O—Distance
(after start)
Pop-up display*5OnOff—O—
123

5709-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
■RSA (Road Sign Assist)* (P. 274)
*: If equipped
■Toyota parking assist-sensor*1 (P. 284)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
FunctionDefault settingCustomized
setting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer—O—
Off
Notification level of
excessive speed
2 km/h
(1 mph)
10 km/h (5 mph)—O—5 km/h (3 mph)
123
FunctionDefault settingCustomized
setting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors*2FarNearO—O
Detection distance of the
rear center sensors*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors
displayedDisplay offO—O
123

578What to do if... (Troubleshooting)
UK AURIS_HV_HB_EE (OM12M49E)
●Did anyone inside the vehicle open a door or anything move inside the
vehicle* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 89)
*: If the vehicle is equipped with intrusion sensor.
To stop the alarm, turn the power switch to ON mode or start the hybrid
system.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 498)
●When a warning light turns on or a warning message is displayed, refer to
P. 491, 498.
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 507)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 519)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 549)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds wh en leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

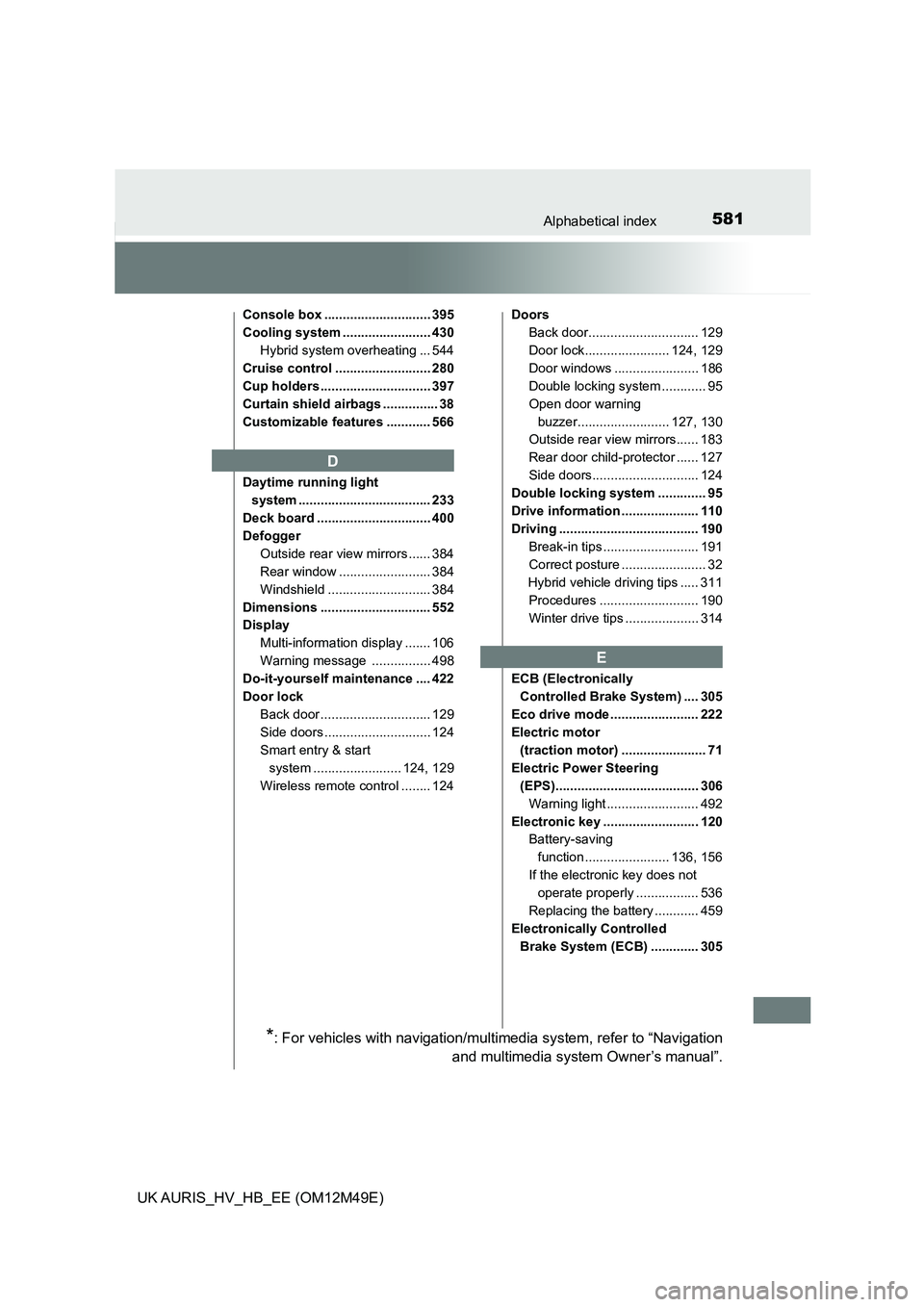

581Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Console box ............................. 395
Cooling system ........................ 430
Hybrid system overheating ... 544
Cruise control .......................... 280
Cup holders .............................. 397
Curtain shield airbags ............... 38
Customizable features ............ 566
Daytime running light
system .................................... 233
Deck board ............................... 400
Defogger
Outside rear view mirrors ...... 384
Rear window ......................... 384
Windshield ............................ 384
Dimensions .............................. 552
Display
Multi-information display ....... 106
Warning message ................ 498
Do-it-yourself maintenance .... 422
Door lock
Back door .............................. 129
Side doors ............................. 124
Smart entry & start
system ....... ................. 124, 129
Wireless remote control ........ 124
Doors
Back door.............................. 129
Door lock....................... 124, 129
Door windows ....................... 186
Double locking system ............ 95
Open door warning
buzzer......................... 127, 130
Outside rear view mirrors...... 183
Rear door child-protector ...... 127
Side doors............................. 124
Double locking system ............. 95
Drive information ..................... 110
Driving ...................................... 190
Break-in tips .......................... 191
Correct posture ....................... 32
Hybrid vehicle driving tips ..... 311
Procedures ........................... 190
Winter drive tips .................... 314
ECB (Electronically
Controlled Brake System) .... 305
Eco drive mode ........................ 222
Electric motor
(traction motor) ....................... 71
Electric Power Steering
(EPS)....................................... 306
Warning light ......................... 492
Electronic key .......................... 120
Battery-saving
function ....................... 136, 156
If the electronic key does not
operate properly ................. 536
Replacing the battery ............ 459
Electronically Controlled
Brake System (ECB) ............. 305
D
E
*: For vehicles with navigation/multimedia system, refer to “Navigation
and multimedia system Owner’s manual”.

582Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Emergency, in case of
If a warning light turns on ...... 491
If a warning message is
displayed ............................ 498
If the 12-volt battery is
discharged .......................... 539
If the electronic key does
not operate properly ........... 536
If the hybrid system
will not start......................... 536
If the warning buzzer
sounds ................................ 491
If you have a flat tire...... 507, 519
If you think something is
wrong .................................. 490
If your vehicle becomes
stuck ................................... 549
If your vehicle has to be
stopped in an emergency ... 483
If your vehicle needs to be
towed .................................. 484
If your vehicle
overheats ............................ 544
Emergency brake signal ......... 306
Emergency flashers................. 482
Emergency tire puncture
repair kit ................................. 519
Energy monitor ........................ 115
Engine....................................... 554
ACCESSORY mode ............. 213
Compartment ........................ 427
Engine switch........................ 213
Hood ..................................... 424
How to start the hybrid
system .......... ...................... 211
Identification number ............ 553
If the hybrid system
will not start ........................ 534
Ignition switch
(power switch) .................... 211
Overheating .......................... 544
Power switch......................... 211
Engine coolant ......................... 430
Capacity ................................ 558
Checking ............................... 430
Preparing and checking
before winter....................... 314
Warning light ......................... 491
Engine oil ................................. 428
Capacity ................................ 555
Checking ............................... 428
Preparing and checking
before winter....................... 314
Engine switch .......................... 211
EPS (Electric Power
Steering)................................. 306
Warning light ......................... 492
EV drive mode.......................... 217
