2018 RENAULT KOLEOS Owners Manual

Page 273 of 332

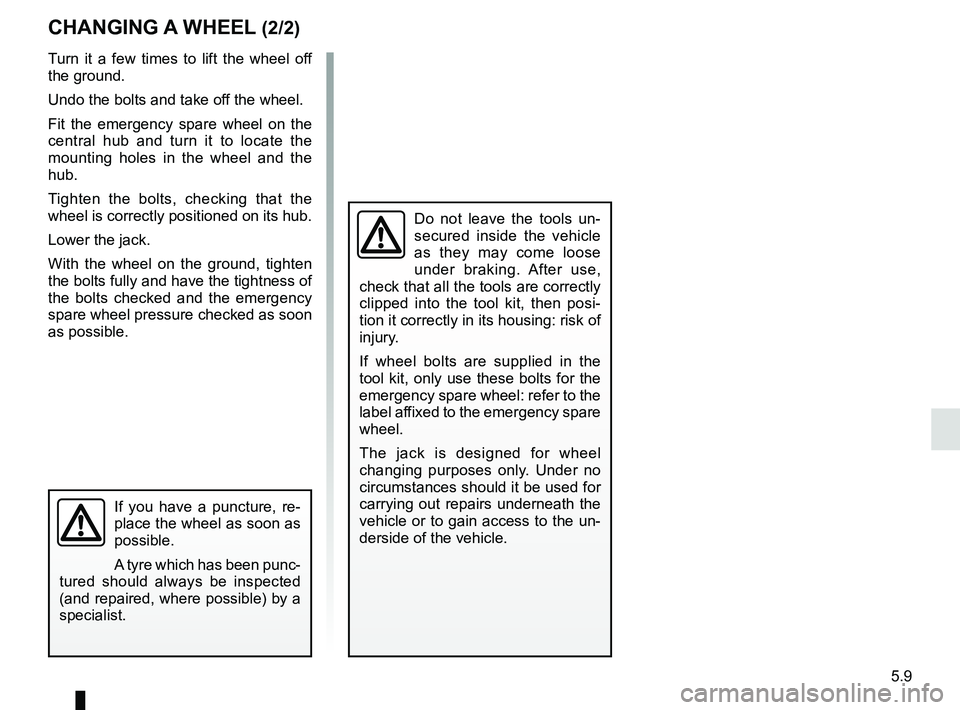

RENAULT KOLEOS 2018  Owners Manual 5.9
If you have a puncture, re-
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.
CHANGING A WHEEL (2

Page 274 of 332

RENAULT KOLEOS 2018  Owners Manual 5.10
TYRES (1/3)
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have tread wear indica-
tors 1 w

Page 275 of 332

RENAULT KOLEOS 2018  Owners Manual 5.11

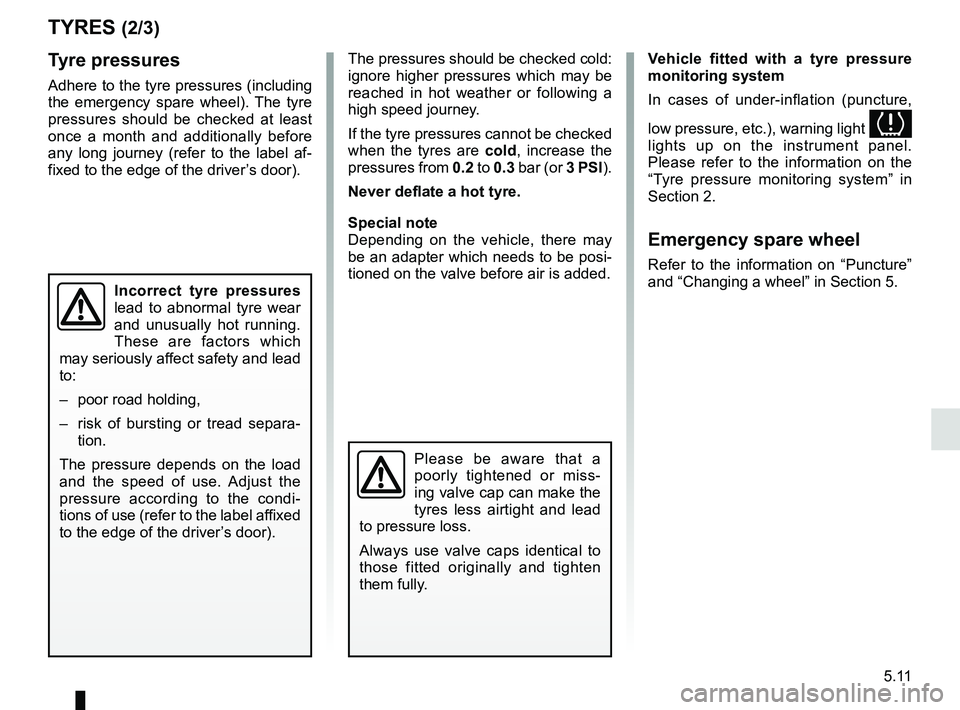

TYRES (2/3)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long jour

Page 276 of 332

RENAULT KOLEOS 2018  Owners Manual 5.12
TYRES (3/3)
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted

Page 277 of 332

RENAULT KOLEOS 2018  Owners Manual 5.13
On the right-hand side of the vehicle,
you will need to remove the filler neck 4
for the windscreen washer tank to
access the bulbs. To do this:
–  remove the clip for the funnel  4;
–  pu

Page 278 of 332

RENAULT KOLEOS 2018  Owners Manual 5.14

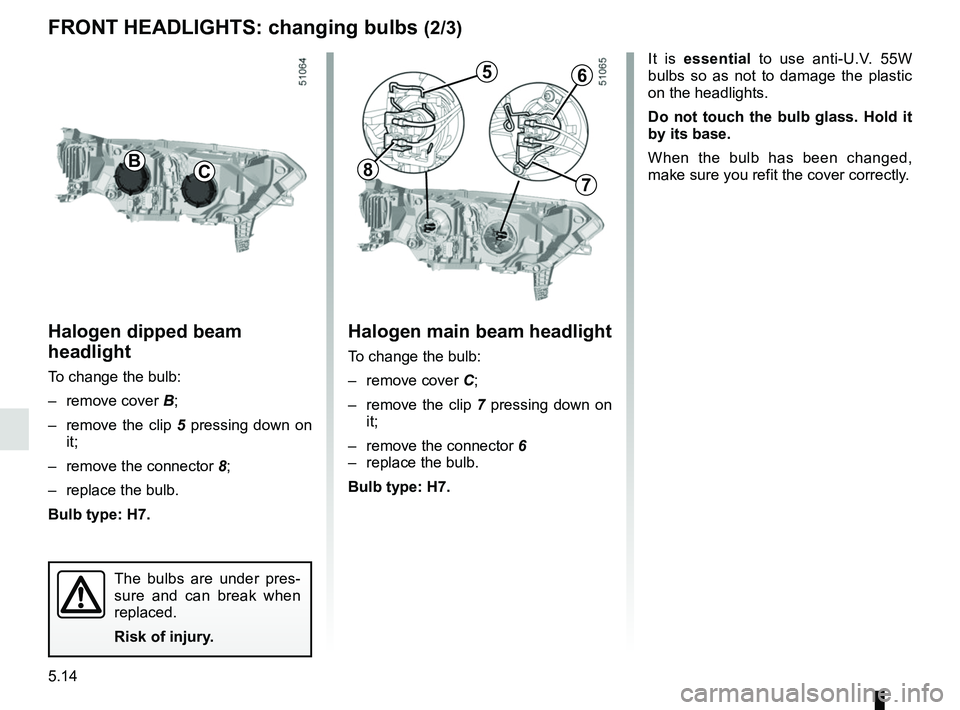

FRONT HEADLIGHTS: changing bulbs (2/3)
Halogen main beam headlight
To change the bulb:
– remove cover  C;
–  remove the clip  7 pressing down on
it;
–  remove the connector  6
–  replace

Page 279 of 332

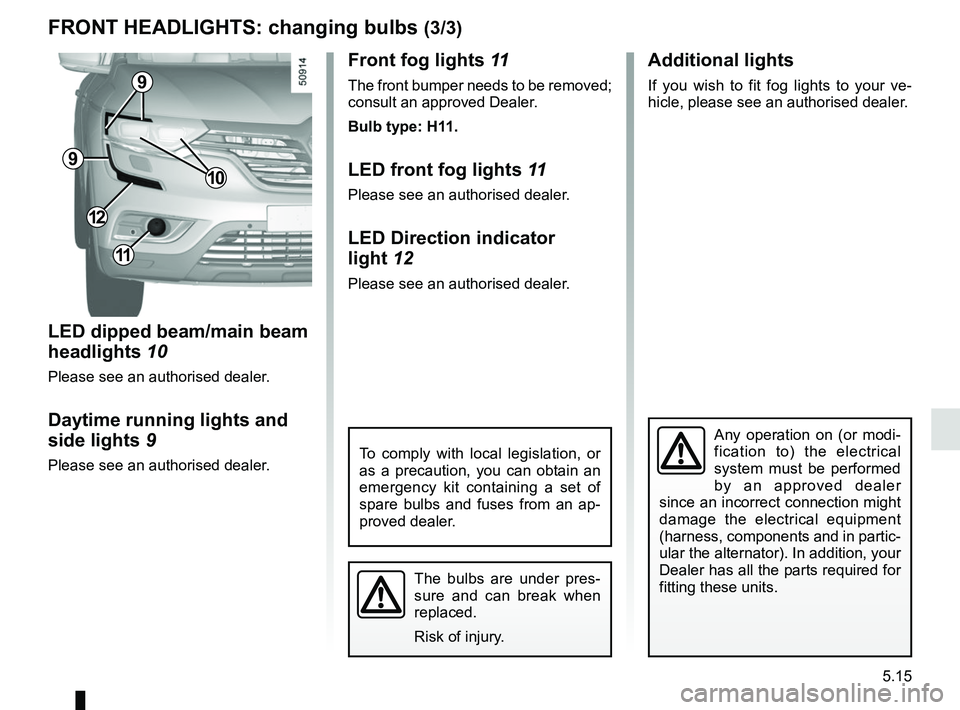

RENAULT KOLEOS 2018  Owners Manual 5.15
Front fog lights 11
The front bumper needs to be removed;
consult an approved Dealer.
Bulb type: H11.
LED front fog lights  11
Please see an authorised dealer.
LED Direction indicator
light 12

Page 280 of 332

RENAULT KOLEOS 2018  Owners Manual 5.16
REAR AND SIDE LIGHTS: changing bulbs (1/3)
Side lights and brake lights 1
Consult an approved Dealer.
1
Direction indicators 2
Consult an approved Dealer.
2
