Page 281 of 332
5.17
Turn bulb holder 4 fully anticlockwise
and change the bulb.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
Bulb type: W16W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

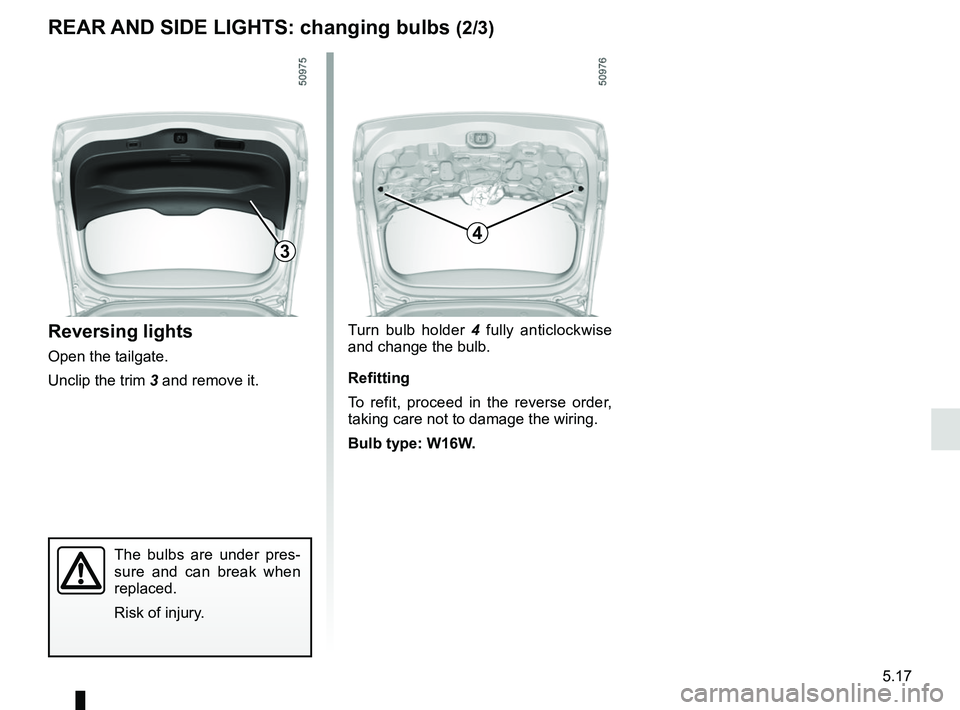

Reversing lights
Open the tailgate.
Unclip the trim 3 and remove it.
REAR AND SIDE LIGHTS: changing bulbs (2/3)
3
4
Page 282 of 332
5.18
Halogen number plate
lights 7
– Unclip the light 7 (using a tool such
as a flat-blade screwdriver).
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
LED number plate light 7
Consult an approved dealer.
REAR AND SIDE LIGHTS: changing bulbs (3/3)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side indicator lights 8
Consult an authorised dealer.
8
High level brake light 5
Consult an approved dealer.
Rear fog lights 6
Consult an approved dealer.
5
7
6
Page 283 of 332
5.19

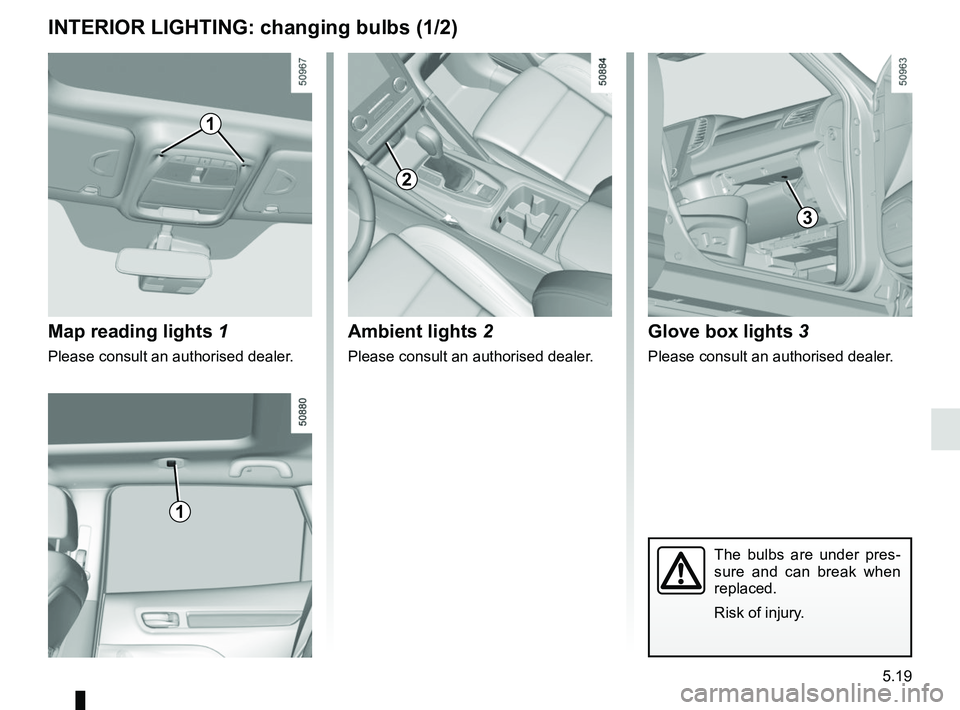

INTERIOR LIGHTING: changing bulbs (1/2)
Map reading lights 1
Please consult an authorised dealer.
1
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5
1
2
Ambient lights 2
Please consult an authorised dealer.
Glove box lights 3
Please consult an authorised dealer.
3
Page 284 of 332
5.20

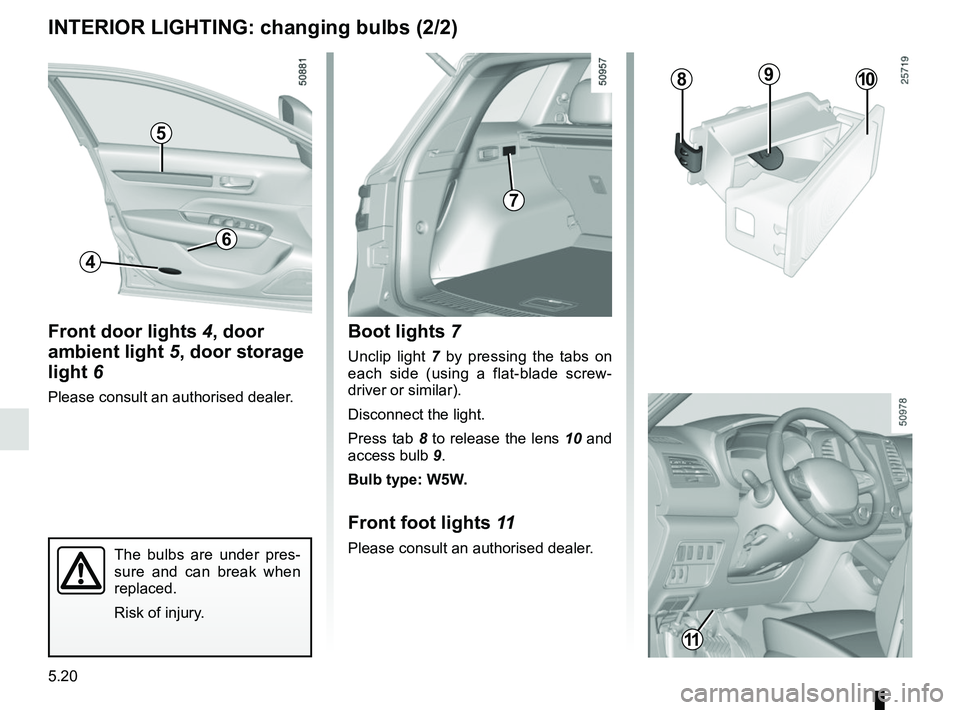

INTERIOR LIGHTING: changing bulbs (2/2)
Boot lights 7
Unclip light 7 by pressing the tabs on
each side (using a flat-blade screw-
driver or similar).
Disconnect the light.
Press tab 8 to release the lens 10 and
access bulb 9.
Bulb type: W5W.
Front foot lights 11
Please consult an authorised dealer.The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
7
89
Front door lights 4, door
ambient light 5, door storage
light 6
Please consult an authorised dealer.
4
6
5
10
11
Page 285 of 332

5.21
Operating faults
If the battery is too weak to ensure cor-
rect operation, you can still start and
lock/unlock the vehicle (please refer to
the information on “Locking/unlocking
the opening elements” in Section 1).
RENAULT CARD: battery
Replacing the battery
When the message “Keycard battery
low” appears on the instrument panel,
replace the battery in the RENAULT
card:
– slide the rear casing 1 downwards
while pressing on zone A;
– remove the battery cover 2;
– remove the battery by pressing on
one side and lifting the other;
– replace it according to the direc-
tion and template shown inside the
cover.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the message will disappear.
Note: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years. Check
that there is no dye on the battery:
risk of an incorrect electrical con-
tact.
2
A
1
Page 286 of 332
5.22

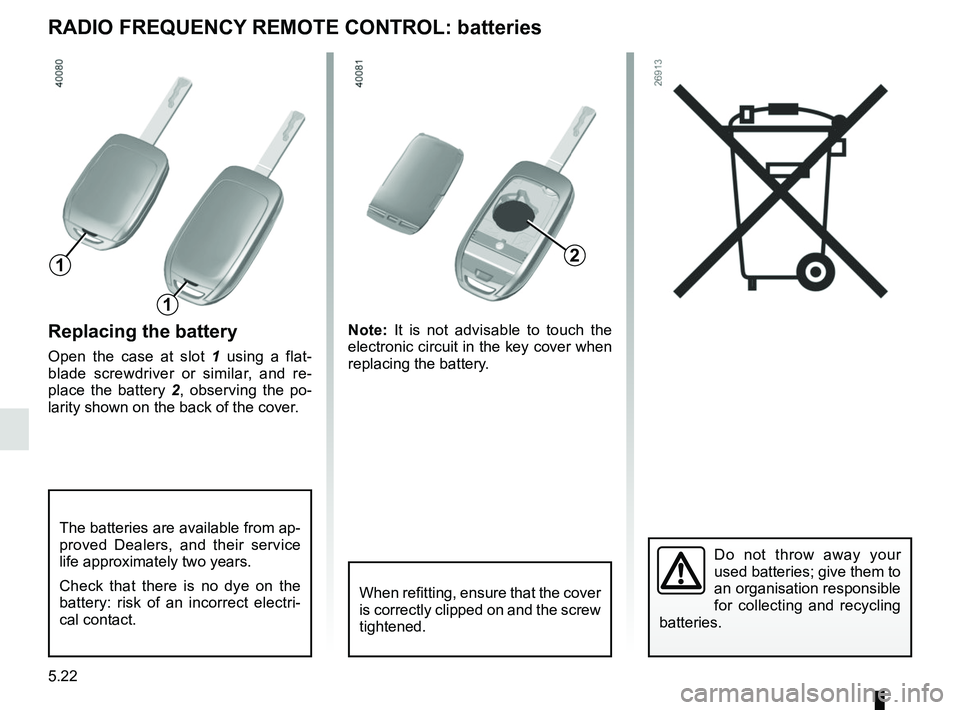

Replacing the battery
Open the case at slot 1 using a flat-
blade screwdriver or similar, and re-
place the battery 2 , observing the po-
larity shown on the back of the cover. Note:
It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIO FREQUENCY REMOTE CONTROL: batteries
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
2
1
1
Page 287 of 332
5.23
Fuses in passenger compartment B
on the vehicle with stop and start
function
Unclip the cover B using a screwdriver
or similar.
FUSES (1/3)
A
In accordance with local legislation
or as a precautionary measure:
obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
If any electrical component does not
work, check the condition of the fuses.
Fuses in passenger compartment
A on the left-hand side of the
vehicle
Unclip the cover A using a screwdriver
or similar.
B
Fuses in passenger compartment
A on the right-hand side of the
vehicle
Glove box needs to be disassembled to
access the fuses. Please consult an au-
thorised dealer.
Page 288 of 332
5.24

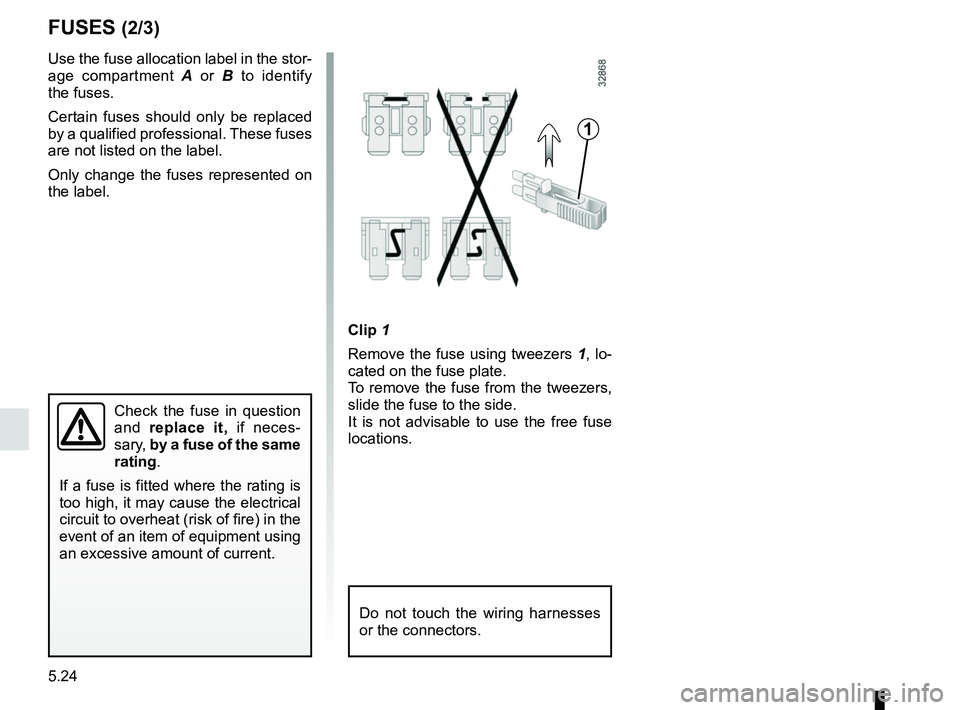

FUSES (2/3)
1
Clip 1
Remove the fuse using tweezers 1, lo-
cated on the fuse plate.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Do not touch the wiring harnesses
or the connectors.
Use the fuse allocation label in the stor-
age compartment A or B to identify
the fuses.
Certain fuses should only be replaced
by a qualified professional. These fuses
are not listed on the label.
Only change the fuses represented on
the label.
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
