2018 MERCEDES-BENZ GLC Owners Manual

Vehicle Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

General notes The multimedia system section in this Opera-
tor's Manual describes the basic principles for
operation. More information can be found in the
Digital Operator's Manual.
Important safety notes
G WARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle when driving, you may be distracted from
the traffic situation. You could also lose con-
trol of the vehicle. There is a risk of an acci-
dent.
Only operate this equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
You must observe the legal requirements for the
country in which you are currently driving when
operating the multimedia system.
The multimedia system calculates the route to
the destination without taking the following into
account, for example: R
traffic lights R
stop and yield signs R
parking or stopping restrictions R
road narrowing R
other road and traffic rules and regulations
The multimedia system may give incorrect nav-
igation recommendations if the actual street/
traffic situation does not correspond with the
digital map's data.
For example: R
a diverted route R
the road layout or the direction of a one-way
street has been changed
For this reason, you must always observe road
and traffic rules and regulations during your
journey. Road and traffic rules and regulations
always have priority over multimedia system
driving recommendations. Navigation announcements are intended to
direct you while driving without diverting your
attention from the road and driving.
Please always use this feature instead of con-
sulting the map display for directions. Looking
at the icons or map display can distract you from
traffic conditions and driving, and increase the
risk of an accident.
This equipment complies with FCC radiation
exposure limits set forth for uncontrolled equip-
ment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65.
This equipment has very low levels of RF energy
that is deemed to comply without maximum
permissive exposure evaluation (MPE). How-
ever, it is recommended to insta l l it at a distance
of at least 8 inches (approx. 20 cm) between the
radiation source and a person's body (not
including limbs such as hands, wrists, feet and
legs).
G WARNING
Modifications to electronic components, their
software as well as wiring can impair their
function and/or the function of other net-
worked components. In particular, systems
relevant to safety could also be affected. As a
result, these may no longer function as inten-
ded and/or jeopardize the operating safety of
the vehicle. There is an increased risk of an
accident and injury.
Never tamper with the wiring as well as elec-
tronic components or their software. You
should have all work to electrical and elec-
tronic equipment carried out at a qualified
specialist workshop.
Function restrictions
For safety reasons, some functions are restric-
ted or unavailable while the vehicle is in motion.
You will notice this, for example, because either
you will not be able to select certain menu items
or a message will appear to this effect.280
Function restrictions
Multimedia system

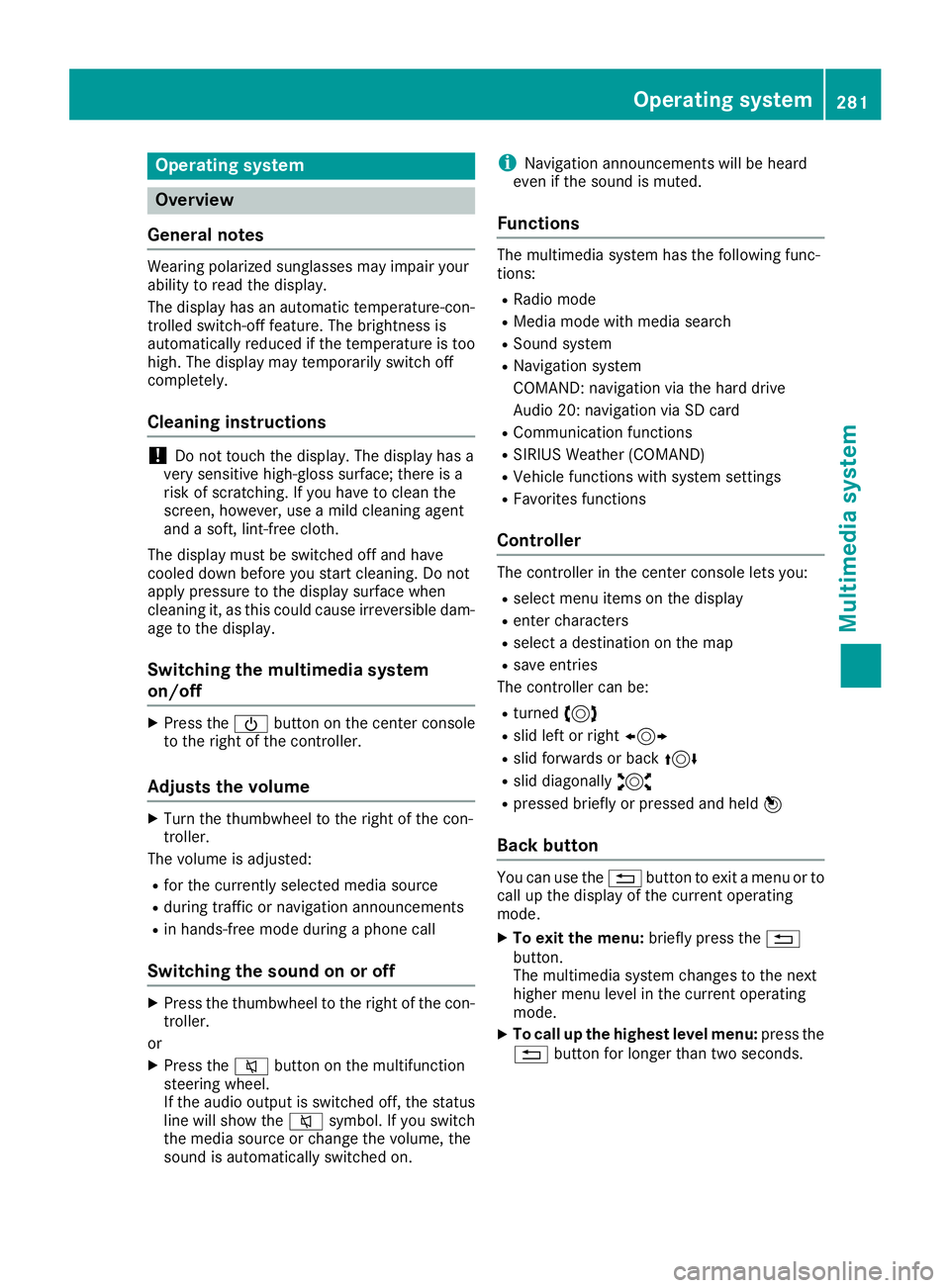

Operating system
Overview
General notes Wearing polarized sunglasses may impair your
ability to read the display.
The display has an automatic temperature-con-
trolled switch-off feature. The brightness is
automatically reduced if the temperature is too
high. The display may temporarily switch off
completely.
Cleaning instructions
! Do not touch the display. The display has a
very sensitive high-gloss surface; there is a
risk of scratching. If you have to clean the
screen, however, use a mild cleaning agent
and a soft, lint-free cloth.
The display must be switched off and have
cooled down before you start cleaning. Do not
apply pressure to the display surface when
cleaning it, as this could cause irreversible dam-
age to the display.
Switching the multimedia system
on/off X

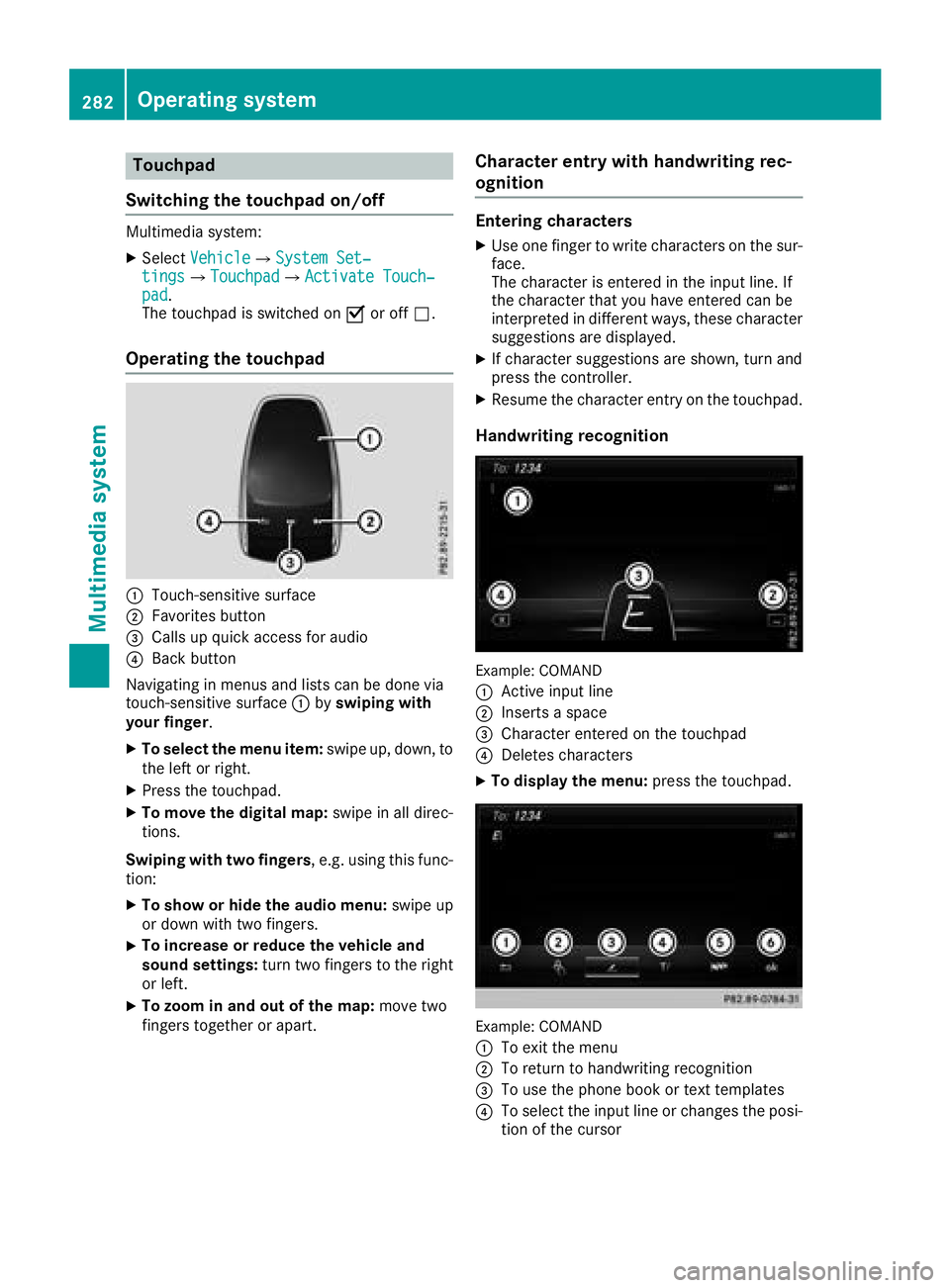

Press the

Touchpad
Switching the touchpad on/off Multimedia system: X
Select Vehicle { System Set‐
tings { Touchpad { Activate Touch‐
pad .
The touchpad is switched on s or off S .
Operating the touchpad
C
Touch-sensitive surfaceD
Favorites button

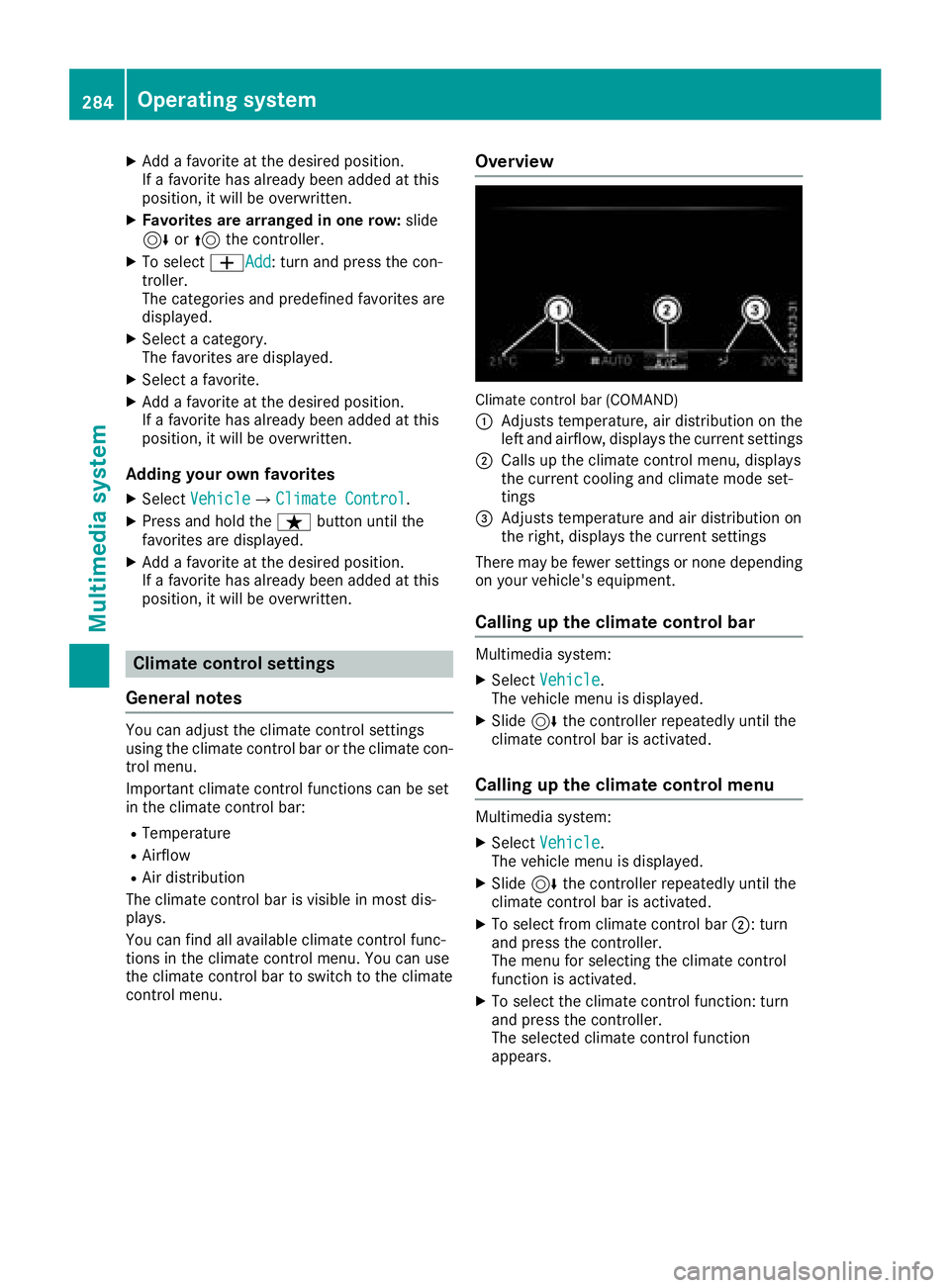

X
Add a favorite at the desired position.
If a favorite has already been added at this
position, it will be overwritten. X
Favorites are arranged in one row: slide
6 or 5 the controller.X
To select

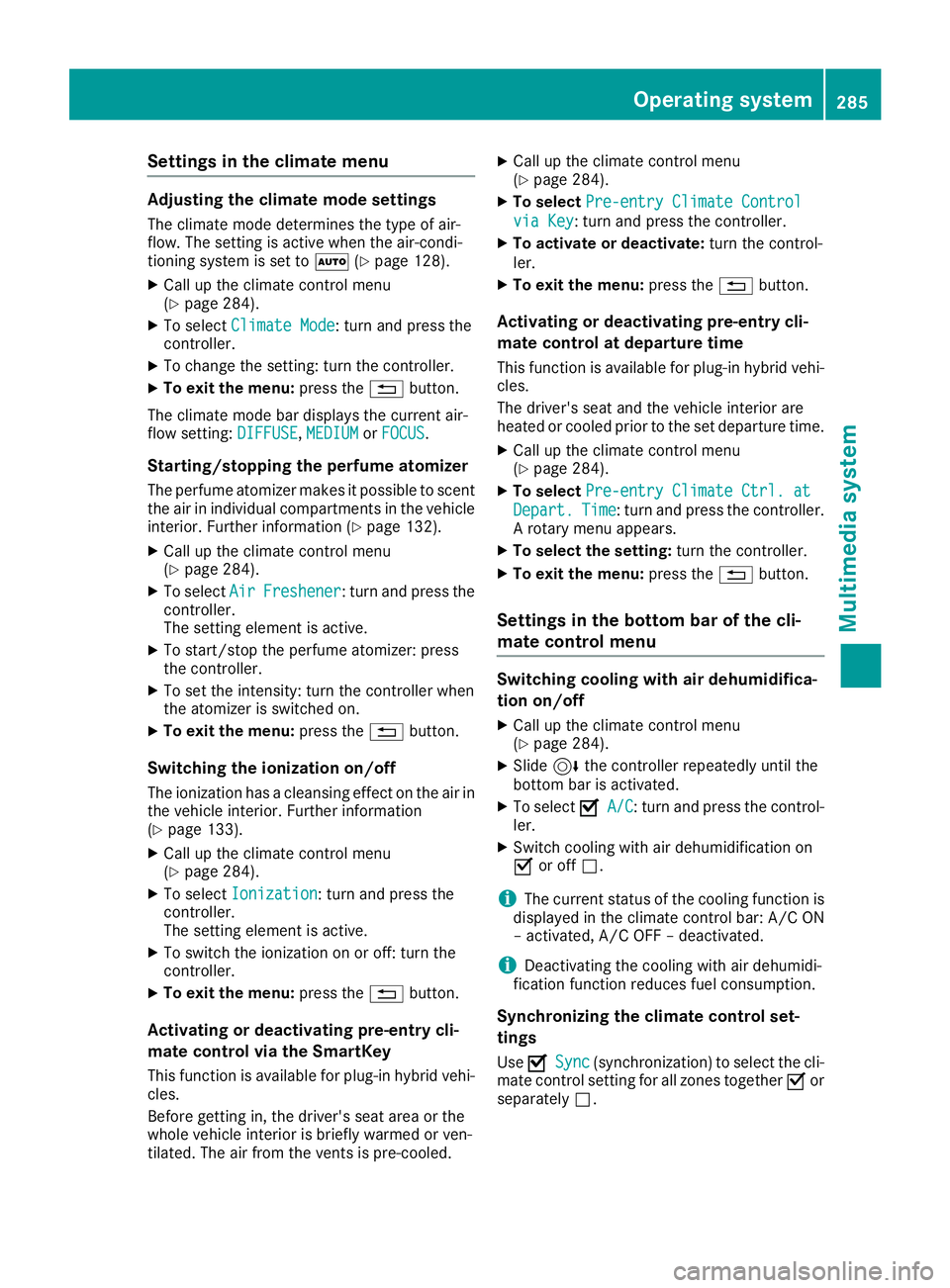

Settings in the climate menu Adjusting the climate mode settings The climate mode determines the type of air-
flow. The setting is active when the air-condi-
tioning system is set to X ( Y
page 128).X
Call up the climate control menu
( Y
page 284). X
To select Climate Mode : turn and press the
controller. X
To change the setting: turn the controller. X
To exit the menu: press the 8 button.
The climate mode bar displays the current air-
flow setting: DIFFUSE , MEDIUM or FOCUS .
Starting/stopping the perfume atomizer The perfume atomizer makes it possible to scent
the air in individual compartments in the vehicle
interior. Further information ( Y
page 132).X
Call up the climate control menu
( Y
page 284). X
To select Air Freshener : turn and press the
controller.
The setting element is active. X
To start/stop the perfume atomizer: press
the controller. X
To set the intensity: turn the controller when
the atomizer is switched on. X
To exit the menu: press the 8 button.
Switching the ionization on/off The ionization has a cleansing effect on the air in
the vehicle interior. Further information
( Y
page 133). X
Call up the climate control menu
( Y
page 284). X
To select Ionization : turn and press the
controller.
The setting element is active. X
To switch the ionization on or off: turn the
controller. X
To exit the menu: press the 8 button.
Activating or deactivating pre-entry cli-
mate control via the SmartKey
This function is available for plug-in hybrid vehi-
cles.
Before getting in, the driver's seat area or the
whole vehicle interior is briefly warmed or ven-
tilated. The air from the vents is pre-cooled. X
Call up the climate control menu
( Y
page 284). X
To select Pre-entry Climate Control
via Key : turn and press the controller. X
To activate or deactivate: turn the control-
ler. X
To exit the menu: press the 8 button.
Activating or deactivating pre-entry cli-
mate control at departure time This function is available for plug-in hybrid vehi-
cles.
The driver's seat and the vehicle interior are
heated or cooled prior to the set departure time. X
Call up the climate control menu
( Y
page 284). X
To select Pre-entry Climate Ctrl. at
Depart. Time : turn and press the controller.
A rotary menu appears. X
To select the setting: turn the controller.X
To exit the menu: press the 8 button.
Settings in the bottom bar of the cli-
mate control menu
Switching cooling with air dehumidifica-
tion on/off X
Call up the climate control menu
( Y
page 284). X
Slide 6 the controller repeatedly until the
bottom bar is activated. X
To select s A/C : turn and press the control-
ler. X
Switch cooling with air dehumidification on
s or off S .
i The current status of the cooling function is
displayed in the climate control bar: A/C ON
– activated, A/C OFF – deactivated.
i Deactivating the cooling with air dehumidi-
fication function reduces fuel consumption.
Synchronizing the climate control set-
tings
Use s Sync (synchronization) to select the cli-
mate control setting for all zones together s or
separately S .Operating system 285
Multimedia system Z

X
Call up the clim ate control menu
( Y
page 284).X
Slid e 6 the controller repeat edly unt il the
bottom bar is activated.X
To select s Sync : turn and press the con-
troller. X
Swit ch the synchronization function on s or
off S .
For further information on synchronizing clim ate
control settings, see ( Y
page 130).
Navigation mode
Important safety notes
G WAR NING
If you operate information systems and com-
munication equipment integrated in the veh i-
cle when driv ing, you may be dist racted from
the traff ic situation. You could also lose con-
trol of the veh icle . There is a risk of an acc i-
dent.
On ly operate th is equipm ent when the traff ic
situation permits. If you are not sure that th is
is poss ible, park the veh icle paying attention
to traff ic conditions and operate the equip-
ment when the veh icle is stationary.
You must observe the legal requirements for the
country in whic h you are currently driv ing when
operating the navigation system.
General notes Among other things, correct functioning of the
navigation system depen ds on GPS reception. In
certain situations, GPS reception may be
impaired, there may be interference or there
may be no reception at all, e.g. in tunne ls or
parking garages.
Aud io 20 is equipp ed wit h Garm in ®
MAP PILOT
(see the manufacturer's operating instructions).
The Garm in ®
MAP PILOT operating instructions
are stored on the SD card as a PDF file . The SD
card box contains a quic k guide.
The foll owin g desc ript ions apply to navigation
wit h COMAND. Further information can be
found in the Digital Operator's Manual. Selecting a route type and route options Multimed ia system: X
Select Navi { Navigation .X
Select Z { Route Settings .
i If route guidance is active, first slide 6 the
controller and show the menu. X
Select a route type.
Notes for route types: R
Eco Route
Calculates an economic route. R
Dynamic Traffic Route (only availab le in
the USA)
Traffic reports on the route for the route guid-
ance are taken into account. R
Calculate Alternative Routes
Different routes are being calculate d. Instead
of Start , select the Continue menu item.X
To avoid/use rou te options: select Avoid
Options . X
Select a route option.
Notes for route options: R
Use Toll Roads
The route calculation includes roads whic h
require you to pay a usage fee (toll). R
Use Carpool Lanes (only availab le in the
USA)
Prerequisite: your vehicle meets the access
conditions for carpool lanes.
Carpool lanes will be included if the carpool
lanes option is activated.
Entering an address Multimed ia system: X
Select Navi { Navigation .X
Select Destination { Address Entry .
i If route guidance is active, first slide 6 the
controller and show the menu.
Enter an address, e.g. as follows: R
City or ZIP code, street, house number R
Country, city or ZIP code R
City or ZIP code, center R
St reet, city or ZIP code, intersection X
Select City .
The city in which the vehicle is currently loca-
ted (current vehicle position) is at the top.286
Operating system
Multimedia system
