2018 MERCEDES-BENZ GLC Owners Manual

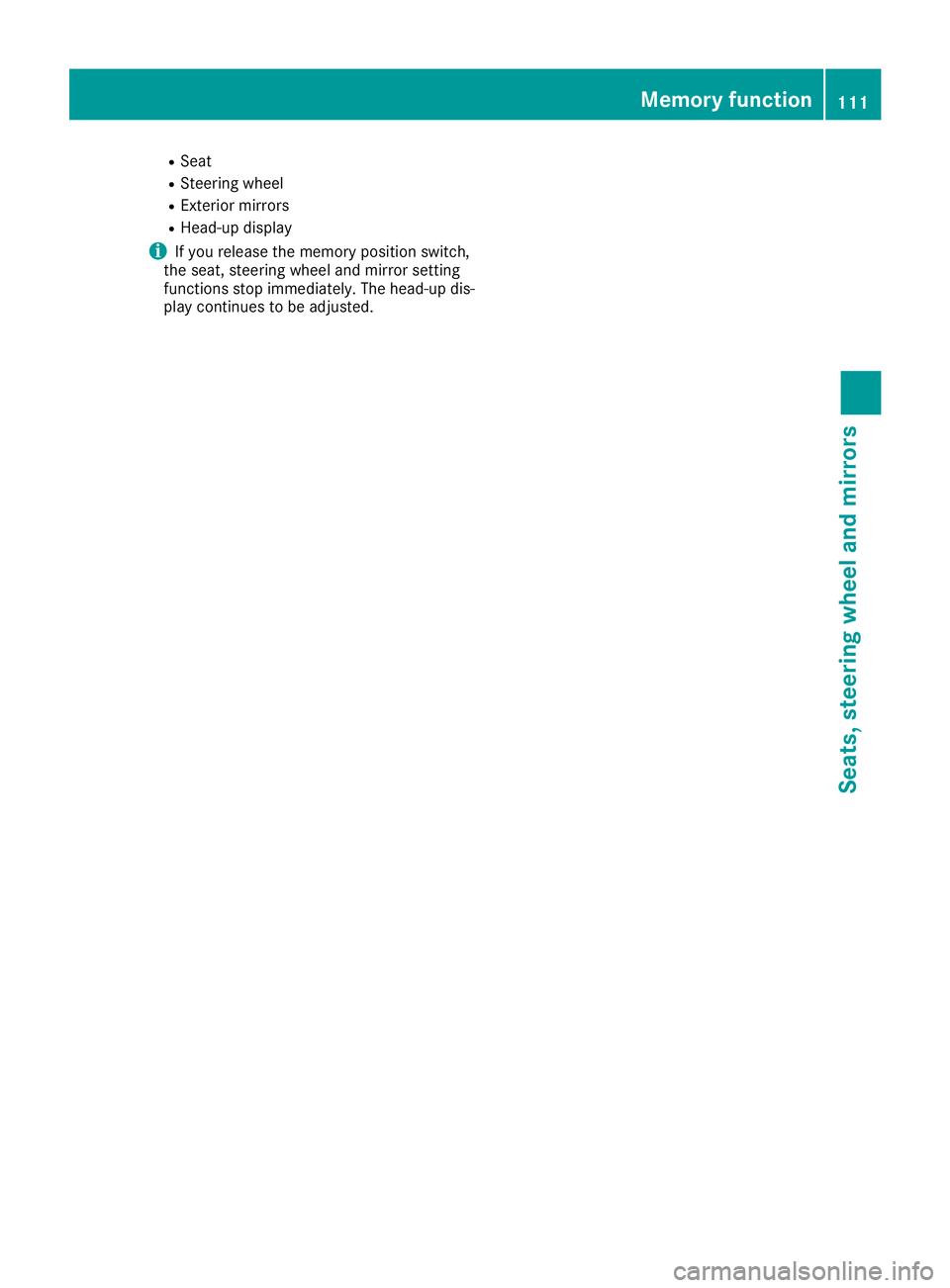

R
Seat R
Steering wheel R
Exterior mirrors R
Head-up display
i If you release the memory position switch,
the seat, steering wheel and mirror setting
functions stop immediately. The head-up dis-
play continues to be adjusted.
Memory function 111
Seats, steering wheel and mirrors Z

Exterior lighting
General notes USA only: if you wish to drive during the daytime
without lights, switch off the Daytime Run‐
ning Lights function via the on-board com-
puter ( Y
page 234).
Setting the exterior lighting
Setting options Exterior lighting can be set using the: R
light switch ( Y
page 112)R
combination switch ( Y
page 113)R
on-board computer ( Y
page 234)
Light switch Operation
G c
Left-hand standing lampsH d
Right-hand standing lampsI `
Parking lamps, license plate and
instrument cluster lightingJ X
Automatic headlamp mode, controlled
by the light sensor
K X
Low-beam/high-beam headlamps

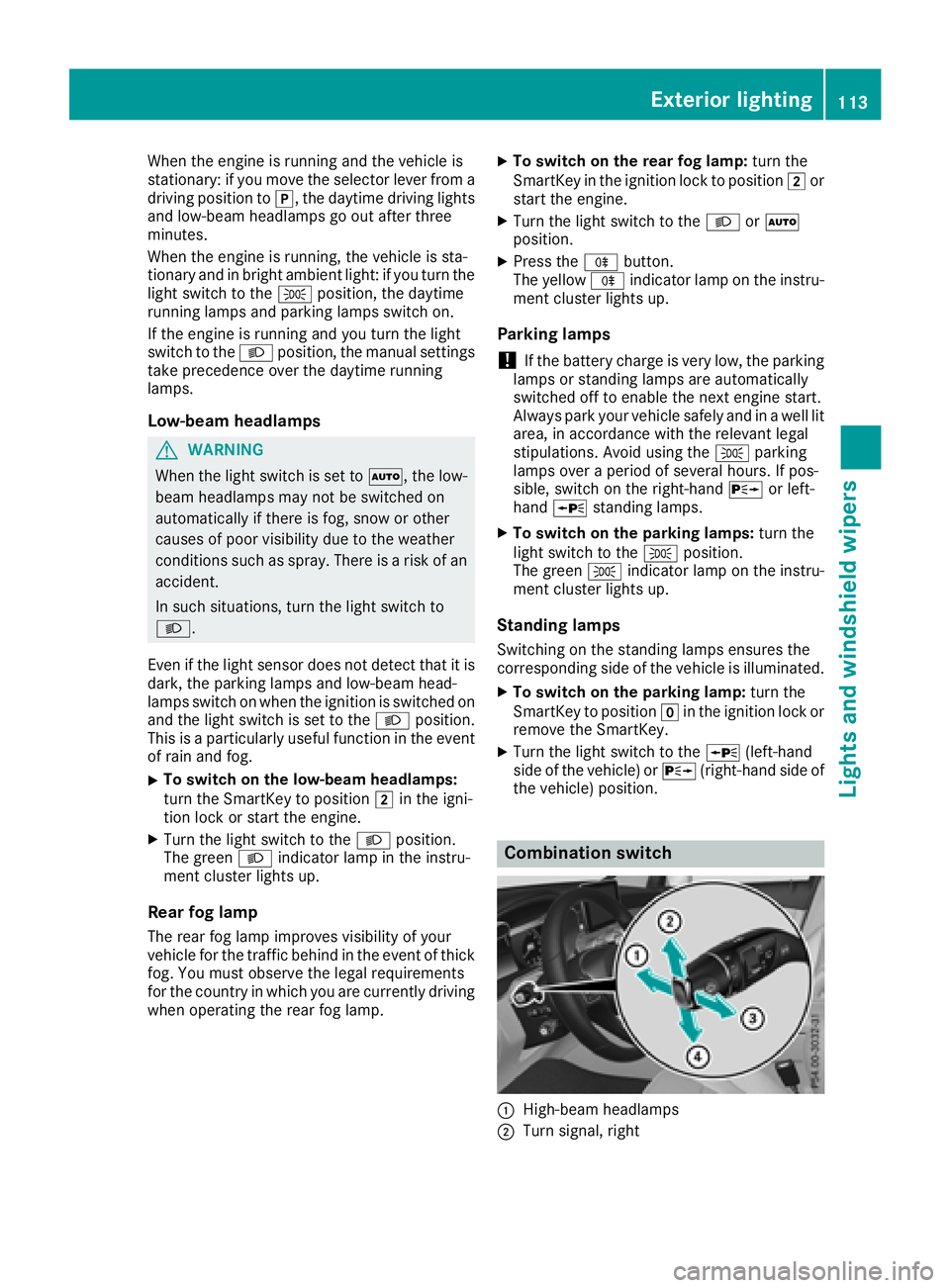

When the engine is running and the vehicle is
stationary: if you move the selector lever from a
driving position to ] , the daytime driving lights
and low-beam headlamps go out after three
minutes.
When the engine is running, the vehicle is sta-
tionary and in bright ambient light: if you turn the
light switch to the ` position, the daytime
running lamps and parking lamps switch on.
If the engine is running and you turn the light
switch to the X position, the manual settings
take precedence over the daytime running
lamps.
Low-beam headlamps
G WARNING
When the light switch is set to X , the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, turn the light switch to
X .
Even if the light sensor does not detect that it is
dark, the parking lamps and low-beam head-
lamps switch on when the ignition is switched on
and the light switch is set to the X position.
This is a particularly useful function in the event
of rain and fog. X
To switch on the low-beam headlamps:
turn the SmartKey to position H in the igni-
tion lock or start the engine. X
Turn the light switch to the X position.
The green X indicator lamp in the instru-
ment cluster lights up.
Rear fog lamp
The rear fog lamp improves visibility of your
vehicle for the traffic behind in the event of thick
fog. You must observe the legal requirements
for the country in which you are currently driving
when operating the rear fog lamp. X
To switch on the rear fog lamp: turn the
SmartKey in the ignition lock to position H or
start the engine. X
Turn the light switch to the X or X
position. X
Press the ^ button.
The yellow ^ indicator lamp on the instru-
ment cluster lights up.
Parking lamps
! If the battery charge is very low, the parking
lamps or standing lamps are automatically
switched off to enable the next engine start.
Always park your vehicle safely and in a well lit
area, in accordance with the relevant legal
stipulations. Avoid using the ` parking
lamps over a period of several hours. If pos-
sible, switch on the right-hand d or left-
hand c standing lamps. X
To switch on the parking lamps: turn the
light switch to the ` position.
The green ` indicator lamp on the instru-
ment cluster lights up.
Standing lamps Switching on the standing lamps ensures the
corresponding side of the vehicle is illuminated. X
To switch on the parking lamp: turn the
SmartKey t o position Z in
the ignition lock or
remove the SmartKey. X
Turn the light switch to the c (left-hand
side of the vehicle) or d (right-hand side of
the vehicle) position.
Combination switch
C
High-beam headlamps
D
Turn signal, rightExterior lighting 113
Lights and windshield wipers Z

The system automatically adapts the low-beam
headlamp range depending on the distance to
the other vehicle. Once the system no longer
detects any other vehicles, it reactivates the
high-beam headlamps.
The system's optical sensor is located behind
the windshield near the overhead control panel.
Important safety notes
G WARNING
Adaptive Highbeam Assist does not recognize
road users: R
who have no lights, e.g. pedestrians R
who have poor lighting, e.g. cyclists R
whose lighting is blocked, e.g. by a barrier
On very rare occasions, Adaptive Highbeam
Assist may fail to recognize other road users
that have lights, or may recognize them too
late. In this, or in similar situations, the auto-
matic high-beam headlamps will not be deac-
tivated or will be activated regardless. There is
a risk of an accident.
Always carefully observe the traffic conditions
and switch off the high-beam headlamps in
good time.
Adaptive Highbeam Assist cannot take into
account road, weather or traffic conditions.
Adaptive Highbeam Assist is only an aid. You are
responsible for adjusting the vehicle's lighting
to the prevailing light, visibility and traffic con-
ditions.
In particular, the detection of obstacles can be
impaired if: R
there is poor visibility, e.g. due to fog, heavy
rain or snow R
there is dirt on the sensors or anything else
covering the sensors
Switching Adaptive Highbeam Assist
on/off X
To switch on: turn the light switch to the
X position.X
Press the combination switch forwards
beyond the pressure point ( Y
page 113).
The

Interior lighting
Overview of interior lighting
Front overhead control panel
C
= Left-han d fron t reading lampD
3 Automatic interio r lighting control

Protect bulbs from moisture during operation.
Do not allow bulbs to come into contact with
liquids.
Replace only the bulbs listed ( Y
page 117).
Have the bulbs that you cannot change yourself
replaced at a qualified specialist workshop.
If you require assistance replacing bulbs, con-
sult a qualified specialist workshop.
If the new bulb still does not light up, consult a
qualified specialist workshop.
Headlamps and lights are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times. Have
the headlamp setting checked regularly.
Vehicles with LED headlamps: the front and
rear light clusters of your vehicle are equipped
with LED bulbs. Do not replace the bulbs your-
self. Contact a qualified specialist workshop
which has the necessary specialist knowledge
and tools to carry out the work required.
Overview of bulb types You can replace the following bulbs. The bulb
type can be found in the legend.
Halogen headlampsC
Low-beam headlamp: H7 55 W
D
High-beam headlamp: H7 55 W

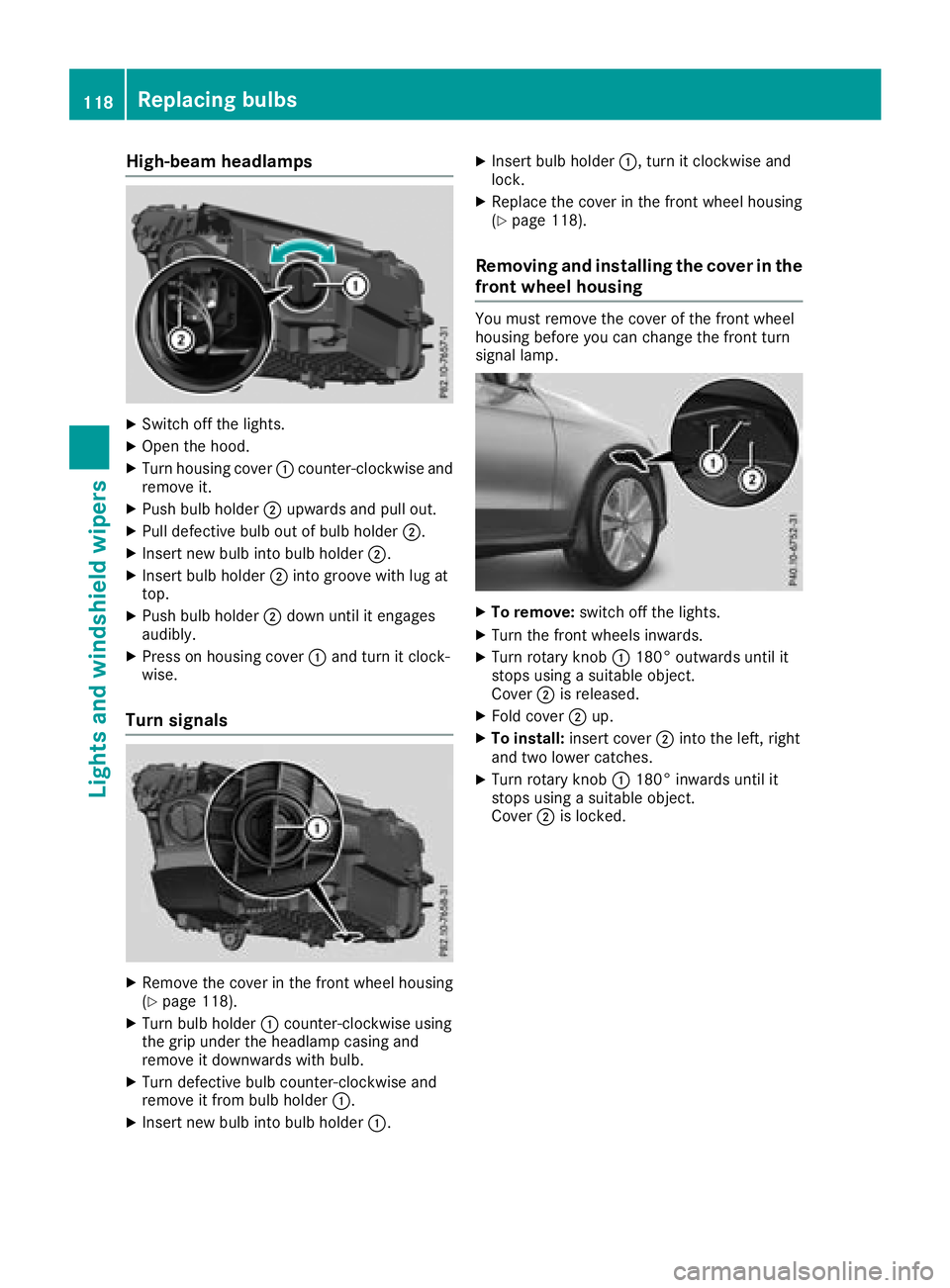

High-beam headlamps X
Switch off the lights. X
Open the hood. X
Turn housing cover C counter-clockwise and
remove it. X
Push bulb holder D upwards and pull out.X
Pull defective bulb out of bulb holder D .X
Insert new bulb into bulb holder D .X
Insert bulb holder D into groove with lug at
top. X
Push bulb holder D down until it engages
audibly. X
Press on housing cover C and turn it clock-
wise.
Turn signals
X
Remove the cover in the front wheel housing
( Y
page 118).X
Turn bulb holder C counter-clockwise using
the grip under the headlamp casing and
remove it downwards with bulb. X
Turn defective bulb counter-clockwise and
remove it from bulb holder C .X
Insert new bulb into bulb holder C . X
Insert bulb holder C , turn it clockwise and
lock. X
Replace the cover in the front wheel housing
( Y
page 118).
Removing and installing the cover in the
front wheel housing You must remove the cover of the front wheel
housing before you can change the front turn
signal lamp.
X
To remove: switch off the lights. X
Turn the front wheels inwards. X
Turn rotary knob C 180° outwards until it
stops using a suitable object.
Cover D is released. X
Fold cover D up. X
To install: insert cover D into the left, right
and two lower catches. X
Turn rotary knob C 180° inwards until it
stops using a suitable object.
Cover D is locked.118
Replacing bulbs
Lights and windshield wipers
