2018 MERCEDES-BENZ GLC Owners Manual

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
%
Q The yellow ABS warning lamp is lit while the engine is running.
ABS (anti-lock braking system) is malfunctioning.
If there is an additional warning tone, the EBD (electronic brake force distribution)
is malfunctioning.
Other driving systems and driving safety systems may also malfunction.
G WARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels could therefore lock if you brake hard, for exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident. X
Observe the additional display messages in the multifunction display. X
Drive on carefully. X
Visit a qualified specialist workshop immediately.
If the ABS control unit is faulty, there is also a possibility that other systems, such
as the navigation system or the automatic transmission, will not be available.
'M

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
I$

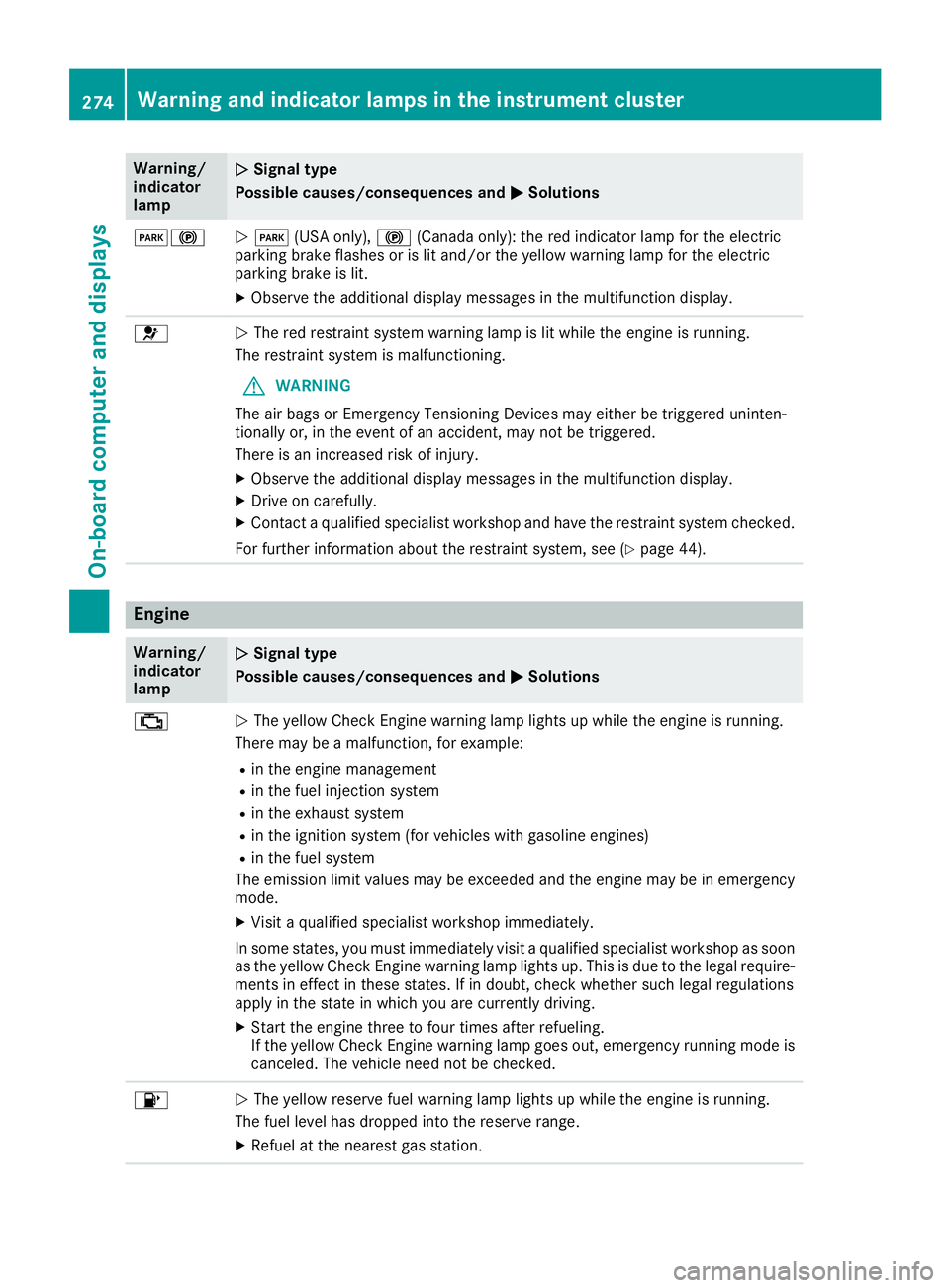

Q I (USA only), $ (Canada only): the red indicator lamp for the electric
parking brake flashes or is lit and/or the yellow warning lamp for the electric
parking brake is lit. X
Observe the additional display messages in the multifunction display.
u
Q The red restraint system warning lamp is lit while the engine is running.
The restraint system is malfunctioning.
G WARNING
The air bags or Emergency Tensioning Devices may either be triggered uninten-
tionally or, in the event of an accident, may not be triggered.
There is an increased risk of injury. X
Observe the additional display messages in the multifunction display. X
Drive on carefully. X
Contact a qualified specialist workshop and have the restraint system checked.
For further information about the restraint system, see ( Y
page 44).
Engine Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P SolutionsX

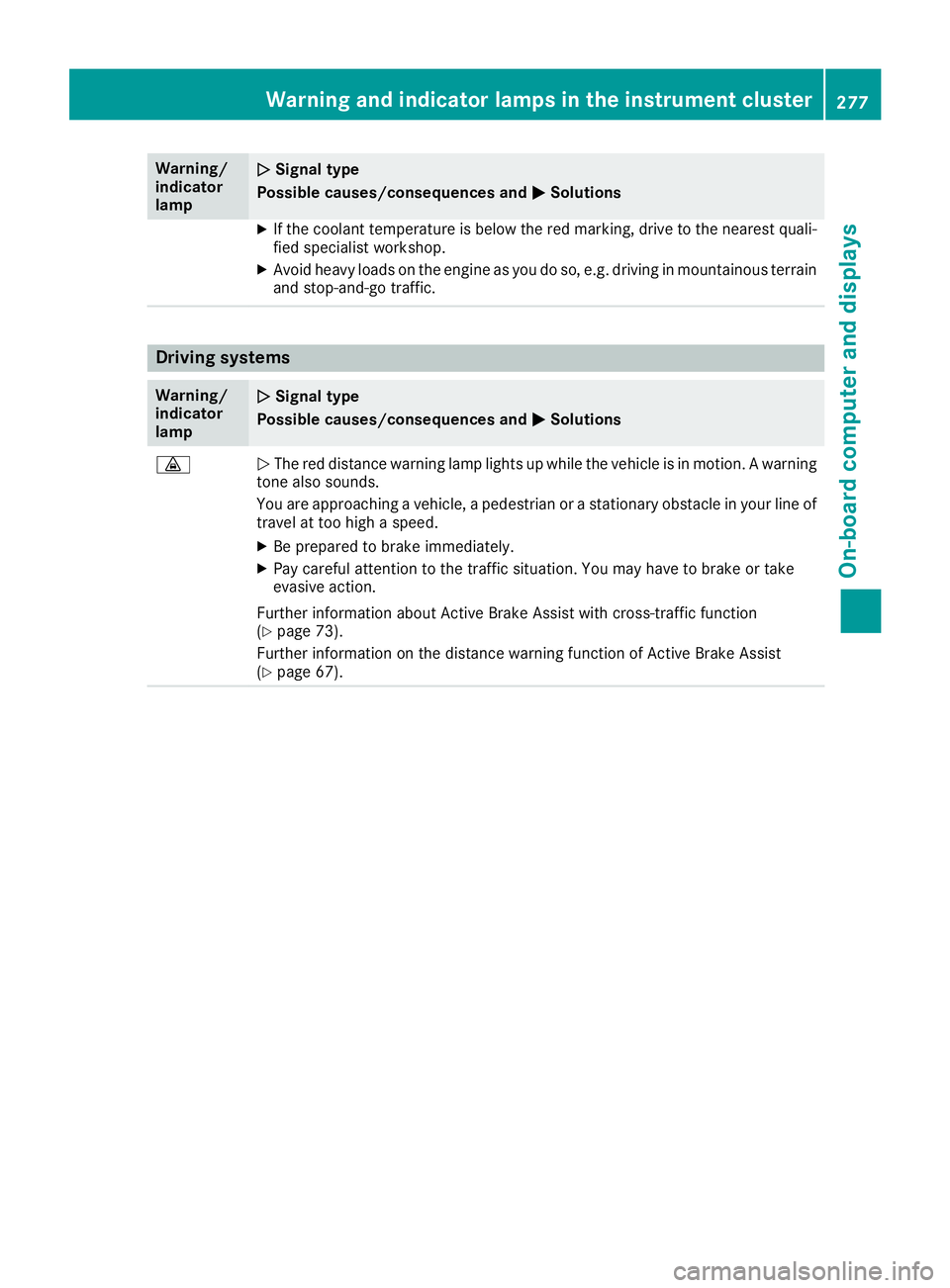

If the coolant temperature is below the red marking, drive to the nearest quali-
fied specialist workshop. X
Avoid heavy loads on the engine as you do so, e.g. driving in mountainous terrain
and stop-and-go traffic.
Driving systems Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Tires Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
w

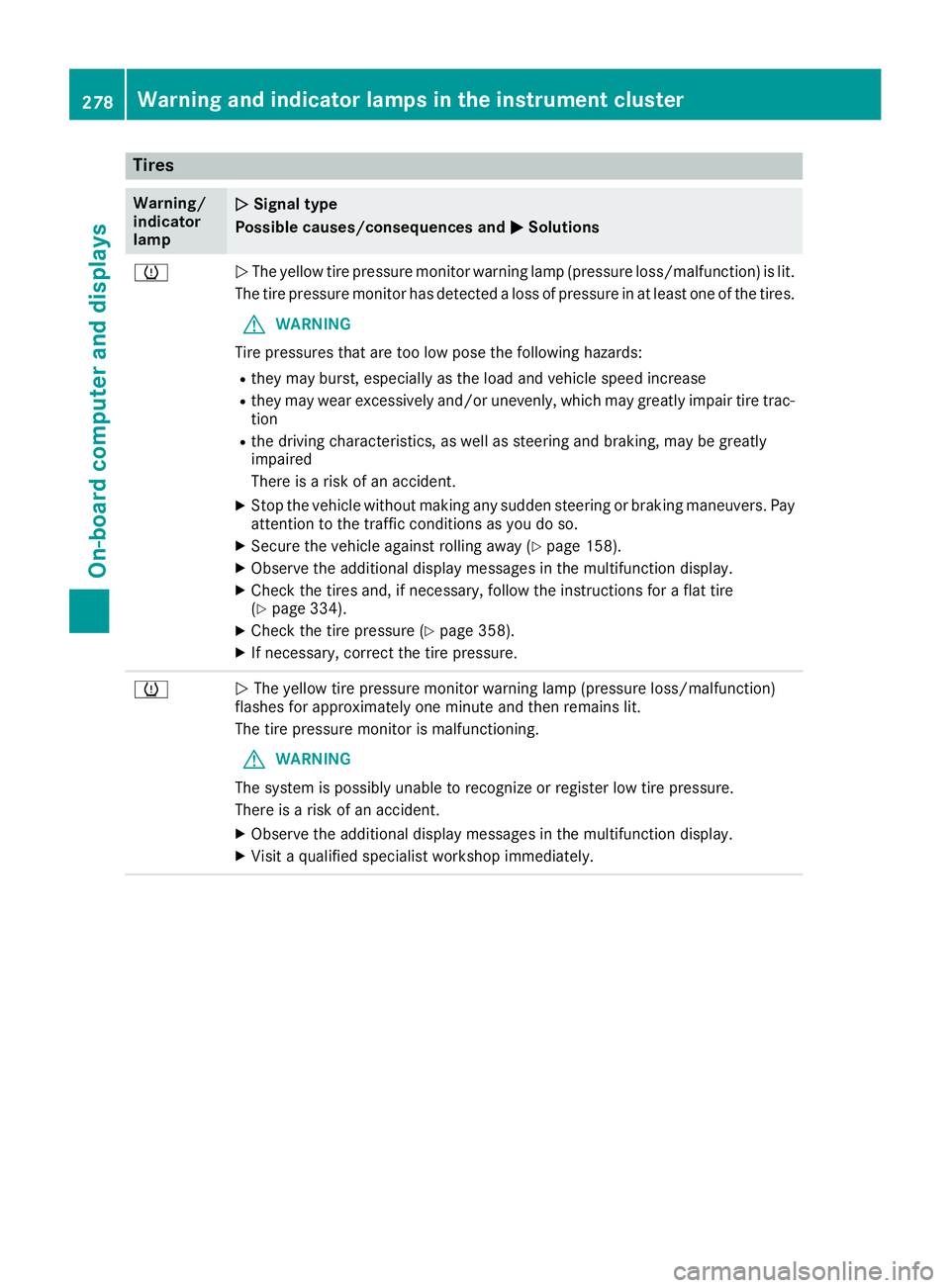

Q The yellow tire pressure monitor warning lamp (pressure loss/malfunction) is lit.
The tire pressure monitor has detected a loss of pressure in at least one of the tires.
G WARNING
Tire pressures that are too low pose the following hazards: R
they may burst, especially as the load and vehicle speed increase R
they may wear excessively and/or unevenly, which may greatly impair tire trac-
tion R
the driving characteristics, as well as steering and braking, may be greatly
impaired
There is a risk of an accident. X
Stop the vehicle without making any sudden steering or braking maneuvers. Pay
attention to the traffic conditions as you do so. X
Secure the vehicle against rolling away ( Y
page 158).X
Observe the additional display messages in the multifunction display. X
Check the tires and, if necessary, follow the instructions for a flat tire
( Y
page 334). X
Check the tire pressure ( Y
page 358).X
If necessary, correct the tire pressure.
w
Q The yellow tire pressure monitor warning lamp (pressure loss/malfunction)
flashes for approximately one minute and then remains lit.
The tire pressure monitor is malfunctioning.
G WARNING
The system is possibly unable to recognize or register low tire pressure.
There is a risk of an accident. X
Observe the additional display messages in the multifunction display. X
Visit a qualified specialist workshop immediately.278
Warning and indicator lamps in the instrument cluster
On-board computer and displays
