2018 LEXUS RX450h Owners Manual

7459-2. Customization
9
Vehicle specifications
RX450h_RX450hL _U_OM48F85U■
Intuitive parking assist ( → P. 332)
* : When intuitive parking assist is operating. ■
BSM (Blind Spot Monitor) ( → P. 319)Function Default setting Customized setting
Detection distance of the front
center sensor Far Near O O
Detection distance of the rear
center sensor Far Near O O
Buzzer volume 3 1 to 5 O O
Display setting
* All sensors dis-
played Display off O O 1 2
Function Default setting Customized setting
Outside rear view mirror indica-
tor brightness Bright Dim O O
Alert timing for presence of
approaching vehicle (BSM func-
tion only) Intermediate Early
O OLate
Only when in blind
spot
RCTA buzzer volume Level 2 Level 1
O —
Level 3 1 2

746 9-2. Customization
RX450h_RX450hL _U_OM48F85U■
Driving mode select switch ( → P. 379)
* : If equipped ■
Front automatic air conditioning system ( → P. 507)
■
Seat heaters/seat ventilators ( → P. 526, 527)Function Default setting Customized setting
Powertrain control in customized
mode
* Normal Power
O —
Eco
Chassis control in customized
mode
* Normal Sport O —
Air conditioning operation in
customized mode
* Normal Eco O — 1 2
Function Default setting Customized setting
A/C auto switch operation On Off O O
Exhaust gas sensor sensitivity Standard -3 to 3 O O 1 2
Function Default setting Customized setting
Driver’s seat temperature prefer-
ence in automatic mode Standard -2 (cooler) to 2
(warmer) O O
Front passenger’s seat tempera-
ture preference in automatic
mode Standard -2 (cooler) to 2
(warmer) O O 1 2

7479-2. Customization
9
Vehicle specifications
RX450h_RX450hL _U_OM48F85U■
Illumination ( → P. 528)
* : If equipped Function Default setting Customized setting
Time elapsed before the interior
lights turn off 15 seconds Off
O O7.5 seconds
30 seconds
Operation after the power
switch is turned off On Off — O
Operation when the doors are
unlocked On Off — O
Operation when you approach
the vehicle with the electronic
key on your person On Off — O
Footwell lights and front center
console light On Off — O
Instrument panel ornament
light
* and door trim ornament
lights
* On Off — O
Time elapsed before the outer
foot lights turn off 15 seconds Off
O O7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person On Off — O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switch On Off — O
Operation of the outer foot lights
when a door is opened On Off — O
Fading out of the outer foot lights
when they turn off Long Short — O 1 2

748 9-2. Customization
RX450h_RX450hL _U_OM48F85U■
Seat belt reminder ( → P. 662)■
Vehicle customization ●
When the smart access system with push-button start is off, the entry unlock function
cannot be customized. ●
When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings. ●
Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch , the changed setting will not be reflected on the audio system
screen until the power switch is turned off and then to ON mode.Function Default setting Customized setting
Vehicle speed linked seat belt
reminder buzzer On Off — O
WARNING ■
Cautions during customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventil ation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE ■
During customization
To prevent 12-volt battery discharge, ensure that the hybrid syst em is operating while
customizing features. 1 2

749
RX450h_RX450hL _U_OM48F85U 9
Vehicle specifications 9-3. Initialization

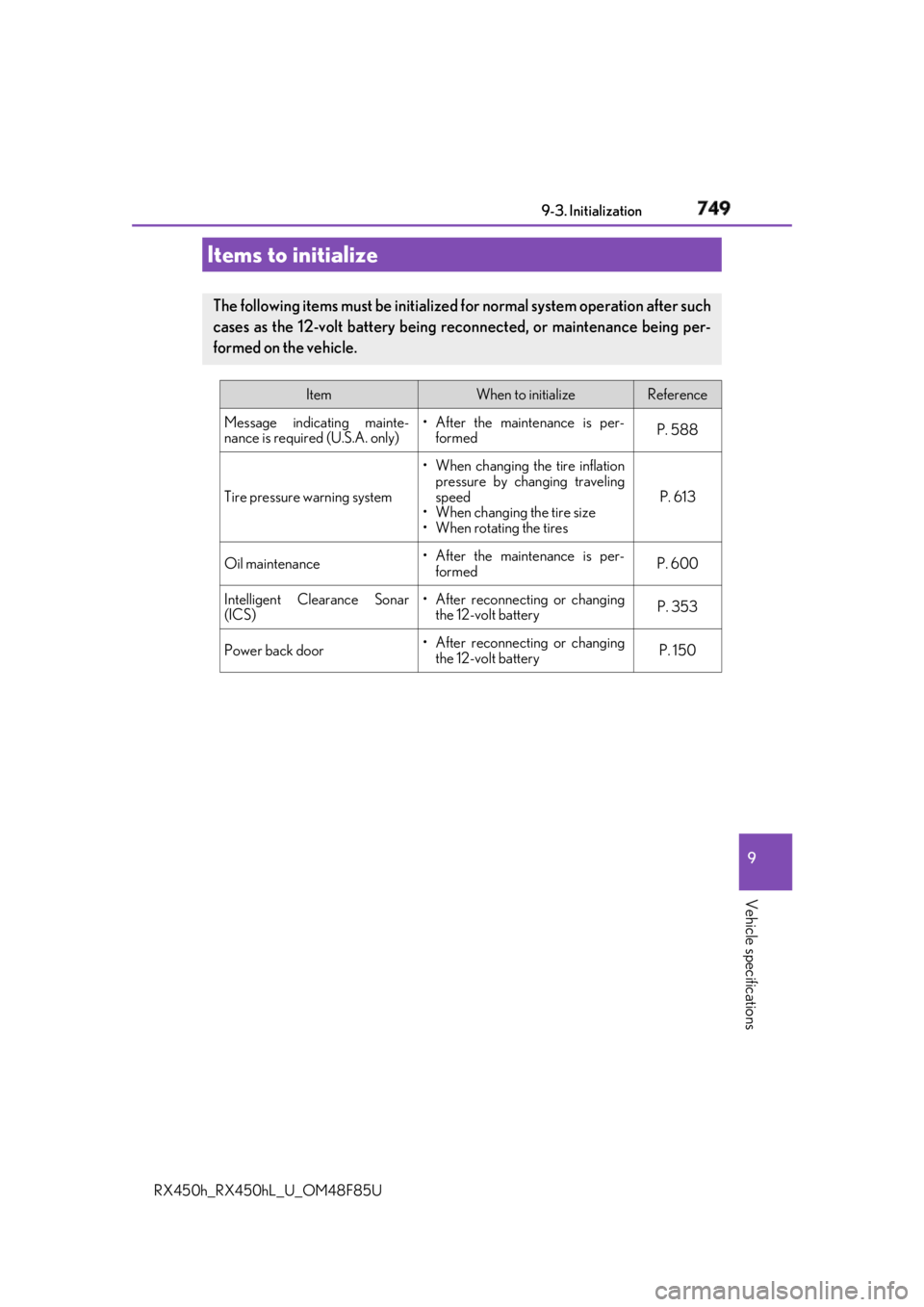

Items to initialize The following items must be initialized for normal system operation after such
cases as the 12-volt battery being re connected, or maintenance being per-
formed on the vehicle. Item When to initialize Reference
Message indicating mainte-
nance is required (U.S.A. only) • After the maintenance is per-
formed P. 588
Tire pressure warning system • When changing the tire inflation
pressure by changing traveling
speed
• When changing the tire size
• When rotating the tires P. 613
Oil maintenance • After the maintenance is per-
formed P. 600
Intelligent Clearance Sonar
(ICS) • After reconnecting or changing
the 12-volt battery P. 353
Power back door • After reconnecting or changing
the 12-volt battery P. 150

750 9-3. Initialization
RX450h_RX450hL _U_OM48F85U

751
10 For owners
RX450h_RX450hL _U_OM48F85U Reporting safety defects for
U.S. owners ........................................... 752
Seat belt instructions for
Canadian owners (in French) ........ 753
SRS airbag instructions for
Canadian owners (in French) ........ 754
Headlight aim instructions for
Canadian owners (in French) ........ 762

752
RX450h_RX450hL _U_OM48F85UReporting safety defects for U.S. owners If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Divi-
sion of Toyota Motor Sa les, U.S.A., Inc. (To ll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cann ot become involved in individual
problems between you, your dealer, or Lexus Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the Vehi cle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC 20590.
You can also obtain other informatio n about motor vehicle safety from
http://
www.safercar.gov.
