Instrument cluster
2
RX450h_RX450hL _U_OM48F85U 2. Instrument cluster
Warning lights and
indicators ....................................... 90
Gauges and meters ..................... 96
Multi-information display ..........101
Head-up display ............................118
Energy monitor/
consumption screen ................124

90
RX450h_RX450hL _U_OM48F85U2. Instrument cluster 
Except F SPORT models 
F SPORT models
The units used on the meter and some indicators may differ depending on the target
region.Warning lights and indicators The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

912. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85UWarning lights inform the driver of malfun ctions in any of the vehicle’s systems.
Warning lights * 1
(U.S.A.)
Brake system warning light
( → P. 660) (U.S.A.)
Parking brake indicator
( → P. 661)
* 1
(Canada)
Brake system warning light
( → P. 660) (Canada)
Parking brake indicator
( → P. 661)
* 1
Brake system warning light
( → P. 660)
* 1, 2
Brake hold operated
indicator ( → P. 661)
* 1
(if equipped)
Charging system warning
light ( → P. 660) * 1
Electric power steering
system warning light
( → P. 661)
* 1
(U.S.A.)
Malfunction indicator lamp
( → P. 660) * 1
Electric power steering
system warning light
( → P. 661)
* 1
(Canada)
Malfunction indicator lamp
( → P. 660) LKA indicator ( → P. 661)
* 1
SRS warning light
( → P. 660) * 1
Slip indicator ( → P. 661)
* 1
(U.S.A.)
ABS warning light
( → P. 661) * 1, 3
PCS warning light
( → P. 662)
* 1
(Canada) ABS warning light
( → P. 661) * 1, 2
(if equipped)ICS OFF indicator
( → P. 662)

92 2. Instrument cluster
RX450h_RX450hL _U_OM48F85U* 1
: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being performe d. They will turn off after the hybrid system is on, or
after a few seconds. There ma y be a malfunction in a system if a light does not come
on, or turn off. Have the vehicl e inspected by your Lexus dealer.
* 2
: This light flashes to indicate a malfunction.
* 3
: This light flashes or illumina tes to indicate a malfunction.
* 4
: This light illuminates on the center panel.
* 5
:RX450h
* 6
:RX450hL
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems. Low fuel level warning light
( → P. 662)
* 4,6
Rear passengers’ seat
belt reminder light
( → P. 662)
Driver’s and front
passenger’s seat belt
reminder light ( → P. 662)
* 1
Tire pressure warning light
( → P. 662)
* 4, 5
Rear passengers’ seat
belt reminder light
( → P. 662)
* 1
Master warning light
( → P. 663)
Indicators Turn signal indicator
( → P. 252) Fog light indicator
( → P. 266)
(U.S.A.)
Headlight indicator
( → P. 258) Cruise control indicator
( → P. 306)
(Canada)
Tail light indicator
( → P. 258) Radar cruise control
indicator ( → P. 306)
Headlight high beam
indicator ( → P. 259) Cruise control “SET”
indicator ( → P. 306)
* 1
Automatic High Beam
indicator ( → P. 262) LKA indicator ( → P. 297)

932. Instrument cluster
2
Instrument cluster

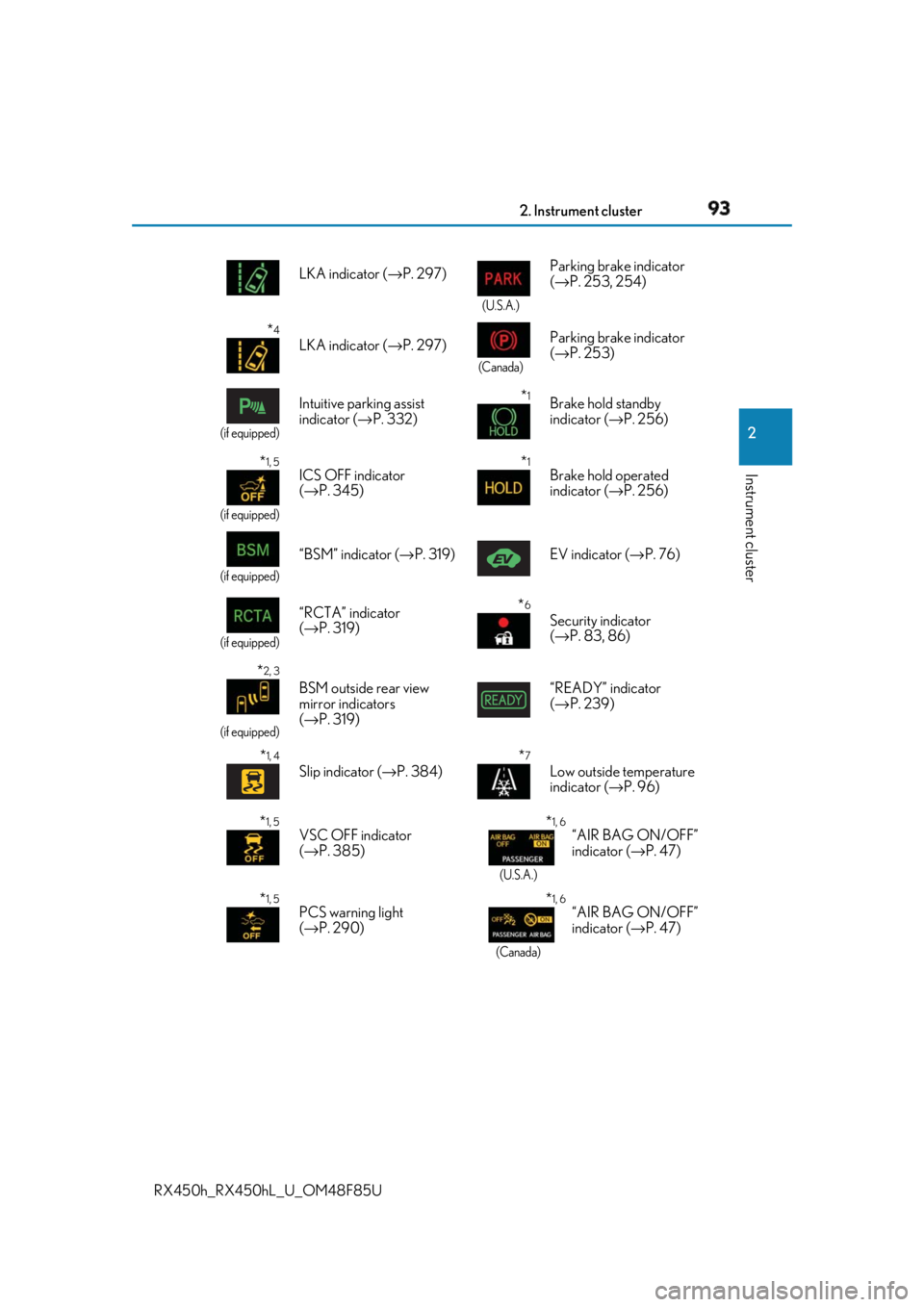

RX450h_RX450hL _U_OM48F85U LKA indicator ( → P. 297) (U.S.A.)
Parking brake indicator
( → P. 253, 254)
* 4
LKA indicator ( → P. 297) (Canada)
Parking brake indicator
( → P. 253)(if equipped)
Intuitive parking assist
indicator ( → P. 332)
* 1
Brake hold standby
indicator ( → P. 256)
* 1, 5
(if equipped)
ICS OFF indicator
( → P. 345)
* 1
Brake hold operated
indicator ( → P. 256)
(if equipped)
“BSM” indicator ( → P. 319) EV indicator ( → P. 76)
(if equipped)
“RCTA” indicator
( → P. 319)
* 6
Security indicator
( → P. 83, 86)
* 2, 3
(if equipped)
BSM outside rear view
mirror indicators
( → P. 319) “READY” indicator
( → P. 239)
* 1, 4
Slip indicator ( → P. 384)
* 7
Low outside temperature
indicator ( → P. 96)
* 1, 5
VSC OFF indicator
( → P. 385) * 1, 6
(U.S.A.)
“AIR BAG ON/OFF”
indicator ( → P. 47)
* 1, 5
PCS warning light
( → P. 290) * 1, 6
(Canada)“AIR BAG ON/OFF”
indicator ( → P. 47)

94 2. Instrument cluster

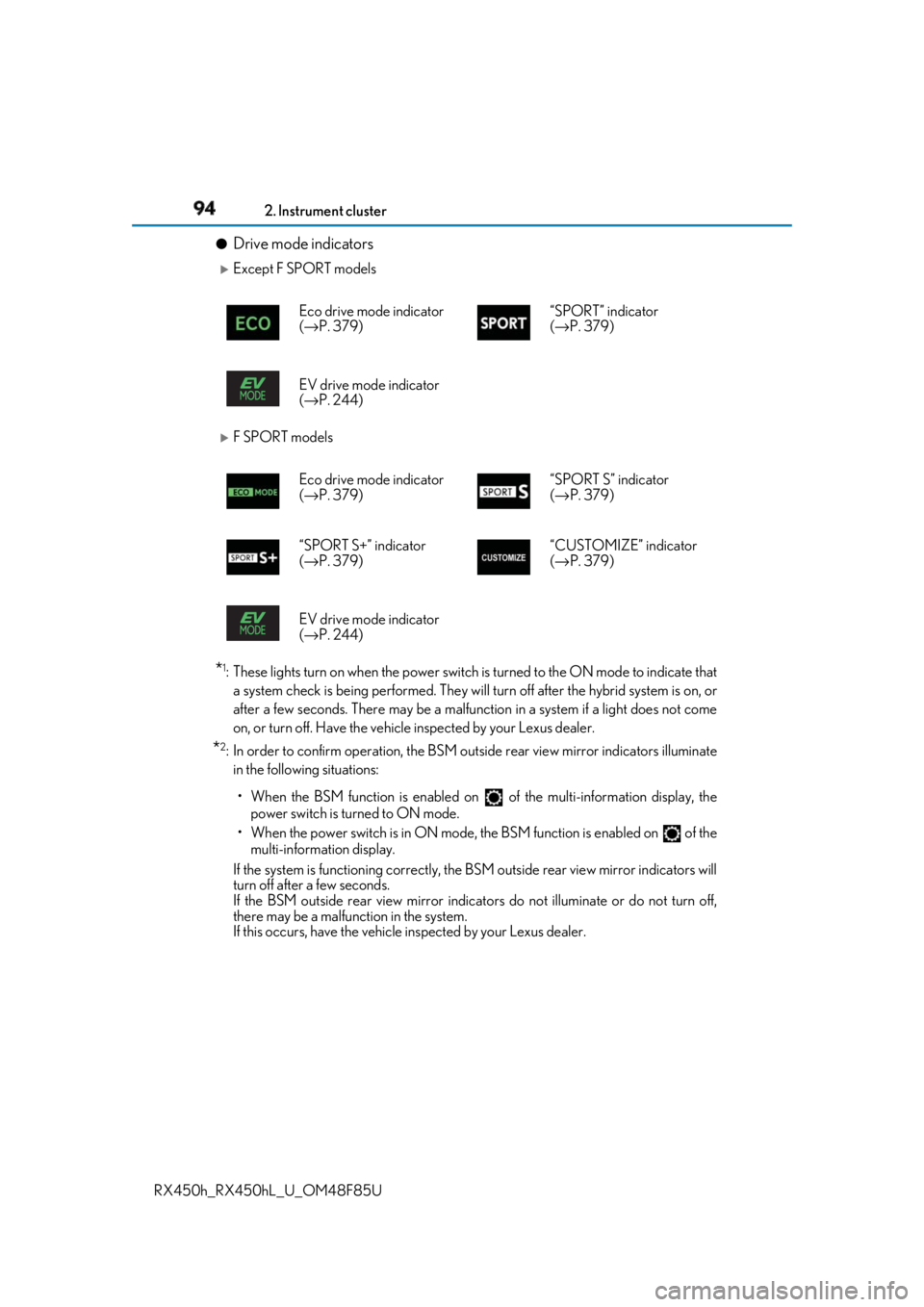

RX450h_RX450hL _U_OM48F85U●
Drive mode indicators 
Except F SPORT models 
F SPORT models
* 1
: These lights turn on when the power switch is turned to the ON mode to indicate that
a system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There ma y be a malfunction in a system if a light does not come
on, or turn off. Have the vehicle inspected by your Lexus dealer.
* 2
: In order to confirm operation, the BSM ou tside rear view mirror indicators illuminate
in the following situations:
• When the BSM function is enabled on of the multi-information display, the
power switch is turned to ON mode.
• When the power switch is in ON mode, the BSM function is enabled on of the
multi-information display.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer. Eco drive mode indicator
( → P. 379) “SPORT” indicator
( → P. 379)
EV drive mode indicator
( → P. 244)
Eco drive mode indicator
( → P. 379) “SPORT S” indicator
( → P. 379)
“SPORT S+” indicator
( → P. 379) “CUSTOMIZE” indicator
( → P. 379)
EV drive mode indicator
( → P. 244)

952. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85U* 3
: This light illuminates on the outside rear view mirrors.
* 4
: This light flashes to indicate that the system is operating.
* 5
: The light comes on when the system is turned off.
* 6
: This light illuminates on the center panel.
* 7
: When the outside temperature is approximately 37 ° F (3 ° C) or lower, this indicator
will flash for approximately 10 seconds, then stay on.
WARNING ■
If a safety system warnin g light does not come on
Should a safety system light such as the ABS and SRS warning lights not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by your Lexus dealer immediately if this occurs.

96 2. Instrument cluster

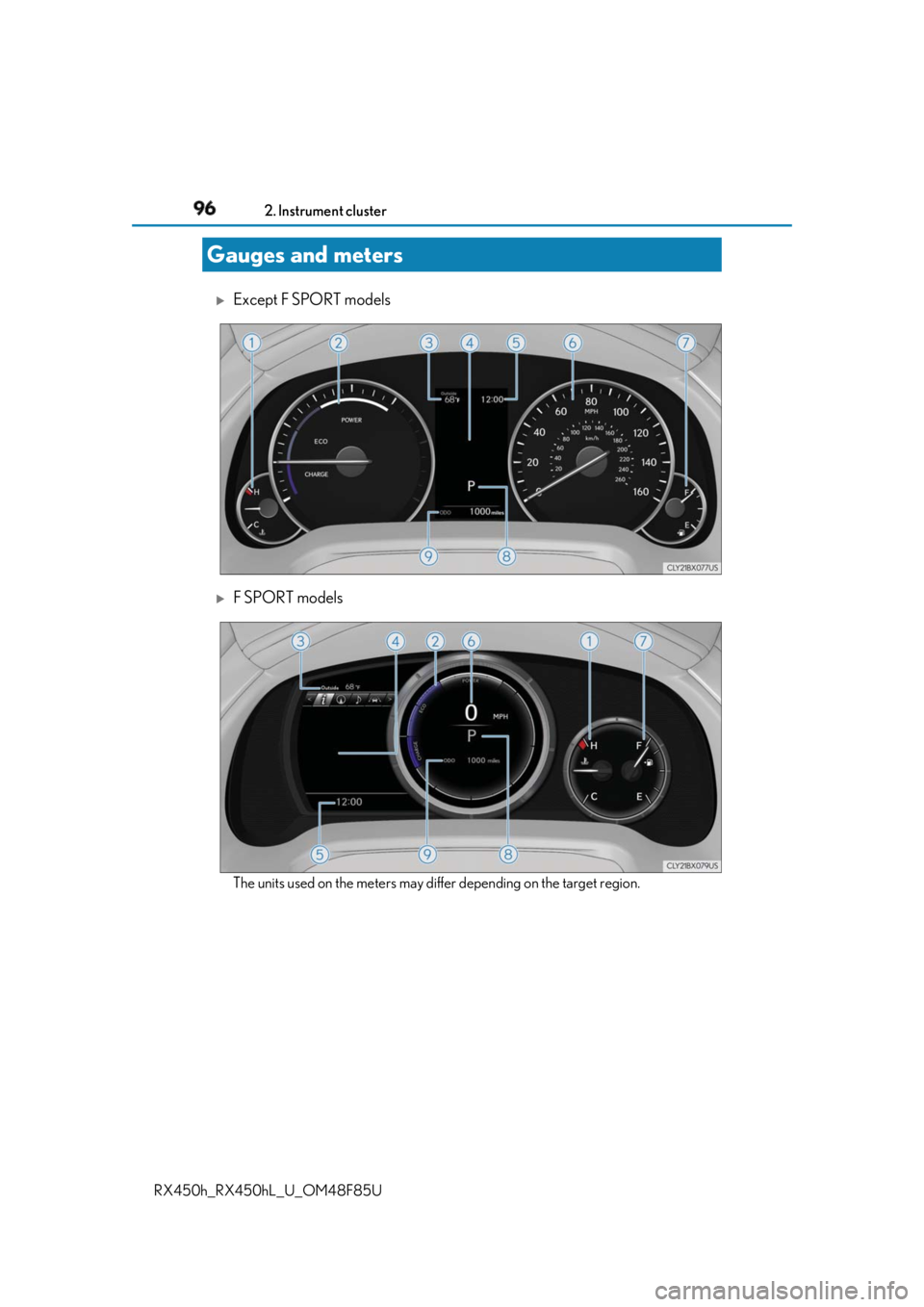

RX450h_RX450hL _U_OM48F85U 
Except F SPORT models 
F SPORT models
The units used on the meters may differ depending on the target region.Gauges and meters
