Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

Maintenance
102
7
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-9
Vehicle Identification Number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-10
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
8

28
DIMENSIONS Specifications & Consumer information
ENGINE
ItemLength (mm)
Overall length4,830
Overall width1,870
Overall height1,400
Tread
Front225/45R181,596
225/40ZR191,596
Rear225/45R181,647
255/35ZR191,619
Wheelbase2,905
ItemGasoline Engine
Lambda 3.3 T-GDI Theta II 2.0 T-GDI
Displacement [cc (cu. in)]3,342 (203.94) 1,998 (121.9)
Bore x Stroke
[mm (in.)]96 x 84 (3.62 x 3.29) 86 x 86 (3.39 x 3.39)
Firing order 1-2-3-4-5-6 1-3-4-2
No. of cylinders 6, V-type4. In-line

83
BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps (Low/High)*
60WHB3 HL
Headlamps (Low/High) – LED type* LEDLED
Front turn signal lamps 21WPY21W
Front turn signal lamps - LED type* LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Rear Rear Stop/Tail lamps (outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21WPY21W
Rear turn signal lamps - LED type* LEDLED
Back-up lamps 16WW16W
High mounted stop lamp* LEDLED
License plate lamps LEDLED
Interior Map lamps
LED typeLEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTON BULB
Liftgate lamp LEDLED
* If equipped

48
Specifications & Consumer information

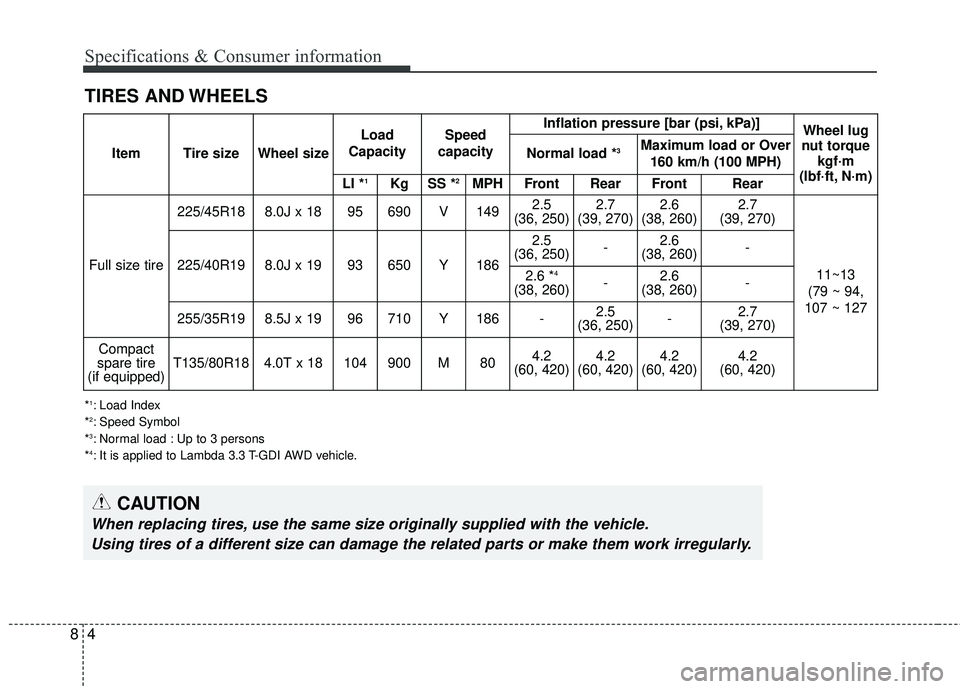

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: It is applied to Lambda 3.3 T-GDI AWD vehicle.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar (psi, kPa)]Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load *3Maximum load or Over
160 km/h (100 MPH)
LI *1KgSS *2MPHFrontRearFrontRear
Full size tire
225/45R188.0J x 1895690V1492.5
(36, 250)2.7
(39, 270)2.6
(38, 260)2.7
(39, 270)
11~13
(79 ~ 94,
107 ~ 127225/40R198.0J x 1993650Y186
2.5
(36, 250)-2.6
(38, 260)-
2.6 *4
(38, 260)-2.6
(38, 260)-
255/35R198.5J x 1996710Y186-2.5
(36, 250)-2.7
(39, 270)
Compact
spare tire
(if equipped)T135/80R184.0T x 18104900M804.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)

85
Specifications & Consumer information

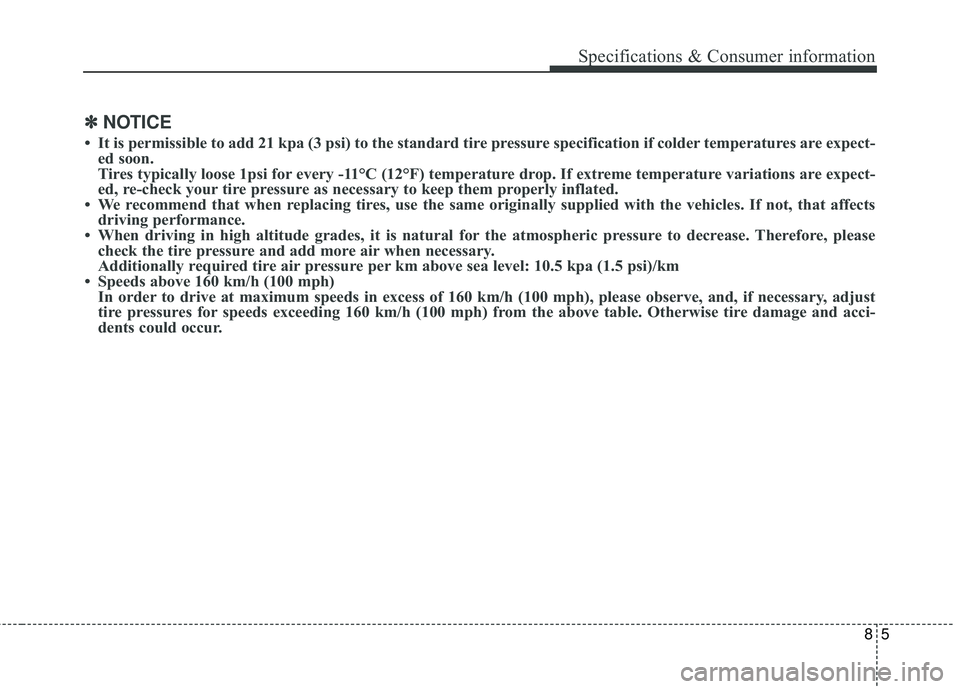

✽ ✽NOTICE
• It is permissible to add 21 kpa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi for every -11°C (12°F) temperature drop. If extreme temperature variations are expect-
ed, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kpa (1.5 psi)/km
• Speeds above 160 km/h (100 mph) In order to drive at maximum speeds in excess of 160 km/h (100 mph), please obs\
erve, and, if necessary, adjust
tire pressures for speeds exceeding 160 km/h (100 mph) from the above table. Otherwise tire damage and acci-
dents could occur.

68
Specifications & Consumer information

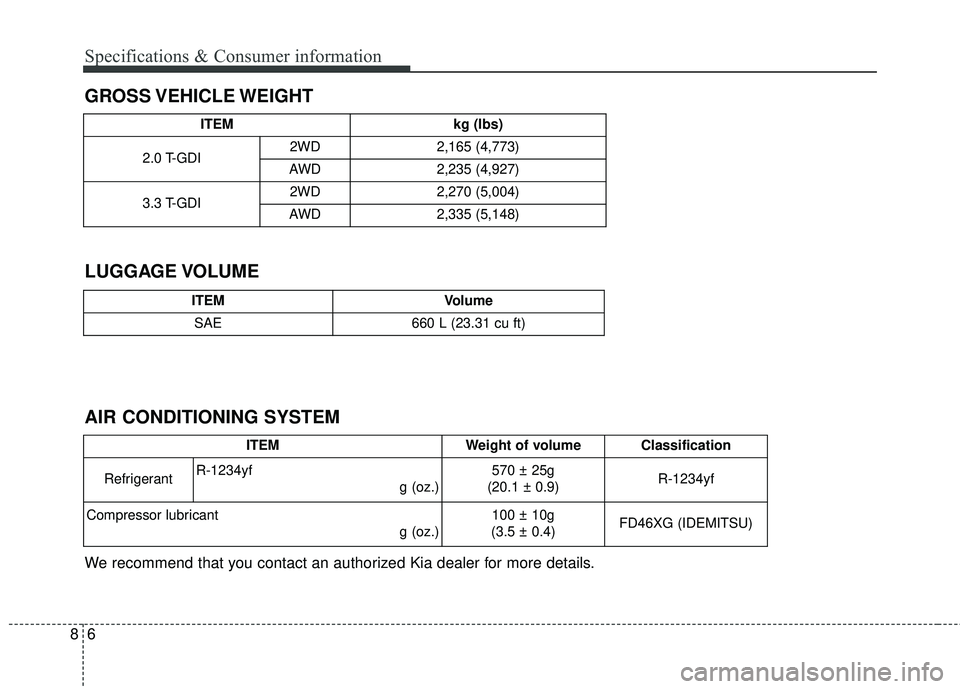

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ITEMVolume
SAE660 L (23.31 cu ft)
ITEMkg (lbs)
2.0 T-GDI2WD2,165 (4,773)
AWD2,235 (4,927)
3.3 T-GDI2WD2,270 (5,004)
AWD2,335 (5,148)
ITEMWeight of volumeClassification
RefrigerantR-1234yfg (oz.)570 ± 25g
(20.1 ± 0.9)R-1234yf
Compressor lubricant g (oz.) 100 ± 10g
(3.5 ± 0.4)FD46XG (IDEMITSU)
