Page 537 of 551
87
Specifications & Consumer information

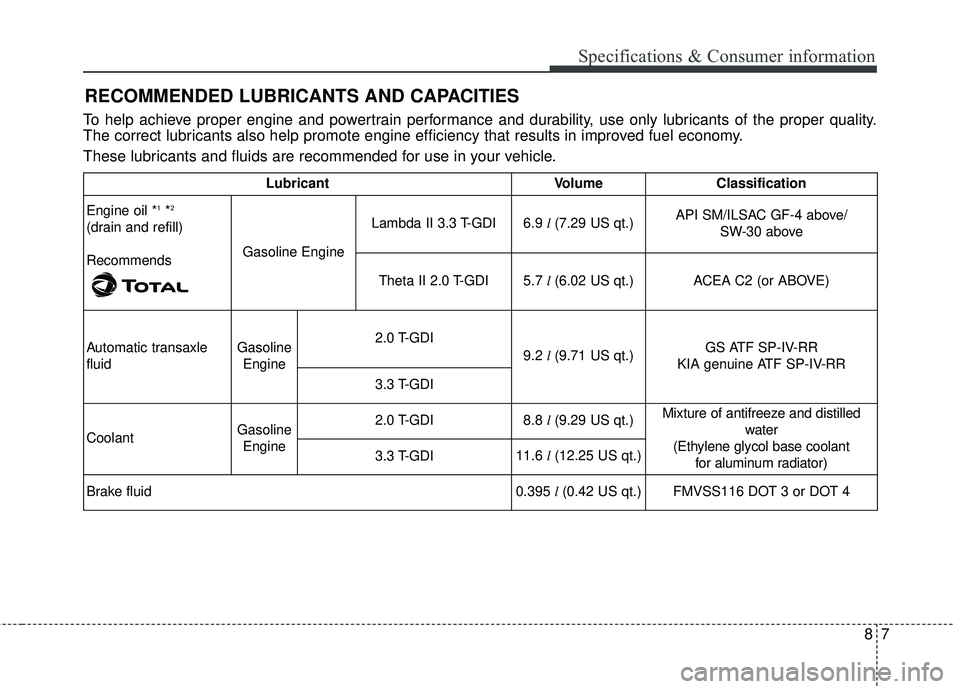

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *1*2
(drain and refill)
Recommends
Gasoline Engine
Lambda II 3.3 T-GDI6.9 l (7.29 US qt.)API SM/ILSAC GF-4 above/
SW-30 above
Theta II 2.0 T-GDI5.7 l (6.02 US qt.)ACEA C2 (or ABOVE)
Automatic transaxle
fluidGasoline
Engine 2.0 T-GDI
9.2 l (9.71 US qt.)GS ATF SP-IV-RR
KIA genuine ATF SP-IV-RR
3.3 T-GDI
CoolantGasoline Engine2.0 T-GDI8.8 l (9.29 US qt.)Mixture of antifreeze and distilled
water
(Ethylene glycol base coolant for aluminum radiator)
3.3 T-GDI11.6 l (12.25 US qt.)
Brake fluid0.395 l (0.42 US qt.)FMVSS116 DOT 3 or DOT 4
Page 538 of 551

88
Specifications & Consumer information

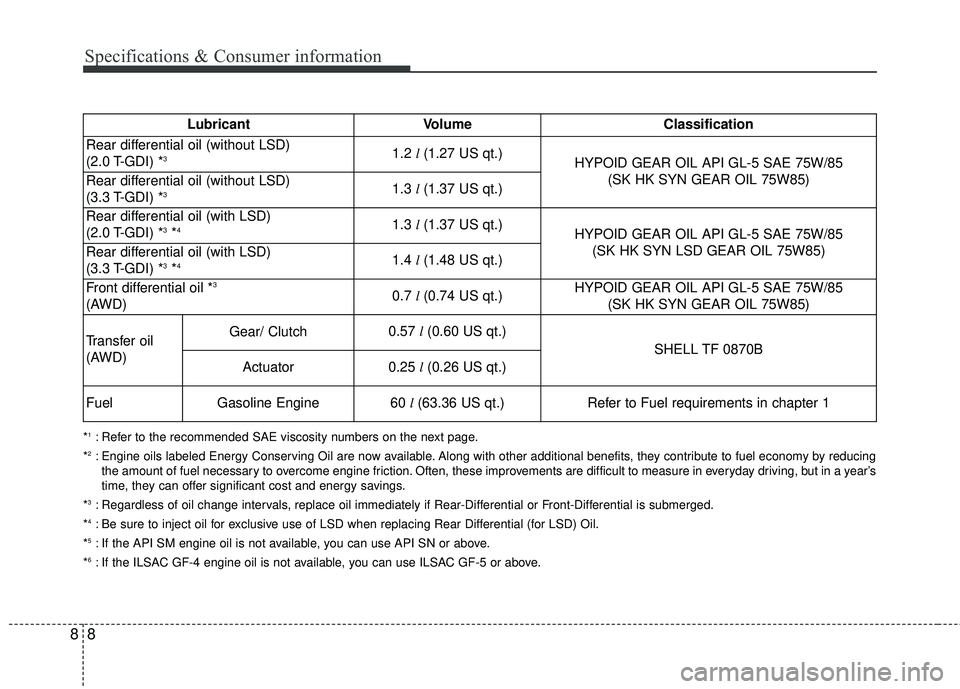

Lubricant VolumeClassification
Rear differential oil (without LSD)
(2.0 T-GDI) *31.2 l (1.27 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85)
Rear differential oil (without LSD)
(3.3 T-GDI) *31.3 l (1.37 US qt.)
Rear differential oil (with LSD)
(2.0 T-GDI) *3*41.3 l (1.37 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN LSD GEAR OIL 75W85)
Rear differential oil (with LSD)
(3.3 T-GDI) *3*41.4 l (1.48 US qt.)
Front differential oil *3
(AWD)0.7 l (0.74 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85)
Transfer oil
(AWD)Gear/ Clutch0.57 l (0.60 US qt.)
SHELL TF 0870B
Actuator0.25 l (0.26 US qt.)
FuelGasoline Engine60 l (63.36 US qt.)Refer to Fuel requirements in chapter 1
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: Regardless of oil change intervals, replace oil immediately if Rear-Differential or Front-Differential is submerged.
*4: Be sure to inject oil for exclusive use of LSD when replacing Rear Differential (for LSD) Oil.
*5: If the API SM engine oil is not available, you can use API SN or above.
*6: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
Page 539 of 551

89
Specifications & Consumer information

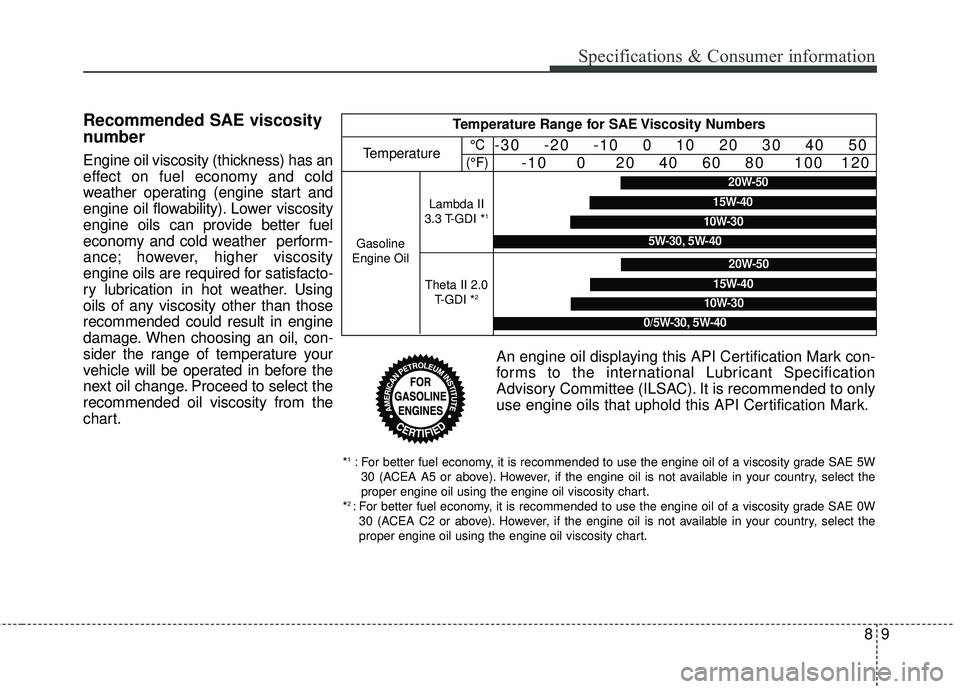

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline
Engine Oil
20W-50
10W-30
15W-40
5W-30, 5W-40
Lambda II
3.3 T-GDI *1
Theta II 2.0 T-GDI *2
20W-50
10W-30
15W-40
0/5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W30 (ACEA A5 or above). However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
*
2 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 0W 30 (ACEA C2 or above). However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
Page 540 of 551
10
8
Specifications & Consumer information

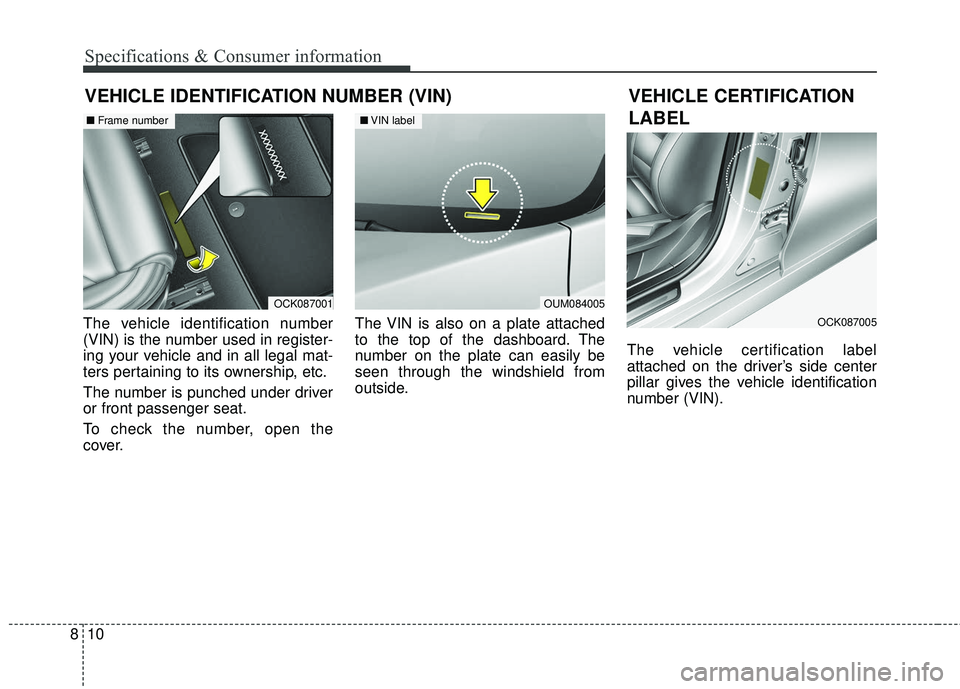

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.
To check the number, open the
cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OCK087001
■
Frame number
OUM084005
■VIN label
OCK087005
Page 541 of 551
811
Specifications & Consumer information

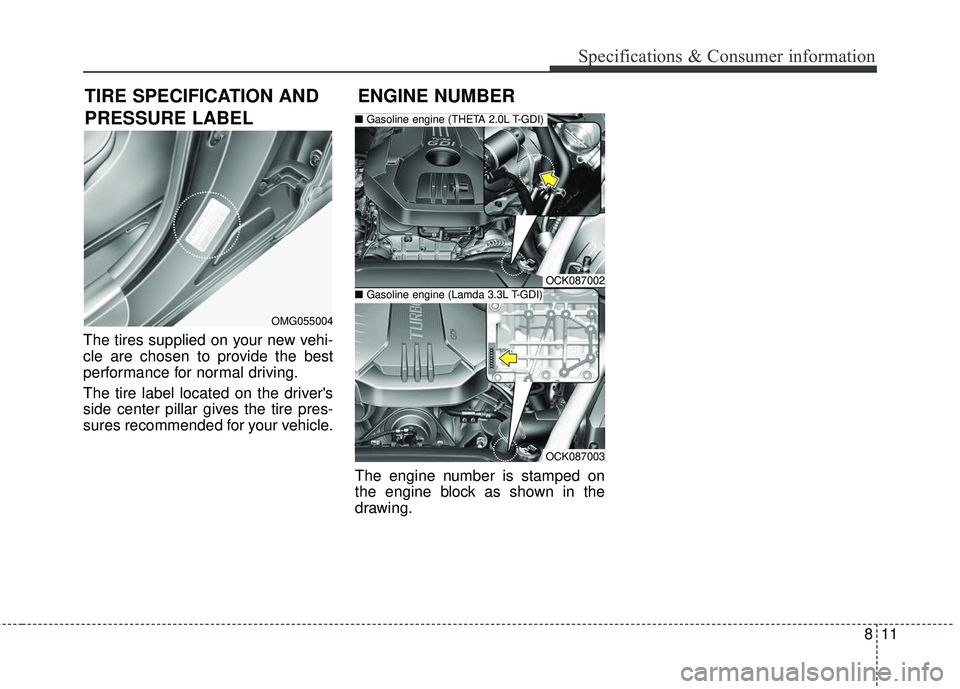

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OMG055004
OCK087002
OCK087003
■ Gasoline engine (Lamda 3.3L T-GDI)
■Gasoline engine (THETA 2.0L T-GDI)
Page 542 of 551
Page 543 of 551

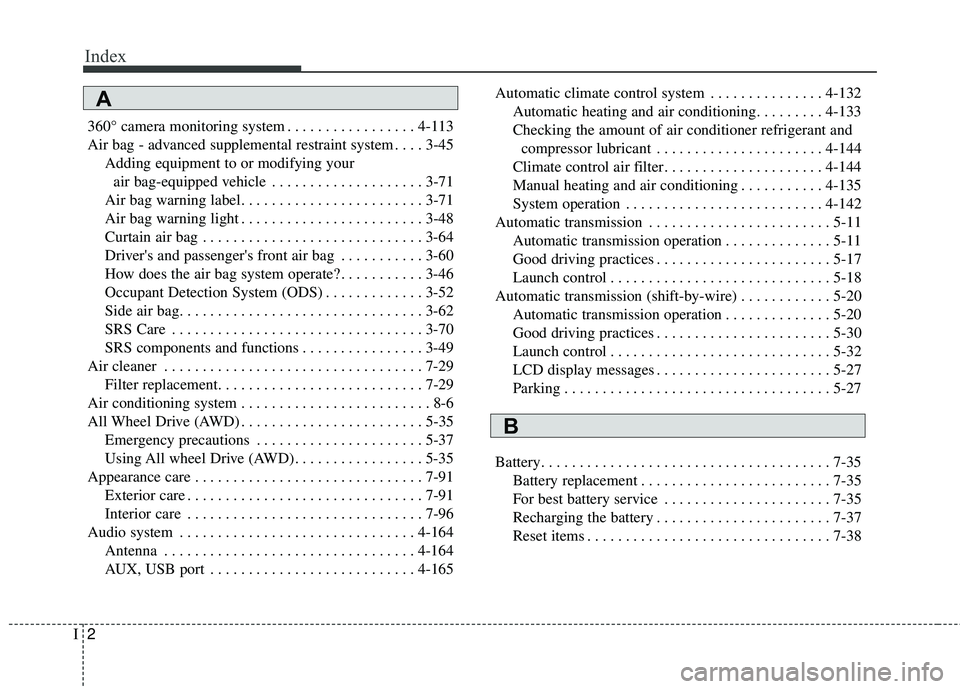

Index
2I
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-113
Air bag - advanced supplemental restraint system . . . . 3-45Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . 3-71
Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-71
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-48
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Driver's and passenger's front air bag . . . . . . . . . . . 3-60
How does the air bag system operate? . . . . . . . . . . . 3-46
Occupant Detection System (ODS) . . . . . . . . . . . . . 3-52
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
SRS components and functions . . . . . . . . . . . . . . . . 3-49
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
All Wheel Drive (AWD) . . . . . . . . . . . . . . . . . . . . . . . . 5-35 Emergency precautions . . . . . . . . . . . . . . . . . . . . . . 5-37
Using All wheel Drive (AWD). . . . . . . . . . . . . . . . . 5-35
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-96
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165 Automatic climate control system . . . . . . . . . . . . . . . 4-132
Automatic heating and air conditioning. . . . . . . . . 4-133
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-144
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-144
Manual heating and air conditioning . . . . . . . . . . . 4-135
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Automatic transmission . . . . . . . . . . . . . . . . . . . . . . . . 5-11 Automatic transmission operation . . . . . . . . . . . . . . 5-11
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-17
Launch control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18
Automatic transmission (shift-by-wire) . . . . . . . . . . . . 5-20 Automatic transmission operation . . . . . . . . . . . . . . 5-20
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-30
Launch control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32
LCD display messages . . . . . . . . . . . . . . . . . . . . . . . 5-27
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
27
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-35 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-35
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-37
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
A
B
Page 544 of 551

I3

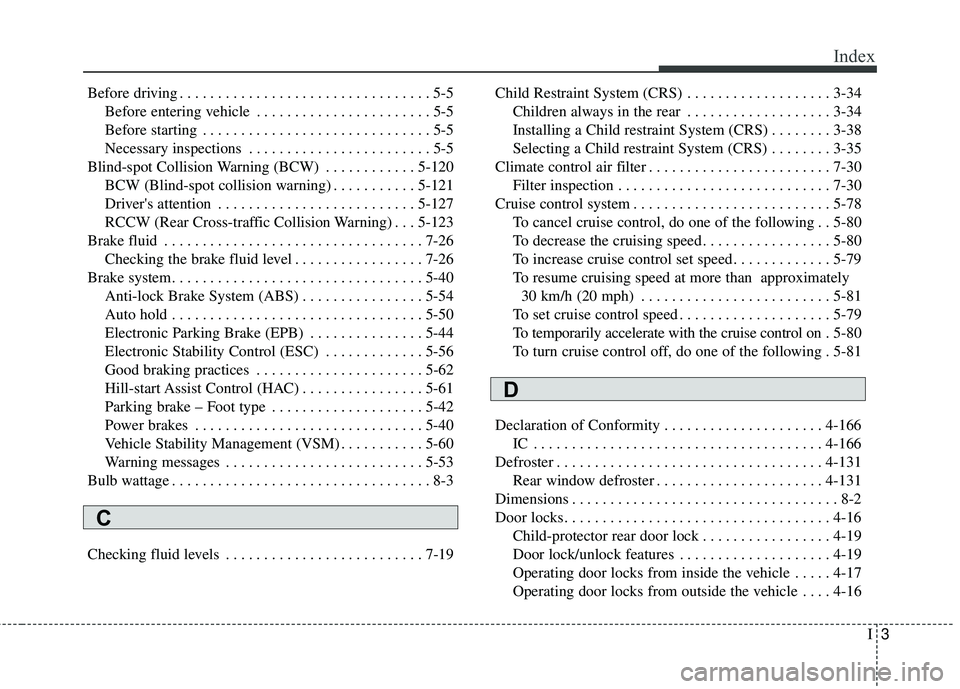

Index
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5Before entering vehicle . . . . . . . . . . . . . . . . . . . . . . . 5-5
Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Necessary inspections . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Blind-spot Collision Warning (BCW) . . . . . . . . . . . . 5-120 BCW (Blind-spot collision warning) . . . . . . . . . . . 5-121
Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
RCCW (Rear Cross-traffic Collision Warning) . . . 5-123
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-26
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40 Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . 5-54
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-50
Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . 5-44
Electronic Stability Control (ESC) . . . . . . . . . . . . . 5-56
Good braking practices . . . . . . . . . . . . . . . . . . . . . . 5-62
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . 5-61
Parking brake – Foot type . . . . . . . . . . . . . . . . . . . . 5-42
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Vehicle Stability Management (VSM) . . . . . . . . . . . 5-60
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . 5-53
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 Child Restraint System (CRS) . . . . . . . . . . . . . . . . . . . 3-34
Children always in the rear . . . . . . . . . . . . . . . . . . . 3-34
Installing a Child restraint System (CRS) . . . . . . . . 3-38
Selecting a Child restraint System (CRS) . . . . . . . . 3-35
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-30 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-78 To cancel cruise control, do one of the following . . 5-80
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-80
To increase cruise control set speed . . . . . . . . . . . . . 5-79
To resume cruising speed at more than approximately 30 km/h (20 mph) . . . . . . . . . . . . . . . . . . . . . . . . . 5-81
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-79
To temporarily accelerate with the cruise control on . 5-80
To turn cruise control off, do one of the following . 5-81
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . 4-166 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-166
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
131 Rear window defroster . . . . . . . . . . . . . . . . . . . . . . 4-131
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
16 Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-19
Door lock/unlock features . . . . . . . . . . . . . . . . . . . . 4-19
Operating door locks from inside the vehicle . . . . . 4-17
Operating door locks from outside the vehicle . . . . 4-16
C
D
