Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
Observe all regulations regardingregistration and insurance.
Determine that acceptable fuel is available. No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
Do not race the engine.
While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-
tion. Do not park or stop the vehicle near
flammable items such as leaves,
paper, oil, and tire. Such items
placed near the exhaust system can
become a fire hazard.
When an engine idles at a high speed with the rear side of the vehi-
cle touching the wall, heat of the
exhaust gas can cause discol-
oration or fire. Keep enough space
between the rear part of the vehicle
and the wall.
Be sure not to touch the exhaust/catalytic systems while
engine is running or right after the
engine is turned off. There is a risk
of burns since the systems are
extremely hot.
Introduction
VEHICLE BREAK-IN
PROCESS RISK OF BURNS WHEN
PARKING OR STOPPING
VEHICLE.

17
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
How various systems in your
vehicle were operating;
Whether or not the driver and passenger safety belts were
buckled/ fastened;
How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
How fast the vehicle was travel- ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving
conditions and no personal data
(e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combine
the EDR data with the type of per-
sonally identifying data routinely
acquired during a crash investiga-
tion.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.

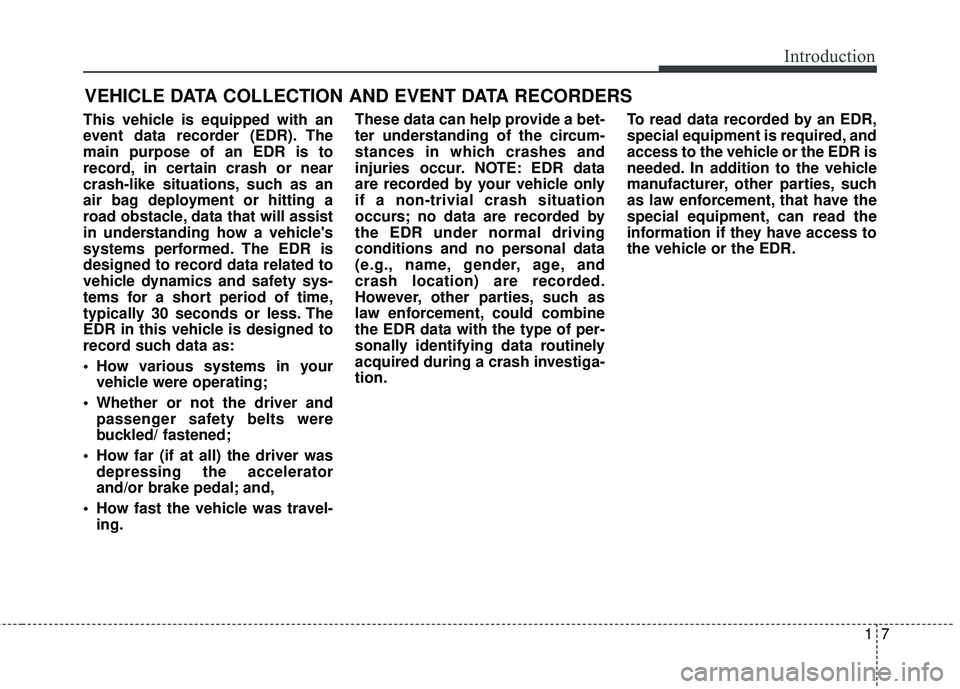

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
Introduction

Your vehicle at a glance

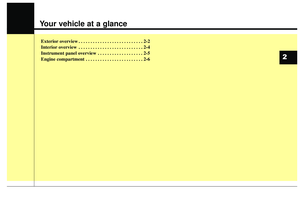

Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood .....................................................4-39
2. Head lamp (Features of your vehicle) ..4-115Head lamp (Maintenance) ....................7-77
3. Wheel and tire (Maintenance) ..............7-39 Wheel and tire (Specification) ................8-4
4. Outside rearview mirror ........................4-64
5. Wide sunroof.........................................4-45
6. Front windshield wiper blades (Features of your vehicle) ...................4-122
Front windshield wiper blades
(Maintenance) .......................................7-33
7. Windows ...............................................4-34
8. Parking assist system .........................4-107
OCK017001N
■ Front view
❈ The actual shape may differ from the illustration.

23
Your vehicle at a glance
1. Door ......................................................4-16
2. Fuel filler lid ..........................................4-41
3. Rear combination lamp (Maintenance) .......................................7-79
4. High mounted stop lamp (Maintenance) .......................................7-79
5. Liftgate.........................................4-21, 4-30
6. Antenna ..............................................4-164
7. Rearview camera................................4-112 360° camera monitoring system .........4-113
8. Parking assist system .........................4-107
OCK017002L
■ Rear view
❈ The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Door lock/unlock button.........................4-17
2. Driver position memory system button .3-11
3. Power window switches ........................4-34
4. Central door lock switch ........................4-18
5. Power window lock button .....................4-37
6. Outside rearview mirror control switch..4-64
7. Outside rearview mirror folding button ..4-66
8. Fuel filler lid release button ...................4-41
9. Power liftgate open/close button ...........4-23
10. Instrument panel illumination control switch ..................................................4-68
11. BCW On/OFF button.........................5-120
12. Lane Keeping Assist system button ..5-110
13. Steering wheel ....................................4-51
14. Steering wheel tilt control ..........4-52, 4-53
15. Inner fuse panel ..................................7-54
16. Brake pedal .........................................5-40
17. Parking brake pedal ............................5-42
18. Hood release lever ..............................4-39
19. Seat .......................................................3-4
OCK017003N❈ The actual shape may differ from the illustration.

25
Your vehicle at a glance

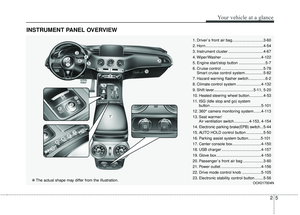

INSTRUMENT PANEL OVERVIEW
1. Driver`s front air bag .............................3-60
2. Horn ......................................................4-54
3. Instrument cluster .................................4-67
4. Wiper/Washer .....................................4-122
5. Engine start/stop button .........................5-7
6. Cruise control .......................................5-78 Smart cruise control system .................5-82
7. Hazard warning flasher switch................6-2
8. Climate control system .......................4-132
9. Shift lever.....................................5-11, 5-20
10. Heated steering wheel button.............4-53
11. ISG (Idle stop and go) system button ................................................5-101
12. 360° camera monitoring system .......4-113
13. Seat warmer/ Air ventilation switch ..............4-153, 4-154
14. Electronic parking brake(EPB) switch... 5-44
15. AUTO HOLD control button ................5-50
16. Parking assist system button……….5-101
17. Center console box...........................4-150
18. USB charger .....................................4-157
19. Glove box ..........................................4-150
20. Passenger`s front air bag ...................3-60
21. Power outlet ......................................4-156
22. Drive mode control knob ..................5-105
23. Electronic stability control button ........5-56
OCK017004N❈ The actual shape may differ from the illustration.

Your vehicle at a glance
62

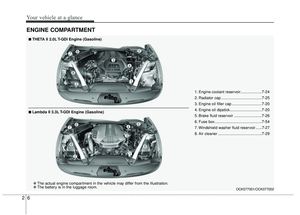

ENGINE COMPARTMENT
OCK077001/OCK077002
1. Engine coolant reservoir....................7-24
2. Radiator cap ......................................7-25
3. Engine oil filler cap ............................7-20
4. Engine oil dipstick..............................7-20
5. Brake fluid reservoir ..........................7-26
6. Fuse box ............................................7-54
7. Windshield washer fluid reservoir......7-27
8. Air cleaner .........................................7-29
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the luggage room.
■ ■THETA II 2.0L T-GDI Engine (Gasoline)
■ ■Lambda II 3.3L T-GDI Engine (Gasoline)
