(Continued)
•In the event your vehicle leaves
the roadway\b do not steer
sharply. Instead\b slow down
before pulling back into the trav
el lanes.
•HYUNDAI recommends you fol
low all posted speed limits.

+)
!-0,0*&."'$-.,/#0%(/
Automatic transaxle operation
The automatic transaxle has 4 for
ward speeds and one reverse speed.
The individual speeds are selected
automatically in the D (Drive) posi
tion.
%U$ %$(
$#%&"%X!'
((
'U('
)
OIB\f54\f\f2Move shift lever. Depress the brake pedal\b press the shift button\b
and then move shift lever.
Press the shift button\b then move shift lever.

+)
!-0,0*&."'$-.,/#0%(/

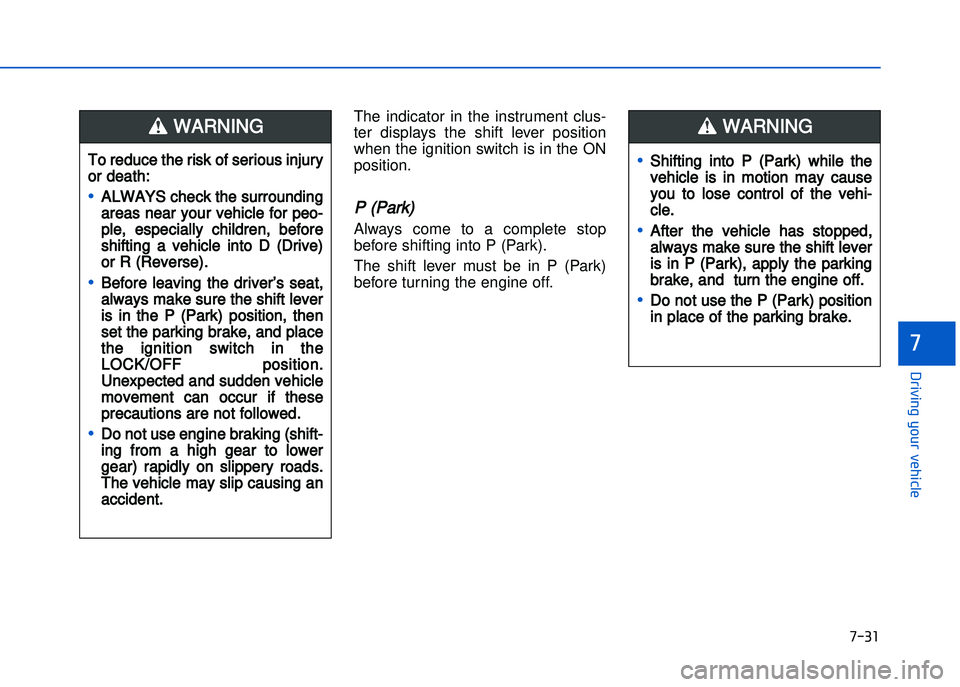

The indicator in the instrument clus
ter displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
The shift lever must be in P (Park)
before turning the engine off.
To reduce the risk of serious injury
or death:
•ALWAYS check the surrounding
areas near your vehicle for peo
ple\b especially children\b before
shifting a vehicle into D (Drive)
or R (Reverse).
•Before leaving the driver’s seat\b
always make sure the shift lever
is in the P (Park) position\b then
set the parking brake\b and place
the ignition switch in the
LOCK/OFF position.
Unexpected and sudden vehicle
movement can oc
cur if these
precautions are not followed.
•Do not use engine braking (shift
ing from a high gear to lower
gear) rapidly on slippery roads.
The vehicle may slip causing an
accident.
WARNING
•Shifting into P (Park) while the
vehicle is in motion may cause
you to lose control of the vehi
cle.
•After the vehicle has stopped\b
always make sure the shift lever
is in P (Park)\b apply the parking
brake\b and turn the engine off.
•Do not use the P (Park) position
in place of the parking brake.
WARNING

+)
!-0,0*&."'$-.,/#0%(/
R (Reverse)
Use this position to drive the vehicle
backward.Always come to a complete stop
before shifting into or out of R
(Reverse); you may damage the
transaxle if you shift into R (Reverse)
while the vehicle is in motion.
N (Neutral)
The wheels and transaxle are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine\b or if it is necessary
to stop with the engine ON. Shift into
P (Park) if you need to leave your
vehicle for any reason.
Always depress the brake pedal
when you are shifting from N
(Neutral) to another gear.
D (Drive)
This is the normal driving position.
The transaxle will automatically shift
through a 4gear sequence\b provid
ing the best fuel economy and
power.
For extra power when passing anoth
er vehicle or driving uphill\b depress
the accelerator further until you feel
the transaxle downshift to a lower
gear.
NOTICE
Do not shift into gear unless your
foot is firmly on the brake pedal.
Shifting into gear when the engine
is running at high speed can
cause the vehicle to move very
rapidly. You could lose control of
the vehicle and hit people or
objects.
WARNING

+)
!-0,0*&."'$-.,/#0%(/

Manual shift mode
Whether the vehicle is stationary or
in motion\b Manual shift mode is
selected by pushing the shift lever
from the D (Drive) position into the
manual gate. To return to D (Drive)
range operation\b push the shift lever
back into the main gate.
In Manual shift mode\b moving the
shift lever backwards and forwards
will allow you to select the desired
range of gears for the current driving
conditions. + (Up) : Push the lever forward once
to shift up one gear.
(Down) : Pull the lever backwards once to shift down one
gear.
Information
• Only the four forward gears can beselected\b To reverse or park the
vehicle, move the shift lever to the R
(Reverse) or P (Park) position as
required\b
• Downshifts are made automatically when the vehicle slows down\b When
the vehicle stops, 1st gear is auto
matically selected\b
• When the engine rpm approaches the red zone the transaxle will
upshift automatically\b
(Continued)(Continued)
• If the driver presses the lever to
+ (Up) or (Down) position, the
transaxle may not make the request
ed gear change if the next gear is
outside of the allowable engine rpm
range\b The driver must execute
upshifts in accordance with road
conditions, taking care to keep the
engine rpms below the red zone\b
• When accelerating from a stop on a slippery road, push the shift lever
forward into the + (Up) position\b
This allows the transaxle to shift
into the \fnd gear which is better for
smooth driving on a slippery road\b
Push the shift lever to the (Down)
side to shift back to the 1st gear\b
i
OIB\f54\f\f8

+)
!-0,0*&."'$-.,/#0%(/
Shiftlock system
For your safety\b the automatic
transaxle has a shiftlock system
which prevents shifting the transaxle
from P (Park) into R (Reverse)
unless the brake pedal is depressed.
To shift the transaxle from P (Park)
into R (Reverse):
1.Depress and hold the brake pedal.
2.Start the engine or place the ignition switch in the ON position.
3.Move the shift lever.
Shiftlock release
If the shift lever cannot be moved
from the P (Park) position into R
(Reverse) position with the brake
pedal depressed\b continue depress
ing the brake\b and then do the follow
ing:
1. Press the shiftlock release button.
2. Press and hold the lock release button on the shift lever.
3. Move the shift lever.
4. Have your vehicle inspected by an authorized HYUNDAI dealer
immediately
OIB\f54\f\f3

+)
!-0,0*&."'$-.,/#0%(/

Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position\b apply the parking brake\b
and place the ignition switch in the
LOCK/OFF position. Take the Key
with you when exiting the vehicle.
Good driving practices
• Never move the shift lever from P(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
• Never move the shift lever into P (Park) when the vehicle is in
motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
• Do not move the shift lever to N (Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transaxle could be damaged.
• Do not drive with your foot resting on the brake pedal. Even light\b but
consistent pedal pressure can
result in the brakes overheating\b
brake wear and possibly even
brake failure.
• Depressing both accelerator and brake pedals at the same time can
trigger logic for engine power
reduction to assure vehicle decel
eration. Vehicle acceleration willresume after the brake pedal is
released. • When driving in Manual shift mode\b
slow down before shifting to a
lower gear. Otherwise\b the lower
gear may not be engaged if the
engine rpms are outside of the
allowable range.
• Always apply the parking brake when leaving the vehicle. Do not
depend on placing the transmis
sion in P (Park) to keep the vehicle
from moving.
• Exercise extreme caution when driving on a slippery surface. Be
especially careful when braking\b
accelerating or shifting gears. On a
slippery surface\b an abrupt change
in vehicle speed can cause the
drive wheels to lose traction and
may cause loss of vehicle control
resulting in an accident
• Optimum vehicle performance and economy is obtained by smoothly
depressing and releasing the
accelerator.
When you stay in the vehicle with
the engine running\b be careful not
to depress the accelerator pedal
for a long period of time. The
engine or exhaust system may
overheat and start a fire.
The exhaust gas and the exhaust
system are very hot. Keep away
from the exhaust system compo
nents.
Do not stop or park over flamma
ble materials\b such as dry grass\b
paper or leaves. They may ignite
and cause a fire.
WARNING

+)
!-0,0*&."'$-.,/#0%(/
To reduce the risk of SERIOUS
INJURY or DEATH:
•ALWAYS wear your seatbelt. In
a collision\b an unbelted occu
pant is significantly more likely
to be seriously injured or killed
than a properly belted occupant.
•Avoid high speeds when corner
ing or turning.
•Do not make quick steering
wheel movements\b such as
sharp lane changes or fast\b
sharp turns.
•The risk of rollover is greatly
increased if you lose control of
y

our vehicle at highway speeds.
•Loss of control often occurs if
two or more wheels drop off the
roadway and the driver over
steers to reenter the roadway.
(Continued)
(Continued)
•In the event your vehicle leaves
the roadway\b do not steer
sharply. Instead\b slow down
before pulling back into the trav
el lanes.
•HYUNDAI recommends you fol
low all posted speed limits.
WARNING
