TT he scroll feature can be used to dis-
play file and folder names that are
too long to display on the s creen.Languages supported (Unicode sup-
port)• Korean: 2,604 characters
• English: 94 characters
• Common Chinese characters:
4,888 characters
• Special symbols: 986 charactersJapanese/Simplified Chinese charac-
ters are not supported.
Information- Using the USB Devices
• Starting the vehicle while a USB device is connected can damage the
device. Please disconnect USB
devices before starting the vehicle.
• Starting the vehicle or stopping the engine while an external USB device
is connected can result in failure of
the external USB device to operate.
• Be cautious of static electricity when connecting/disconnecting external
USB devices.
• An encrypted MP3 player is not rec- ognized when connected as an exter-
nal device.
• External USB devices may not be recognized, depending on the state
of the external USB device.
• Only products with byte/sectors for- matted at 4 KB or lower are recog-nized.
• Only USB devices in FAT12/16/32 format are recognized; NTFS and
ExFAT file systems are not recog-
nized.
• Some USB devices are not recog- nized due to compatibility issues.
(Continued)(Continued)
• Do not touch the USB connections.
• Connecting and disconnecting USB
devices rapidly over a short period
of time can cause equipment failure.
• Abnormal sounds may be audible when the USB device is disconnect-
ed.
• Turn the audio off before connecting or disconnecting external USB
devices.
• Recognition may take longer depending on the type, capacity or
file format of the external USB
device. This is not a product mal-
function.
• Use of USB devices for purposes other than playing music files is pro-
hibited.
• Image display and video playback are not supported.
• Use of USB accessories, including charge and heat through the USB
interface, can lead to reduced prod-
uct performance or malfunctions.
Do not use USB devices or acces-
sories for these purposes.
(Continued)
NOTICENOTICE
i

#
!'%$&%" '&$
(Continued)
• Use of aftermarket USB hubs and
extension cables can result in the
vehicle’s audio system failing to rec-
ognize your USB device. Connect
the USB device directly to the multi-
media port of your vehicle.
• When using high-capacity USB devices with logical drive divisions,
only files saved on the highest level
logical drive can be played.
If applications are loaded on a USB
drive, file playback may fail.
• Some MP3 players, cell phones, dig- ital cameras, etc. (USB devices that
are not recognized as mobile stor-
age) may not operate normally
when connected.
• USB charging may not be supported by some mobile devices.
• Operation is guaranteed only for standard (Metal Cover Type) USB
Memory drives.
• Operation of HDD, CF, SD and memory stick devices is not guaran-
teed.
(Continued)(Continued)
• DRM (Digital Rights Management)
files cannot be played.
• SD-type USB memory, CF-type USB memory, and other USB mem-
ory devices that require adapters
for connection are not supported.
• Proper operation of USB HDDs or USB drives with connectors that
loosen due to vehicle vibrations is
not guaranteed. (iStick, etc.)
• USB products that are used as key chains or
cell phone accessories
may damage the USB
jack and affect proper
file playback. Please refrain from
use. Use only products with plug
connectors, as shown in the follow-
ing illustration.
• When MP3 devices or cell phones are connected simultaneously
through AUX, BT Audio and USB
modes, a popping noise or malfunc-
tion may occur.
• Use USB 2.0 devices for better com- patibility. Maximum device size
supported is 32 GB.

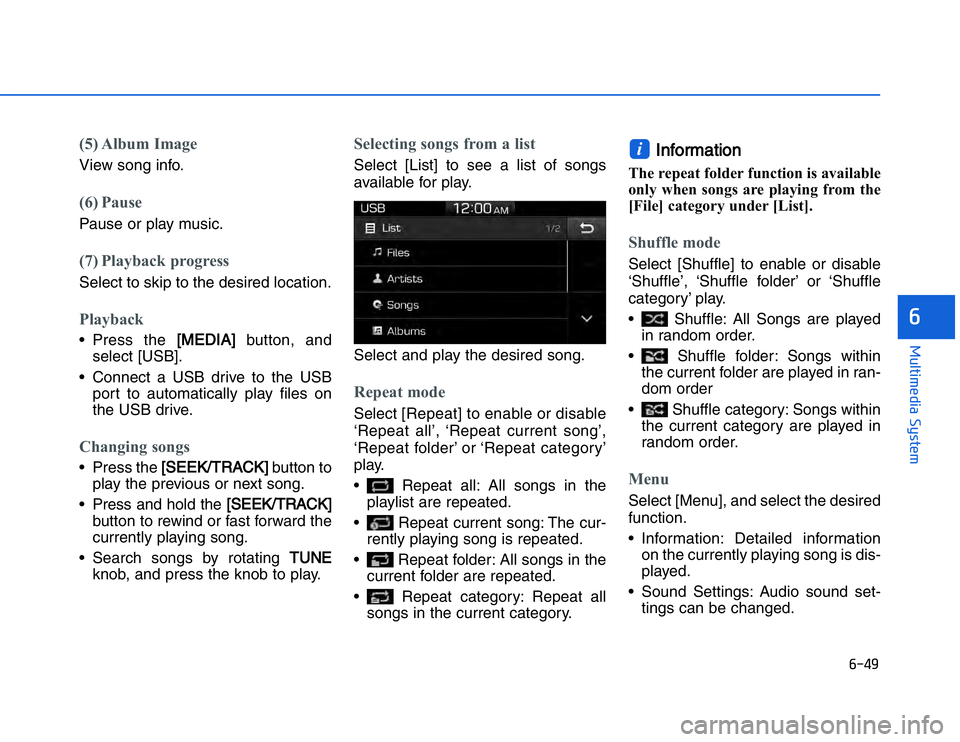

UU SB(1) RepeatEnable/disable repeat mode.(2) ShuffleEnable/disable shuffle mode.(3) ListView a list of all categories. (4) MenuNavigate to the menu screen.

#
!'%$&%" '&$
(5) Album ImageView song info.(6) PausePause or play music.(7) Playback progressSelect to skip to the desired location.Playback• Press the [
[
MEDIA]
button, and
select [USB].
• Connect a USB drive to the USB port to automatically play files on
the USB drive.
Changing songs• Press the
[SEEK/TRACK]
button to
play the previous or next song.
• Press and hold the
[SEEK/TRACK]
button to rewind or fast forward the
currently playing song.
• Search songs by rotating
TUNE
knob, and press the knob to play.
Selecting songs from a listSelect [List] to see a list of songs
available for play.
Select and play the desired song.Repeat modeSelect [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’,
‘Repeat folder’ or ‘Repeat category’
play.
• Repeat all: All songs in the playlist are repeated.
• Repeat current song: The cur- rently playing song is repeated.
• Repeat folder: All songs in the current folder are repeated.
• Repeat category: Repeat all songs in the current category.
Information
The repeat folder function is available
only when songs are playing from the
[File] category under [List].Shuffle modeSelect [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle folder’ or ‘Shuffle
category’ play.
• Shuffle: All Songs are playedin random order.
• Shuffle folder: Songs within the current folder are played in ran-
dom order
• Shuffle category: Songs within the current category are played in
random order.MenuSelect [Menu], and select the desired
function.
• Information: Detailed informationon the currently playing song is dis-
played.
• Sound Settings: Audio sound set- tings can be changed.i

#!'%$&%" '&$
IInformation- Using the iPod
®
Devices
• To use the audio system’s iPod
®con-
trol function, use the dedicated
cable provided with your iPod®.
• Connecting the iPod
®
to the vehicle
during play may result in a loud
noise that lasts about one to two sec-
onds. Connect the iPod®to the vehi-
cle after stopping or pausing play.
• Connect the iPod
®with the vehicle in
the ACC ON state to begin charging.
• When connecting the iPod
®
cable,
be sure to fully push the cable into
the port.
• When Equalizer effects are enabled simultaneously on external devices,
such as iPod
®s and the audio sys-
tem, the Equalizer effects may over-
lap, causing sound quality deterio-
ration or distortion. Deactivate the
Equalizer function for all external
devices, if possible.
• Noise may occur when your iPod
®
or the AUX port is connected.
Disconnect and store separately
when not in use.
(Continued)(Continued)
• There may be noise if the audio sys-
tem is used with an iPod
®
or AUX
external device connected to the
power jack. In these cases, discon-
nect the iPod
®
or external device
from the power jack.
• Play may be interrupted, or device malfunctions may occur depending
on the characteristics of your
iPod
®/iPhone
®/iPad
®.
• Play may fail if your iPhone
®is con-
nected through both Bluetooth®and
USB. In this case, select Dock con- nector or Bluetooth
®
on your
iPhone
®
to change the sound output
settings.
• If your software version does not support the communication proto-
col or your iPod
®
is not recognized
due to device failure, anomalies or
defects, iPod
®
mode cannot be used.
•iPod
®
nano (5th generation) devices
may not be recognized if the battery
is low. Charge sufficiently before use.
(Continued)(Continued)
• The search and song play order in
the iPod
®
device may be different
from the search order in the audio
system.
• If the iPod®
has failed due to an
internal defect, please reset the
iPod
®
(consult your iPod
®
manual).
• Depending on the software version, the iPod
®
may fail to sync with the
system. If the media is removed or
disconnected before recognition, the
previous mode may not be restored
(iPad
®
cannot be charged).
• Cables other than the 1-meter cable provided with iPod
®/iPhone
®/iPad
®
products may not be recognized.
• When other music apps are used on your iPod
®, the system sync func-
tion may fail due to malfunction of
the iPod
®
application.
i

#
!'%$&%" '&$
iiPod
®
(1) RepeatEnable/disable repeat mode.(2) ShuffleEnable/disable shuffle mode.(3) ListView a list of all categories. (4) MenuNavigate to the menu screen.(5) Album ImageView song info.
(6) PausePause or play music.(7) Playback progressSelect to skip to the desired location.PlaybackConnect your iPod
®
to the audio
USB port, press the
[MEDIA]
button,
and select [iPod].
Changing songsPress the
[SEEK/TRACK]
button to
play the previous or next song.
Press and hold the
[SEEK/TRACK]
button to rewind or fast forward the
currently playing song.
Search songs by rotating the
TUNE
knob, and press the knob to play.Selecting songs from a listSelect [List] to see a list of songs
available for play.
Select and play the desired song.
Repeat modeSelect [Rep eat] to enable or disable
‘Repeat category’, ‘Repeat current
song’ play.
• Repeat category: Repeat all songs in the current category.
• Repeat current song: The cur- rently playing song is repeated.Shuffle modeSelect [Shuffle] to enable or disable
‘Shuffle category’ play.
• Shuffle category: Songs withinthe current category are played in
random order.MenuSelect [Menu], and select the desired
function.
• Information: Detailed info on thecurrently playing song is displayed.
• Sound Settings: Audio sound set- tings can be changed.

#!'%$&%" '&$When playing Audio from other
Applications in iPod
®
When Audio is playing through a
separate app in iPod
®®, the above
screen is displayed.
(1) Play/Pause: Pause or play music
.
(2) Play iPod Files: Play music saved on your iPod
®.
(3) Sound Settings: Audio sound set- tings can be changed.
(4) Album Image: View playback info
.
Playing iPod filesSelect [Play iPod Files] to play songs
saved on your iPod
®.
If there are no songs saved on your
iPod
®, the [Play iPod Files] is dis-
abled.Information
Operation cannot be carried out cor-
rectly due to iPod
®
application mal-
function.
Information- Using Bluetooth
®
(BT) Audio
• Bluetooth
®Audio mode can only be
used if a Bluetooth
®-enabled phone
is connected. Only devices that sup-
port Bluetooth
®
audio can be used.
• If the Bluetooth®-enabled phone is
disconnected during play, the music
stops.
• When the TRACK UP/DOWN but- tons are used during Bluetooth
®
audio streaming, a popping noise or
sound interruptions may occur,
depending on the cell phone device.
• Depending on the cell phone model, the audio streaming function may
not be supported.
• If a phone call is made or received when music is playing in Bluetooth
®
Audio mode, the call may mix with
the music.
• When returning to Bluetooth
®
Audio mode after ending a call, play
might not resume automatically for
some cell phone models.
i
i

#
!'%$&%" '&$
••Bluetooth
®
Handsfree is a feature
that enables drivers to practice
safe driving. Connecting the car
audio system wi th a Bluetooth
®
phone allows the user to conve-
niently make calls, receive calls,
and manage the phone book.
Before usi ng the Bluetooth
®, care-
fully read the contents of this
user’s manual.
• Excessive use or operations while driving may lea d to negligent driv-
ing practices and be the cause of
accidents.
• Do not operate the device exces- sive ly while driving.
• Viewing the screen for prolonged periods of time is dangerous and
may lead to accide nts.
• When driving, view the screen only for short periods of time.
Bluetooth
®
(BT) Audio
(1) RepeatEnable/disable repeat play mode.(2) ShuffleEnable/disable shuffle play mode.(3) MenuNavigate to the menu screen.(4) Play/PausePause or play music.
Information
• Depending on the connectedBluetooth device, mobile phone, or
the music player you are using,
playback controls may differ.
• Depending on the music player you are using, streaming may not be
supported.
• Some cell phone models may not support particular functions.
• Bluetooth
®
audio volume is synced
with cell phone media volume.
PlaybackPress the
[MEDIA]
button, and select
[BT Audio].
Changing songsPress the
[SEEK/TRACK]
button to
play the previous or next song.
Information
Some cell phones may not support this
function.
NOTICE
ii

#!'%$&%" '&$Repeat modeSelect [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’ or
‘Repeat category’ play.
• Repeat all: All songs in theplaylist are repeated.
• Repeat current song: The cur- rently playing song is repeated.
• Repeat category: Repeat all songs in the current category.
IInformation
The repeat play function is engaged,
depending on the operation of the con-
nected Bluetooth
®
device.
Shuffle modeSelect [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle category’ play.
• Shuffle: All Songs are played in random order.
• Shuffle category: Songs within the current category are played in
random order.
Information
The shuffle function is engaged,
depending on the operation of the con-
nected Bluetooth
®
device.
MenuSelect [Menu], and select the desired
function.
• Connections: The currently con-nected Bluetooth
®
device can be
changed.
• Information: Detailed information on the currently playing song is dis-
played.
• Sound Settings: Audio sound set- tings can be changed.
AUXRunning AUXPress the
[MEDIA]
button, and select
[AUX].
Connect the external device connec-
tion jack to the AUX terminal to run
AUX.
(1) Sound Settings: Audio sound set- tings can be changed.
i
i
