2018 HYUNDAI I20 Owners Manual

#
!'%$&%" '&$
SSteering wheel remote control❈The actual features in the car may
differ from the illustration. (1)
MUTE
• Press Button to mutes the audio (It
will be pause in BT music mode).
• Mutes the microphone during a call.
(2)
VOLUME
• Press to adjust the volume.
(3)
CALL
• Pressing the button. - If not in Bluetooth
®
Handsfree
mode or receiving a phone call.
First press: Display Dial Number
screen.
Second press: Automatically dis-
play the most recently Dialed
Call number.
Third press: Dial the phone num-
ber entered.
- Press in the Incoming Call notifi- cation screen to accept the
phone call.
• In 3-way call, press in Bluetooth hands-free mode to switch to wait-
ing call.
• Single press, puts call on hold to un hold press once again. • Pressing and holding the button.
(more than 1.0 second)
- If not in Bluetooth
®
Handsfree
mode or receiving a phone call,
the most recently Dialed Call
number is dialed.
- Press in Bluetooth
®
Handsfree
mode to transfer the call to your
cell phone.
- Press in cell phone mode to switch to Bluetooth
®
Handsfree
mode.
(4)
END
• Press in Bluetooth
®
Handsfree
mode to end the phone call.
• Press in the incoming call screen to reject the call.

#!'%$&%" '&$

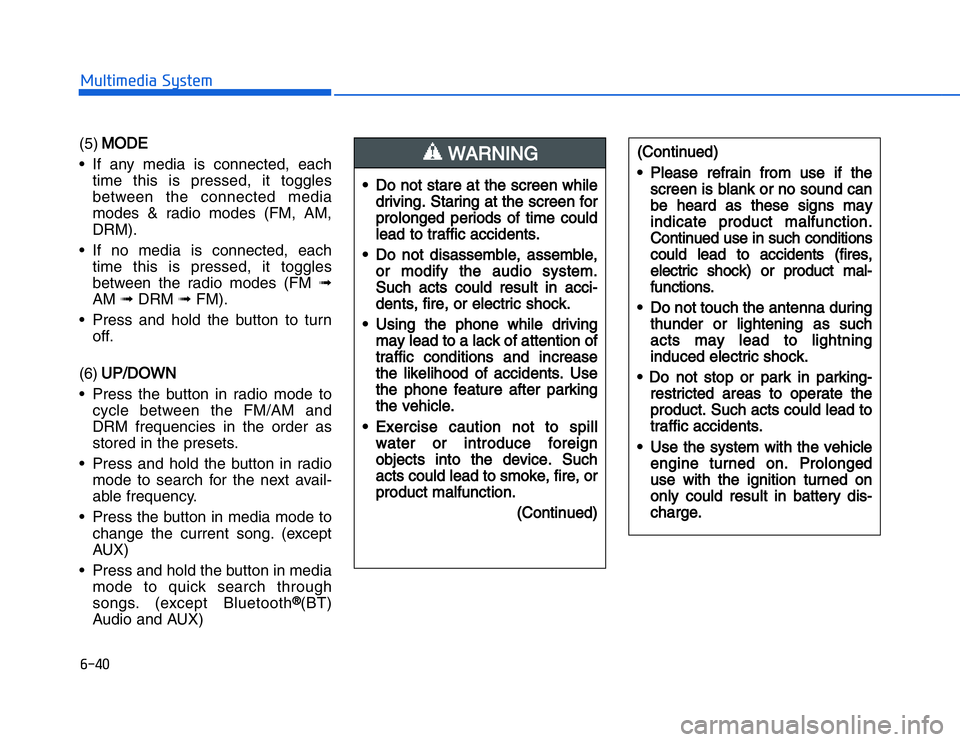

(5) M
M
ODE
• If any media is connected, each
time this is pressed, it toggles
between the connected media
modes & radio modes (FM, AM,
DRM).
• If no media is connected, each time this is pressed, it toggles
between the radio modes (FM ➟
AM ➟DRM ➟FM).
• Press and hold the button to turn off.
(6)
UP/DOWN
• Press the button in radio mode to cycle between the FM/AM and
DRM frequencies in the order as
stored in the presets.
• Press and hold the button in radio mode to search for the next avail-
able frequency.
• Press the button in media mode to change the current song. (except
AUX)
• Press and hold the button in media mode to quick search through
songs. (except Bluetooth
®(BT)
Audio and AUX)
• Do not stare at the screen while driving. Staring at the screen for
prolonged periods of time could
lea d to traffic accidents.
• Do not disassemble, assemble, or modify the audio system.
Such acts could resul t in acci-
dents, fire, or electric shock.
• Using the phone while driving may lead to a lack of attention of
traffic conditions and increase
the likelihood of accidents. Use
the phone feature after parking
the vehicle.
• Exercise caution not to spill water or introduce foreign
objects into the device. Such
acts co uld lead to smoke, fire, or
product malfunction.
(Continued)
WARNING
(Continued)
• Please refrain from use if the screen is blank or no sound can
be heard as these signs may
i ndicate product malfunction.
Continued use in such conditions
could lead to accidents (fires,
electric s hock) or product mal-
functions.
• Do not touch the antenna during thunder or lightening as such
acts may lead to lightning
induced electric shock.
• Do not stop or park in parking- restricted areas to operate the
product. Such acts could lead to
traffic accidents.
• Use the system with the vehicle engine turned o n. Prolonged
use with the ignition turned on
only could result in battery dis-
charge.

#
!'%$&%" '&$
••Operating the device while driving
could lead to accidents due to a
lack of attention to external sur-
roundings. First park the vehicle
before operating the device.
• Adjust the volume to levels that allow t he driver to hear sounds
from outside of the vehicle. Driving
in a state where external sounds
cannot be heard may lead to acci-
dents.
• Pay attention to the volume setting when turning the device on. A sud-
d en output of extreme volume
upon turning the device on could
lead to hearing impairment. (Adjust
the vol ume to a suitable levels
before turning off the device.)
(Continued)(Continued)
• Turn on the car engine
before
using this device. Do not operate
the audio system for long periods
of time only with the ignitio n turned
on as such operations may lead to
battery discharge.
• Do not subject the device to severe shock or impact. Direct pressure
onto the front side of the monitor
may cause damage to the LCD.
• When cleaning the device, make sure to turn off the device and usea dry and smooth cloth. Never use
tough materials , chemical cloths,
or solvents (alcohol, benzene, thin-
ners, etc.). As such materials may
damage the de vice panel or cause
color/quality deterioration.
(Continued)NOTICE
Driving while distracted can result
in a loss of vehicle control that
may lead to an accident, severe
pe rsonal injury, and death. The
driver’s primary responsibility is in
the safe and legal operation of a
ve hicle, and use of any handheld
devices, other equipment, or vehi-
cle systems which take the dri-
ver’s eyes, attention and focus
away from the safe operation of a
vehicle or which are not permissi-
ble by la w should never be used
during operation of the vehicle.
WARNING

#!'%$&%" '&$
(( Continued)
• Do not place beverages close to the audio system. Spilling bever-
ages may lead to system m alfunc-
tion.
• In case of product malfunction, please contact your place of pur-
chase or After Service c enter.
• Placing the audio system within an electromagnetic environment may
result in noise interference.
• Prevent caustic solutions such as perfume and cosmetic oil from
contacting the dashboard because
they may cause damage or discol-
oration.
Information on status iconsIcons showing audio status are shown
in the upper-right corner of the screen.
Icon
Description
Mute
Mute engaged
Bluetooth
Remote
Controller
Bluetooth Remote
Control available
Battery
Remaining battery life
of a connected
Bluetooth
®device
Handsfree +
Audio stream-
ing connection
Bluetooth
®
Handsfree
call and audio stream-
ing available
Handsfree
connection
Bluetooth
®
Handsfree
call available
Bluetooth
®
audio streaming
Bluetooth
®
audio
streaming available
Downloading contacts
Downloading contacts
through Bluetooth
®
wireless communica-
tions
Icon
Description
Line busy
Phone call in progress
Mute mic
Mic muted during a
call (caller cannot
hear your voice)
Phone signal strength
Display the phone sig-
nal strength for a cell
phone connected by
Bluetooth
®

#
!'%$&%" '&$
RRadio FM/AM Mode(1) BandSwitch between FM, AM and DRM.(2) PresetsView all presets.(3) ListView all available stations.(4) MenuNavigate to the menu screen.
Switching between FM, AM and DRM• Press the
[RADIO]
button on the
audio system to switch between
FM, AM and DRM.
• Select [Band] on the screen to switch between FM, AM and DRM.
Searching stationsPress the
[SEEK/TRACK]
button to
search stations.
ListA list of all available stations in the
vehicle’s current location is dis-
played. Select the desired station.
Favorite stations can be saved to
[Presets] by selecting [save].
Select the refresh icon in order
to update the list of available stations
at the vehicle’s current location while
in FM/AM Mode.
PresetsSave up to 40 frequently used stations.
To listen to a preset, select the
desired station list.
Press and hold the desired slot from
1 through 40. This saves the current
station in the selected slot.
If the slot is empty, simply selecting
saves the station to the slot.MenuSelect [Menu], and select the desired
function.
• Scan: All available stations are played for five seconds each.
• Sound Settings: Audio sound set- tings can be changed.

#!'%$&%" '&$DDRM Mode❈ The actual features may differ
from the illustration. May change
according to the transmission con-
tent of DRM.(1) BandSwitch between FM, AM and DRM.(2) PresetsView all presets.(3) Services

Cycle between the services available
with the broadcasting frequency.
(4) MenuNavigate to the menu screen.(5) No signalWhen no signal or weak signal in
DRM Mode, Display No signal icon.(6) Services Index• Displays the number of services available with the broadcasting fre-
quency.
• Highlights the currently receiving service.
• No. of services depends on the broadcasting station and it may
vary from 1 ~ 4.(7) Text InformationText Information may or may not be
available and it depends on the
broadcasting station.
Switching between FM, AM and DRM• Press the
[RADIO]
button on the
audio system to switch between
FM, AM and DRM.
• Select [Band] on the screen to switch between FM, AM and DRM.
Searching stationsPress the
[SEEK/TRACK]
button to
search stations.
PresetsSave up to 40 frequently used stations.
To listen to a preset, select the
desired station list.
Press and hold the desired slot from
1 through 40. This saves the current
station in the selected slot.
If the slot is empty, simply selecting
saves the station to the slot.Changing Service• Select [Services ] in order to
cycle between the available servic-
es from 1 ➟ 2 ➟ 3 ➟ 4 ➟ 1.
• Number of services depends on the broadcasting station and can
vary between 1 ~ 4.

#
!'%$&%" '&$
IInformation
• DRM (Digital Radio Mondiale) is a
digital replacement of AM, an initia-
tive by All India Radio (AIR).
• DRM is available in only few cities in India as of now & AIR is expand-
ing this technology to other regions
of the country also.
• The DRM transmission range & the timings depends on the AIR trans-
mission schedule.
• After you tuned to a receivable DRM station, it may take a few sec-
onds to decode the audio. This is not
a issue but the nature of the digital
signal.
• The text information/Weather/ News Report completely depends on
the DRM broadcaster.
• You may experience a mute while receiving a DRM station, if there is a
loss of signal or any obstructions
around the car location like high
tension power lines, tunnels, metal
bridges and multi-storied buildings.
• Emergency Warning is the sole responsibility of All India Radio, as
they transmit this warning in case of
emergency.
MenuSelect [Menu], and select the desired
function.
• Weather/News Report: Enable or disable Weather/News Report.
• Scan: All available stations are played for five seconds each.
• Sound Settings: Audio sound set- tings can be changed.
Emergency WarningYou can receive a emergency warn-
ing on your screen if Indian govern-
ment or All India Radio (AIR) raises
an alarm of emergency across the
country through DRM transmission.
Information
• The system may switch to DRMmode even though you are in other
modes/turned off the system while
running the car.
• This is a initiation by Indian gov- ernment in the interest of public
safety.i
i

##!'%$&%" '&$MMedia
Information
- Using MP3
Supported audio formatsFile formats other than the formats
above may not be recognized or
playable. Information such as file-
n ame may not be displayed.
Range of supported file types1. Bitrate range (Kbps)
2. Bit Per Sample range (bit) 3. Sampling frequency (Hz)
• The sound quality of MP3/WMA
compressed and WAV files may
vary depending on the bitrate. (A
higher bitrate can have better
sound quality.)
• The product only recognizes files with the MP3, WMA or WAV exten-
sion. Files without one of these
extensions are not recognized.
4. Number of recognizable folders and files
• Folders: 2,000 for USB
• Files: 6,000 for USB
• No recognition limit for folder hier- archies.
5. Character display range (Unicode)
• Filenames: Up to 64 English char- acters (64 Korean characters)
• Foldernames: Up to 32 English characters (32 Korean characters)
NOTICEi
