HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-64
Maintenance
Fuse NameFuse rating Protected Component
FUSE
DCT2 40A Not Used
S/FUEL PUPMP 15A Not Used
ABS 1 40A ESC Module, Multipurpose Check Connector
ABS 2 30A ESC Module, Multipurpose Che

Page 490 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-65
7
Maintenance
LLIIGG HH TT  BB UU LLBB SS
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehi

Page 491 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-66
Maintenance

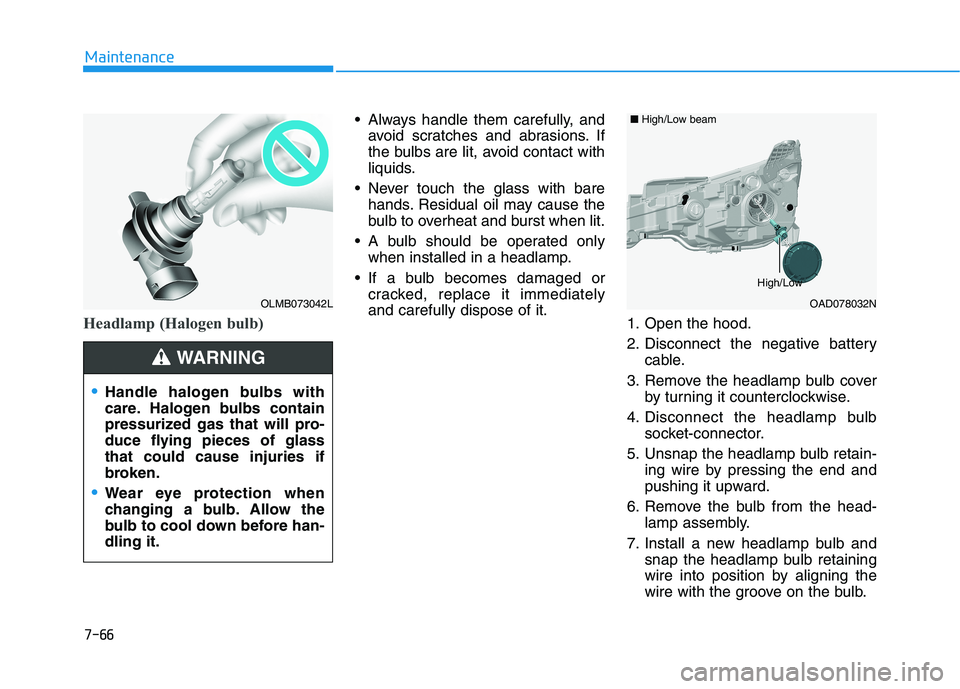

Headlamp (Halogen bulb)
 Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
 Never touch the glass with bare hands. Res

Page 492 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-67
7
Maintenance

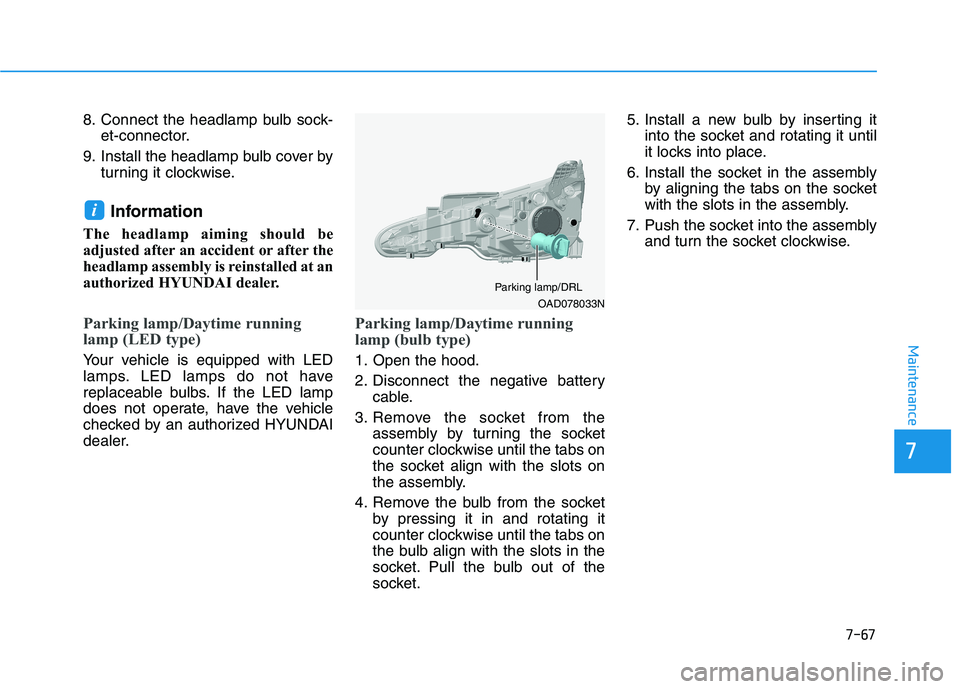

8. Connect the headlamp bulb sock-et-connector.
9. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be
adjusted after an accident or

Page 493 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-68
Maintenance

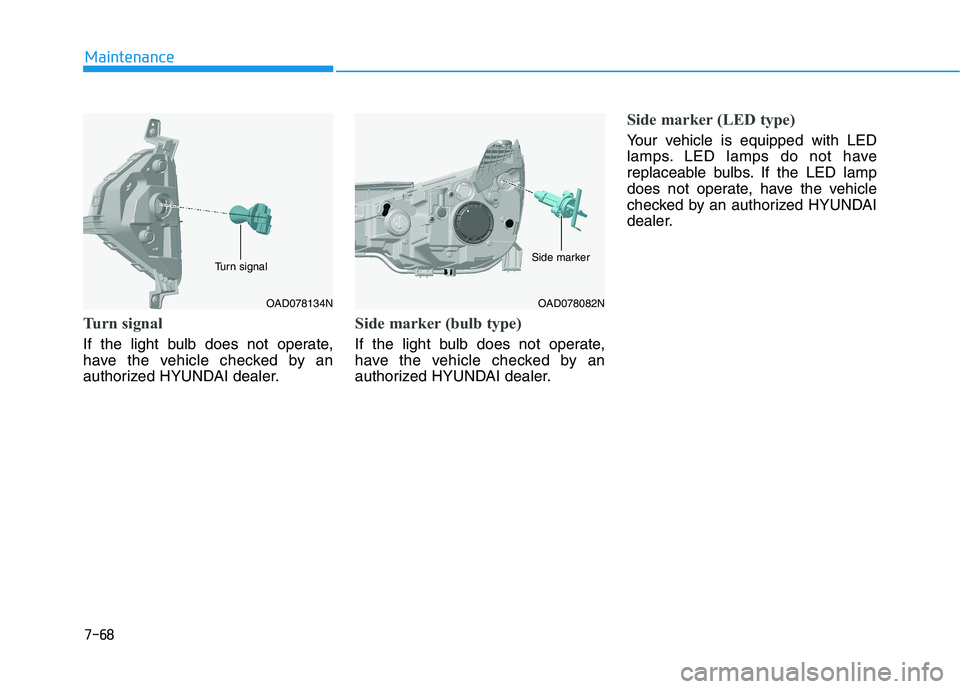

Turn signal
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Side marker (bulb type)
If the light bulb does not operate,
have the vehicl

Page 494 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-69
7
Maintenance
Type B
(1) Headlamp (Low)  (2) Headlamp (High)
(3) Daytime running lamp (DRL) & Parking lamp
(4) Turn signal lamp
(5) Side marker
Headlamp/Side marker/Parking
lamp/Daytime running

Page 495 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-70
Maintenance

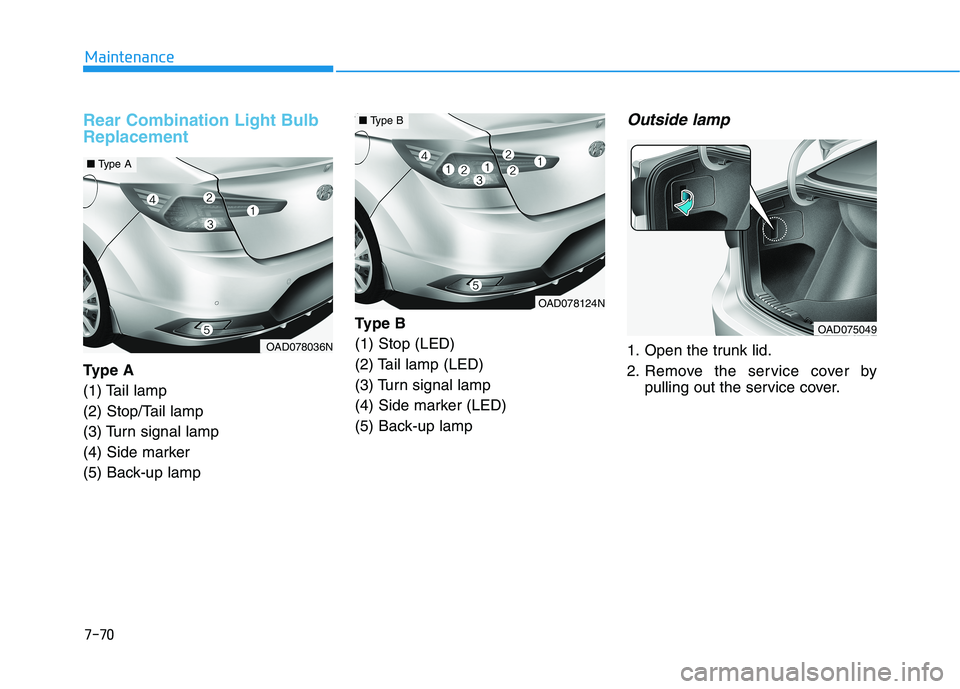

Rear Combination Light Bulb Replacement
Ty p e  A
(1) Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Side marker
(5) Back-up lampType B(1) Stop (LED)
(2) Tail lamp (LED)
(3)

Page 496 of 534

HYUNDAI ELANTRA SPORT 2018  Owners Manual 7-71
7
Maintenance

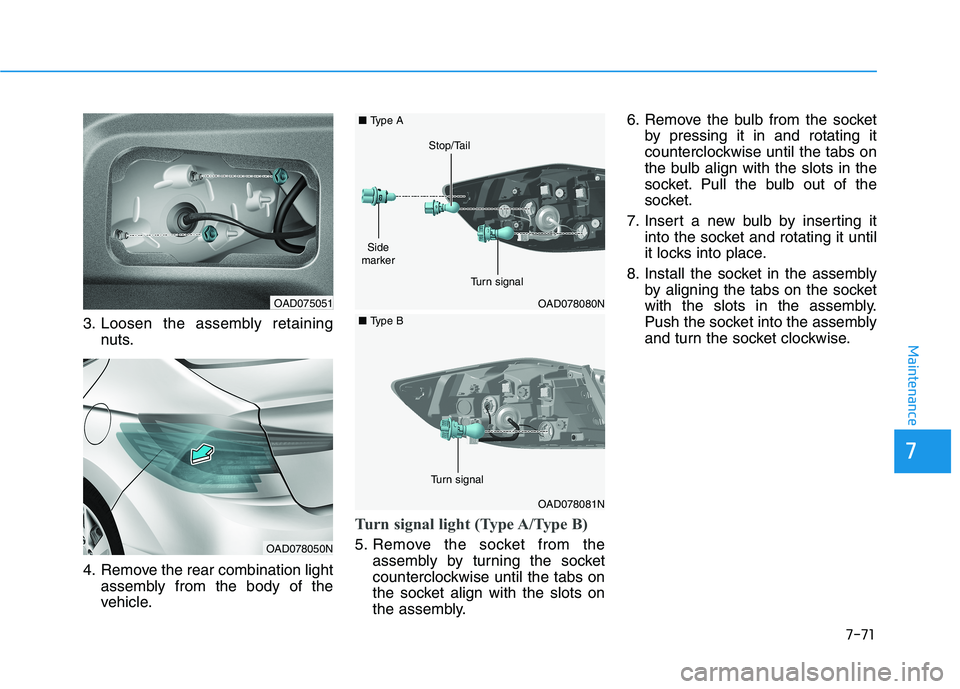

3. Loosen the assembly retainingnuts.
4. Remove the rear combination light assembly from the body of the
vehicle.
Turn signal light (Type A/Type B)
5. Remove the socket from theas
