2018 HYUNDAI ELANTRA SPORT Owners Manual

3-84
Convenient features of your vehicle
Master warning mode
This warning light informs the driver
the following situations.
- Forward Collision-Avoidance Assistsystem malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning sys- tem malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Lamp malfunction - High Beam Assist malfunction (if
equipped)
The Master Warning Light illumi-
nates if one or more of the above
warning situations occur. At this time,
a Master Warning icon ( ) willappear beside the User Settings icon
( ), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User settings mode
In this mode, you can change the
settings of the instrument cluster,
doors, lamps, etc.
1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Other
8. Language
9. Reset
The information provided may differ depending on which functions are
applicable to your vehicle.
OIK047173LOAD048572L

3-85
Convenient features of your vehicle
3

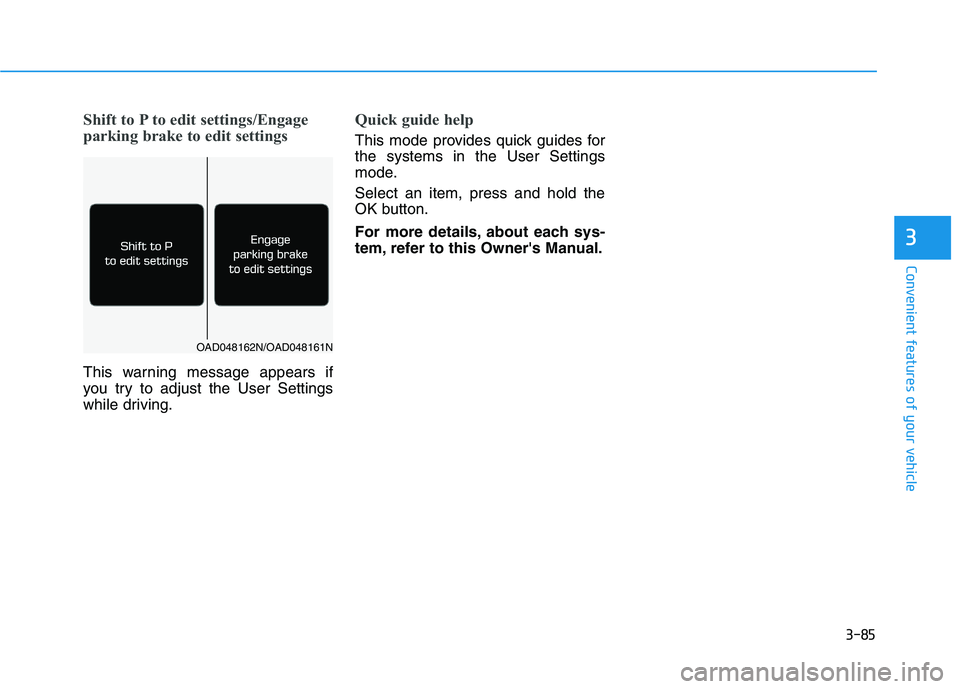

Shift to P to edit settings/Engage
parking brake to edit settings
This warning message appears if
you try to adjust the User Settings
while driving.
Quick guide help
This mode provides quick guides for the systems in the User Settings
mode. Select an item, press and hold the
OK button.
For more details, about each sys-
tem, refer to this Owner's Manual.
OAD048162N/OAD048161N

3-86
Convenient features of your vehicle
Driver Assistance
ItemsExplanation
SCC Reaction

To adjust the sensitivity of the Smart Cruise Control system.
For more details, refer to ''Smart Cruise Control'' in chapter 5.
Driver Attention Warning
To adjust the sensitivity of the Driver Attention Warning (DAW).
- High Sensitivity/Normal Sensitivity/Off
For more details, refer to the "Driver Attention Warning (DAW)" in chapter 5.
Warning TimingTo select when to provide a warning for all driver assistance.
Forward Safety
Active Assist : If selected, the system controls the vehicle and provides a warning when a colli- sion is detected.
Warning Only : If selected, the system provides a warning when a collision is detected.
Off : Deactivates the system.
For more details, refer to the "Forward Collision-Avoidance Assist system" in chapter 5.
❈❈ The information provided may differ depending on which functions are applicable to your vehicle.

3-87
Convenient features of your vehicle
3

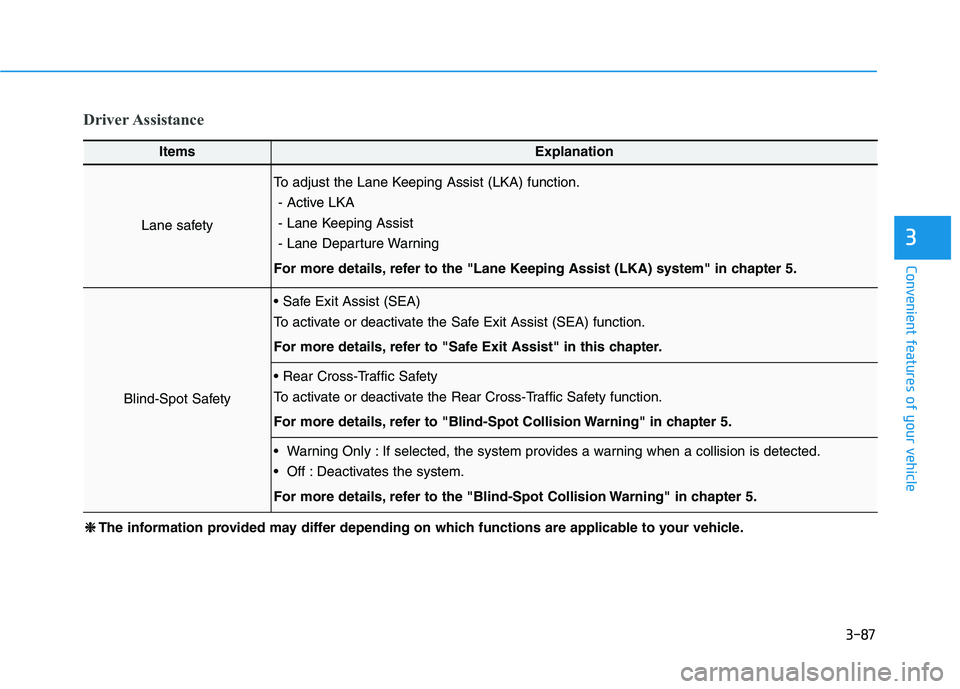

Driver Assistance
ItemsExplanation
Lane safety
To adjust the Lane Keeping Assist (LKA) function.- Active LKA
- Lane Keeping Assist
- Lane Departure Warning
For more details, refer to the "Lane Keeping Assist (LKA) system" in chapter 5.
Blind-Spot Safety

To activate or deactivate the Safe Exit Assist (SEA) function.
For more details, refer to "Safe Exit Assist" in this chapter.

To activate or deactivate the Rear Cross-Traffic Safety function.
For more details, refer to "Blind-Spot Collision Warning" in chapter 5.
Warning Only : If selected, the system provides a warning when a collision is detected.
Off : Deactivates the system.
For more details, refer to the "Blind-Spot Collision Warning" in chapter 5.
❈❈ The information provided may differ depending on which functions are applicable to your vehicle.

3-88
Convenient features of your vehicle
Door
ItemsExplanation
Auto Lock
Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 9.3 mph(15 km/h).
Enable on Shift : All doors will be automatically locked if the automatic transmission shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Auto Unlock
Disable : The auto door unlock operation will be canceled.
On key out/On vehicle off : All doors will be automatically unlocked when the ignition key isremoved from the ignition switch or the Engine Start/Stop button is set to the OFF position.
On Shift to P : All doors will be automatically unlocked if the automatic transmission shift lever is shifted to the P (Park) position.
Two Press Unlock
Off : The two press unlock function will be deactivated. Therefore, all doors will unlock if the doorunlock button is pressed.
On : Only the driver's door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4 seconds, the remaining doors will unlock.
Horn Feedback
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the lock button on the remote
key, and pressing it again within 4 seconds, the horn feedback sound will operate once to indicate
that all doors are locked (if equipped with remote key).
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to "Smart trunk" in this chapter.
❈❈ The information provided may differ depending on which functions are applicable to your vehicle.

3-89
Convenient features of your vehicle
3

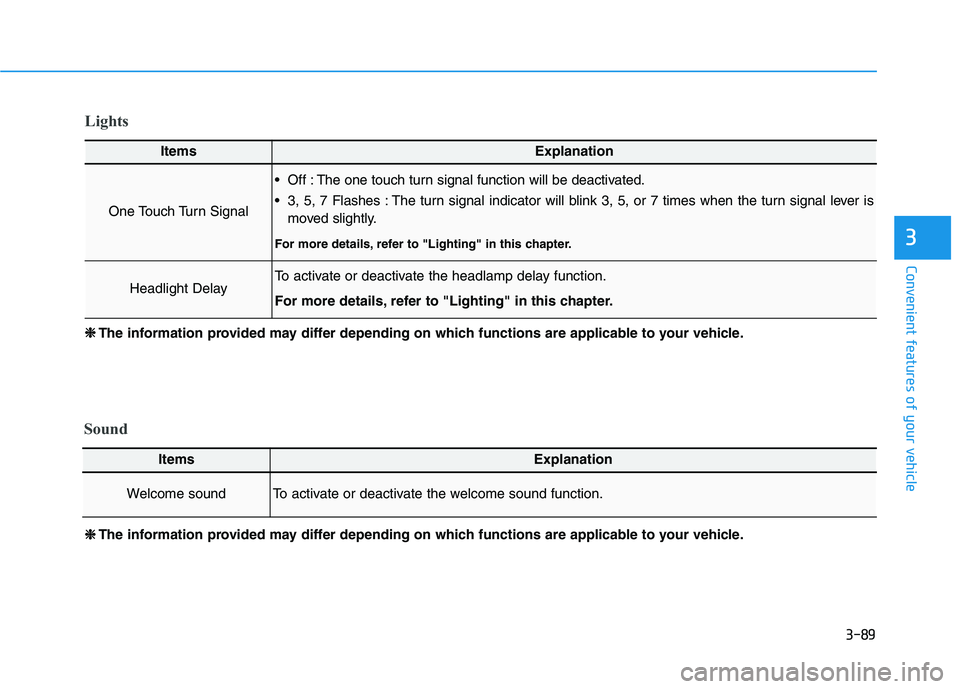

Lights
ItemsExplanation
One Touch Turn Signal
Off : The one touch turn signal function will be deactivated.
3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever ismoved slightly.
For more details, refer to "Lighting" in this chapter.
Headlight DelayTo activate or deactivate the headlamp delay function.
For more details, refer to "Lighting" in this chapter.
❈❈ The information provided may differ depending on which functions are applicable to your vehicle.
❈
❈
The information provided may differ depending on which functions are applicable to your vehicle.
Sound
ItemsExplanation
Welcome soundTo activate or deactivate the welcome sound function.

3-90
Convenient features of your vehicle
ItemsExplanation
Seat Easy Access
Off: The seat easy access function is deactivated.
Normal / Extended: When you turn off the engine, the driver's seat will automatically move rear-ward short (Normal) or long (Extended) for you to enter or exit the vehicle more comfortably.
For more details, refer to "Driver Position Memory System" in this chapter.
Welcome lightTo activate or deactivate the welcome light function.
Wireless Charging SystemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to "Wireless Charging System" in this chapter.
Wiper/Lights Display
To activate or deactivate the Wiper/Light mode.
When activated, the LCD display shows the selected Wiper/Light mode whenever you changed the
mode.
Gear Position Pop-upTo activate or deactivate the gear position pop-up.
When activated, the gear position will be displayed on the LCD display.
Icy road warningTo activate or deactivate the icy road warning.
Convenience
❈❈ The information provided may differ depending on which functions are applicable to your vehicle.

3-91
Convenient features of your vehicle
3
ItemsExplanation
Service IntervalTo activate or deactivate the service interval function.
Adjust IntervalIf the service interval menu is activated, you may adjust the time and distance.
ResetTo reset the service interval.
Service interval
If the service interval is activated and the time and distance is adjusted, messages are displayed in the following
situations each time the vehicle is turned on.
- Service in: Displayed to inform the driver the remaining mileage and days to service.
- Service required: Displayed when the mileage and days to service has been reached or passed.Information
If any of the following conditions occur, the mileage and number of days to service may be incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
i
