2018 HYUNDAI ELANTRA SPORT Owners Manual

F9
Introduction
For customers who do not use TOP
Tier Detergent Gasoline regularly,
and have problems starting or the
engine does not run smoothly, deter-
gent-based fuel additives that you
can purchase separately may be
added to the gasoline. If TOP TIER
Detergent Gasoline is not available,
one bottle of additive added to thefuel tank according to the mainte-nance schedule is recommended

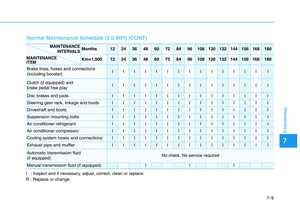

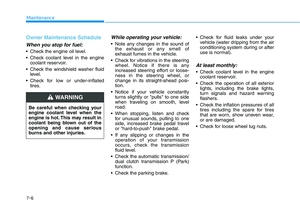

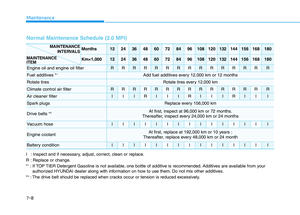

(refer to the Maintenance Schedulein chapter 7).
Additives are available from your
authorized HYUNDAI dealer along
with information on how to use them.
Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regardingregistration and insurance.
Determine that acceptable fuel is available. This vehicle should not be modi-
fied. Modification of your vehicle
could affect its performance, safety
or durability and may even violate
governmental safety and emis-
sions regulations.
In addition, damage or perform-
ance problems resulting from any
modification may not be covered
under warranty.
If you use unauthorized electronic devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices. By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
Do not race the engine.
While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly break-in the engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
VVEEHH IICC LLEE BB RREEAA KK--IINN PP RR OO CCEE SSSS
VV EEHH IICC LLEE MM OODDIIFF IICC AA TTIIOO NNSS

F10
Introduction
This vehicle is equipped with an
event data recorder (EDR). Themain purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle’s
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
vehicle were operating;
passenger safety belts were
buckled/ fastened;
depressing the accelerator
and/or brake pedal; and,
ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle onlyif a non-trivial crash situation
occurs; no data are recorded bythe EDR under normal driving
conditions and no personal data
(e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combinethe EDR data with the type of per-
sonally identifying data routinely
acquired during a crash investiga-tion.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
VV
EEHH IICC LLEE DD AA TTAA CC OO LLLLEE CCTT IIOO NN AA NN DD EE VV EENN TT DD AA TTAA RR EECCOO RRDD EERR SS

1
2
3
4
5
6
7
8
I
Your Vehicle at a Glance
Safety System of Your Vehicle
Convenient Features of Your Vehicle
Multimedia System
Driving Your Vehicle

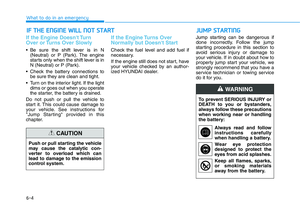

What to Do in an Emergency

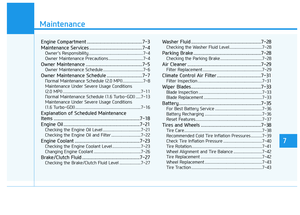

Maintenance
Specifications
Index

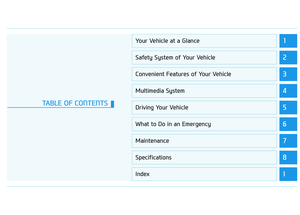

TABLE OF CONTENTS

Your vehicle at a glance
1
Your vehicle at a glance
Exterior Overview ..................................................1-2
Interior Overview ...................................................1-4
Instrument Panel Overview ..................................1-5

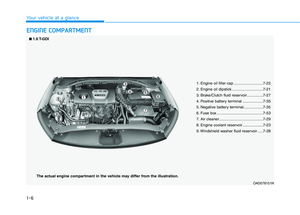

Engine Compartment .............................................1-61

1-2
EEXX TTEERR IIOO RR OO VVEERR VV IIEE WW
Your vehicle at a glance
1. Hood ......................................................3-45
2. Windows ................................................3-36
3. Sunroof* ................................................3-41
4. Wiper blade ..........................................7-33 5. Tires and wheels ..................................7-38
6. Front lamps ..........................................7-65
7. Side repeater lamp* ..............................7-69
*: if equipped
OAD018001
■■Front view
The actual shape may differ from the illustration.

1-3
Your vehicle at a glance
1
1. Door lock ..............................................3-14
2. Trunk ......................................................3-46
3. Fuel filler door ......................................3-524. Side view mirror ....................................3-33
5. Antenna ..................................................4-2
6. Rear lamps ............................................7-70
OAD018002N
■■Rear view
The actual shape may differ from the illustration.

1-4
Your vehicle at a glanceI

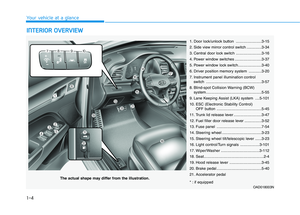

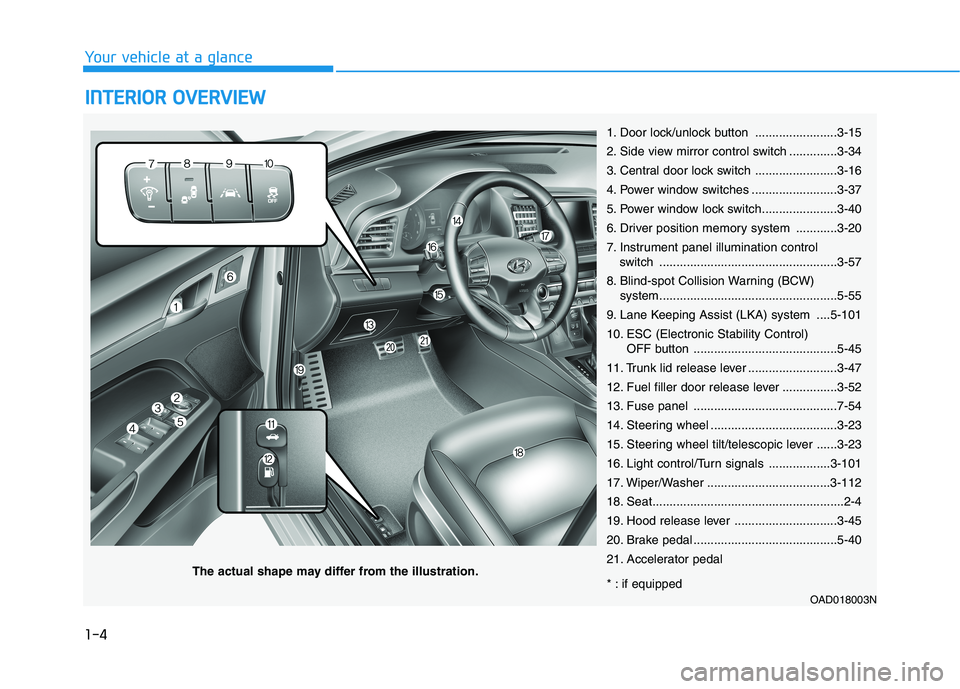

I NN TTEERR IIOO RR OO VVEERR VV IIEE WW
1. Door lock/unlock button ........................3-15
2. Side view mirror control switch ..............3-34
3. Central door lock switch ........................3-16
4. Power window switches .........................3-37
5. Power window lock switch......................3-40
6. Driver position memory system ............3-20
7. Instrument panel illumination control
switch ....................................................3-57

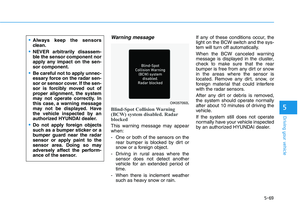

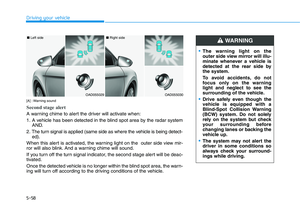

8. Blind-spot Collision Warning (BCW) system....................................................5-55

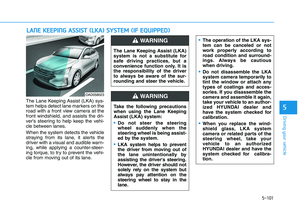

9. Lane Keeping Assist (LKA) system ....5-101

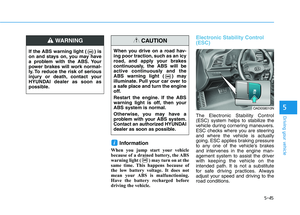

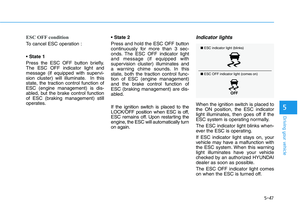

10. ESC (Electronic Stability Control) OFF button ..........................................5-45
11. Trunk lid release lever ..........................3-47
12. Fuel filler door release lever ................3-52

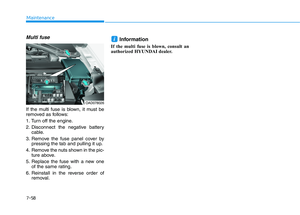

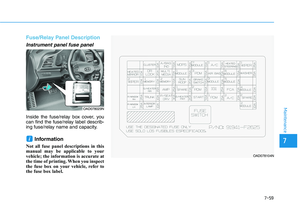

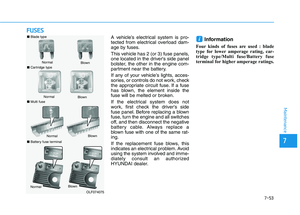

13. Fuse panel ..........................................7-54
14. Steering wheel .....................................3-23
15. Steering wheel tilt/telescopic lever ......3-23

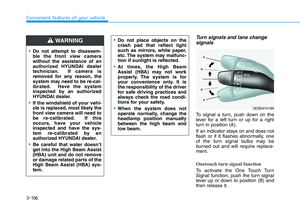

16. Light control/Turn signals ..................3-101
17. Wiper/Washer ....................................3-112
18. Seat........................................................2-4
19. Hood release lever ..............................3-45
20. Brake pedal ..........................................5-40
21. Accelerator pedal
* : if equipped OAD018003N
The actual shape may differ from the illustration.

IINN SSTT RR UU MM EENN TT PP AA NN EELL OO VVEERR VV IIEE WW
The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
11. Steering wheel audio controls* /Bluetooth ®
wireless technology
hands-free controls* ......................4-3, 4-4

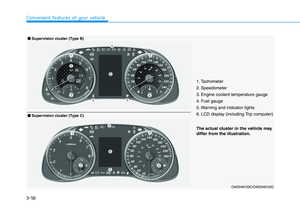

2. Instrument cluster ..............................3-55
3. Horn ....................................................3-25

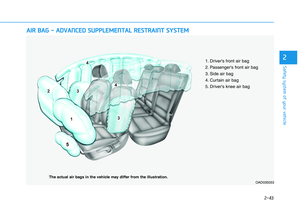

4. Driver's front air bag ..........................2-45
5. Cruise control switch* ......................5-114
6. Key ignition switch* / Engine start/stop button* ..............5-6, 5-9
7. Shift lever ........................5-16, 5-19, 5-26
8. Hazard warning flasher button..............6-2

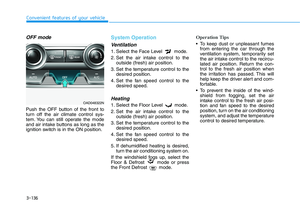

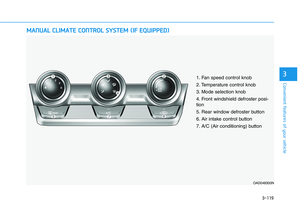

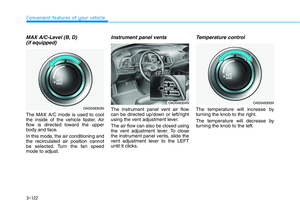

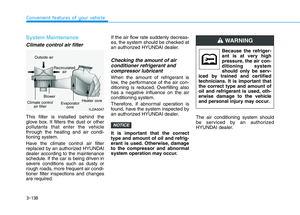

9. Climate control system .........3-119, 3-128
10. Seat warmer* ....................................2-19
11. Heated Steering Wheel* ..................3-24
12. Drive mode system ..............................5-52
13. Parking Distance Warning (Reverse) System*................................................3-115
14. Passenger’s front air bag ..................2-45
15. Glove box .......................................3-144
16. Parking brake ....................................5-41
* : if equipped
OAD018004C
