2018 HYUNDAI ELANTRA SPORT fuse box

1-6
Your vehicle at a glanceE
E NN GGIINN EE CC OO MM PPAA RRTTMM EENN TT
OAD078151N
1. Engine oil filler cap ...........................7-22
2. Engine oil dipstick .............................7-21
3. Brake/Clutch fluid reservoir...............7-27
4. Positive battery terminal ...................7-35
5. Negative battery terminal..................7-35
6. Fuse box ...........................................7-53
7. Air cleaner.........................................7-29
8. Engine coolant reservoir ...................7-23
9. Windshield washer fluid reservoir .....7-28
■
■
1.6 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.

1-7
Your vehicle at a glance
1
OAD078100L
1. Engine oil filler cap ...........................7-22
2. Engine oil dipstick .............................7-21
3. Brake/Clutch fluid reservoir...............7-27
4. Positive battery terminal ...................7-35
5. Negative battery terminal..................7-35
6. Fuse box ...........................................7-53
7. Air cleaner.........................................7-29
8. Engine coolant reservoir ...................7-23
9. Windshield washer fluid reservoir .....7-28
■
■
2.0 MPI
The actual engine compartment in the vehicle may differ from the illustration.

7-3
7
Maintenance
EENN GGIINN EE CC OO MM PPAA RRTTMM EENN TT
OAD078151N/OAD078100L
■■
2.0 MPI
■■1.6 Turbo-GDI
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake fluid reservoir
4. Positive battery terminal
5. Negative battery terminal
6. Fuse box
7. Air cleaner
8. Engine coolant reservoir
9. Windshield washer fluid reservoir
The actual engine compartment in the
vehicle may differ from the illustration.

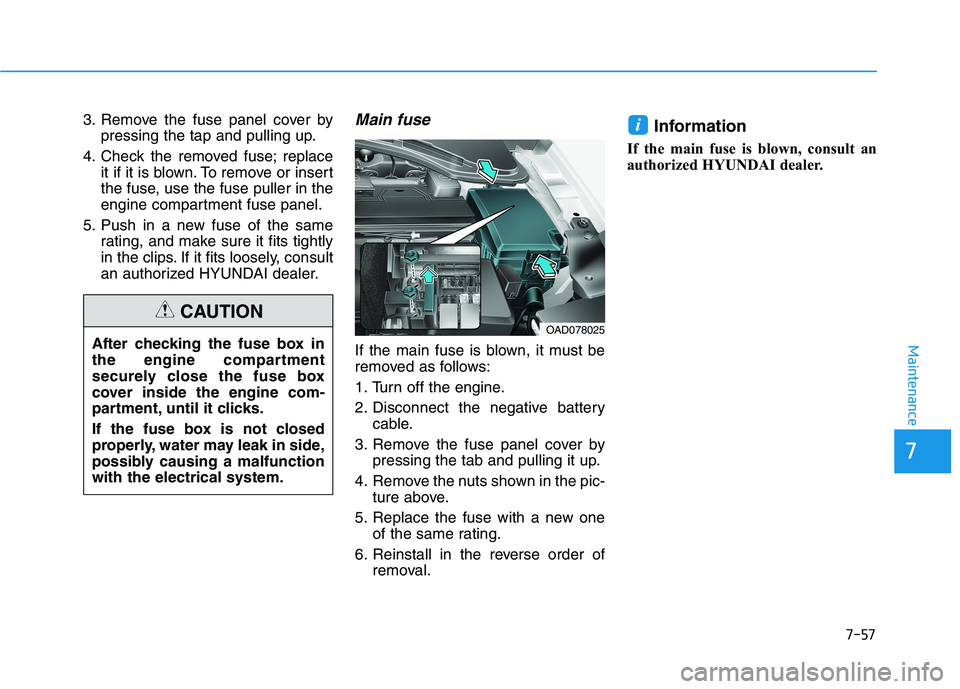

7-57
Maintenance
3. Remove the fuse panel cover bypressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the pic- ture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal. Information
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
i
After checking the fuse box in
the engine compartment
securely close the fuse box
cover inside the engine com-
partment, until it clicks.
If the fuse box is not closed
properly, water may leak in side,
possibly causing a malfunctionwith the electrical system.
CAUTION
OAD078025
7

7-59
7
Maintenance
Fuse/Relay Panel Description
Instrument panel fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OAD078029N
OAD078104N

7-62
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OAD078027
OAD078132N

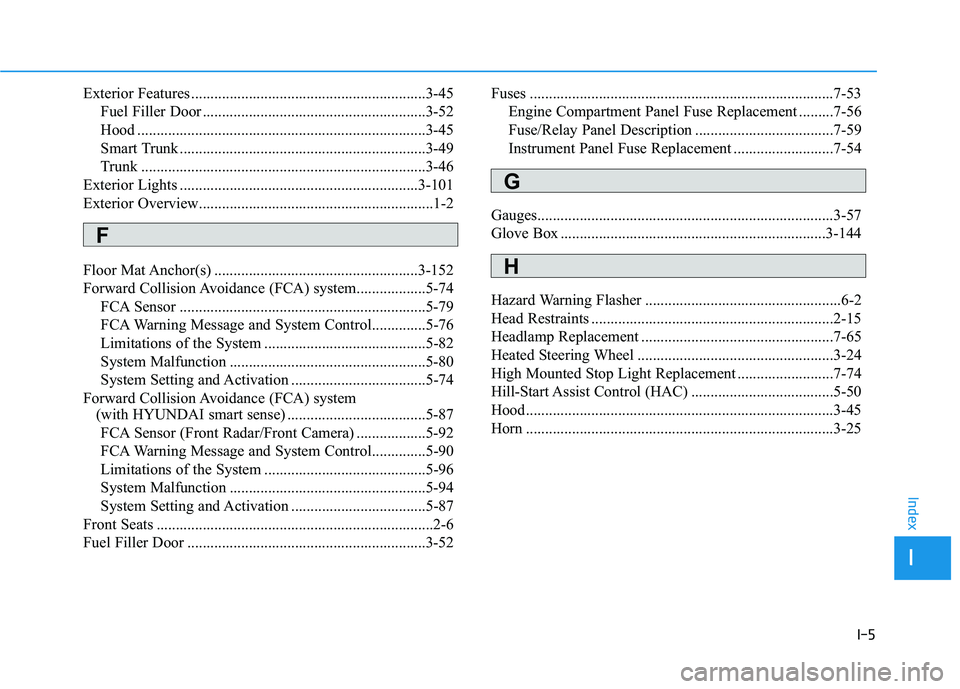

I-5
Exterior Features .............................................................3-45
Fuel Filler Door ..........................................................3-52
Hood ...........................................................................3-45
Smart Trunk ................................................................3-49
Trunk ..........................................................................3-46
Exterior Lights ..............................................................3-101
Exterior Overview.............................................................1-2
Floor Mat Anchor(s) .....................................................3-152
Forward Collision Avoidance (FCA) system..................5-74 FCA Sensor ................................................................5-79
FCA Warning Message and System Control..............5-76
Limitations of the System ..........................................5-82
System Malfunction ...................................................5-80
System Setting and Activation ...................................5-74
Forward Collision Avoidance (FCA) system (with HYUNDAI smart sense) ....................................5-87
FCA Sensor (Front Radar/Front Camera) ..................5-92
FCA Warning Message and System Control..............5-90
Limitations of the System ..........................................5-96
System Malfunction ...................................................5-94
System Setting and Activation ...................................5-87
Front Seats ........................................................................2-6
Fuel Filler Door ..............................................................3-52 Fuses ...............................................................................7-53
Engine Compartment Panel Fuse Replacement .........7-56
Fuse/Relay Panel Description ....................................7-59
Instrument Panel Fuse Replacement ..........................7-54
Gauges.............................................................................3-57
Glove Box .....................................................................3-144
Hazard Warning Flasher ...................................................6-2
Head Restraints ...............................................................2-15
Headlamp Replacement ..................................................7-65
Heated Steering Wheel ...................................................3-24
High Mounted Stop Light Replacement .........................7-74
Hill-Start Assist Control (HAC) .....................................5-50
Hood................................................................................3-45
Horn ................................................................................3-25
I
Index
F
G
H
