2018 HONDA ODYSSEY Owner's Manual (in English)

735

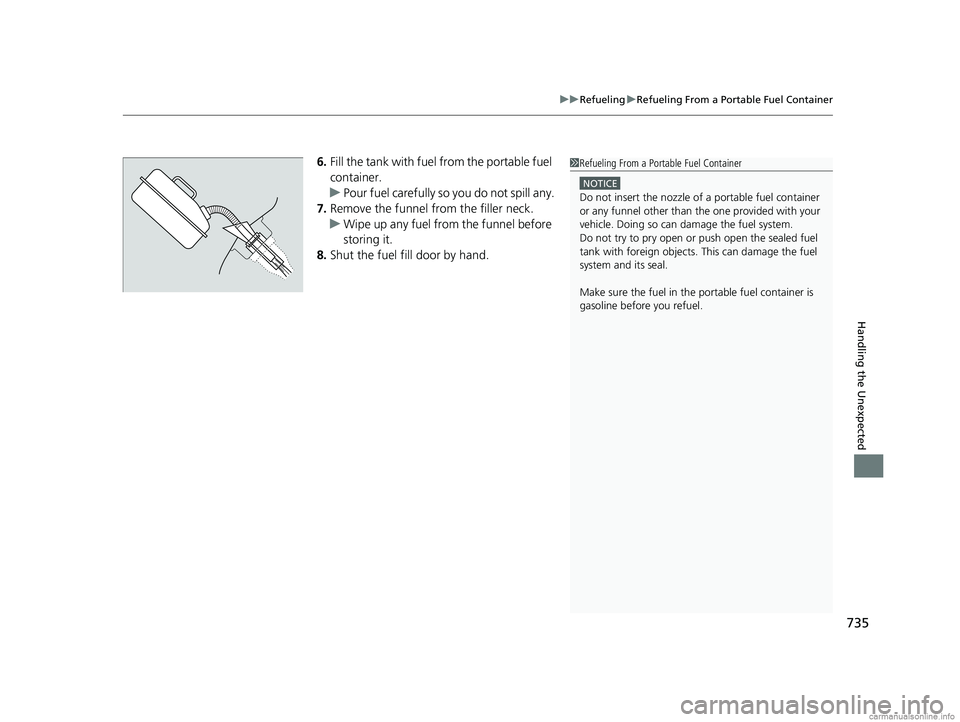

uuRefueling uRefueling From a Portable Fuel Container
Handling the Unexpected
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
18 US ODYSSEY-31THR6010.book 735 ページ ２０１８年１２月６日　木曜日　午後４時１８分

736
18 US ODYSSEY-31THR6010.book 736 ページ ２０１８年１２月６日　木曜日　午後４時１８分

737

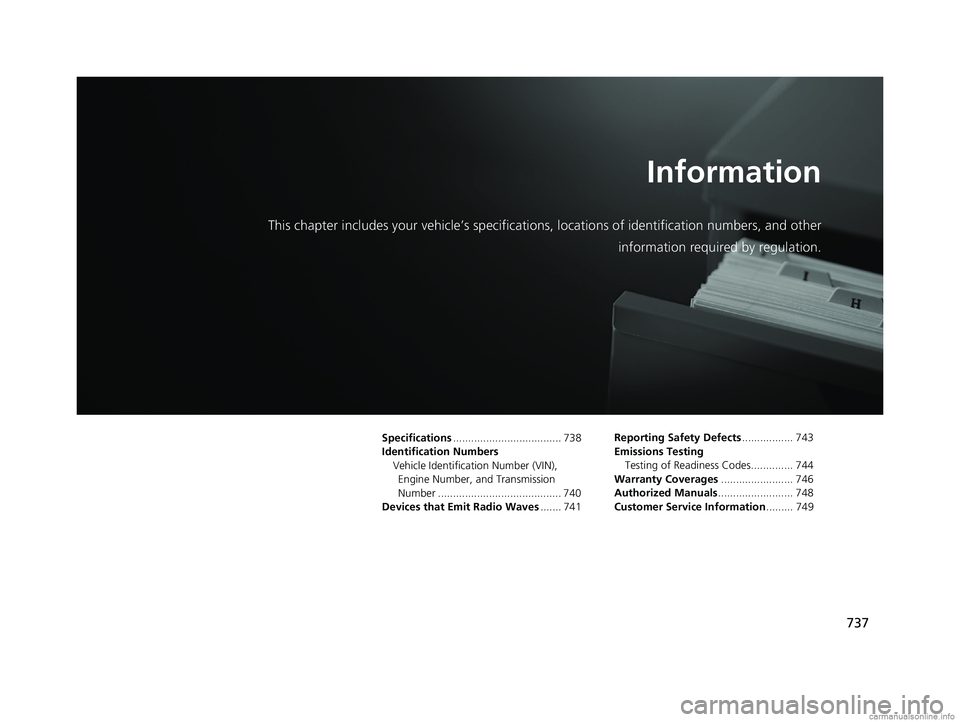

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 738
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 740
Devices that Emit Radio Waves ....... 741Reporting Safety Defects
................. 743
Emissions Testing Testing of Readiness Codes.............. 744
Warranty Coverages ........................ 746
Authorized Manuals ......................... 748
Customer Service Information ......... 749
18 US ODYSSEY-31THR6010.book 737 ページ ２０１８年１２月６日　木曜日　午後４時１８分

738
Information
Specifications
■Vehicle Specifications
*1: LX grade model
■Air Conditioning
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,888 lbs (1,310 kg)
Canada: 1,310 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,230 lbs (1,465 kg)
Canada: 1,465 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 - 22.0 oz (575 - 625 g)Lubricant TypeND-OIL14 (POE)Quantity7.3 - 8.2 cu-in (120 - 135 cm3)
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: LX and LX-HS grade models
*2: EX, EXL, EXL-NR, EX-R, EXLNAV, and EXLRES grade models
*3: ELITE and TOURING grade models
*4:
EX-R, EXL-NR, EXLNAV, EXLRES, ELITE, and TOURING grade models*5: ELITE and Canadian TOURING grade models
Headlights (Low Beam)55W (H11)*1, *2
LED*3
Headlights (High Beam) 60W (HB3)*1, *2
LED*3
Fog Lights35W (H8)*2
LED*3
Front Turn Signal/Parking Lights 28/8W (Amber)*1
Front Turn Signal Lights28/8W (Amber)*2, *3
Front Side Marker Lights 3CPParking/Daytime Running LightsLED*2, *3
Daytime Running Lights 60W (HB3)*1
Side Turn Signal Lights
(on Door Mirrors)LED*2, *3
Brake Lights
21WRear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot LightsLED*5
Console Compartment Light 1.4W*4
Door Inner Handle LightsLED*5
Instrument Panel Ambient Lights LED*5
Pass Through LightLED*5
18 US ODYSSEY-31THR6010.book 738 ページ ２０１８年１２月６日　木曜日　午後４時１８分

739

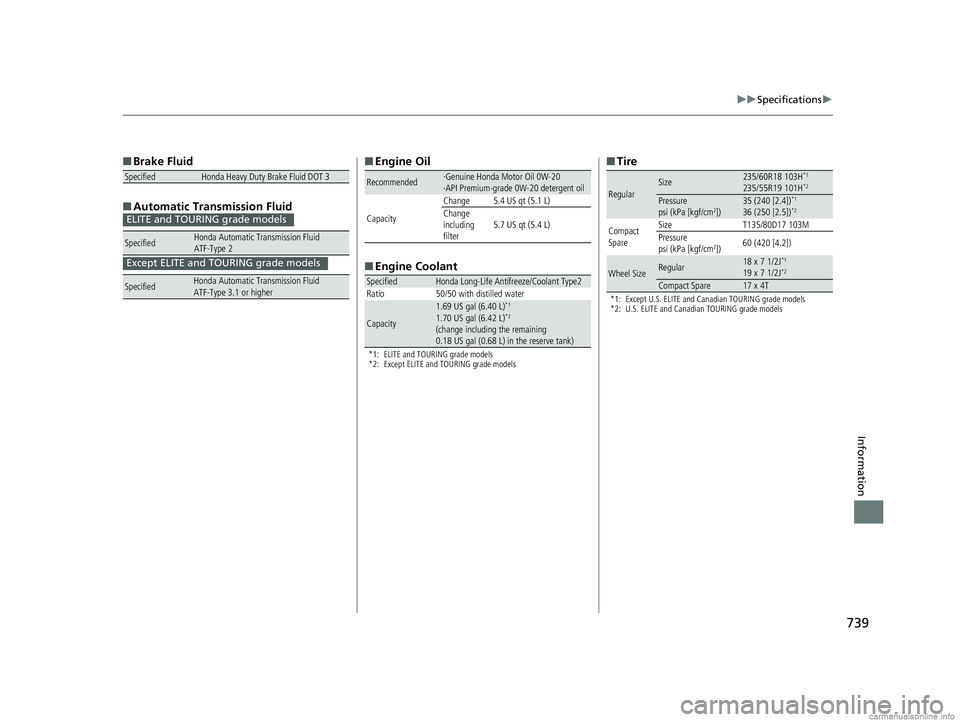

uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF-Type 2
SpecifiedHonda Automatic Transmission Fluid
ATF-Type 3.1 or higher
ELITE and TOURING grade models
Except ELITE and TOURING grade models
■ Engine Oil
■ Engine Coolant
*1: ELITE and TOURING grade models
*2: Except ELITE and TOURING grade models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.69 US gal (6.40 L)*1
1.70 US gal (6.42 L)*2
(change including the remaining
0.18 US gal (0.68 L) in the reserve tank)
■ Tire
*1: Except U.S. ELITE and Canadian TOURING grade models
*2: U.S. ELITE and Canadian TOURING grade models
RegularSize235/60R18 103H*1
235/55R19 101H*2
Pressure
psi (kPa [kgf/cm2])35 (240 [2.4])*1
36 (250 [2.5])*2
Compact
Spare Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
19 x 7 1/2J*2
Compact Spare17 x 4T
18 US ODYSSEY-31THR6010.book 739 ページ ２０１８年１２月６日　木曜日　午後４時１８分

740
Information

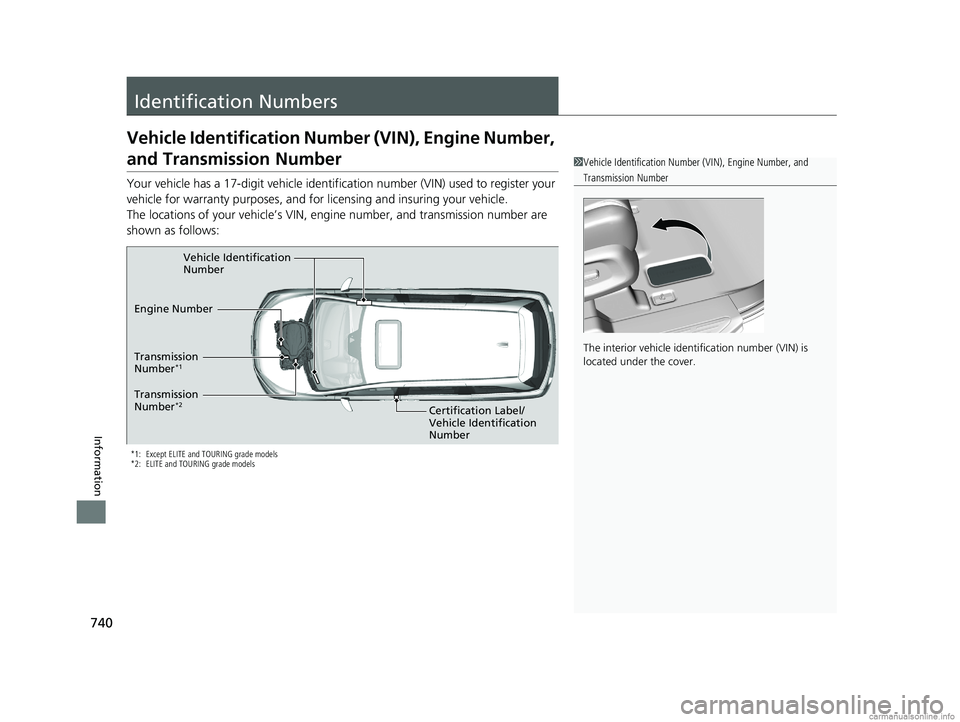

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows:
*1: Except ELITE and TOURING grade models
*2: ELITE and TOURING grade models
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification
Number
Certification Label/
Vehicle Identification
Number
Engine Number
Transmission
Number
*2
Transmission
Number*1
18 US ODYSSEY-31THR6010.book 740 ページ ２０１８年１２月６日　木曜日　午後４時１８分

741Continued
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver*
Immobilizer System
Smart Entry System*
Parking Sensor System*
Remote Transmitter
Tire Pressure Monitoring System (TPMS)
Collision Mitigati on Braking SystemTM *
Blind spot information System*
Remote Engine Start with Vehicle Feedback*
HondaLink*
Wireless charger*
Blu-ray/DVD Rear Entertainme nt System Remote Control
Models with Blu-ray/DVD rear entertainment system
* Not available on all models
18 US ODYSSEY-31THR6010.book 741 ページ ２０１８年１２月６日　木曜日　午後４時１８分

742

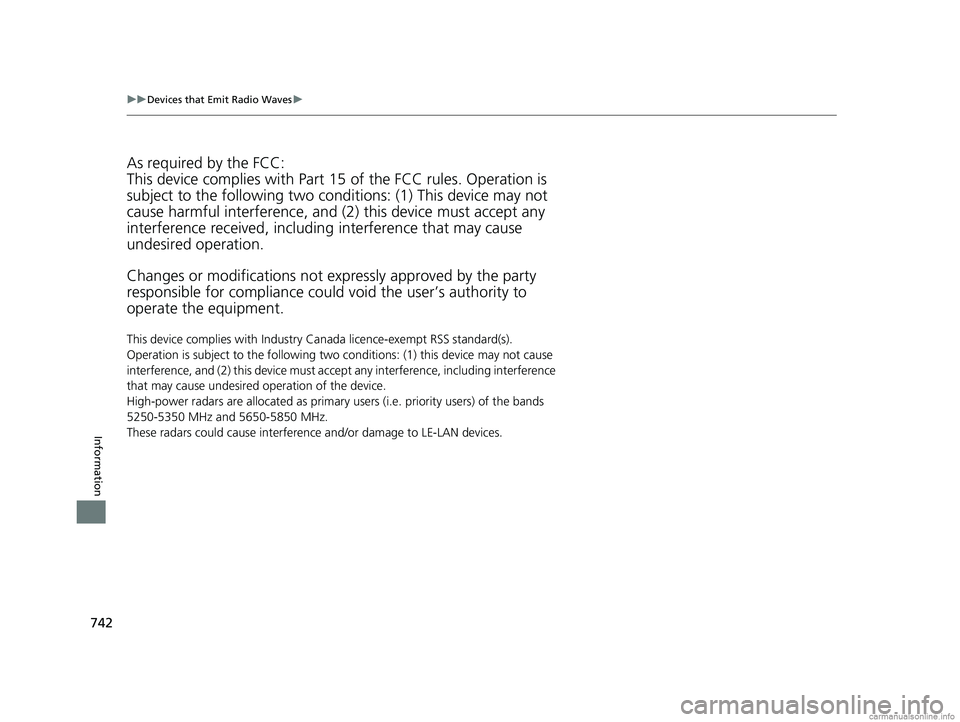

uuDevices that Emit Radio Waves u
Information
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compli ance could void the user’s authority to
operate the equipment.
This device complies with Industry Ca nada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
High-power radars are allocated as primary users (i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz.
These radars could cause interference and/or damage to LE-LAN devices.
