2018 HONDA ODYSSEY Owner's Manual (in English)

663
uuReplacing Light Bulbs uFront Turn Signal/Parking* Light Bulbs
Maintenance

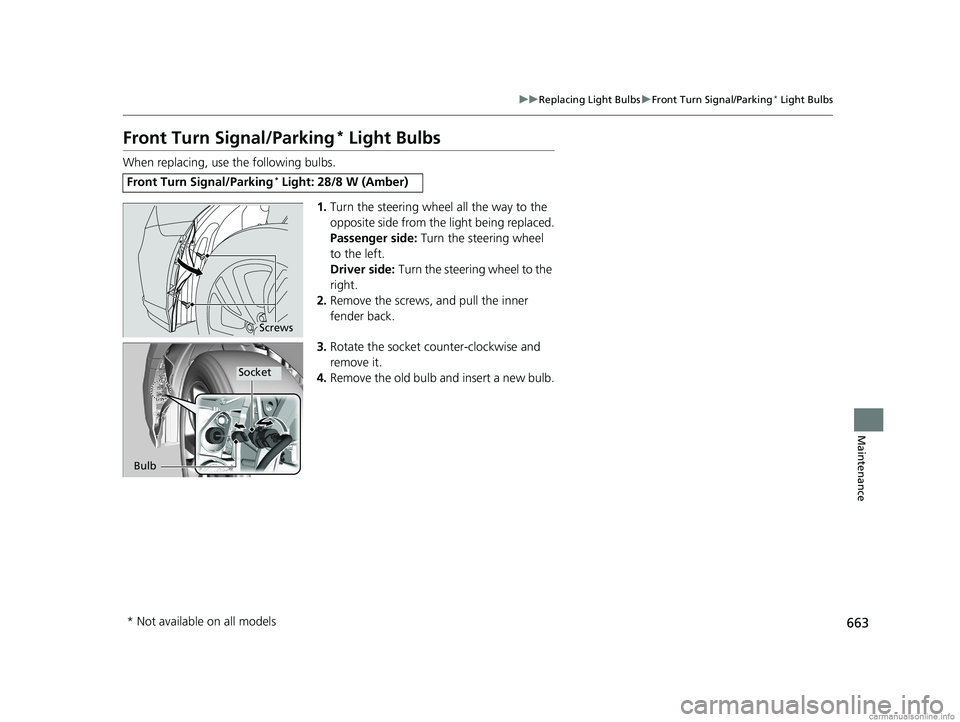

Front Turn Signal/Parking* Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the screws, and pull the inner
fender back.
3. Rotate the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Front Turn Signal/Parking* Light: 28/8 W (Amber)
Screws
Bulb
Socket
* Not available on all models
18 US ODYSSEY-31THR6010.book 663 ページ ２０１８年１２月６日　木曜日　午後４時１８分

664
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance

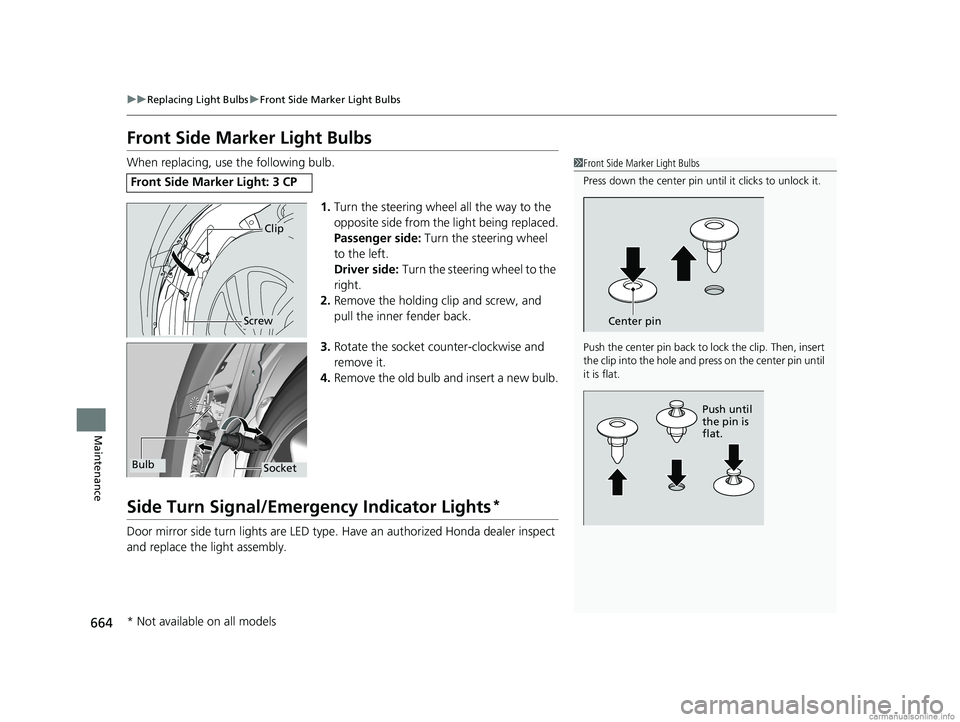

Front Side Marker Light Bulbs
When replacing, use the following bulb.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clip and screw, and
pull the inner fender back.
3. Rotate the socket co unter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Front Side Marker Light: 3 CP
1 Front Side Marker Light Bulbs
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Center pin
Push until
the pin is
flat.
Clip
Screw
SocketBulb
* Not available on all models
18 US ODYSSEY-31THR6010.book 664 ページ ２０１８年１２月６日　木曜日　午後４時１８分

665
uuReplacing Light Bulbs uBrake, Rear Turn Signal Light Bulb s, and Rear Side Marker/Taillights
Continued
Maintenance

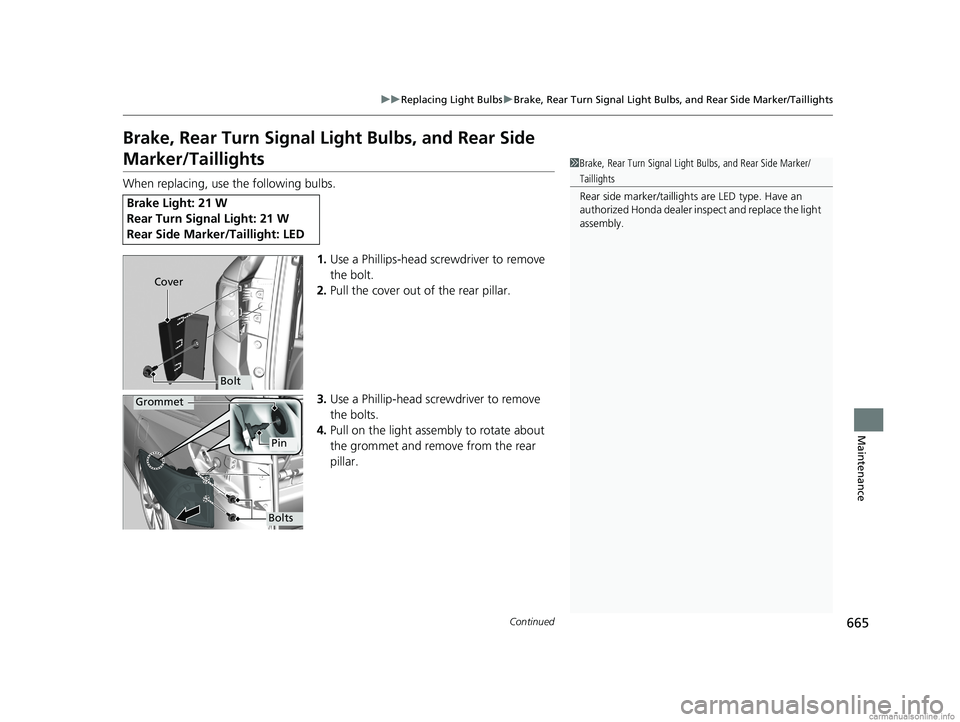

Brake, Rear Turn Signal Light Bulbs, and Rear Side
Marker/Taillights
When replacing, use the following bulbs.
1.Use a Phillips-head sc rewdriver to remove
the bolt.
2. Pull the cover out of the rear pillar.
3. Use a Phillip-head screwdriver to remove
the bolts.
4. Pull on the light assembly to rotate about
the grommet and remove from the rear
pillar.
Brake Light: 21 W
Rear Turn Signal Light: 21 W
Rear Side Marker/Taillight: LED
1Brake, Rear Turn Signal Light Bulbs, and Rear Side Marker/
Taillights
Rear side marker /taillights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
Cover
Grommet
Pin
Bolts
18 US ODYSSEY-31THR6010.book 665 ページ ２０１８年１２月６日　木曜日　午後４時１８分

666
uuReplacing Light Bulbs uBrake, Rear Turn Signal Light Bulbs, and Rear Side Marker/Taillights
Maintenance

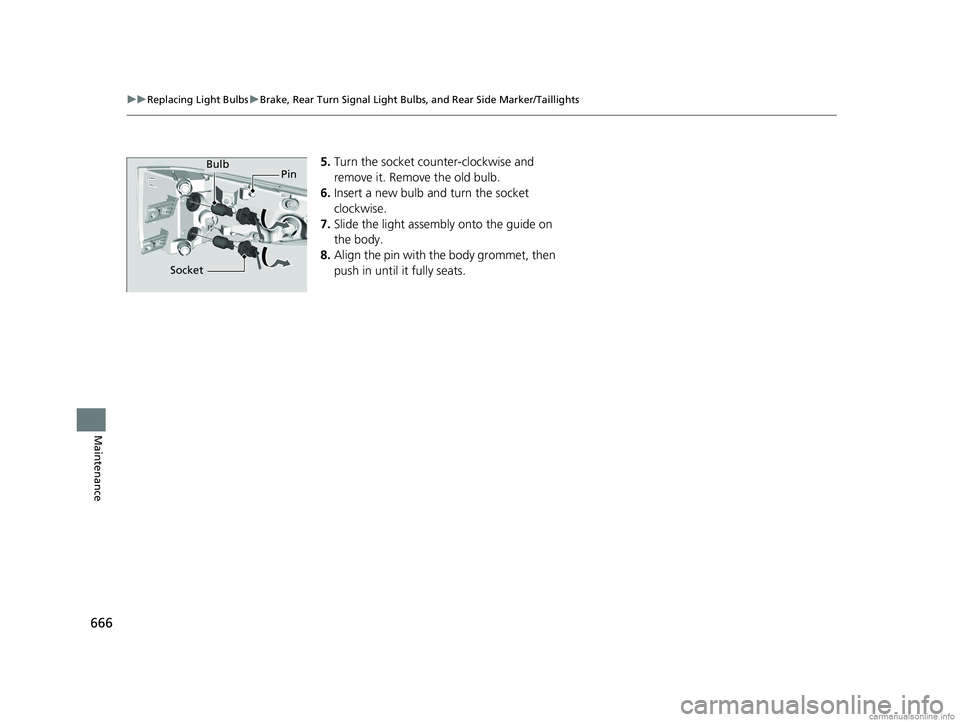

5. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
6. Insert a new bulb and turn the socket
clockwise.
7. Slide the light assembly onto the guide on
the body.
8. Align the pin with the body grommet, then
push in until it fully seats.Bulb
Socket Pin
18 US ODYSSEY-31THR6010.book 666 ページ ２０１８年１２月６日　木曜日　午後４時１８分

667
uuReplacing Light Bulbs uBack-Up Light Bulbs/Taillights
Maintenance

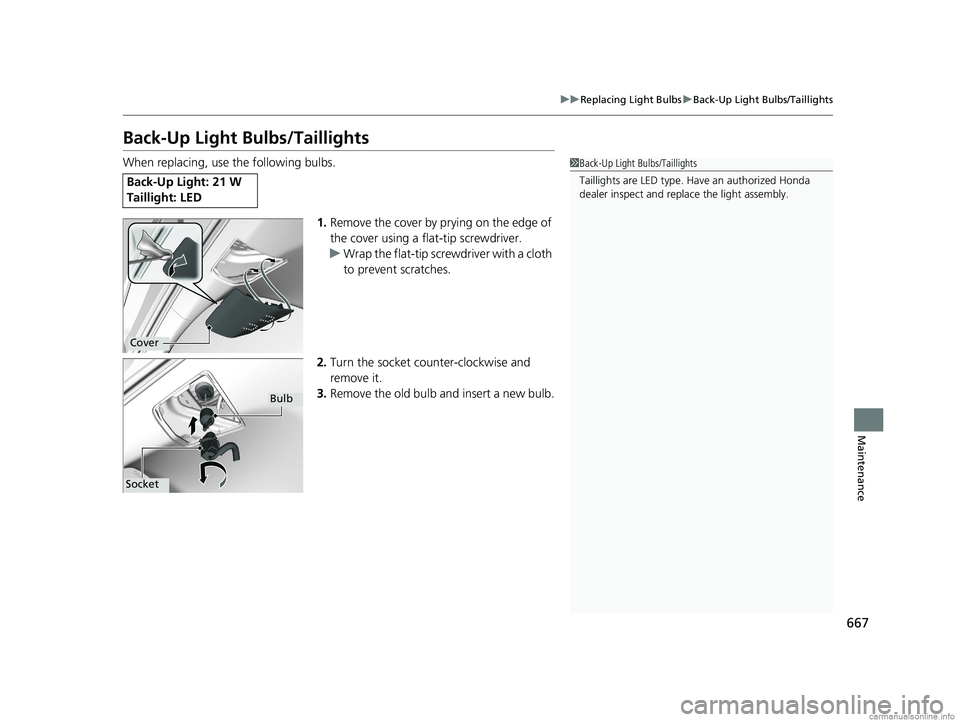

Back-Up Light Bulbs/Taillights
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 21 W
Taillight: LED
1Back-Up Light Bulbs/Taillights
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
18 US ODYSSEY-31THR6010.book 667 ページ ２０１８年１２月６日　木曜日　午後４時１８分

668
uuReplacing Light Bulbs uRear License Plate Light
Maintenance

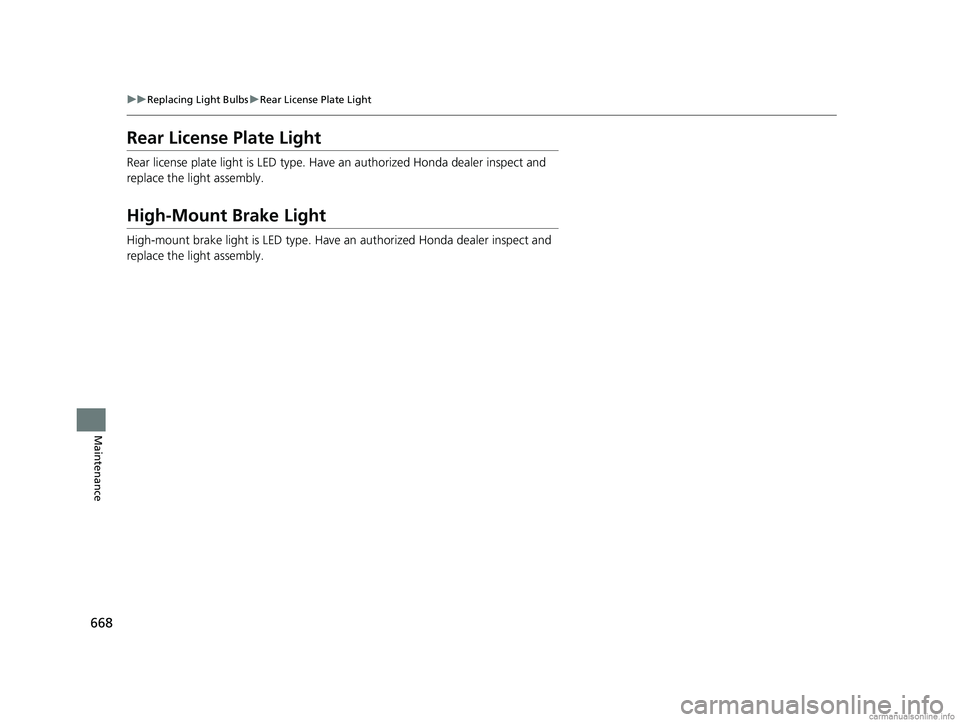

Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
18 US ODYSSEY-31THR6010.book 668 ページ ２０１８年１２月６日　木曜日　午後４時１８分

669Continued
Maintenance

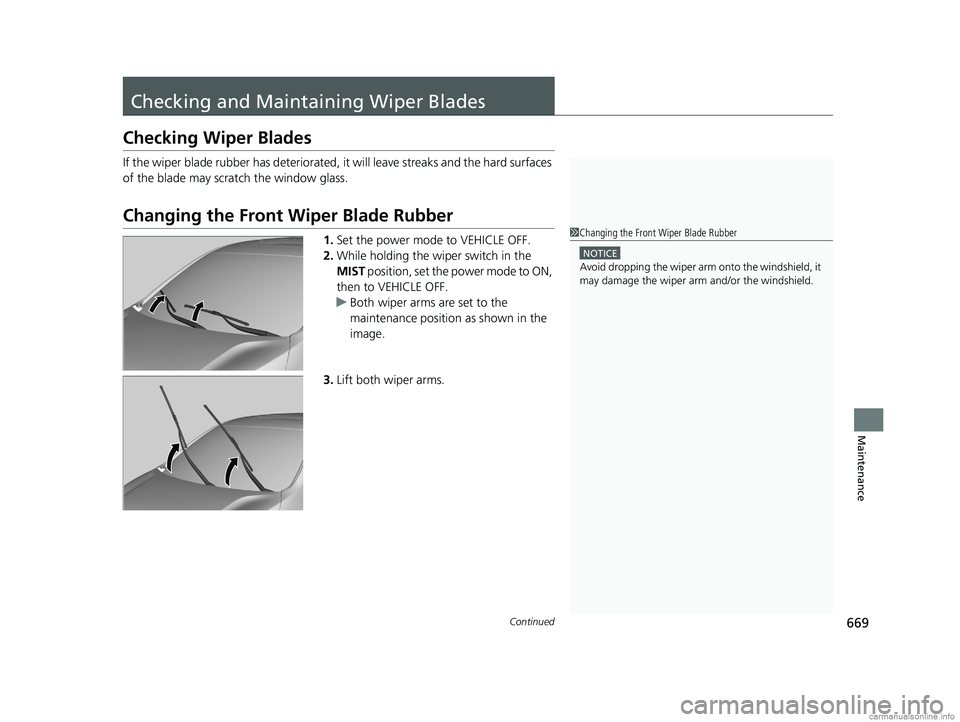

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Set the power mode to VEHICLE OFF.
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 US ODYSSEY-31THR6010.book 669 ページ ２０１８年１２月６日　木曜日　午後４時１８分

670
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

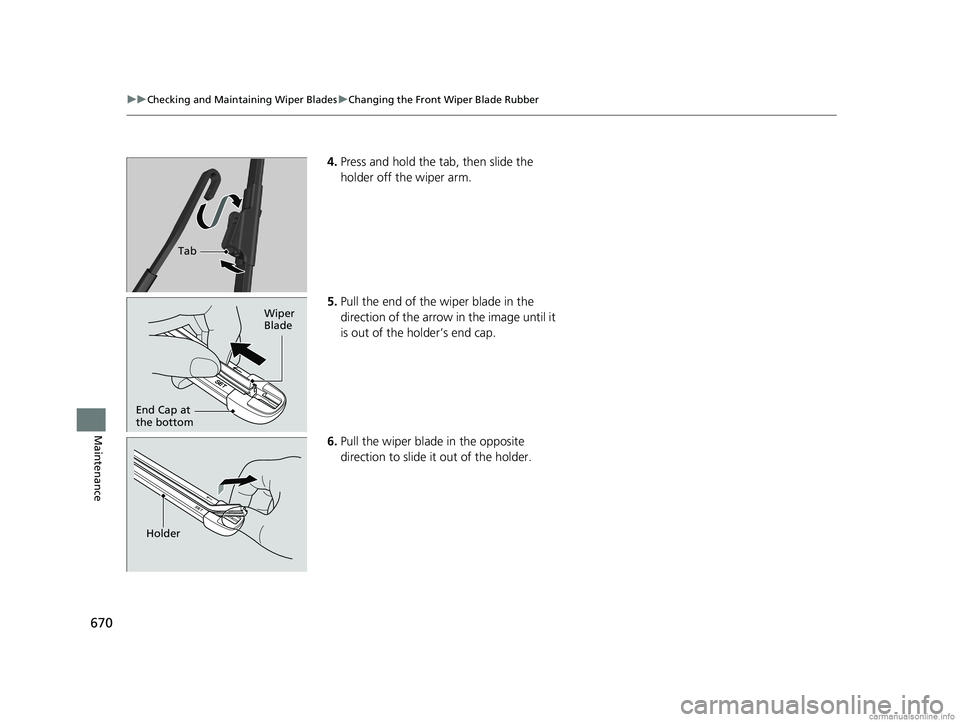

4. Press and hold the tab, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Wiper
Blade
End Cap at
the bottom
Holder
18 US ODYSSEY-31THR6010.book 670 ページ ２０１８年１２月６日　木曜日　午後４時１８分
