Page 353 of 763
351
uuAudio System Basic Operation uHondaLink ®
Continued
Features

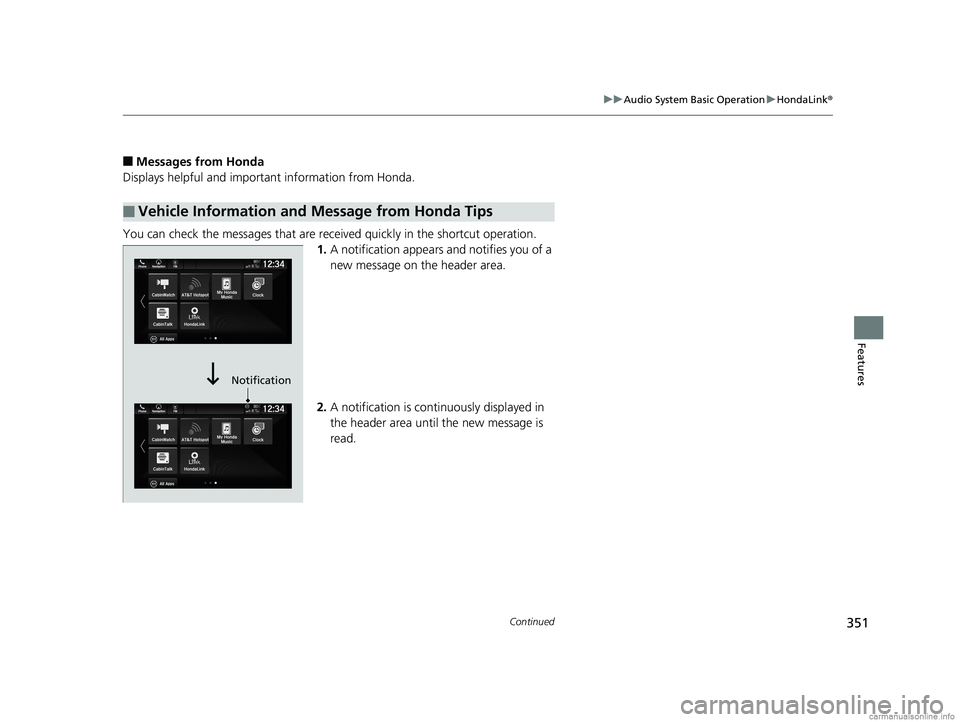

■Messages from Honda
Displays helpful and important information from Honda.
You can check the messages that are receiv ed quickly in the shortcut operation.
1. A notification appears and notifies you of a
new message on the header area.
2. A notification is continuously displayed in
the header area until the new message is
read.
■Vehicle Information and Message from Honda Tips
Notification
18 US ODYSSEY-31THR6010.book 351 ページ 2018年12月6日 木曜日 午後4時18分
Page 354 of 763
352
uuAudio System Basic Operation uHondaLink ®
Features

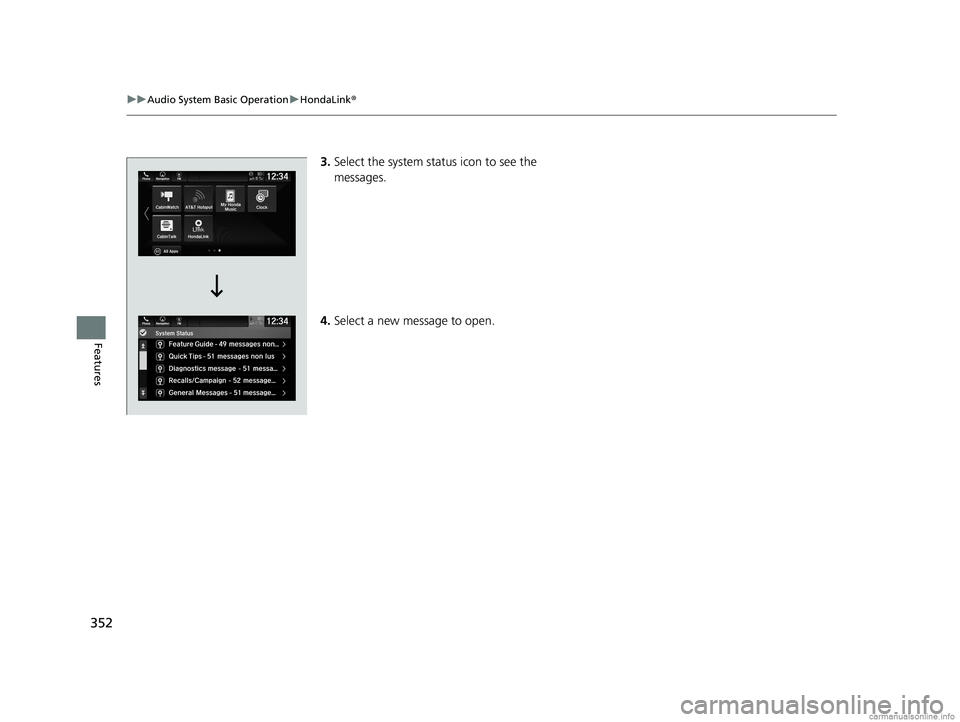

3.Select the system status icon to see the
messages.
4. Select a new message to open.
18 US ODYSSEY-31THR6010.book 352 ページ 2018年12月6日 木曜日 午後4時18分
Page 355 of 763
353
uuAudio System Basic Operation uHondaLink ®
Features

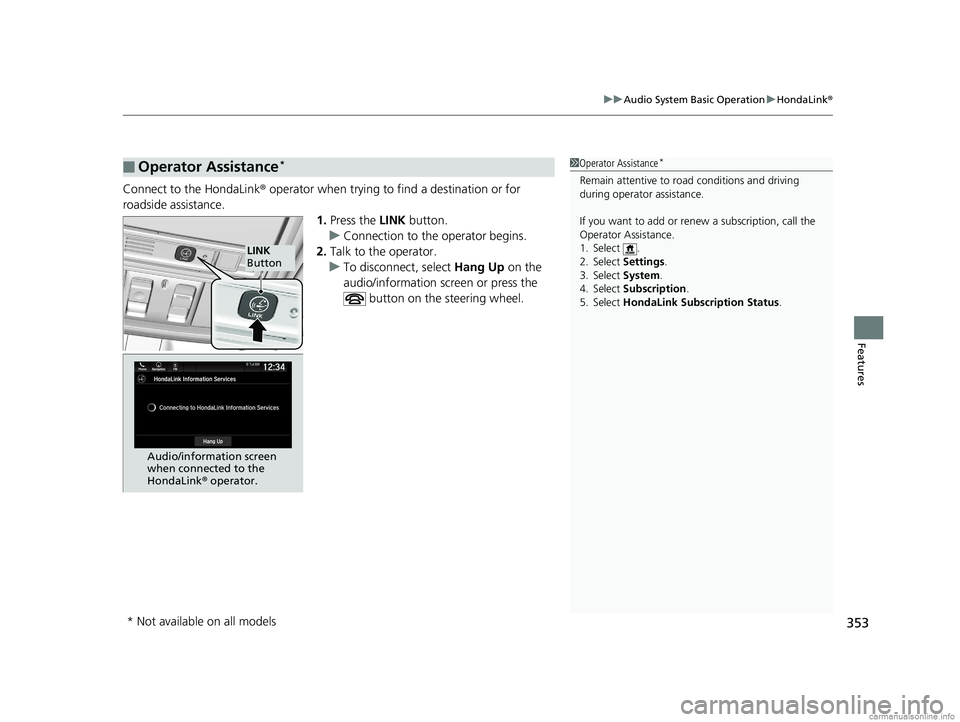

Connect to the HondaLink ® operator when trying to find a destination or for
roadside assistance. 1.Press the LINK button.
u Connection to the operator begins.
2. Talk to the operator.
u To disconnect, select Hang Up on the
audio/information screen or press the button on the steering wheel.
■Operator Assistance*1Operator Assistance*
Remain attentive to road conditions and driving
during operator assistance.
If you want to add or re new a subscription, call the
Operator Assistance.
1. Select .
2. Select Settings.
3. Select System.
4. Select Subscription .
5. Select HondaLink Subscription Status .
LINK
Button
Audio/information screen
when connected to the
HondaLink ® operator.
* Not available on all models
18 US ODYSSEY-31THR6010.book 353 ページ 2018年12月6日 木曜日 午後4時18分
Page 356 of 763

354
uuAudio System Basic Operation uWi-Fi Connection
Features
Wi-Fi Connection
You can connect the audio system to the Internet using Wi-Fi and browse websites
or use online services on the audio/information screen. If your phone has cell
hotspot capabilities, the system can be te thered to the phone. Use the following
steps to setup.
1.Select .
2. Select Settings .
3. Select Connections .
4. Select Wi-Fi.
5. Select Change Mode .
6. Select Network or HotSpot, then Save.
u To change the Wi-Fi settings, select
Network Options or HotSpot
Options .
u Select the access point you want to
connect to the system.
7. Select Connect .
u Enter a password for the access point,
and select OK .
u When the connection is successful, the
icon is displayed on the list.
8. Select to go back to the home screen.
■Wi-Fi mode (setting for the first time)
1Wi-Fi Connection
Wi-Fi and Wi-Fi Direct a registered trademark of Wi-Fi
Alliance® .
1Wi-Fi mode (setting for the first time)
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to setup the
Wi-Fi connection.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi -Fi connection is on or
off with the icon on the Wi-Fi network list.
Transmission speed and others will not be displayed
on this screen.
In case of Wi-Fi connect ion with your phone, make
sure your phone’s Wi-Fi se tting is in access point
(tethering) mode.
18 US ODYSSEY-31THR6010.book 354 ページ 2018年12月6日 木曜日 午後4時18分
Page 357 of 763
355
uuAudio System Basic Operation uWi-Fi Connection
Features

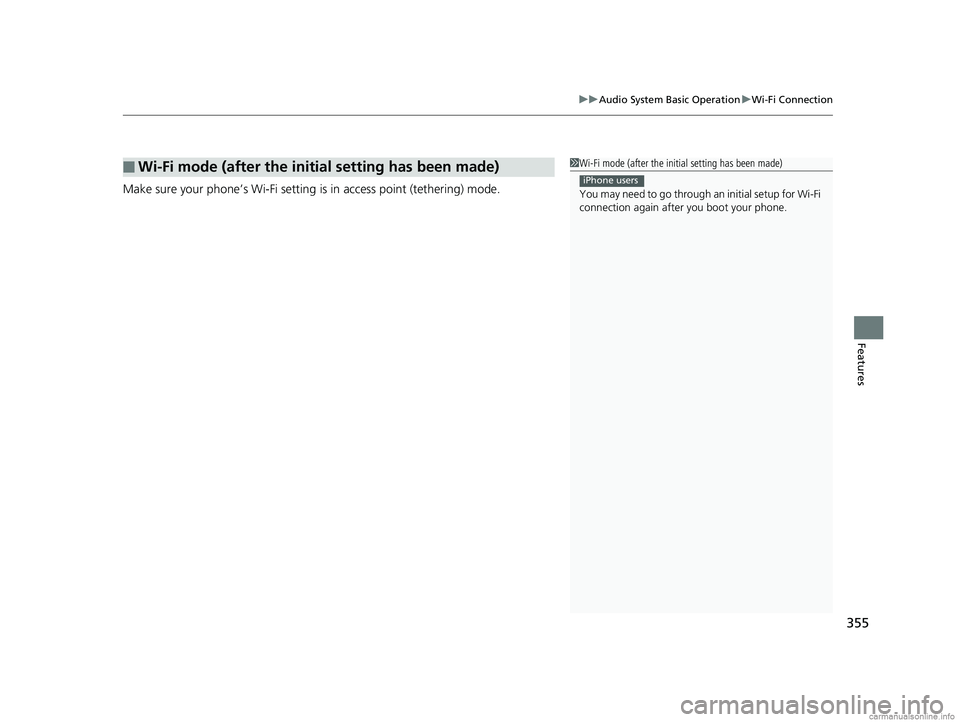

Make sure your phone’s Wi-Fi setting is in access point (tethering) mode.
■Wi-Fi mode (after the initial setting has been made)1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi-Fi
connection again afte r you boot your phone.
iPhone users
18 US ODYSSEY-31THR6010.book 355 ページ 2018年12月6日 木曜日 午後4時18分
Page 358 of 763
356
uuAudio System Basic Operation uNear Field Communication (NFC)*
Features

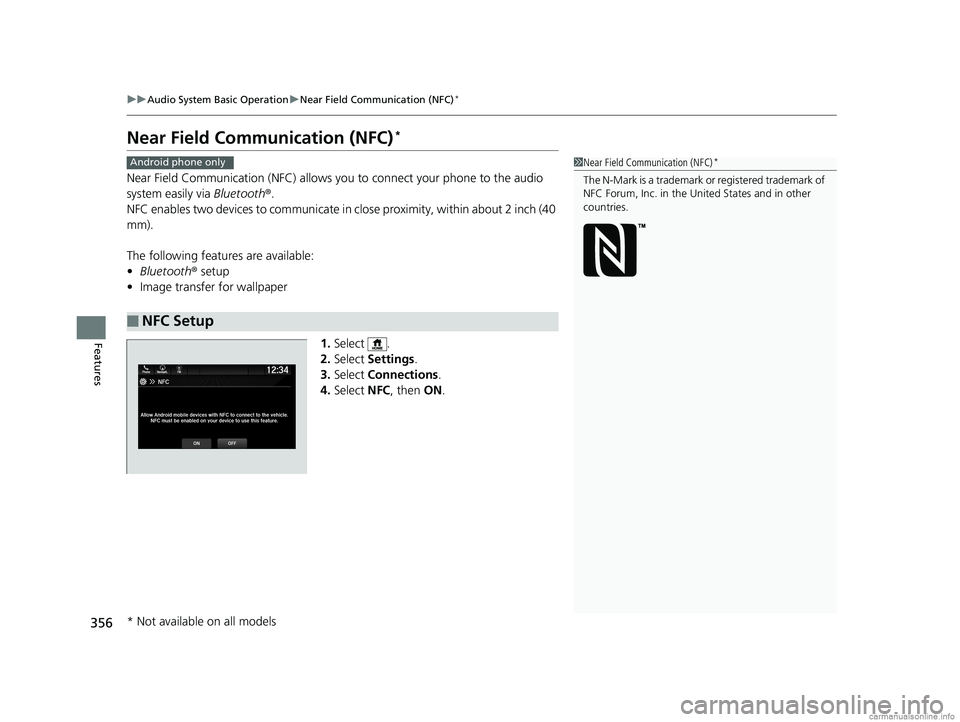

Near Field Comm unication (NFC)*
Near Field Communication (NFC) allows you to connect your phone to the audio
system easily via Bluetooth®.
NFC enables two devices to communicate in close proximity, within about 2 inch (40
mm).
The following features are available:
• Bluetooth ® setup
• Image transfer for wallpaper
1.Select .
2. Select Settings .
3. Select Connections .
4. Select NFC, then ON.
■NFC Setup
1Near Field Communication (NFC)*
The N-Mark is a trademark or registered trademark of
NFC Forum, Inc. in the United States and in other
countries.
Android phone only
* Not available on all models
18 US ODYSSEY-31THR6010.book 356 ページ 2018年12月6日 木曜日 午後4時18分
Page 359 of 763
357
uuAudio System Basic Operation uNear Field Communication (NFC)*
Continued
Features
1. Select then select NFC Manager. Or
touch the NFC logo near the glove box with
the NFC tag of your phone.
u The NFC Manager screen is displayed.
2. Select Connect Device to Vehicle
Bluetooth .
3. Touch the NFC logo near the glove box with
the NFC tag of your phone.
4. A notification appears on the screen if
pairing is successful.
■Bluetooth ® Setup
18 US ODYSSEY-31THR6010.book 357 ページ 2018年12月6日 木曜日 午後4時18分
Page 360 of 763
358
uuAudio System Basic Operation uNear Field Communication (NFC)*
Features
1. Select .
2. Select NFC Manager .
3. Select Transfer Image .
4. Open the photo you want to transfer on
your phone, then select Next.
u A notification appears on the screen.
5. Touch the NFC logo near the glove box with
the NFC tag of your phone.
u A notification appears on the screen.
6. Select the photo on your phone.
7. A confirmation message appears on the
screen. Select OK.
■Image Transfer for the Wallpaper
18 US ODYSSEY-31THR6010.book 358 ページ 2018年12月6日 木曜日 午後4時18分
