2017 YAMAHA WR 250F Owners Manual

CABLE ROUTING DIAGRAM
2-36
1. Cable guide
2. Speed sensor lead
3. Joint coupler
4. Ground lead
5. Throttle position sensor lead
6. Throttle position sensor coupler
7. Radiator breather hose
8. Cylinder head breather hose
9. Crankcase breather hose
10. Radiator hose
11. Fuel hose
12. Engine ground lead
13. Coolant temperature sensor coupler
14. Radiator fan motor lead
15. Intake air pressure sensor coupler
16. Intake air temperature sensor coupler
17. Start switch coupler
18. Radiator fan motor coupler
19. Clutch switch coupler
20. Air filter case
21. Plate
22. Bracket
A. Pass the wire harness under the start switch lead
and clutch switch lead.
B. Insert and fix the joint coupler to the plate. After
fixing it, attach the cover.
C. Pass the throttle position sensor lead to the out-
side of the tension arm (the outside of the vehi-
cle).
D. After connecting the throttle position sensor cou-
pler, attach the cover.
E. Pass the radiator breather hose to the outside of
the tension arm and the throttle position sensor
lead (the outside of the vehicle), and to the inside
of the radiator hose (the side of the vehicle).
F. 45°
G. Install the engine ground lead within a range of
45° from a location where it will not run over the
step difference of the radiator hose joint. Both
sides of the engine ground lead terminal can be
used.
H. Attach the coupler cover to the coolant tempera-
ture sensor coupler.
I. Pass the radiator fan motor lead to the inside of
the tension arm (the side of the vehicle).
J. Install the ground lead terminal between the plate
and the bolt.
K. Fix the ground lead terminal to the detent in the
plate. For the ground lead terminal, either side
will do.
L. Detent

CABLE ROUTING DIAGRAM
2-37

CABLE ROUTING DIAGRAM
2-38
1. Battery negative lead
2. Fuel hose
3. Fuel pump coupler
4. Fuel pump lead
5. Resistor
6. Resistor coupler
7. Battery positive lead
8. Lean angle sensor
9. Starter motor lead
10. Radiator fan motor relay (blue tape)
11. Main relay (red tape)
12. Wire harness
13. Ground lead coupler
14. Starter relay coupler
15. Starter relay
16. Cross member
17. Diode
18. Taillight lead
19. Clamp
20. Fuel tank
21. Damper
22. Rear frame
23. Side cover 6
24. Plastic locking tie
A. After connecting the fuel pump coupler, attach
the coupler cover.
B. Pass the fuel hose to the front of the battery.
C. Route the resistor lead to the outside of the leads.
D. Connect the battery positive lead to the starter re-
lay terminal (in the left side of the vehicle).
E. Insert the protruding end of the wire harness into
the battery bracket hole and holder plate hole.
F. After connecting the negative lead coupler, place
it on the right side of the battery.
G. After installing the plastic cover to the starter re-
lay, connect the starter relay coupler.
H. Route the diode under the cross member and
place it on top of the rear fender.
I. Secure the two ends of the taillight coupler with
the starter motor lead.
J. Route the taillight lead so that it does not slack at
the rear of the vehicle.
K. Clamp the taillight lead and insert the clip into the
rear fender. Clamp it so that the lock faces in-
ward, and then cut off the excess end.
L. Route the battery positive lead under the cross
member.
M. Lower end of the rear frame
N. Clamp it so that the lock of the plastic locking tie
faces downward, insert the end into the rear
frame and side cover 6, and then cut off the ex-
cess end. After cutting off the excess end, make
sure that the plastic locking tie does not protrude
from the lower end of the rear frame.
O. Clamp it so that the lock of the plastic locking tie
faces downward, and then pass the end between
the fuel hose and rear frame.
P. Clamp the wire harness at the position of the
white tape.

CABLE ROUTING DIAGRAM
2-39

CABLE ROUTING DIAGRAM
2-40

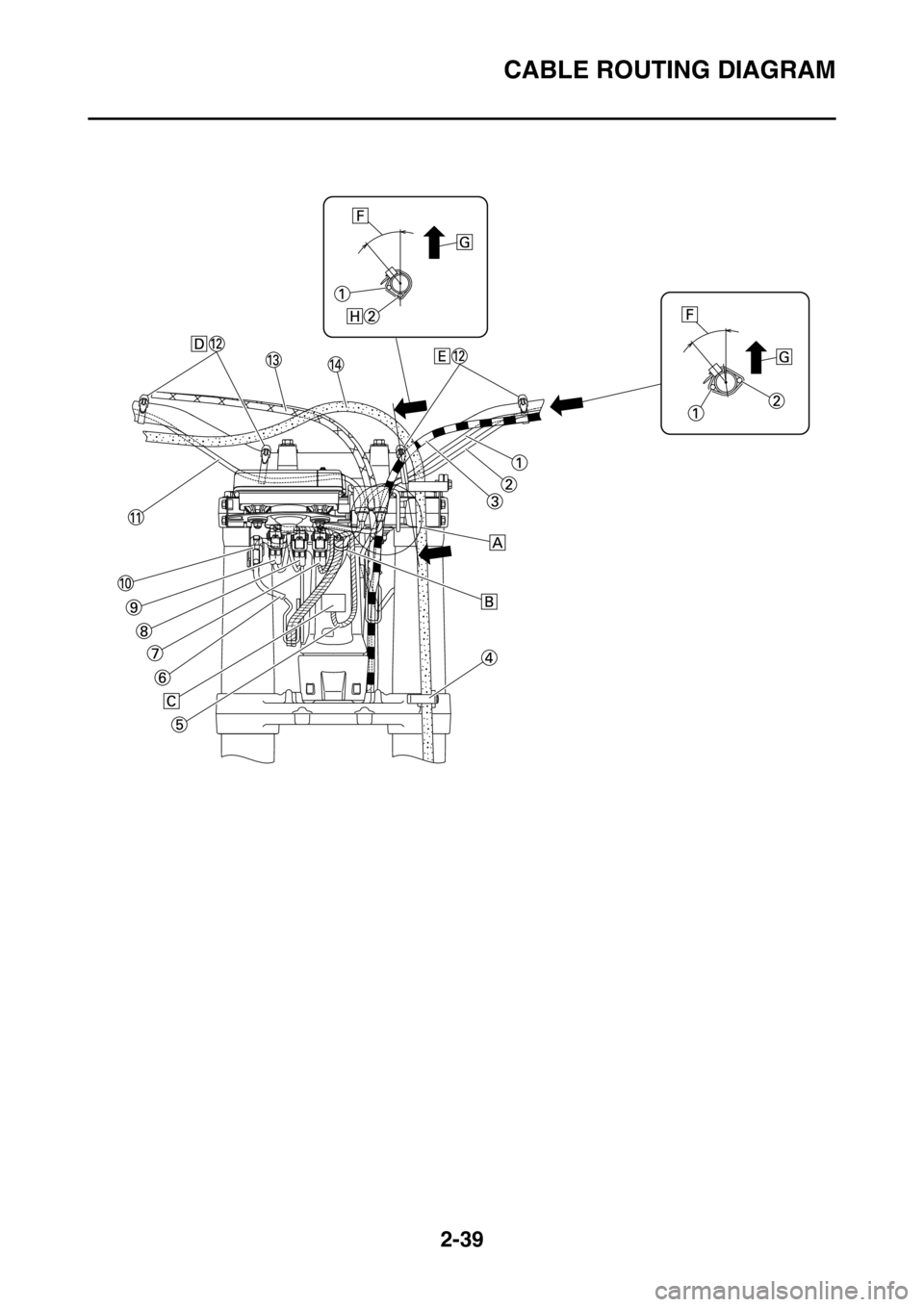

1. Clutch switch lead
2. Engine stop switch lead
3. Clutch cable
4. Brake hose guide
5. Headlight lead
6. Speed sensor lead
7. Indicator light coupler
8. Meter assembly optional switch coupler
9. Meter assembly coupler
10. Speed sensor coupler
11. Start switch lead
12. Plastic band
13. Throttle cable
14. Front brake hose
A. Route the throttle cable, clutch cable, clutch
switch lead, engine stop switch lead and start
switch lead between the cable guide of the meter
bracket and handle crown. The cables and leads
may be routed in any order.
B. Clamp the wire harness, clutch switch lead and
start switch lead to the meter bracket. The clamp
shall be located at a position where there is no
slack with the handle turned fully to the left.
C. Connect the headlight lead to the headlight.
D. Clamp the start switch lead to the handlebar by
the plastic band.
E. Clamp the engine stop switch lead and clutch
switch lead to the handlebar by the plastic band.
F. 40°±10°
G. Vertical direction
H. Pass the engine stop switch lead under the han-
dlebar.

CABLE ROUTING DIAGRAM
2-41

CABLE ROUTING DIAGRAM
2-42
1. Breather hose 3 (air filter breather hose)
2. Breather hose 1 (cylinder head breather hose)
3. Breather hose 2 (crankcase breather hose)
4. Joint pipe
A. Pass the breather hose 3 to the outside the throt-
tle cable.
B. Install the two breather hoses so that the yellow
paint mark is pointing forwards.
C. Align the white paint mark to the protruding por-
tion of the pipe to install breather hose 3.
D. Protruding portion of the pipe
E. Align the end with the paint mark of the breather
hose 3 to the end of the clip to install the clip.
F. Align with the blue paint mark and protruding por-
tion of the joint pipe to install the breather hose.
G. Install the clip as shown.

CABLE ROUTING DIAGRAM
2-43
