5218-2. Steps to take in an emergency
8
When trouble arises
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ If the tire pressure warning light comes on (if equipped)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest Toyota dealer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage s hould occur (vehicles with the tire
pressure warning system)
The tire pressure warning system may not activate immediately.
■
Maintenance of the tires (vehicles with the tire pressure warning
system)
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label) . (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pre ssure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s hand ling and stopping ability.

5228-2. Steps to take in an emergency
WARNING
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the lo w tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence w ill continue upon subsequ ent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly (if
equipped)
Do not install tires with different sp ecifications or makers, as the tire
pressure warning system may not operate properly.

523
8
When trouble arises
8-2. Steps to take in an emergency
If a warning message is displayed (vehicles
with a multi-information display)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact your Toyota dealer.
If a warning is shown on the mult i-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates the following: • The brake fluid level is low; or,
• The brake system is malfunctioning
*1.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(U.S.A.)
(Canada)
(U.S.A.) (Canada)

5248-2. Steps to take in an emergency
(If equipped)
Indicates that the automatic transmission fluid
temperature is too high.A buzzer also sounds.
→ Immediately stop the vehicle in a safe
place, shift the shift lever to P and wait until
the message and light go off.
If the message and ligh t go off, you may
start the vehicle again.
If the message and light do not go off, con-
tact your Toyota dealer.
Indicates that the engine coolant temperature is
too high. A buzzer also sounds.
→ P. 563
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the vehicle’s charging
system.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Warning messageDetails/Actions

5258-2. Steps to take in an emergency
8
When trouble arises
Indicates a malfunction in:• The ABS; or
• The brake assist system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates a malfunction in: • The VSC system;
• Trailer Sway Control system (if equipped);
• The TRAC system;
• The hill-start assist control system (ifequipped);
• The active traction control system (if equipped);
• The AUTO LSD system; or
• The Crawl Control system (if equipped)
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the tire pressure moni-
toring system. The tire pressure warning light comes on after
flashing for 1 minute.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(U.S.A.)
(Canada)
(U.S.A.) (Canada)
(Flashes and then
remains on)

5268-2. Steps to take in an emergency
(If equipped)
Indicates a malfunction in the cruise control sys-
tem.Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates a malfunction in the Brake Override
System. A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(2GR-FKS engine only)
Indicates that the engine oil level is low. A buzzer also sounds.
→ Check the level of engine oil, and add if
necessary.
This message may appear if the vehicle is
stopped on a slope.
Move the vehicle to a level surface and
check to see if the message disappears.
Indicates that the accelerator and brake pedals
are being depressed simultaneously, then the
Brake Override System is operating. (
→P. 158)
→ Release the accelerator or brake pedals.
Warning messageDetails/Actions
(Flashes)

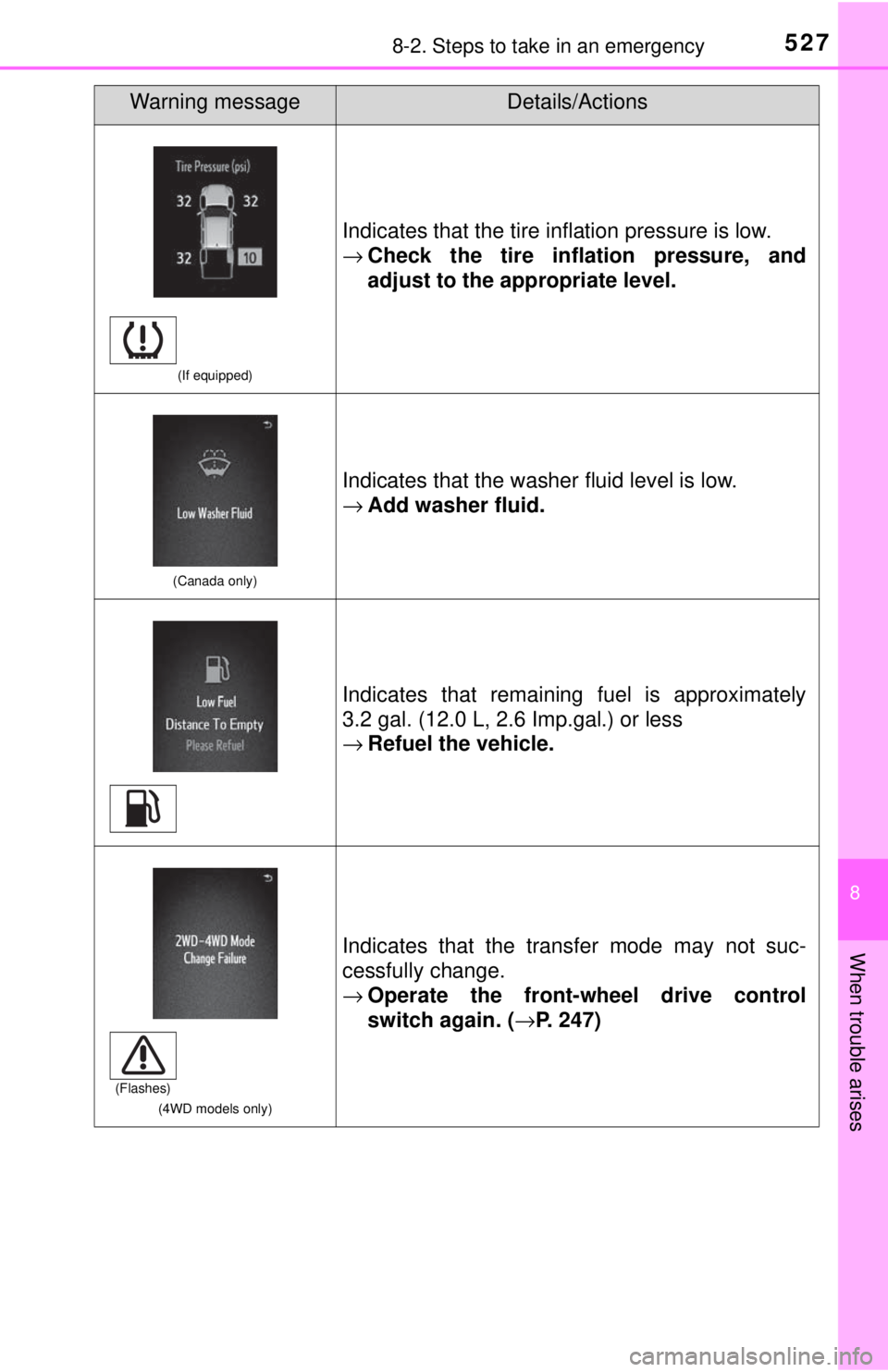

5278-2. Steps to take in an emergency
8
When trouble arises
(If equipped)
Indicates that the tire inflation pressure is low.
→Check the tire inflation pressure, and
adjust to the appropriate level.
(Canada only)
Indicates that the washer fluid level is low.
→Add washer fluid.
Indicates that remaining fuel is approximately
3.2 gal. (12.0 L, 2.6 Imp.gal.) or less
→Refuel the vehicle.
(4WD models only)
Indicates that the transfer mode may not suc-
cessfully change.
→Operate the front-wh eel drive control
switch again. ( →P. 247)
Warning messageDetails/Actions
(Flashes)

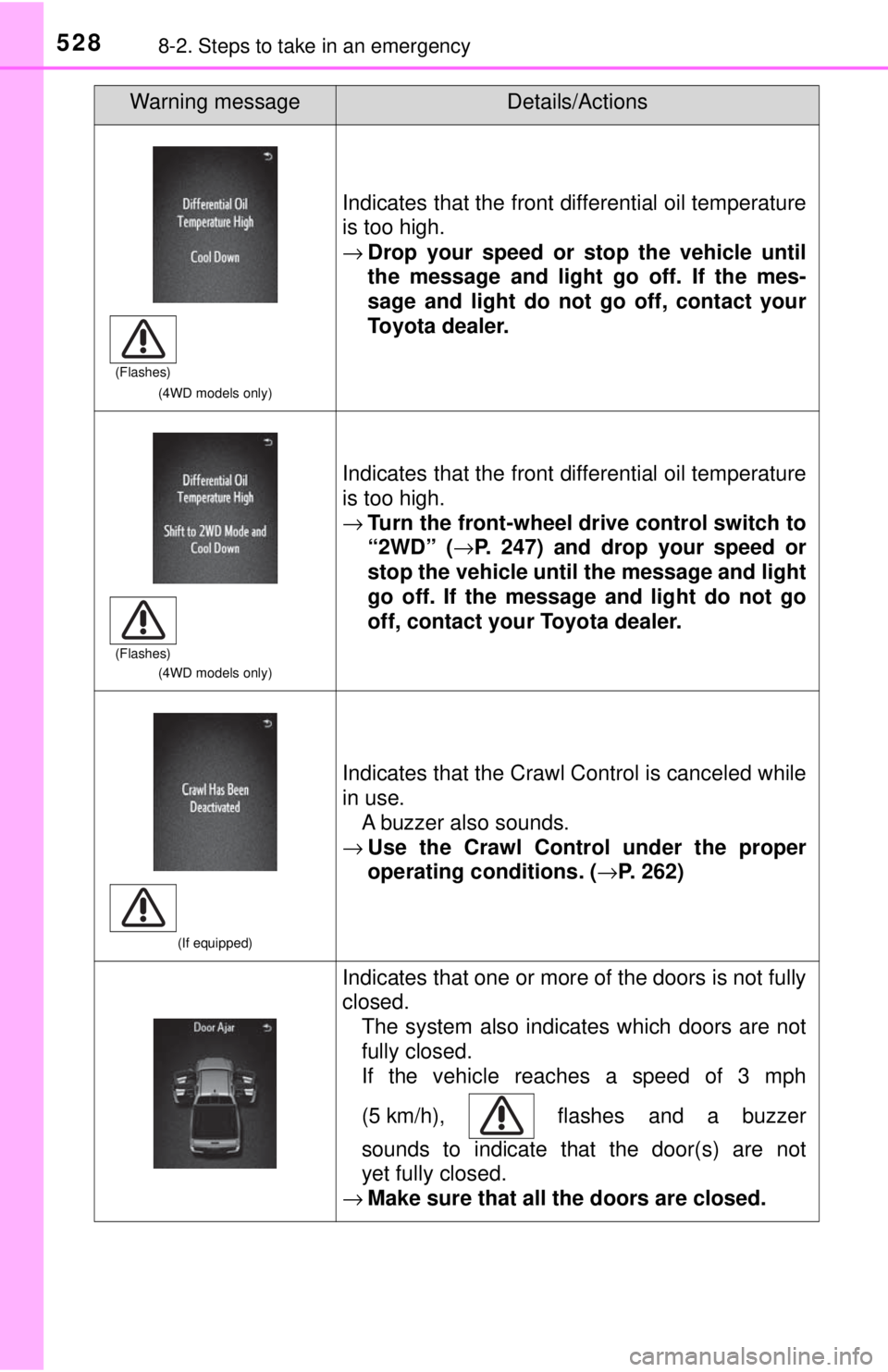

5288-2. Steps to take in an emergency
(4WD models only)
Indicates that the front differential oil temperature
is too high.
→Drop your speed or stop the vehicle until
the message and light go off. If the mes-
sage and light do not go off, contact your
Toyota dealer.
(4WD models only)
Indicates that the front differential oil temperature
is too high.
→ Turn the front-wheel dr ive control switch to
“2WD” ( →P. 247) and drop your speed or
stop the vehicle until the message and light
go off. If the message and light do not go
off, contact your Toyota dealer.
(If equipped)
Indicates that the Crawl Control is canceled while
in use. A buzzer also sounds.
→ Use the Crawl Control under the proper
operating conditions. ( →P. 262)
Indicates that one or more of the doors is not fully
closed.
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph
(5 km/h), flashes and a buzzer
sounds to indicate that the door(s) are not
yet fully closed.
→ Make sure that all the doors are closed.
Warning messageDetails/Actions
(Flashes)
(Flashes)
