4016-3. Using the storage features
6
Interior features

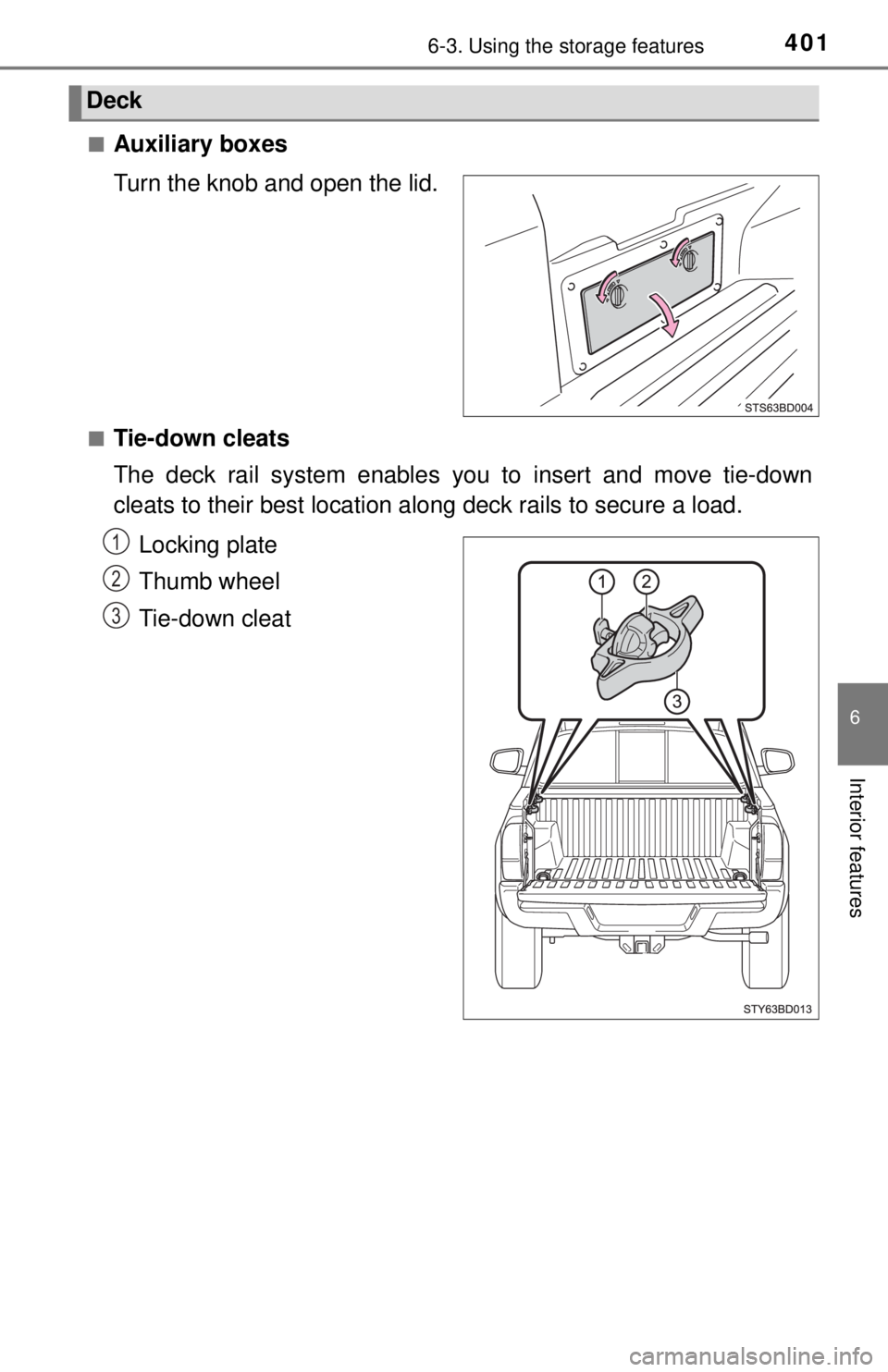

■Auxiliary boxes
Turn the knob and open the lid.
■Tie-down cleats
The deck rail system enables you to insert and move tie-down
cleats to their best location along deck rails to secure a load.Locking plate
Thumb wheel
Tie-down cleat
Deck
1
2
3

4026-3. Using the storage features
●Installing the tie-down cleat
Loosen the thumb wheel in a
counterclockwise motion,
and depress the wheel so
that the locking plate main-
tains 0.5 in. (12.7 mm) gap.Deck rail
Detent
Locking plate
Insert the locking plate into
the deck rail, rotate the tie-
down cleat 90°, and release
the thumb wheel.
Slide the cleat to the closest
detent in the rail system. You
will feel that the locking plate
snaps into a detent.
When using a tonneau cover,
confirm the cleat position will not
interfere with its proper closing
and latching.
Tighten the thumb wheel in a
clockwise motion until the
clutch mechanism ratchets.
0.5 in.
(12.7 mm)
1
1
2
3
2
3
4

4036-3. Using the storage features
6
Interior features
Check the tie-down cleat to
confirm that it is locked into a
detent and securely mounted
to the deck rail system.

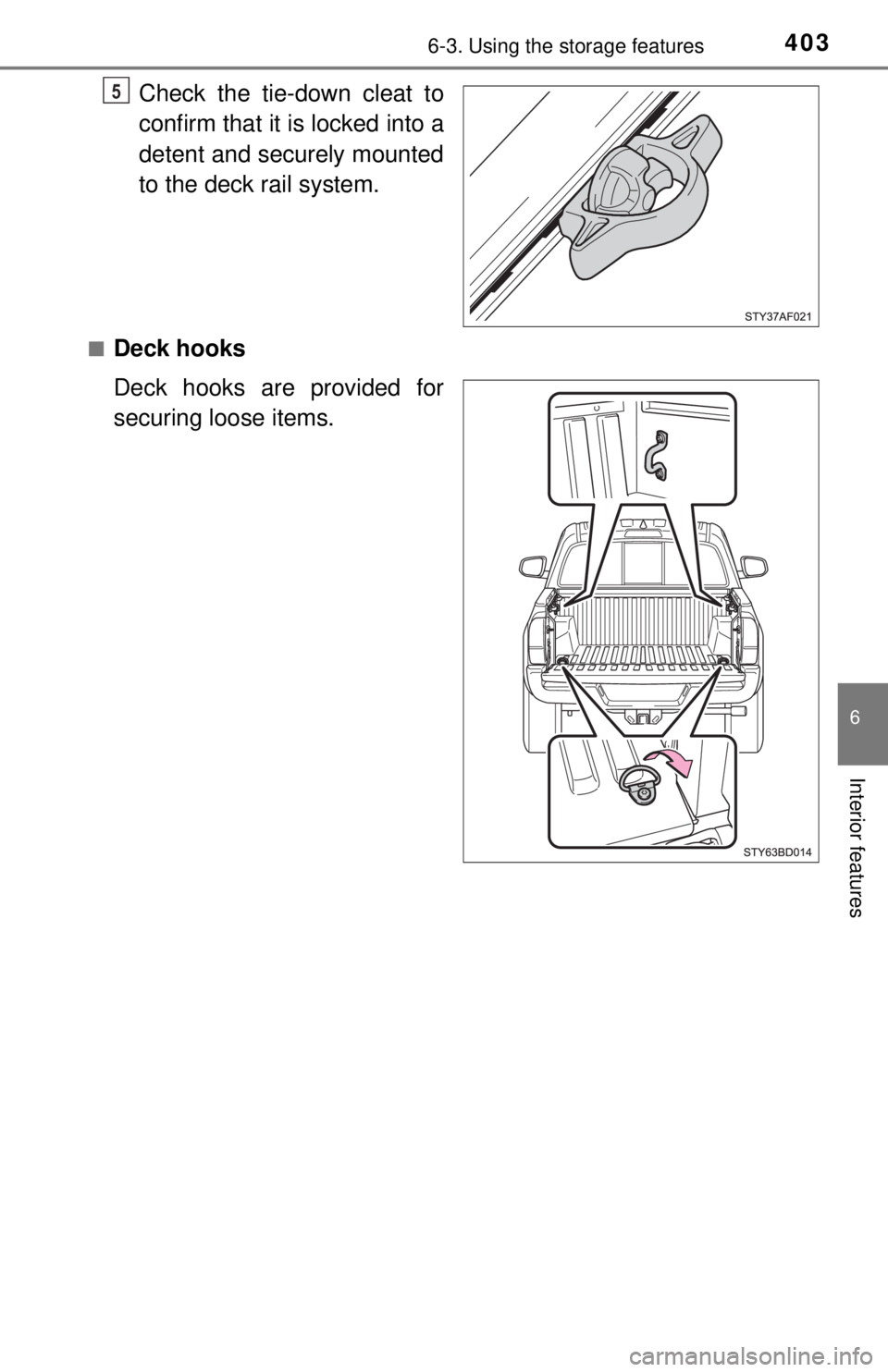

■Deck hooks
Deck hooks are provided for
securing loose items.
5

4046-3. Using the storage features

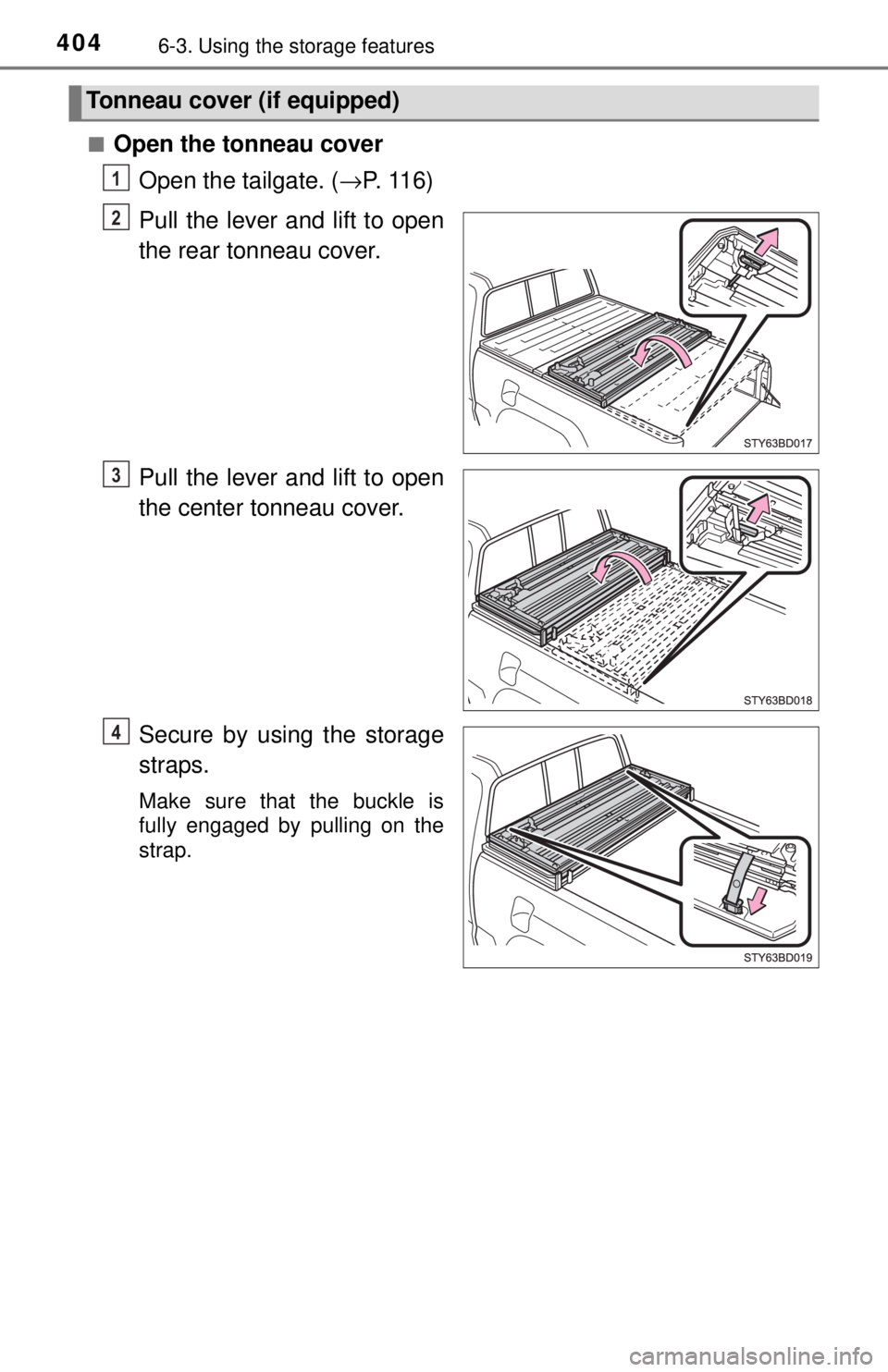

■Open the tonneau cover
Open the tailgate. ( →P. 116)
Pull the lever and lift to open
the rear tonneau cover.
Pull the lever and lift to open
the center tonneau cover.
Secure by using the storage
straps.
Make sure that the buckle is
fully engaged by pulling on the
strap.
Tonneau cover (if equipped)
1
2
3
4

4056-3. Using the storage features
6
Interior features
■Close the tonneau coverRemove the straps while
pushing the release lock.
Confirm that there is no tie-down
cleat in the latch position before
closing the tonneau cover.
Close the tonneau cover and
push down on the top sur-
face (latch position) until it
clicks.
After closing the tonneau cover,
try pulling it up towards you to
make sure all latches are
securely locked. Confirm cargo
and cleats do not interfere with
tonneau cover latching and
completely closing.
■
Remove and install the tonneau cover
Open the cap and remove
the bolt.
Open the rear and center tonneau cover.
Secure by using the storage straps.
Pull the lever and lift to
remove the tonneau cover.
1
2
STY63BD024
1
2
3
4

4066-3. Using the storage features
When installing, reve rse the steps listed.
Push down on the top surface (latch position) until it clicks, tighten the
bolt, and then close the cap.
After closing the tonneau cover, try pulling it up towards you to make
sure all latches are securely locked.
WARNING
■Caution while driving
Keep the auxiliary boxes closed and locked.
Injuries may result in the event of an accident or sudden braking.
■ When the deck hooks are not in use
To avoid injury, always return the deck hooks to their stowed positions.
■ Tie-down cleat precautions
● Properly install and tighten the tie-down cleats into the deck rail system.
Failure to properly install and tighten the tie-down cleats can cause cargo
to become unsecured. Unsecured cargo can cause injury when the vehi-
cle is in motion.
● Properly secure all cargo to prevent shifting or sliding during driving.
Failure to properly secure cargo can cause injury when the vehicle is in
motion.
● Applying loads at an angle to the tie-down cleat greater than 45° or loads
greater than 220 lb. (100 kg) may cause damage to the deck, deck rail
system, tie-down cleat and/or the cargo.
● Do not exceed a total tensile load of 440 lb. (200 kg) per deck rail.
● Do not install more than the following number of tie-down cleats per deck
rail:
• Side rail:
Short deck—Max. 3 locations
Long deck—Max. 4 locations
● Confirm cargo and cleats do not interfere with tonneau cover latching and
completely closing.
5

4076-3. Using the storage features
6
Interior features
WARNING
■Caution for the tonneau cover
Observe the following precautions regarding the tonneau cover.
Failure to do so may cause death or serious injury.
● Confirm the tonneau cover is securely closed before driving.
● Confirm cargo and cleats do not interfere with tonneau cover latching and
completely closing.
● Bolt must be installed and properly tightened.
Tightening torque:
20 ft·lbf (27.3 N·m, 2.8 kgf·m)
● When the tonneau cover is fully opened, make sure that the buckle is
secure by pulling on the storage strap.
● Be careful not to get your hands pinched between the tonneau cover and
the deck when opening and closing the tonneau cover, or between the
panels when folding.
● Make sure that all latches are securely locked by pulling it upwards.
● Do not stand or sit on the tonneau cover.
● Do not install the tonneau cover backwards, or in any other orientation
than indicated (“TACOMA” text should be towards the tailgate, and the
safety bolt must be installed and tightened.
●Do not drive with only the front or only
the rear tonneau cover opened.

4086-3. Using the storage features
■Grocery bag hooks
Grocery bag hook is designed
to hang things like grocery bag.
NOTICE
■When using th e tonneau cover
● Deck area is not waterproof, so take care when transporting items which
may be damaged by water.
● Do not drive the vehicle with objects on top of the tonneau cover.
● Take care when operating and storing the tonneau cover to avoid scratch-
ing its outer surfaces. When stowing, st and it up with the section with stor-
age straps facing upward.
● Take care when removing and installing the tonneau cover, as it is heavy.
● To avoid damage, secure the storage straps to the snaps provided. Failure
to do so could result in broken buckle, or damage deck rail.
Behind the rear seat (Double Cab models only)
