5217-3. Do-it-yourself maintenance
7
Maintenance and care
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
4
5
6
7

522
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Headlight high beams and bulb type daytime running lights (if
equipped)
For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pushing the lock release.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
1
2
ITO43P165
P
Q
R
S

SIENNA_OM_OM08007U_(U)
5237-3. Do-it-yourself maintenance
7
Maintenance and care
■Fog lights (if equipped)Remove the engine under
cover bolt and pull down the
engine under cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3

524
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure
the bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When installing the engine under cover, reverse the step .
4
5
6
71

SIENNA_OM_OM08007U_(U)
5257-3. Do-it-yourself maintenance
7
Maintenance and care

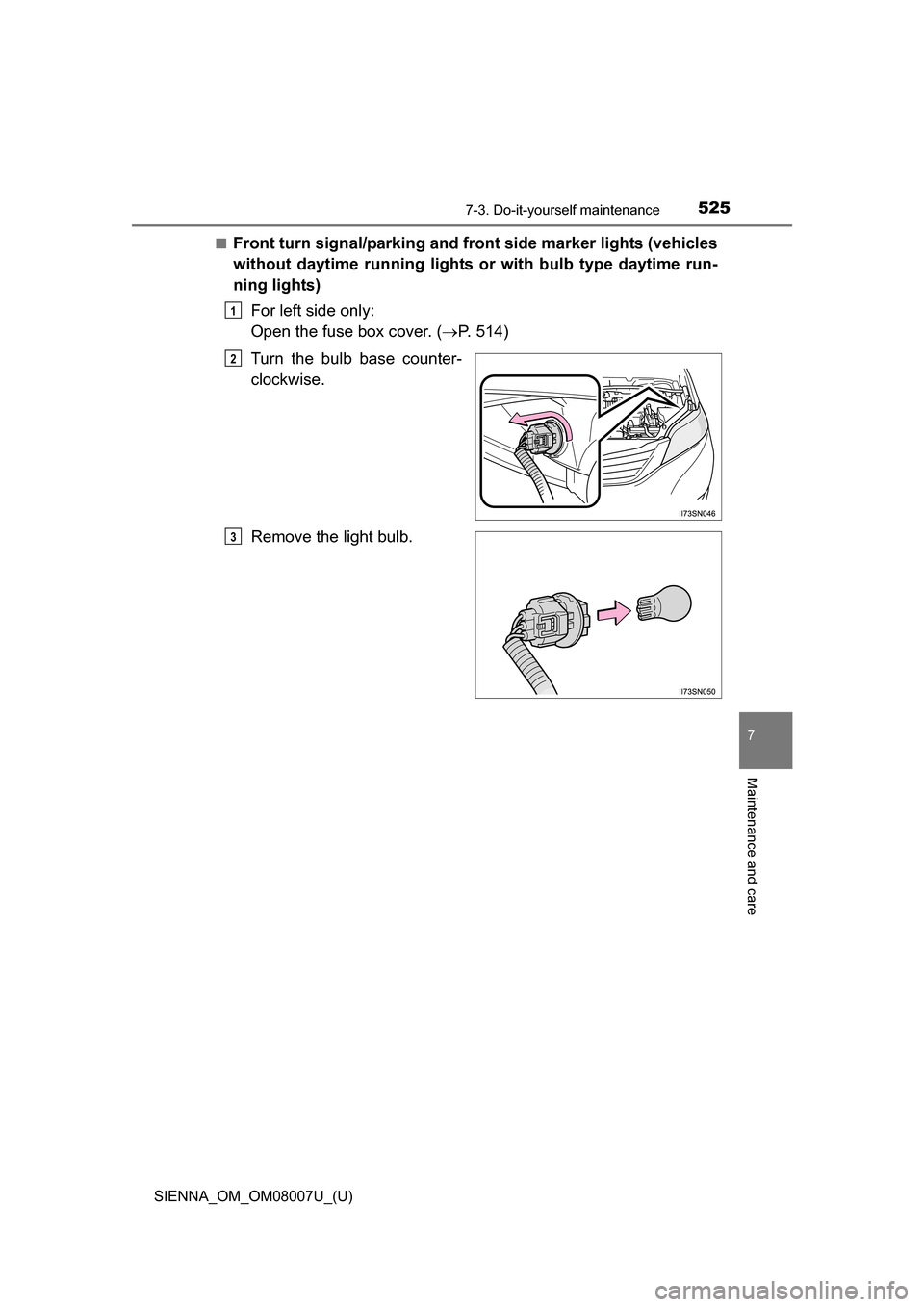

■Front turn signal/parking and front side marker lights (vehicles
without daytime running lights or with bulb type daytime run-
ning lights)
For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

526
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance

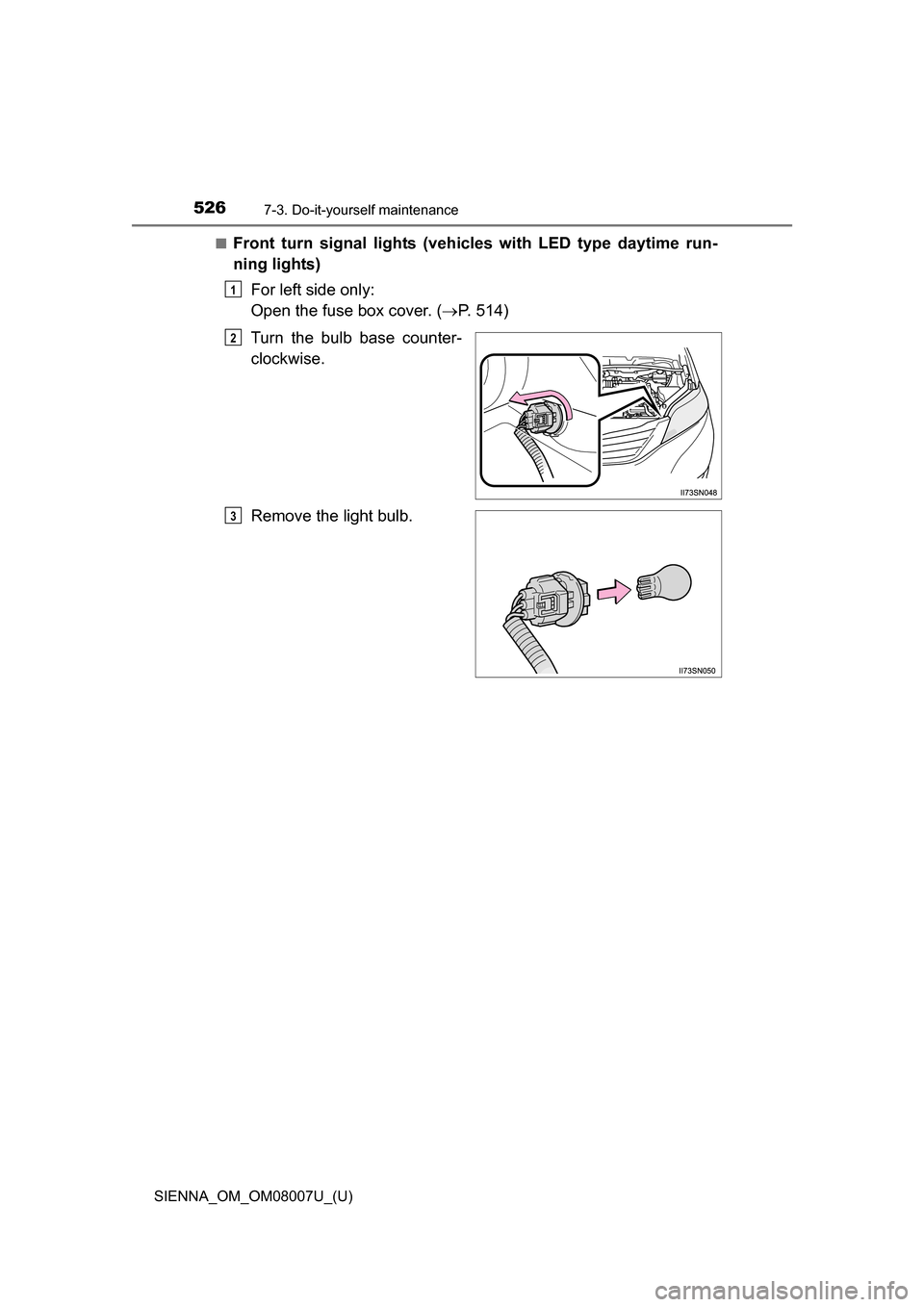

■Front turn signal lights (vehicles with LED type daytime run-
ning lights)For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

SIENNA_OM_OM08007U_(U)
5277-3. Do-it-yourself maintenance
7
Maintenance and care

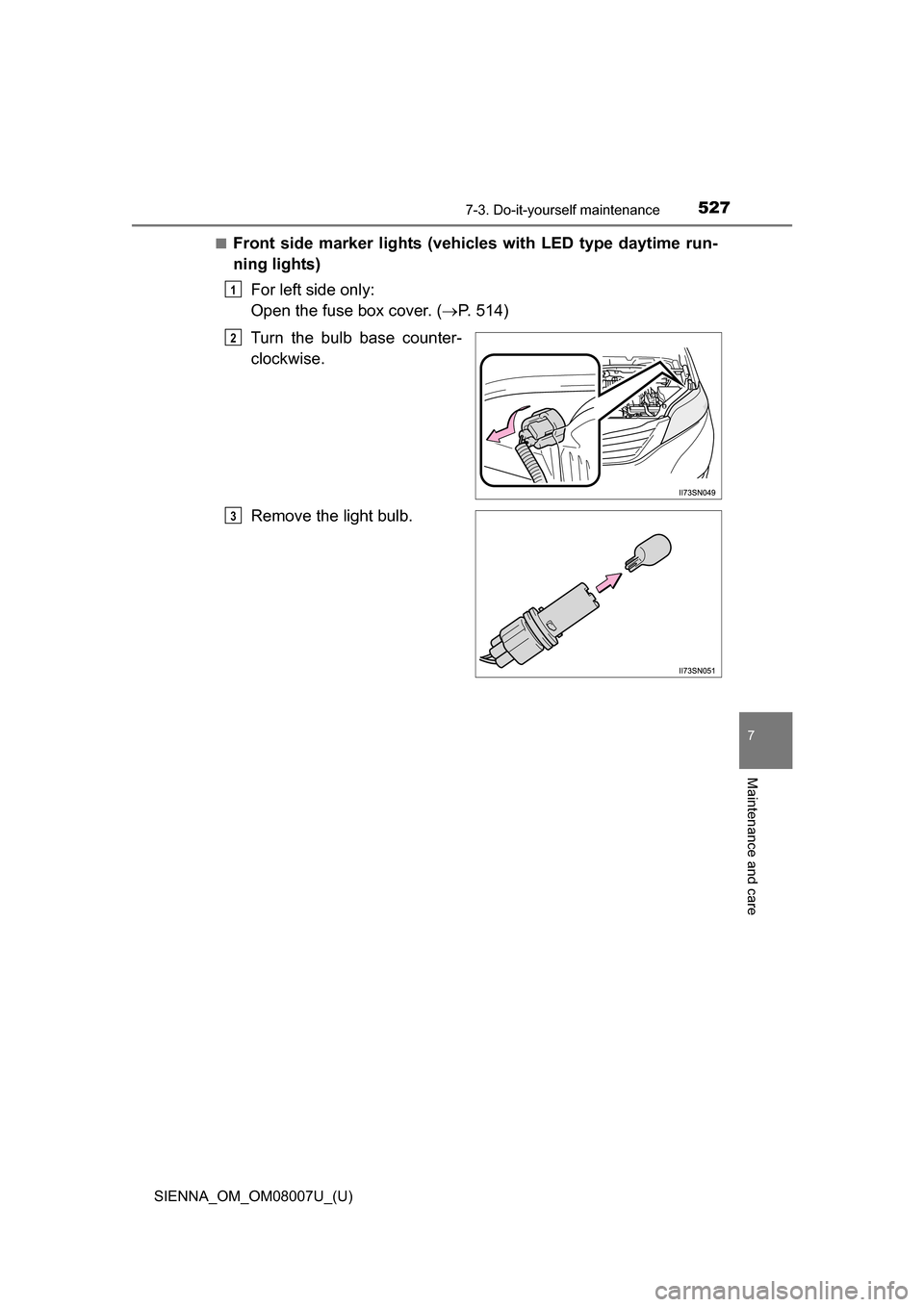

■Front side marker lights (vehicles with LED type daytime run-
ning lights)
For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

528
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance

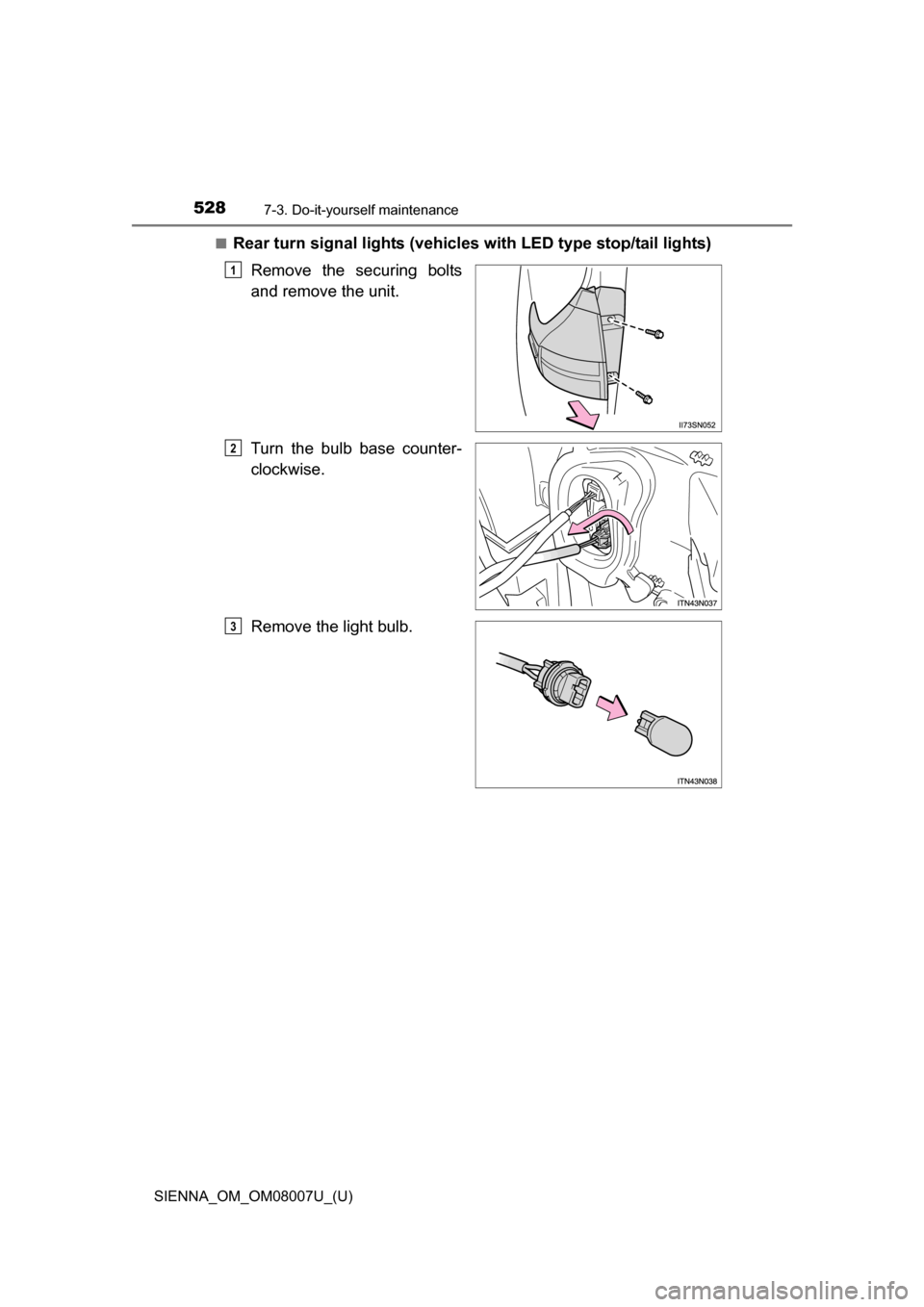

■Rear turn signal lights (vehicles with LED type stop/tail lights)Remove the securing bolts
and remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
