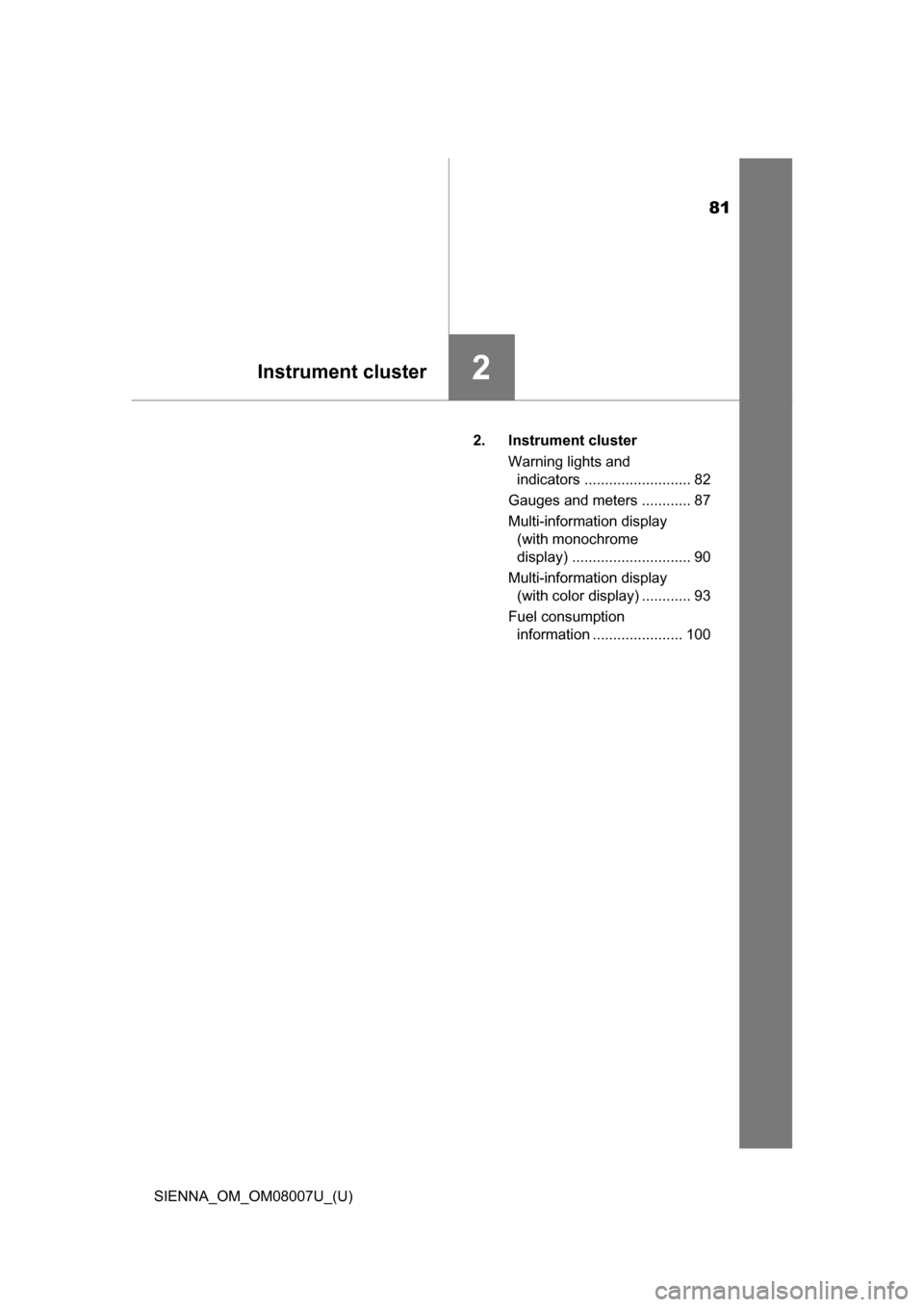

Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 82
Gauges and meters ............ 87
Multi-information display (with monochrome
display) ............................. 90
Multi-information display (with color display) ............ 93
Fuel consumption information ...................... 100

82
SIENNA_OM_OM08007U_(U)
2. Instrument cluster

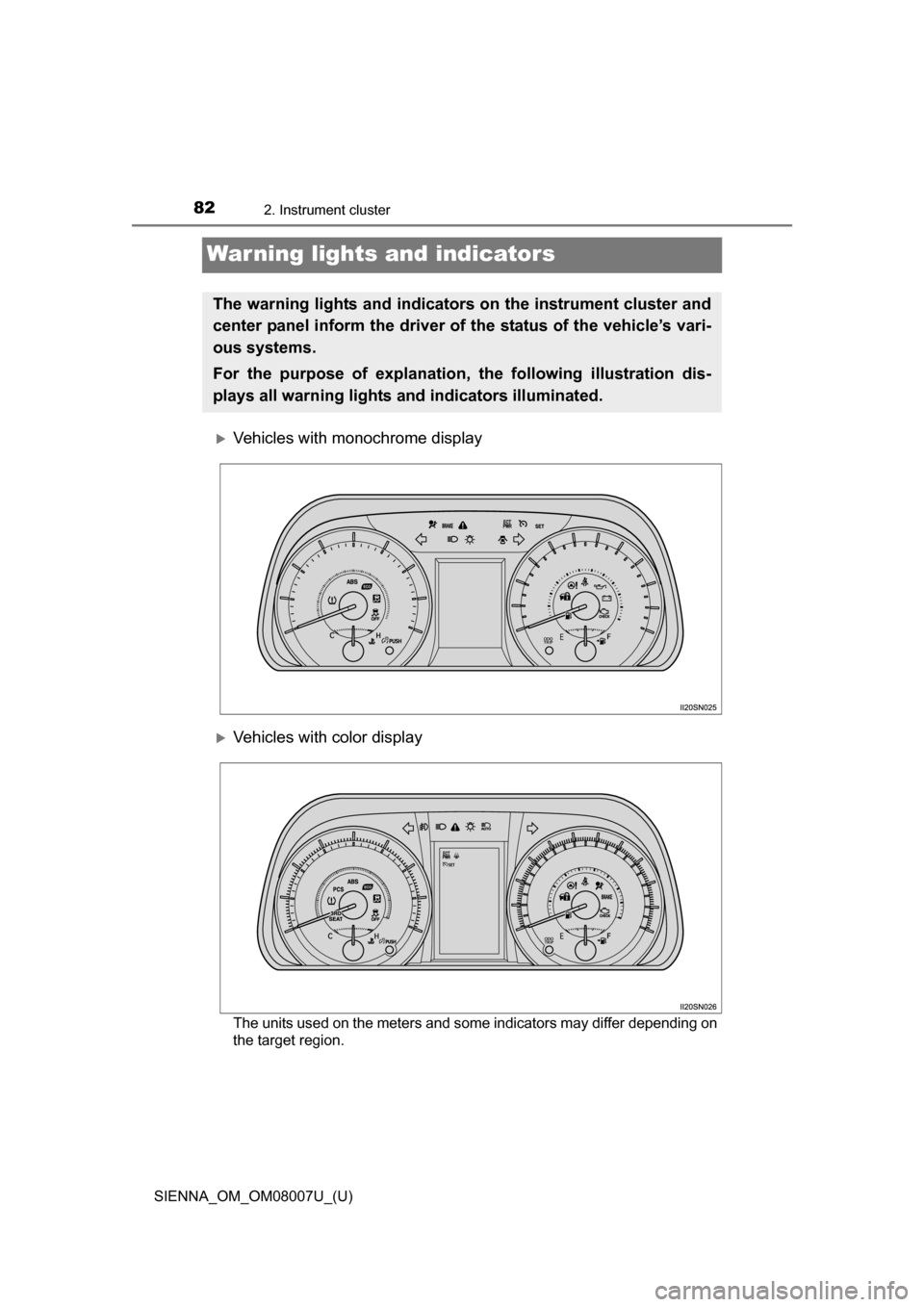

Warning lights and indicators
Vehicles with monochrome display
Vehicles with color display
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

SIENNA_OM_OM08007U_(U)
832. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 545)
*1Electric power steering
system warning light
(P. 546)
*1
(Canada)
Brake system warning
light ( P. 545)
*1, 2, 3
Pre-collision system
warning light ( P. 546)
*1, 2Charging system
warning light (P. 545)*1
Slip indicator ( P. 546)
*1, 2Low engine oil pressure
warning light
(P. 545)
*2Open door warning light
( P. 547)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 545) Low fuel level warning
light (
P. 547)
*1
(Canada)
Malfunction indicator
lamp ( P. 545) Seat belt reminder light
(
P. 547)
*1SRS warning light
(P. 546)*1Master warning light
(P. 547)
*1
(U.S.A.)
ABS warning light
(P. 546)
*1
Tire pressure warning
light ( P. 547)
*1
(Canada)
ABS warning light
(P. 546)
*2
Third seat warning light
(P. 547)

84
SIENNA_OM_OM08007U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or the engine switch is turned to the
IGNITION ON mode (vehicles with a smart key system) to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
a light does not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer.
*2: If equipped
*3: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 240)*1Radar cruise control
indicator ( P. 266)
(U.S.A.)
Headlight indicator
(P. 242)*2, 3
Slip indicator ( P. 298)
(Canada)
Tail light indicator
(P. 242)*2VSC OFF indicator
(P. 298)
Headlight high beam
indicator ( P. 243)
*1, 2, 4Pre-collision system
warning light ( P. 303)
*1Automatic High Beam
indicator (P. 247)*1, 5, 6BSM (Blind Spot
Monitor) outside rear
view mirror indicators
(P. 309)
*1Fog light indicator
(P. 252) Security indicator
(
P. 75, 77)
Cruise control indicator
( P. 262, 266)
*2, 7Eco Driving Indicator
Light ( P. 86)
Cruise control “SET”
indicator ( P. 262, 266)

SIENNA_OM_OM08007U_(U)
852. Instrument cluster
2
Instrument cluster
*1: If equipped
*2: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*3: The light flashes to indicate that the system is operating.
*4: The light comes on when the system is turned off. The light flashes fasterthan usual to indicate that the system is operating.
*5: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key sys-
tem) while the BSM main switch is set to on.
• When the BSM main switch is set to on while the engine switch is in the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors
*7: The light does not turn on when the system is disabled.
*8: This light illuminates on the center panel.
*1ICE warning indicator
( P. 89) “ECT PWR” indicator
(
P. 234)
*2, 8
“AIR BAG ON/OFF”
indicator ( P. 5 0 )

86
SIENNA_OM_OM08007U_(U)
2. Instrument cluster
■Eco Driving Indicator Light
●The vehicle is set to power mode. ( P. 234)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration pedal is
depressed excessively, or when the vehi-
cle is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
●
The shift lever is in anything other than
D.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

87
SIENNA_OM_OM08007U_(U)
2. Instrument cluster
2
Instrument cluster

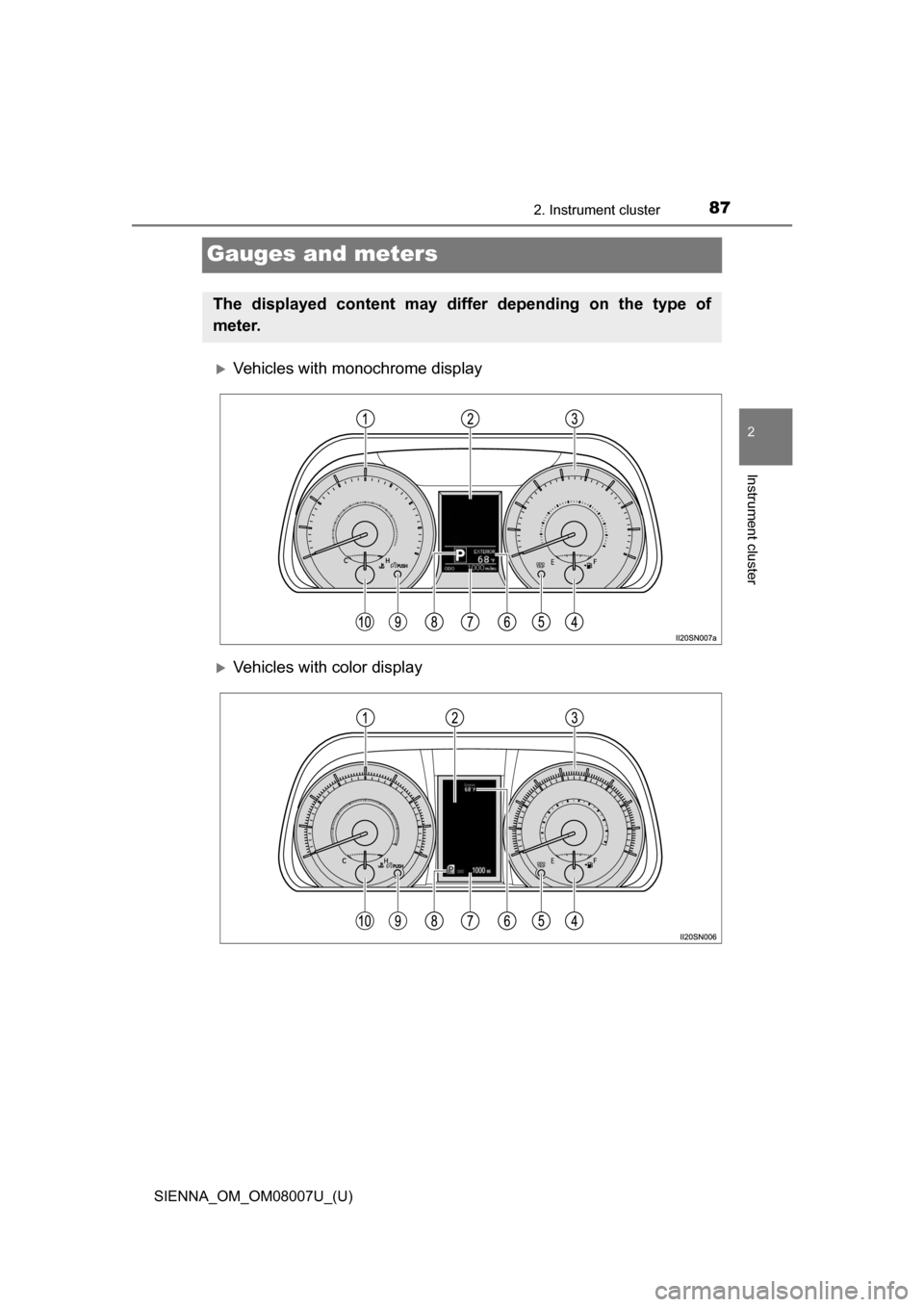

Gauges and meters
Vehicles with monochrome display
Vehicles with color display
The displayed content may differ depending on the type of
meter.

88
SIENNA_OM_OM08007U_(U)
2. Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute
Multi-information display
Presents the driver with a variety of driving-related data (P. 90, 93)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter display change button
Outside temperature
P. 8 9
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Shift position and range
P. 234
Meter panel lights control button
P. 8 9
Engine coolant temperature gauge
Displays the engine coolant temperature
Pressing this button switches
among the odometer, trip meter
“A” and trip meter “B” displays.
When the trip meter is displayed,
pressing and holding the button
will reset the trip meter.
Changing the trip meter display
1
2
3
4
5
6
7
8
9
10
