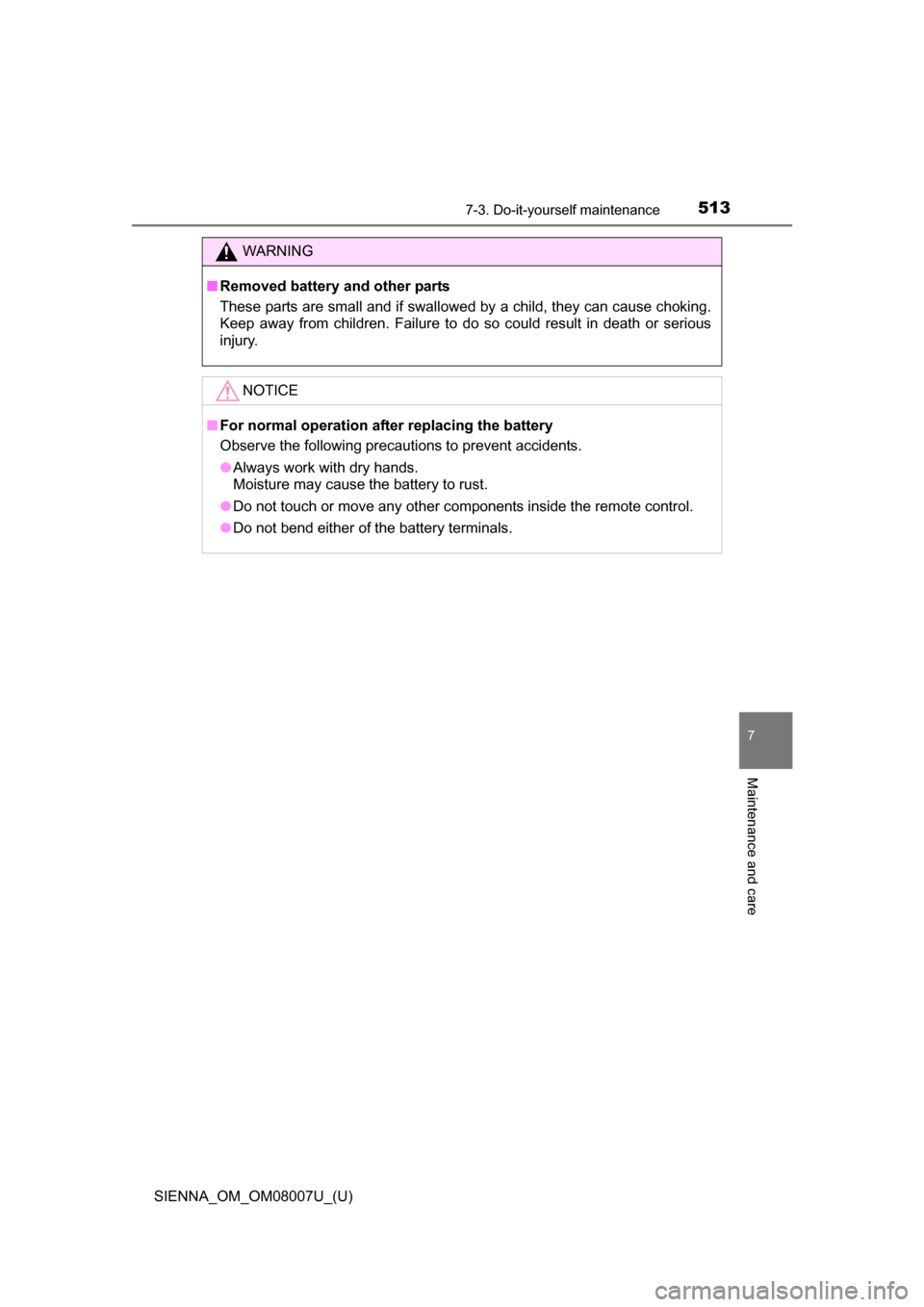

5137-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

514
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehic les with a smart key system).
Open the fuse box cover.
Remove the fuse.
Only type A fuses can be removed
using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3

SIENNA_OM_OM08007U_(U)
5157-3. Do-it-yourself maintenance
7
Maintenance and care
Check if the fuse has blown.Normal fuse
Blown fuse
Type A and B
Replace the blown fuse with a new fuse of an appropriate amper-
age rating. The amperage rating c an be found on the fuse box lid.
Type C, D and E
Contact your Toyota dealer.4
1
2
Ty p e AType B
Ty p e CType D
Ty p e E

516
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 517)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

517
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

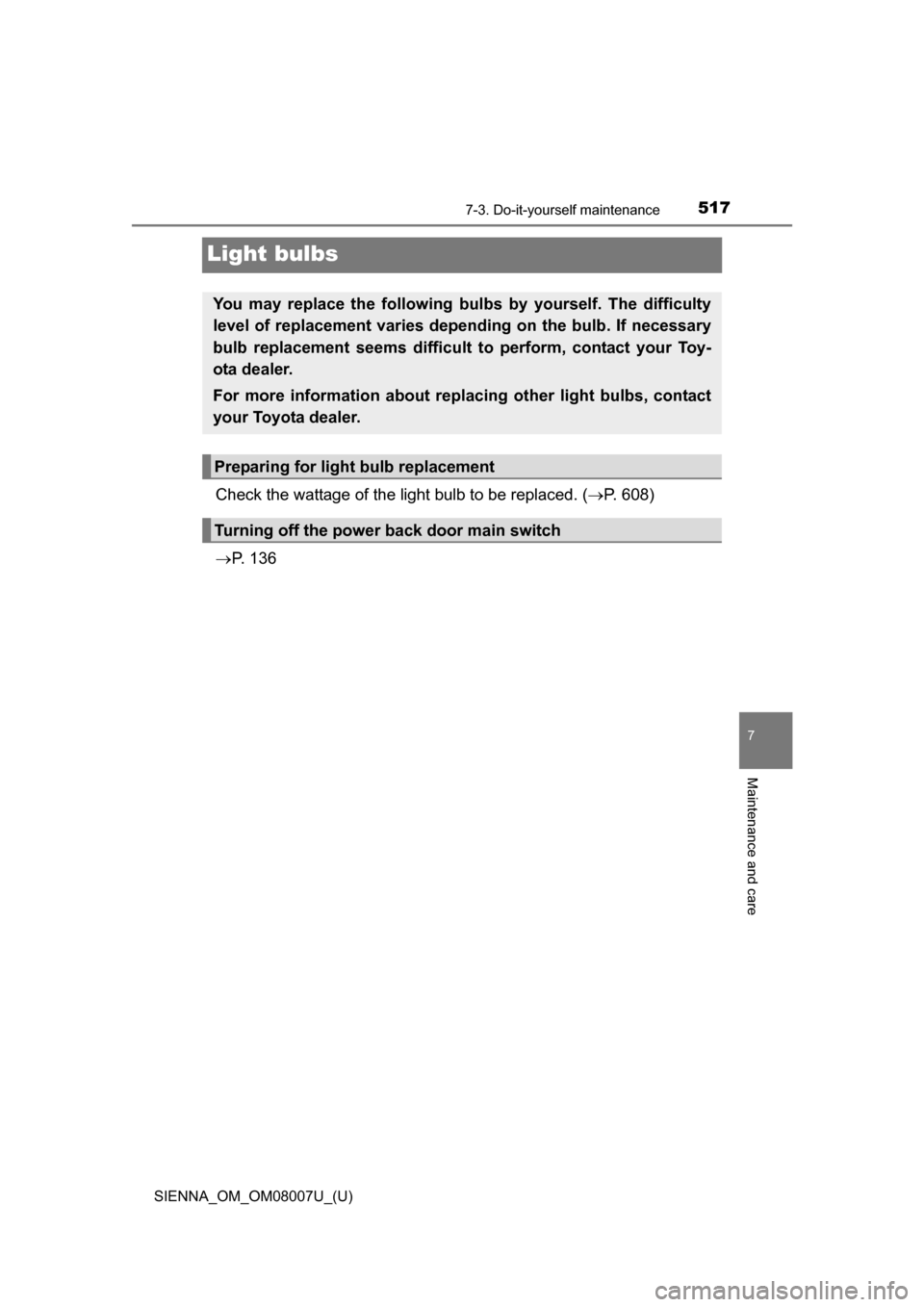

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 608)
 P. 1 3 6
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toy-
ota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Turning off the power back door main switch

518
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Front
Vehicles without daytime running lights or with bulb type daytime
running lights
Vehicles with LED type daytime running lights
Bulb locations
Headlight high beam and day-
time running lights (if equipped)
Headlight low beam
(halogen bulb) Fog light (if equipped)
Front turn signal/parking and
front side marker lights1
2
3
4
Front turn signal light
Headlight high beam
Fog light
Headlight low beam
(halogen bulb)
Front side marker light1
2
3
4
5

SIENNA_OM_OM08007U_(U)
5197-3. Do-it-yourself maintenance
7
Maintenance and care
■Rear
Vehicles with bulb type stop/tail lights
Vehicles with LED type stop/tail lights
Rear turn signal light
Back-up light
License plate lightsTail light
Stop/tail lights1
2
3
4
5
Tail light
License plate lights
Back-up light
Rear turn signal light1
2
3
4

520
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Headlight low beams (halogen bulb)For left side only:
Open the fuse box cover. ( P. 514)
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replacing light bulbs
1
2
3
