604
SIENNA_OM_OM08007U_(U)

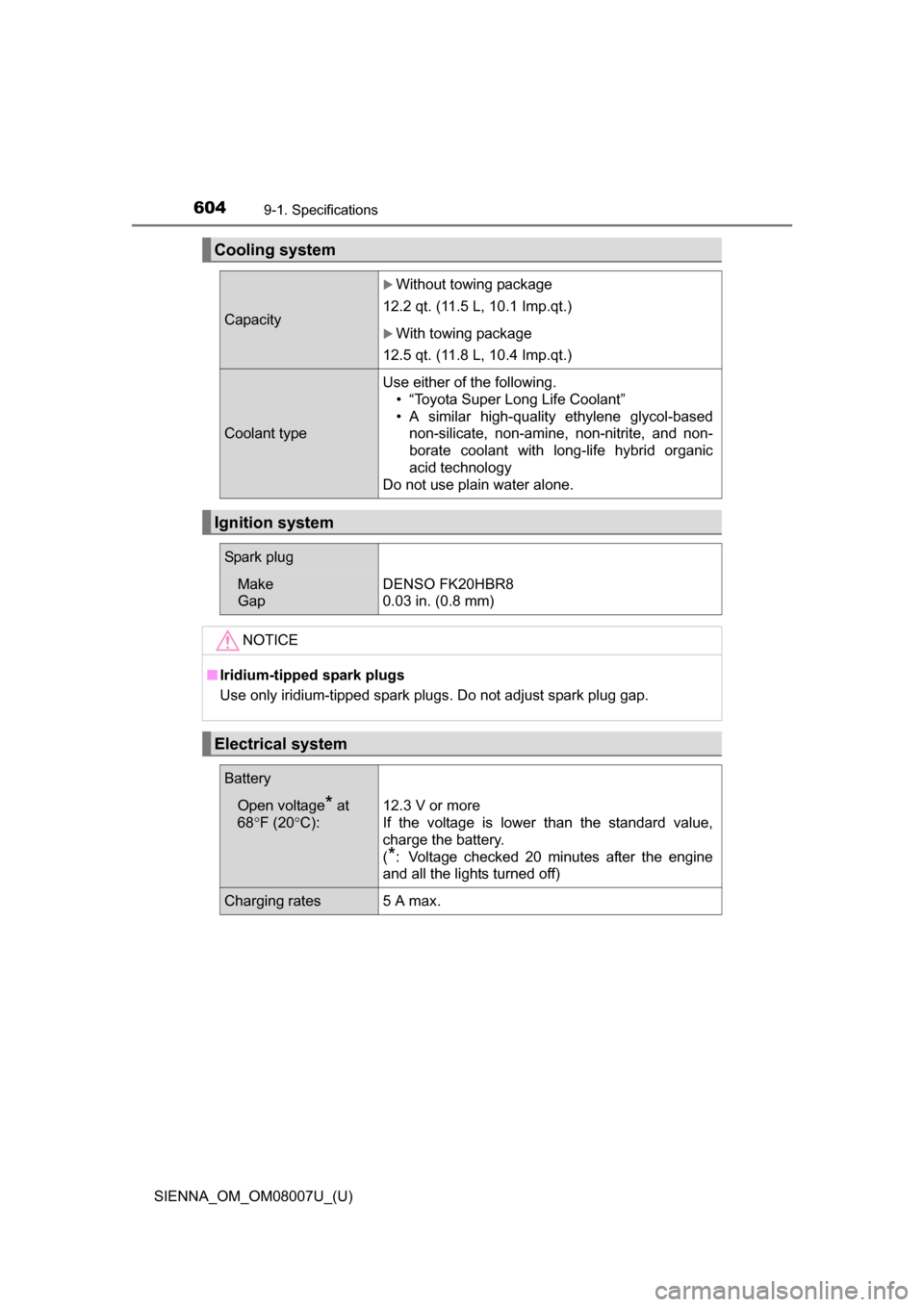

9-1. Specifications
Cooling system
Capacity
Without towing package
12.2 qt. (11.5 L, 10.1 Imp.qt.)
With towing package
12.5 qt. (11.8 L, 10.4 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
Gap DENSO FK20HBR8
0.03 in. (0.8 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
Electrical system
Battery
Open voltage* at
68 F (20 C): 12.3 V or more
If the voltage is lower than the standard value,
charge the battery.
(
*: Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates 5 A max.
