For safety and security
Engine immobilizer system
Vehicles without smart key sys-
tem
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with smart key system
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

741-2. Theft deterrent system
RAV4_OM_OM0R005U_(U)■

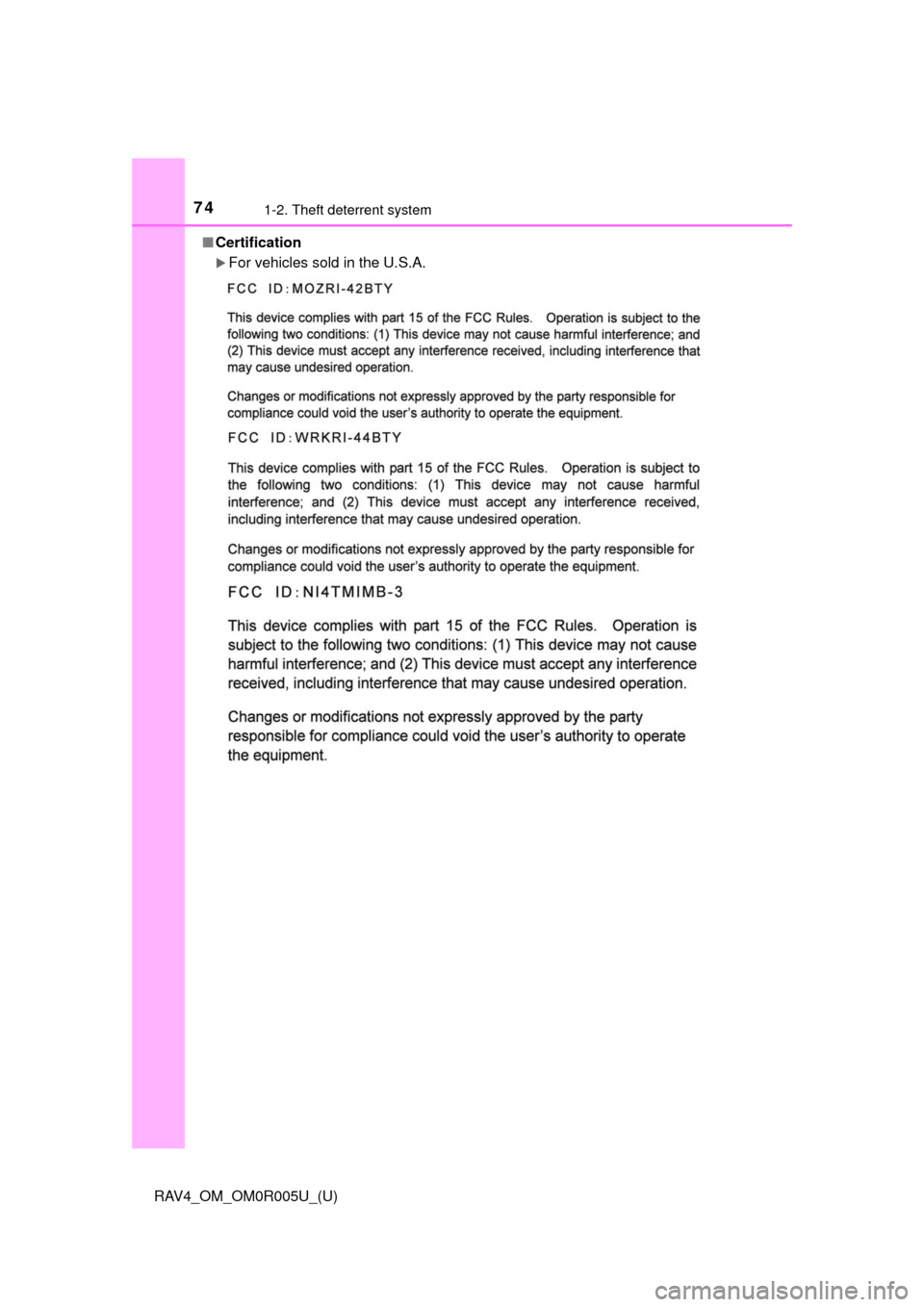

Certification
For vehicles sold in the U.S.A.

751-2. Theft deterrent system
RAV4_OM_OM0R005U_(U)
1
For safety and security
For vehicles sold in Canada
WARNING
■Certification for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

761-2. Theft deterrent system
RAV4_OM_OM0R005U_(U)

77
RAV4_OM_OM0R005U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators ................... 78
Gauges and meters ............ 84
Multi-information display ..... 88
Fuel consumption information ........................ 94

78
RAV4_OM_OM0R005U_(U)
2. Instrument cluster
Warning lights and indicators
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

RAV4_OM_OM0R005U_(U)
792. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( →P. 615)Seat belt reminder light
(→P. 616)
*1
(Canada)
Brake system warning
light ( →P. 615)Low fuel level warning
light (→P. 616)
*1
(U.S.A.)
Malfunction indicator
lamp ( →P. 615)*2, 3, 4
(if equipped)
Intuitive parking assist
indicator ( →P. 616)
*1
(Canada)
Malfunction indicator
lamp ( →P. 615)*4Rear passengers’ seat
belt reminder lights
(→P. 616)
*1SRS warning light
(→P. 615)*1Master warning light
(→P. 625)
*1
(U.S.A.)
ABS warning light
(→P. 615)*1, 2
(if equipped)
PCS warning light
(→P. 617)
*1
(Canada)
ABS warning light
(→P. 615)
(amber)
(if equipped)
LDA warning light
(→P. 617)
*1Electric power steering
system warning light
(→P. 616)*1
(if equipped)
Tire pressure warning
light ( →P. 618)
*1
Slip indicator ( →P. 616)

80
RAV4_OM_OM0R005U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without smart key system) or IGNITION ON mode (vehicles with
smart key system), to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn off.
Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate that the intuitive parking assist sensor is dirtyor covered with ice.
*4: This light illuminates on the center panel.
