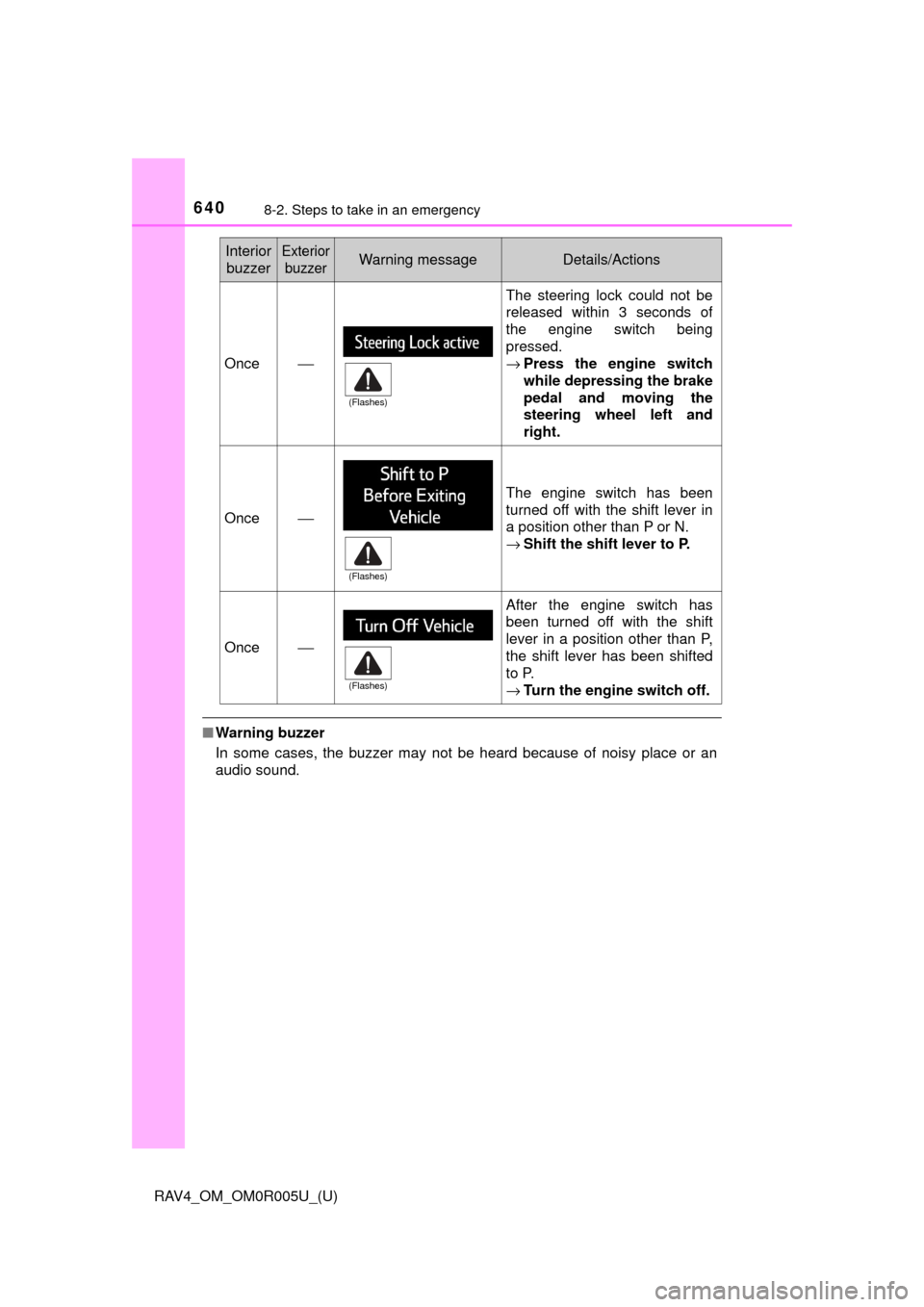

■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Once⎯
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
→ Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once⎯
The engine switch has been
turned off with the shift lever in
a position other than P or N.
→Shift the shift lever to P.
Once⎯
After the engine switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
→Turn the engine switch off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

641
RAV4_OM_OM0R005U_(U)
8-2. Steps to take in an emergency
8
When trouble arises
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( →P. 604)
● For vehicles with power back door: Turn off the power back door
system. ( →P. 1 1 7 )
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 5 6 5
WARNING
■
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short dist ance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

6428-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)
*: It may be placed together with the jack.

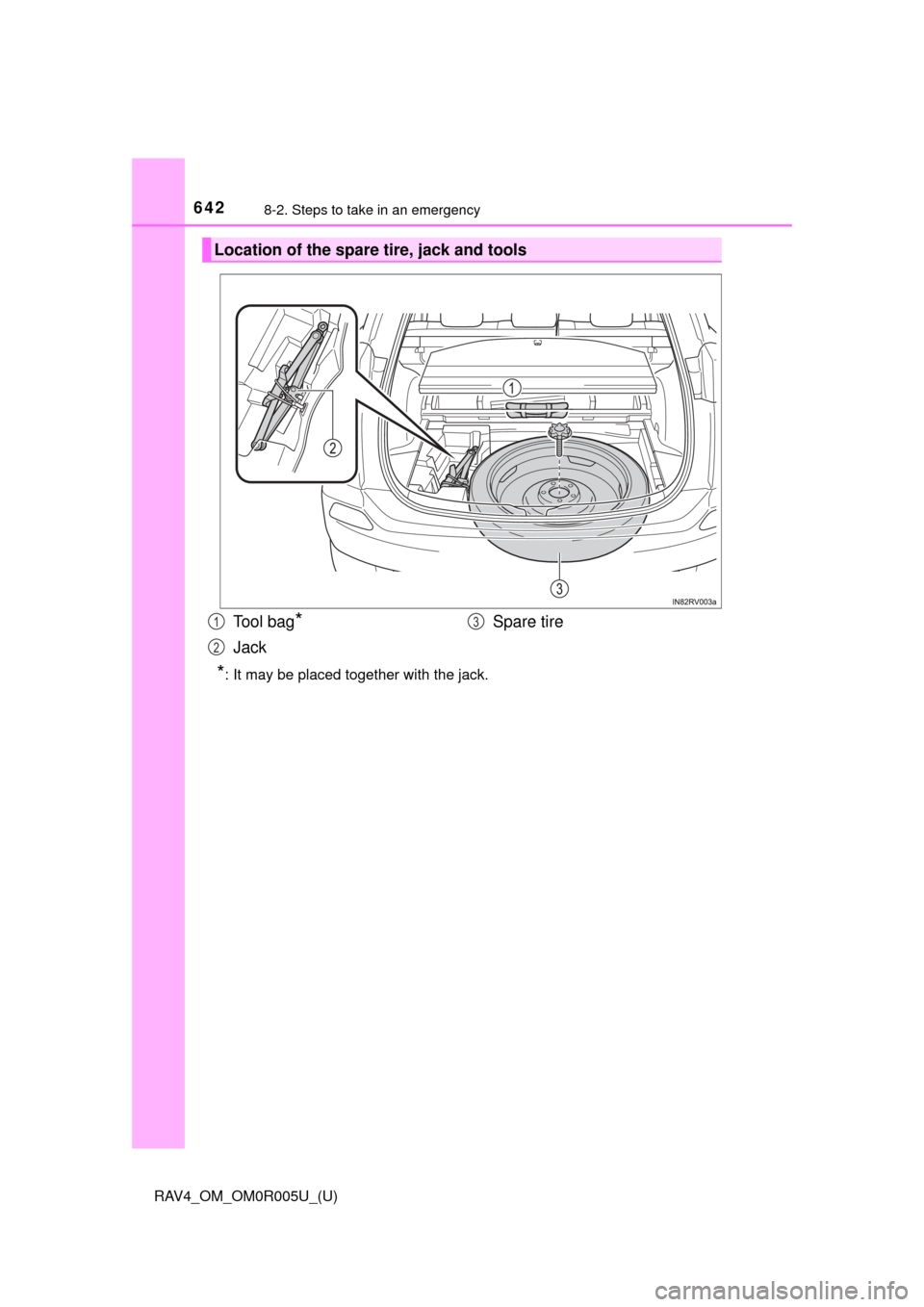

Location of the spare tire, jack and tools
Tool bag*
JackSpare tire
1
2
3

6438-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)
8
When trouble arises
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the engine or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Stop the vehicle on firm, flat and level ground, firmly set the parking
brake and shift the shift lever to P. Block the wheel diagonally opposite
to the one being changed if necessary.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.

6448-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)

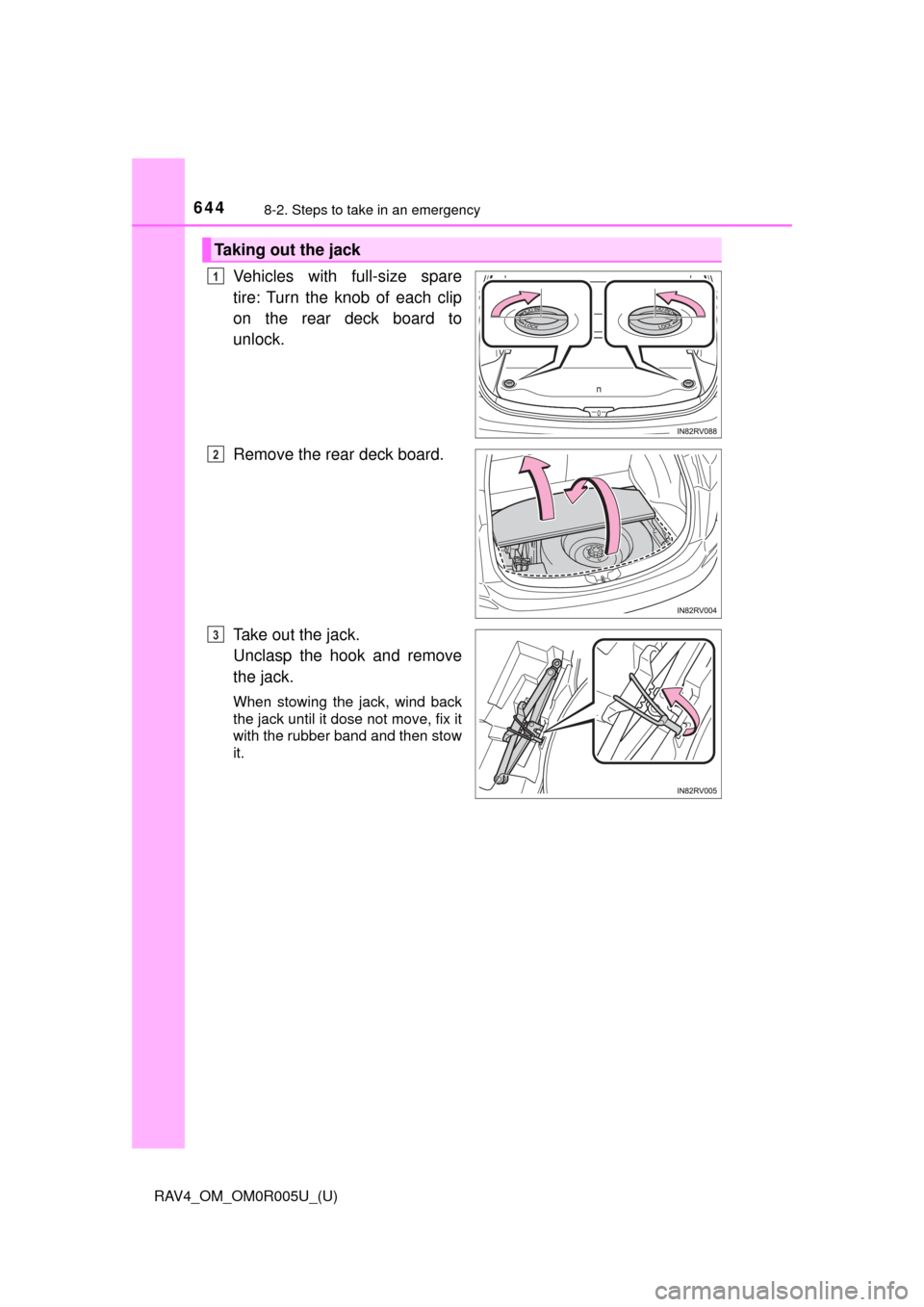

Vehicles with full-size spare
tire: Turn the knob of each clip
on the rear deck board to
unlock.
Remove the rear deck board.
Take out the jack.
Unclasp the hook and remove
the jack.
When stowing the jack, wind back
the jack until it dose not move, fix it
with the rubber band and then stow
it.
Taking out the jack
1
2
3

6458-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)
8
When trouble arises

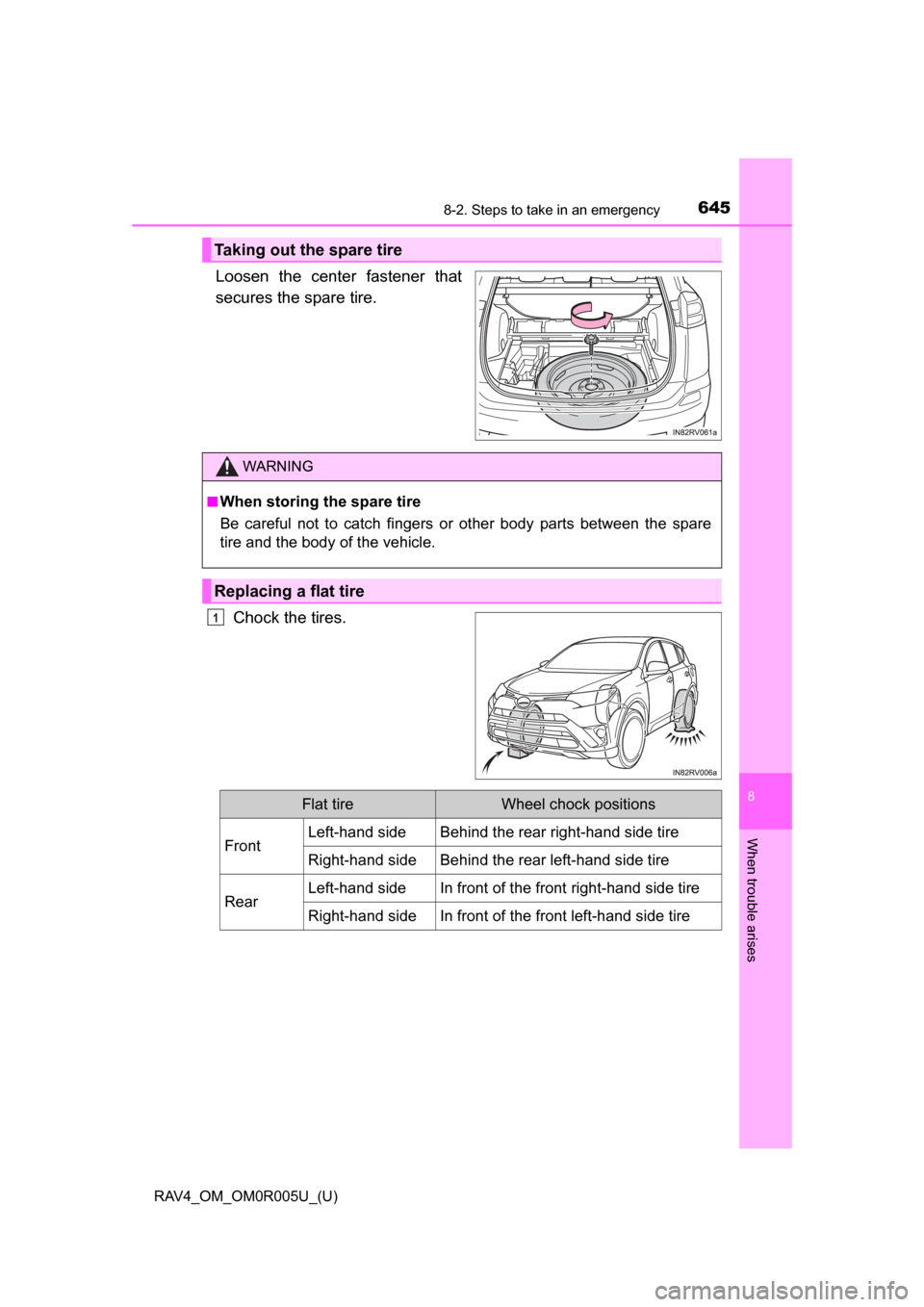

Loosen the center fastener that
secures the spare tire.Chock the tires.
Taking out the spare tire
WARNING
■
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare
tire and the body of the vehicle.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire

6468-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.

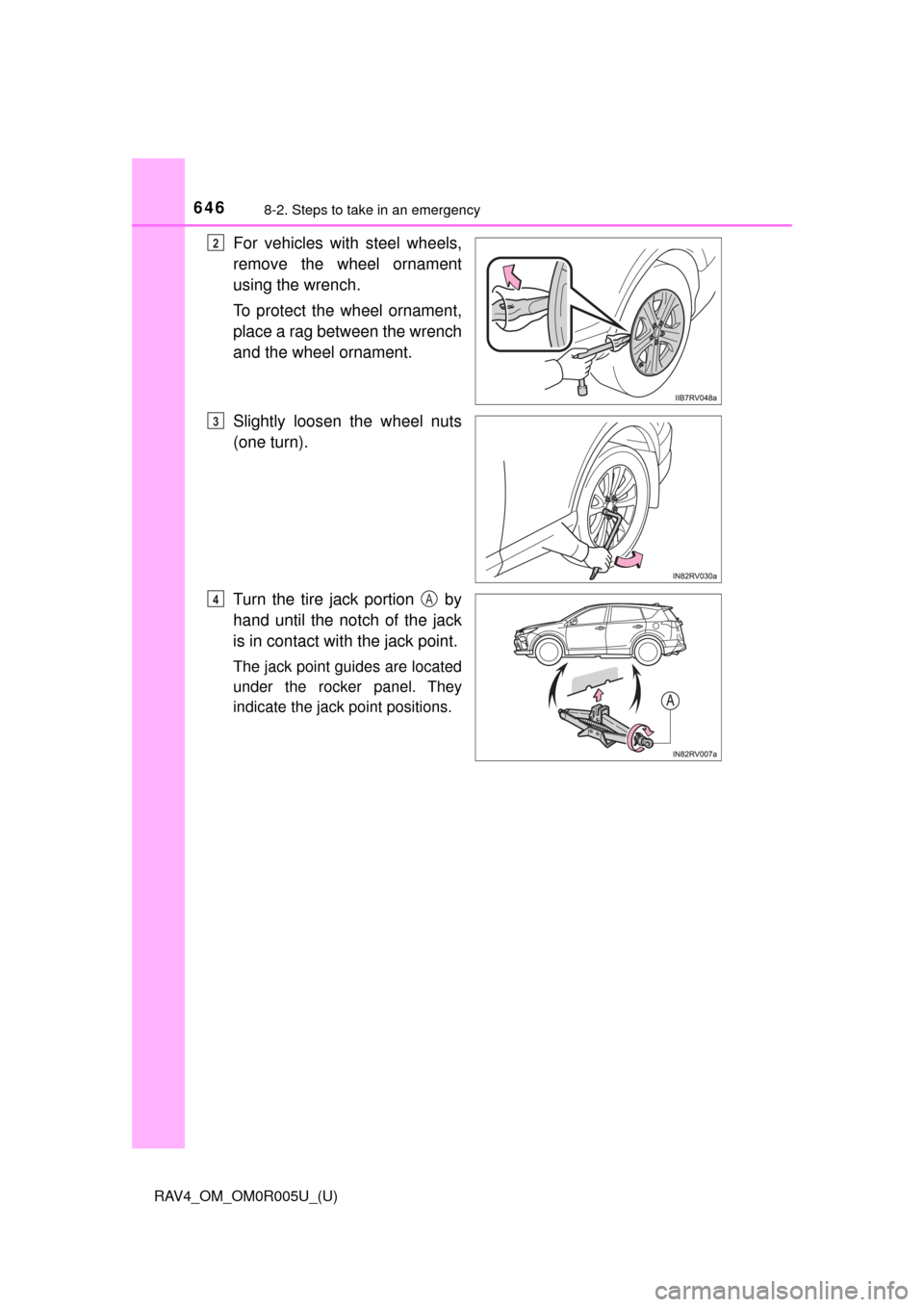

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
2
3
4A

6478-2. Steps to take in an emergency
RAV4_OM_OM0R005U_(U)
8
When trouble arises

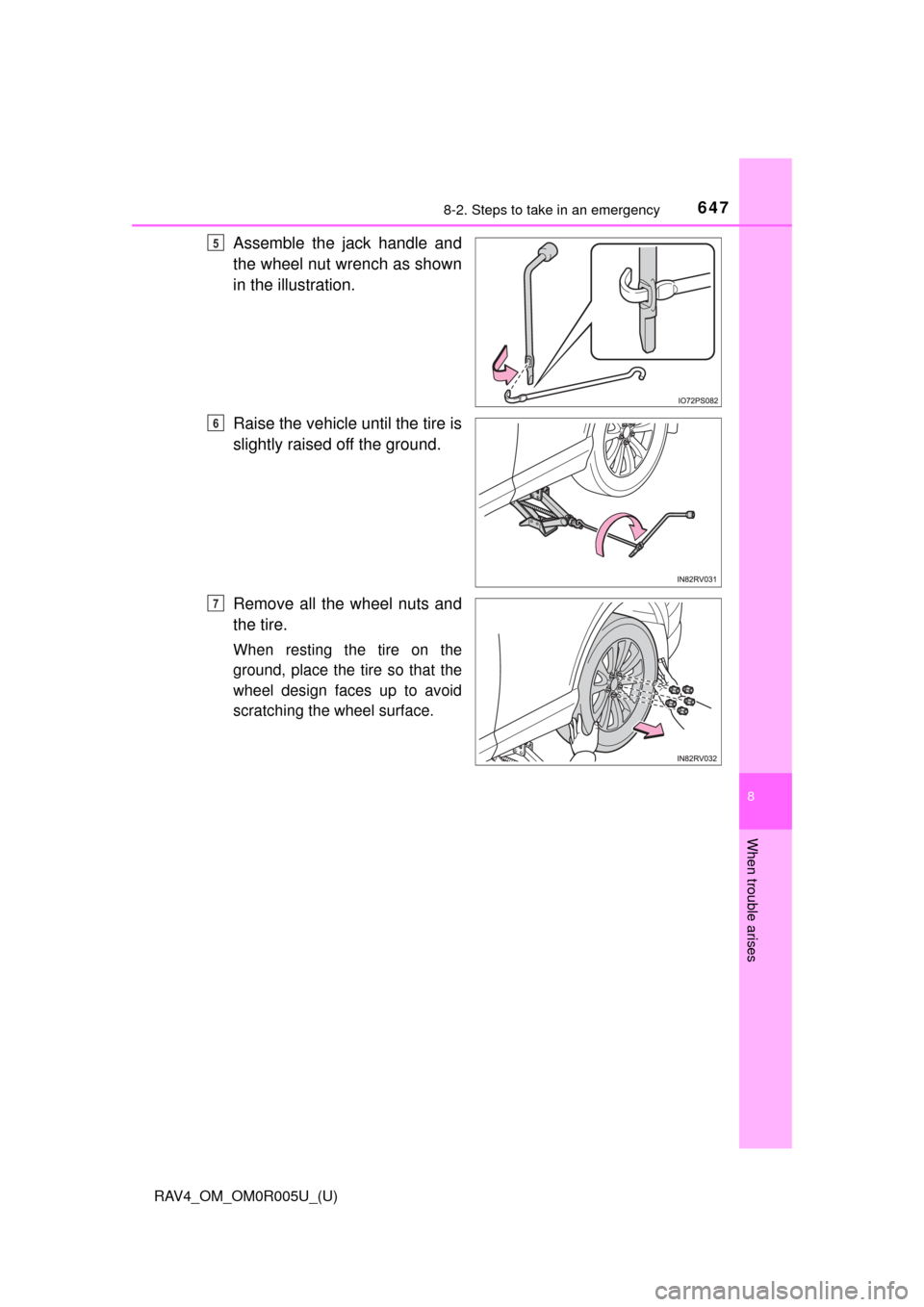

Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
5
6
7
