2017 TOYOTA RAV4 HYBRID Owners Manual

5698-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
Air conditioning, heater and other operations are
temporarily limited due to high power consump-
tion
→Turn off unnecessary electronic equipment
to reduce power consumption.
Please wait until the power supply returns
to normal.
If this item is frequently displayed, have the
vehicle inspected at your Toyota dealer
immediately.
Indicates that the EV drive mode is not avail-
able
*3
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Use the EV drive mode when it becomes
available.
Warning messageDetails/Actions

5708-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
*1: Displays for about 6 seconds
*2: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*3: For the EV drive mode operating conditions ( →P. 203).
Indicates that the EV drive mode has been auto-
matically canceled
*3
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode operating speed range,
accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
Warning messageDetails/Actions
(Flashes)

5718-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
InteriorbuzzerExterior buzzerWarning messageDetails/Actions
Once ⎯ The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
→
Start the hybrid system
with the electronic key
present.
Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
→Bring the electronic key
back into the vehicle.
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P and the
power switch was not turned
off.
→Turn the power switch off
or bring the electronic key
back into the vehicle.
Once
Contin-
uous
(5 sec-
onds)
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch off
when the shift lever was in P.
→Turn the power switch off
and lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

5728-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
9
times⎯
An attempt was made to drive
when the regular key was not
inside the vehicle.
→Confirm that the elec-
tronic key is inside the
vehicle.
Con-
tinu-
ous
⎯
The driver’s door was opened
when the shift lever was not in
P and the power switch was not
turned off.
→Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
power switch was not turned
off.
→Shift the shift lever to P.
→ Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(5 sec-
onds)
An attempt was made to lock
the doors using the Smart key
system while the electronic key
was still inside the vehicle.
→Retrieve the electronic key
from the vehicle and lock
the doors again.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

5738-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
Once
Contin-
uous
(5 sec-
onds)

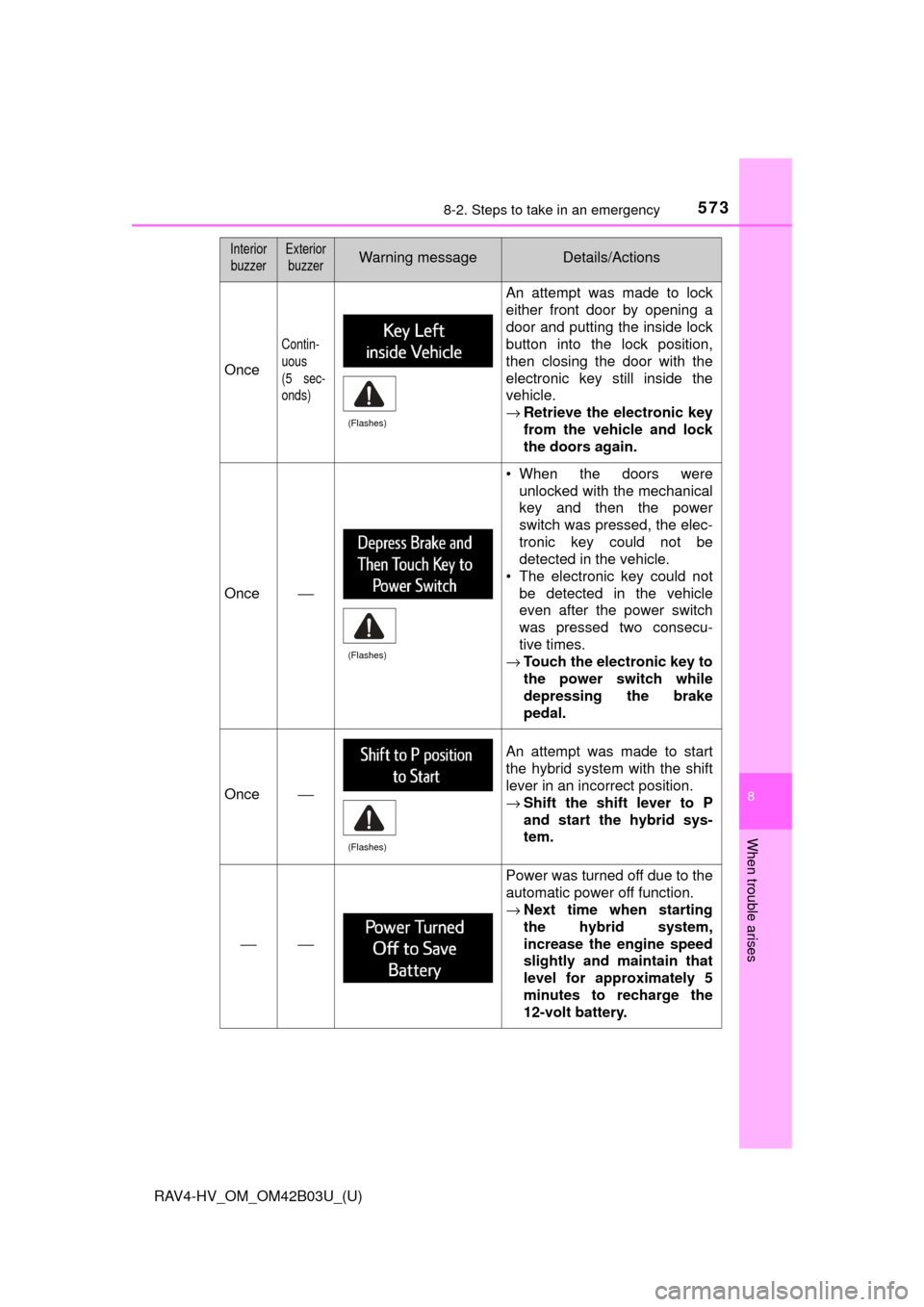

An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door with the
electronic key still inside the
vehicle.
→Retrieve the electronic key
from the vehicle and lock
the doors again.
Once⎯
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
→ Touch the electronic key to
the power switch while
depressing the brake
pedal.
Once⎯
An attempt was made to start
the hybrid system with the shift
lever in an incorrect position.
→Shift the shift lever to P
and start the hybrid sys-
tem.
⎯⎯
Power was turned off due to the
automatic power off function.
→Next time when starting
the hybrid system,
increase the engine speed
slightly and maintain that
level for approximately 5
minutes to recharge the
12-volt battery.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5748-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)

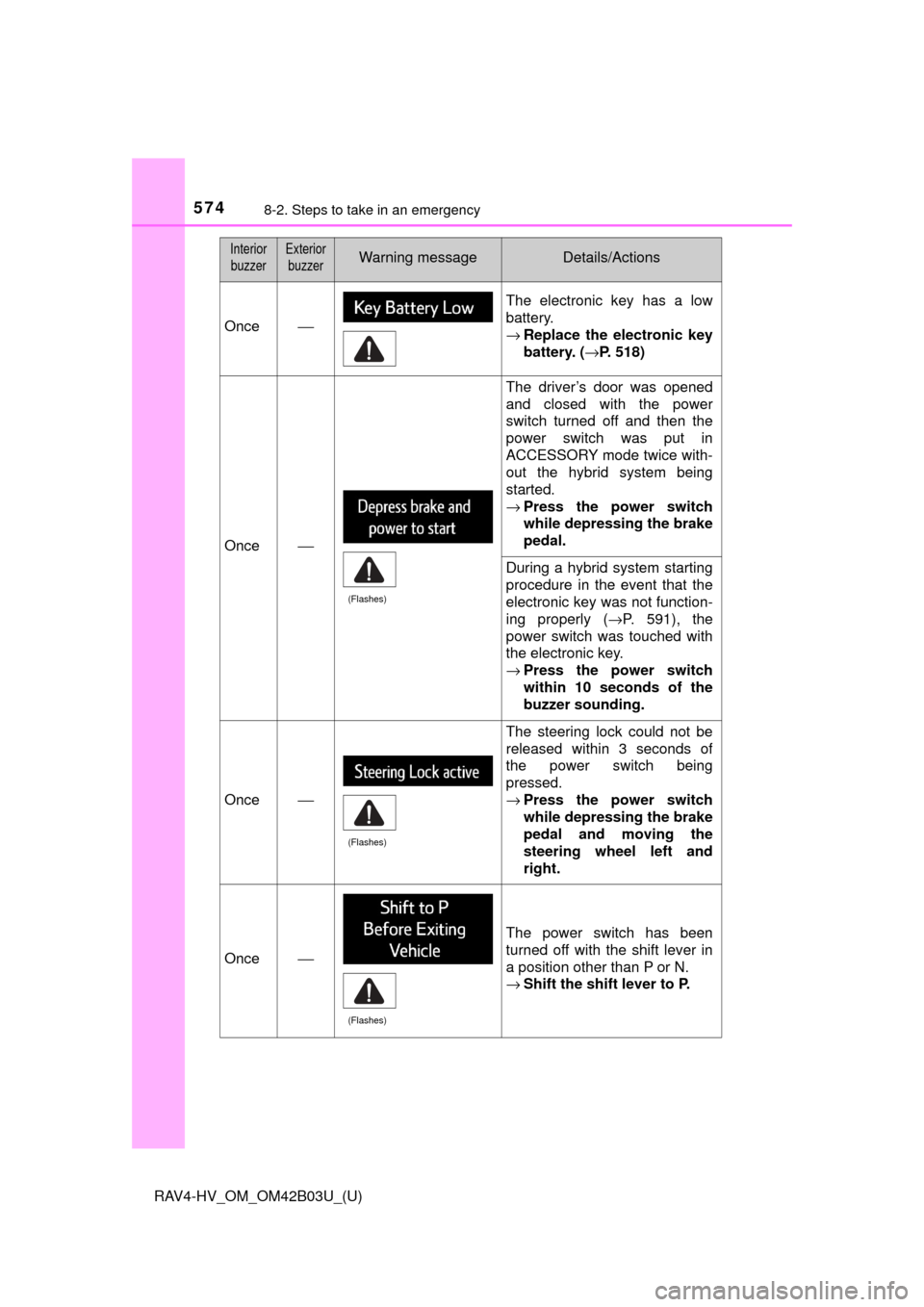

Once⎯
The electronic key has a low
battery.
→Replace the electronic key
battery. ( →P. 518)
Once⎯
The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
→Press the power switch
while depressing the brake
pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly ( →P. 591), the
power switch was touched with
the electronic key.
→ Press the power switch
within 10 seconds of the
buzzer sounding.
Once⎯
The steering lock could not be
released within 3 seconds of
the power switch being
pressed.
→Press the power switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once⎯
The power switch has been
turned off with the shift lever in
a position other than P or N.
→Shift the shift lever to P.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5758-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Once⎯
After the power switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
→ Turn the power switch off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)

576
RAV4-HV_OM_OM42B03U_(U)
8-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. ( →P. 538)
● For vehicles with power back door: Turn off the power back door
system. ( →P. 123)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 5 0 1
WARNING
■
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short dist ance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
