2017 TOYOTA LAND CRUISER Owners Manual

LC200_OM_OM60P24U_(U)
4896-3. Do-it-yourself maintenance
6
Maintenance and care

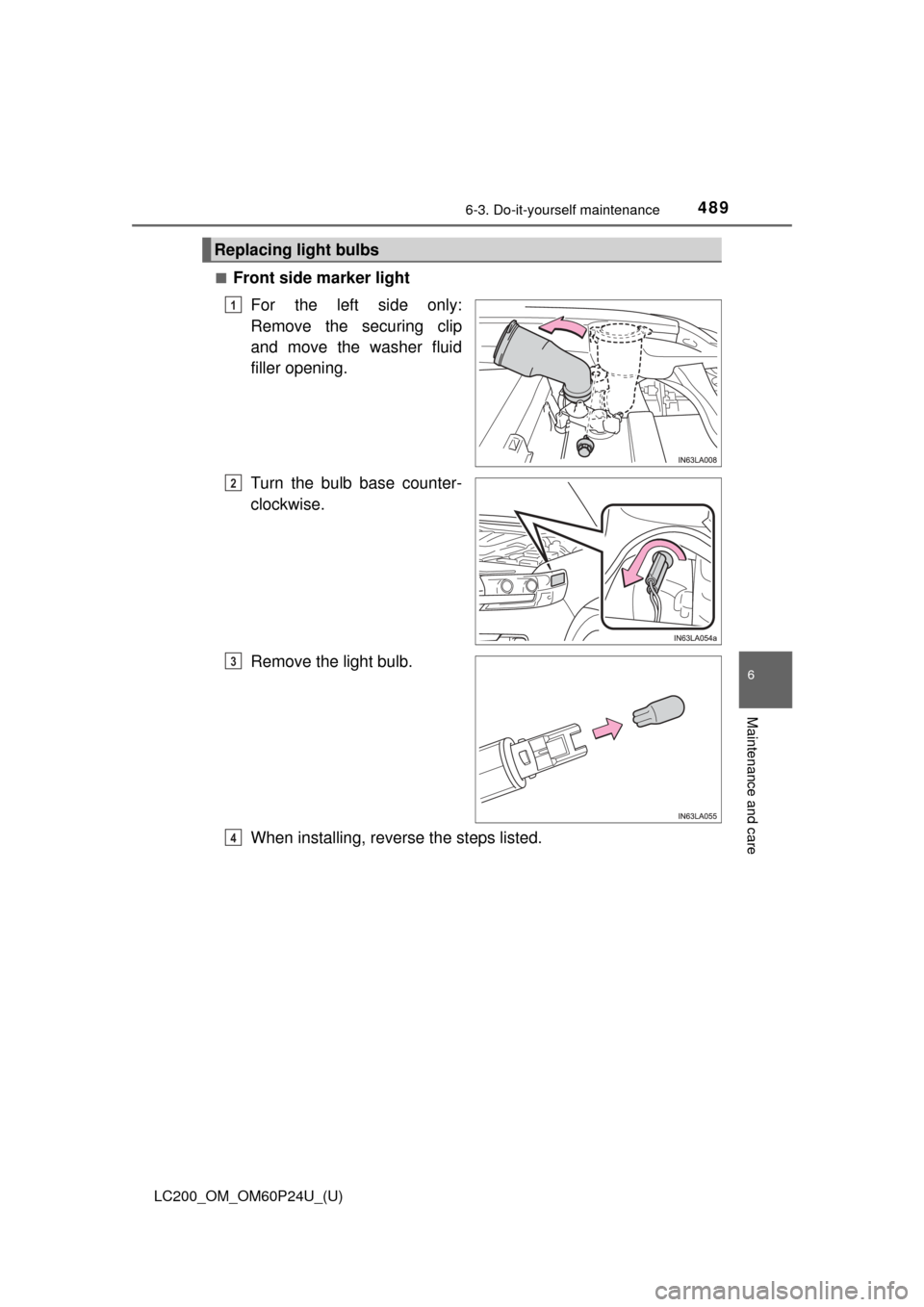

■Front side marker lightFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
Replacing light bulbs
1
2
3
4

490
LC200_OM_OM60P24U_(U)
6-3. Do-it-yourself maintenance
■Front turn signal lightsFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
To allow enough working
space, remove the bulb base
of the front side marker light.
Wrap the removed bulb base
with cloth to prevent damage to
the bulb base.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4

LC200_OM_OM60P24U_(U)
4916-3. Do-it-yourself maintenance
6
Maintenance and care

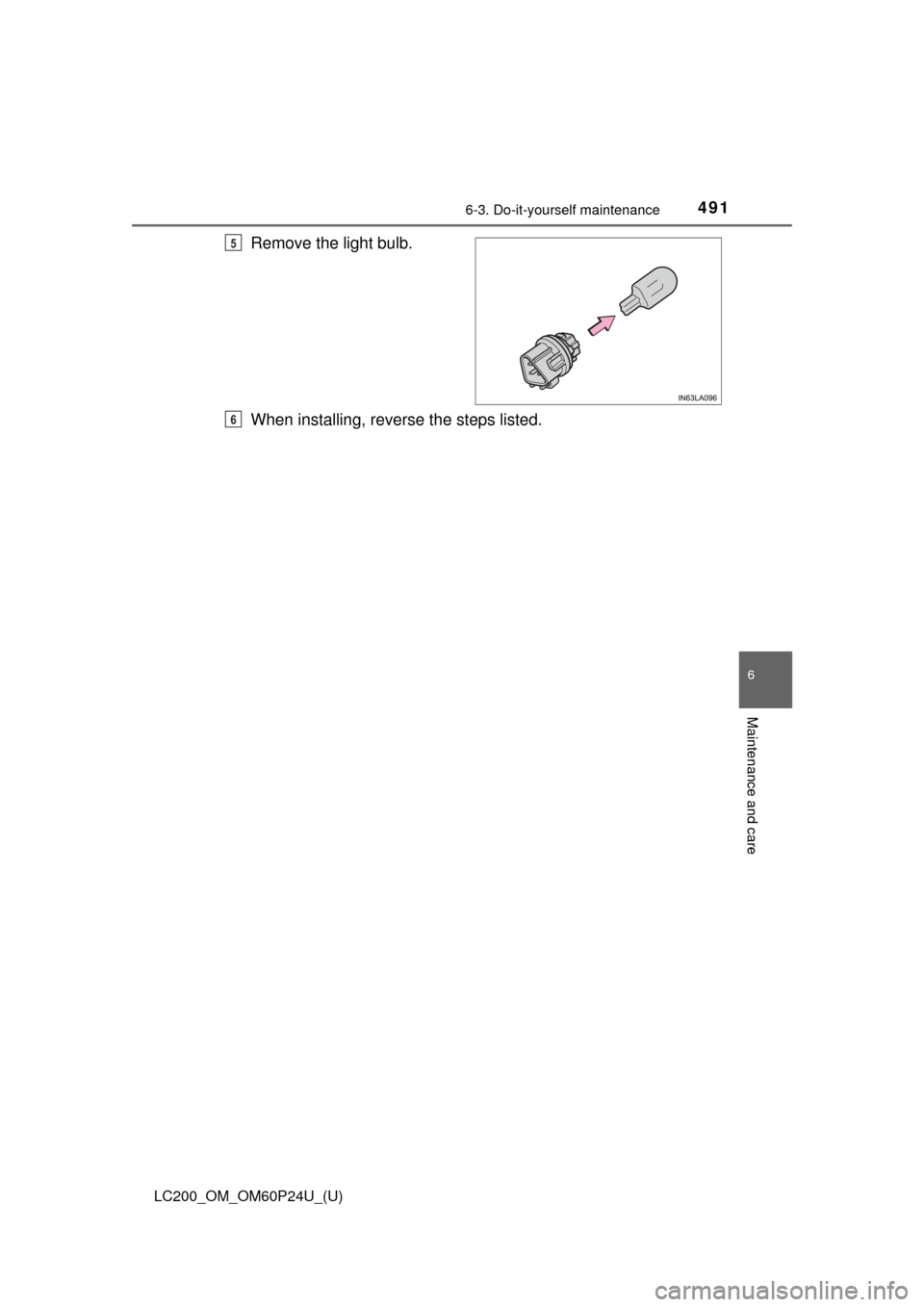

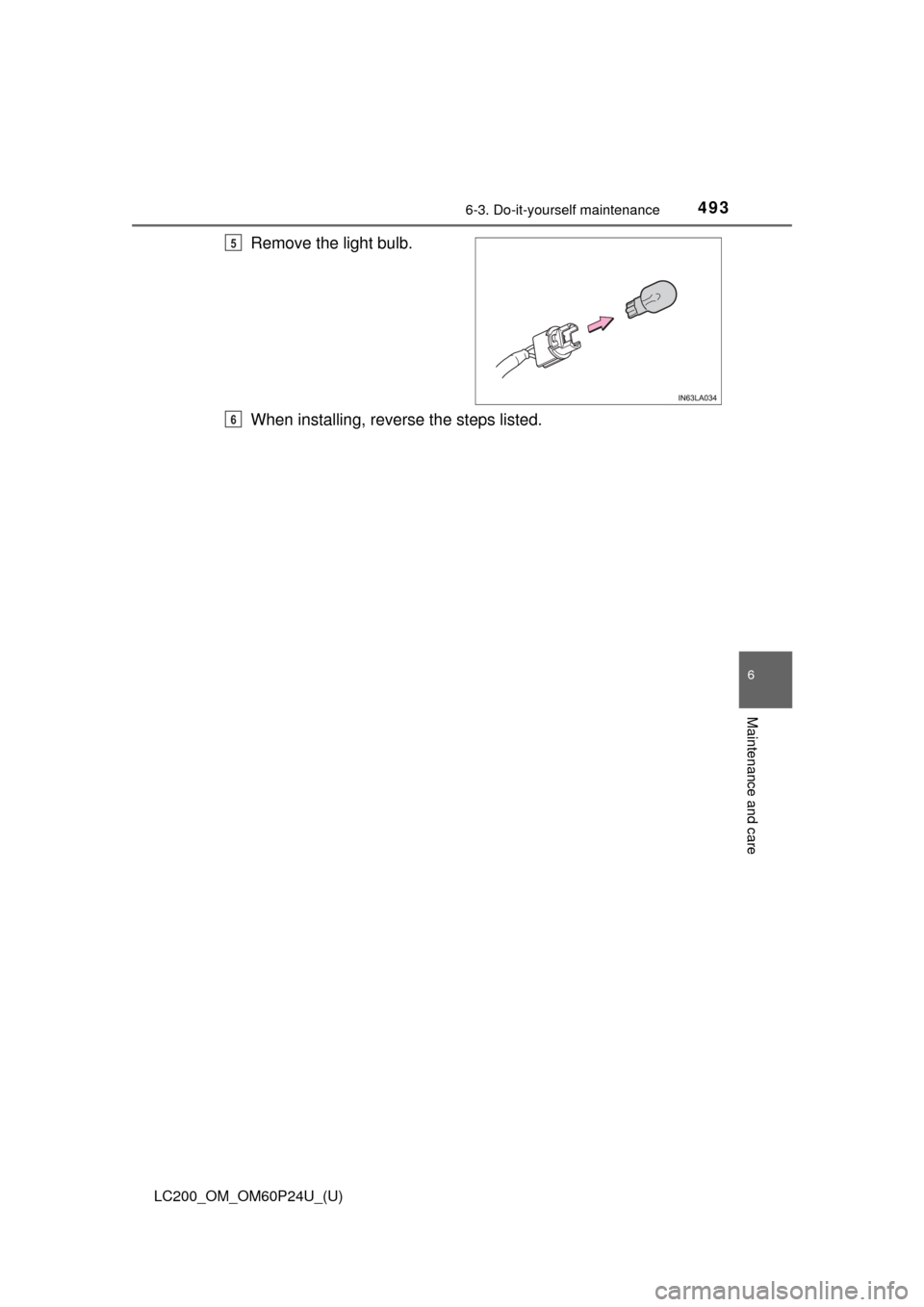

Remove the light bulb.
When installing, reverse the steps listed.5
6

492
LC200_OM_OM60P24U_(U)
6-3. Do-it-yourself maintenance

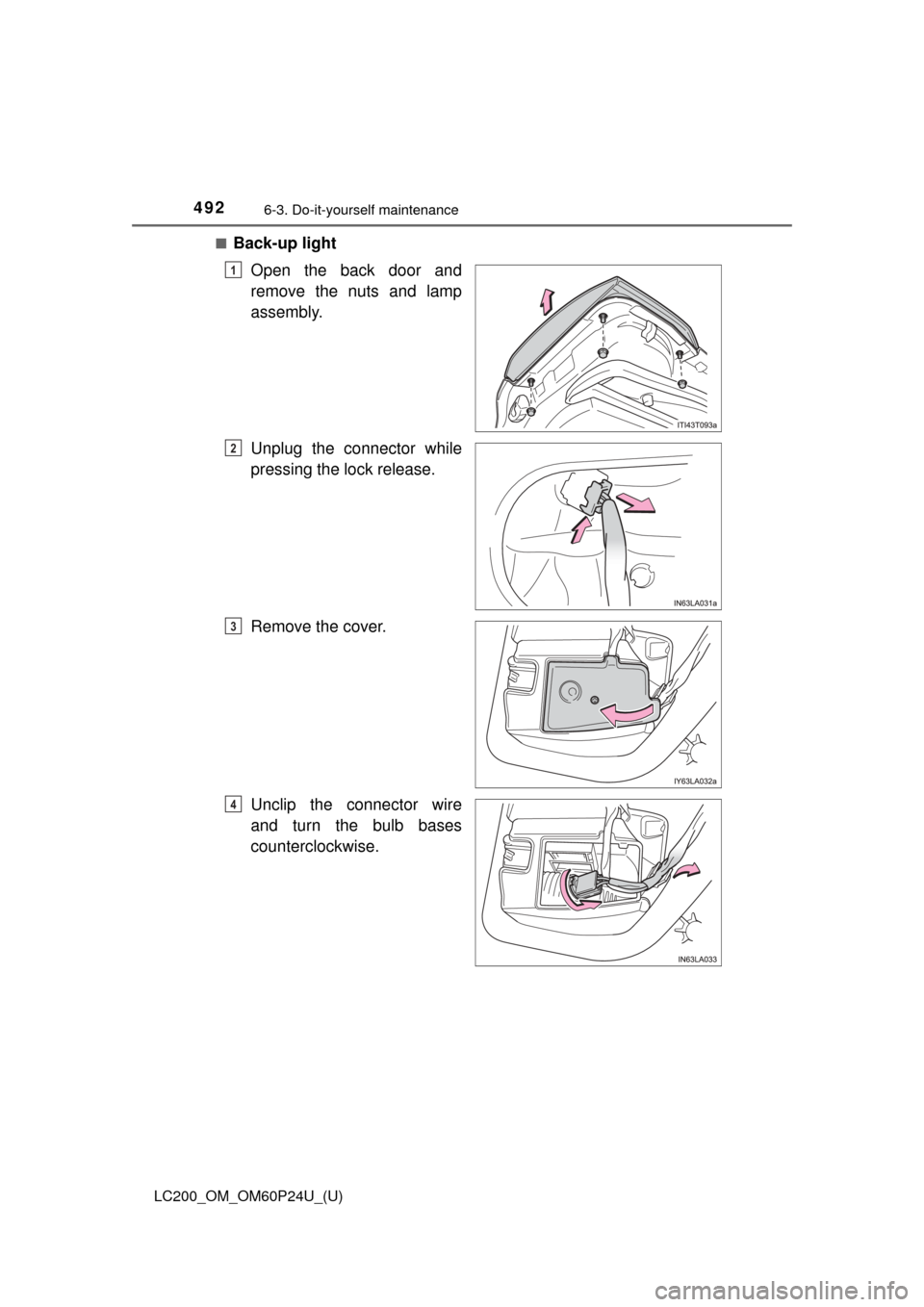

■Back-up lightOpen the back door and
remove the nuts and lamp
assembly.

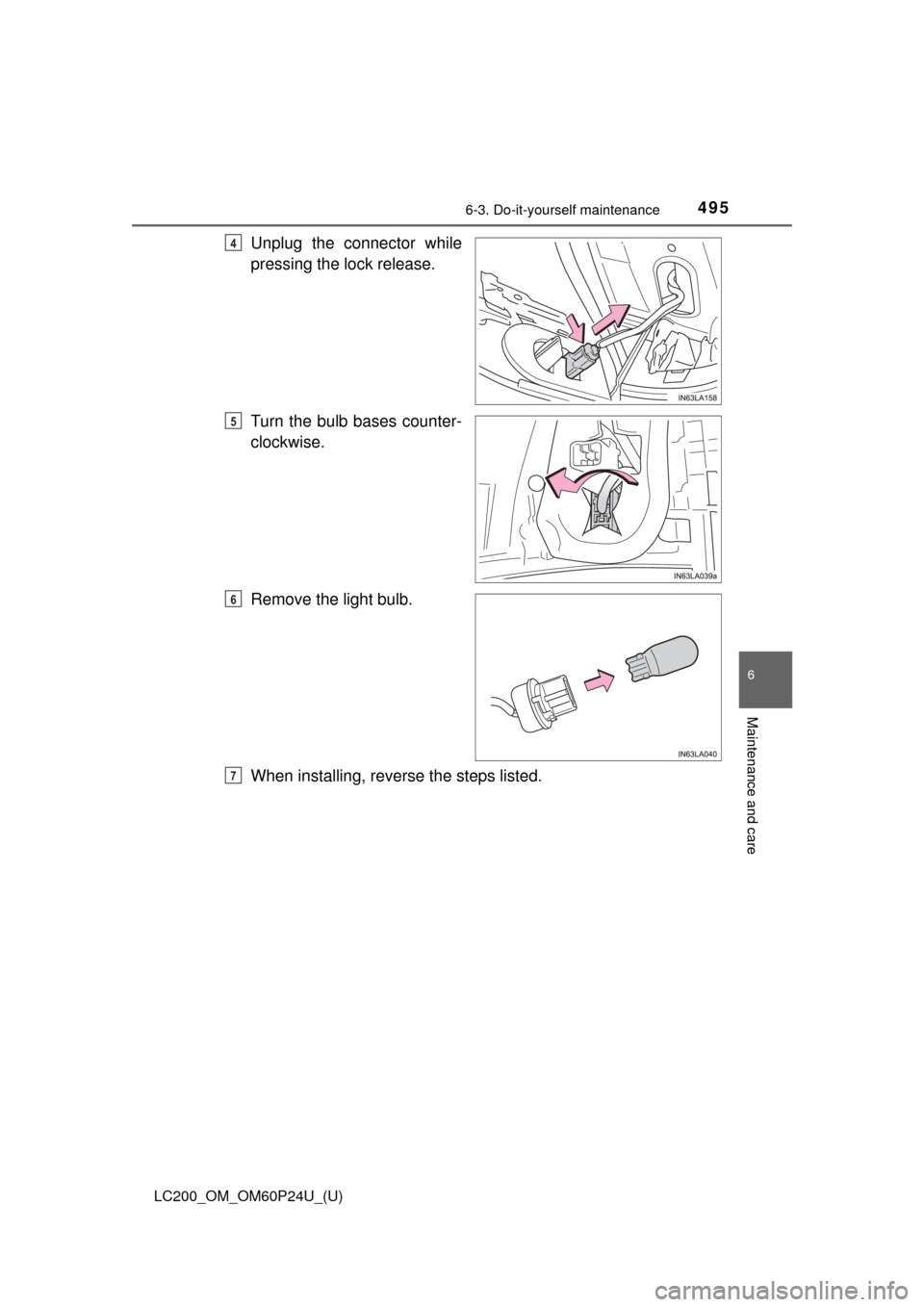

Unplug the connector while
pressing the lock release.
Remove the cover.
Unclip the connector wire
and turn the bulb bases
counterclockwise.
1
2
3
4

LC200_OM_OM60P24U_(U)
4936-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6

494
LC200_OM_OM60P24U_(U)
6-3. Do-it-yourself maintenance

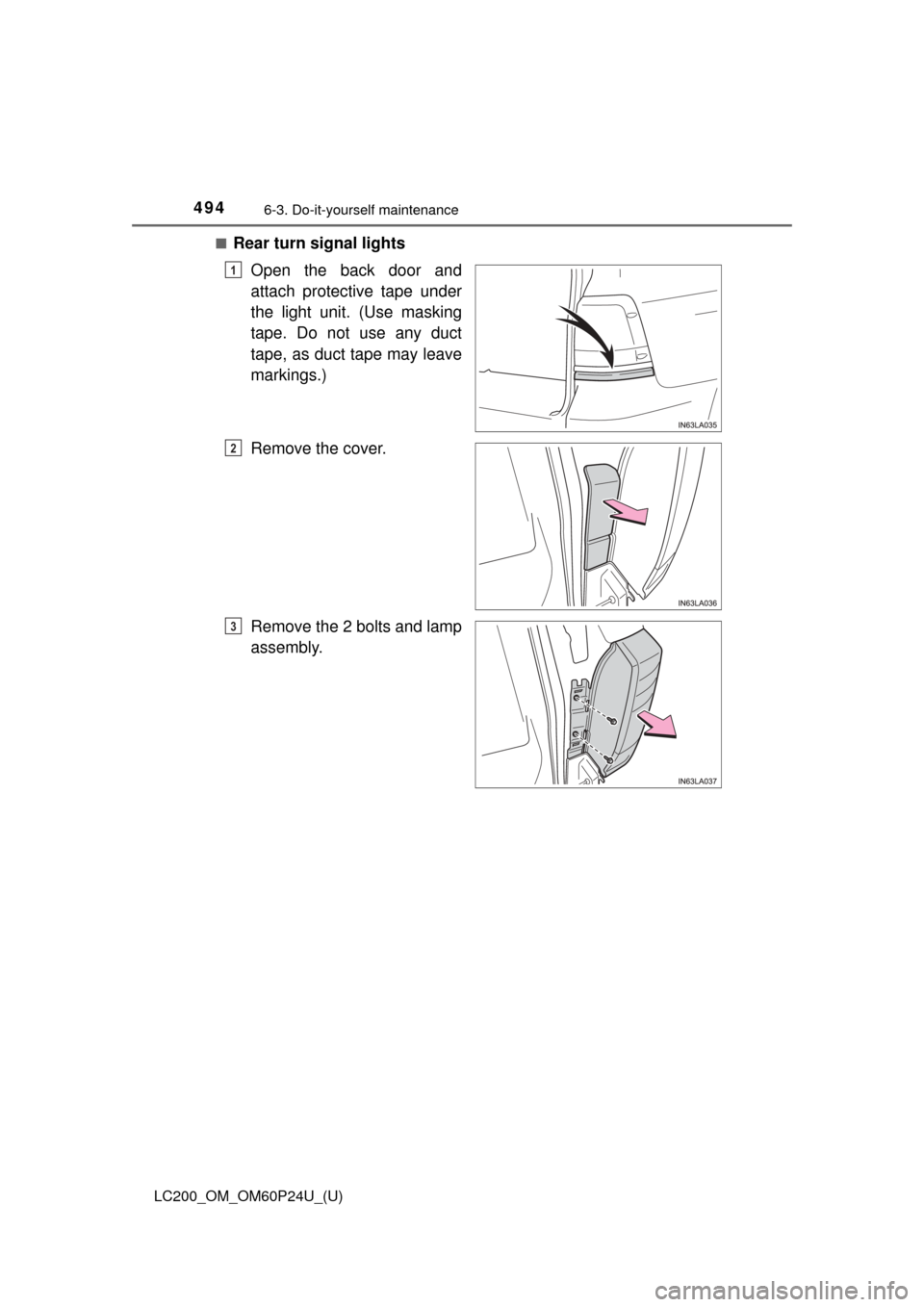

■Rear turn signal lightsOpen the back door and
attach protective tape under
the light unit. (Use masking
tape. Do not use any duct
tape, as duct tape may leave
markings.)
Remove the cover.
Remove the 2 bolts and lamp
assembly.
1
2
3

LC200_OM_OM60P24U_(U)
4956-3. Do-it-yourself maintenance
6
Maintenance and care
Unplug the connector while
pressing the lock release.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6
7

496
LC200_OM_OM60P24U_(U)
6-3. Do-it-yourself maintenance

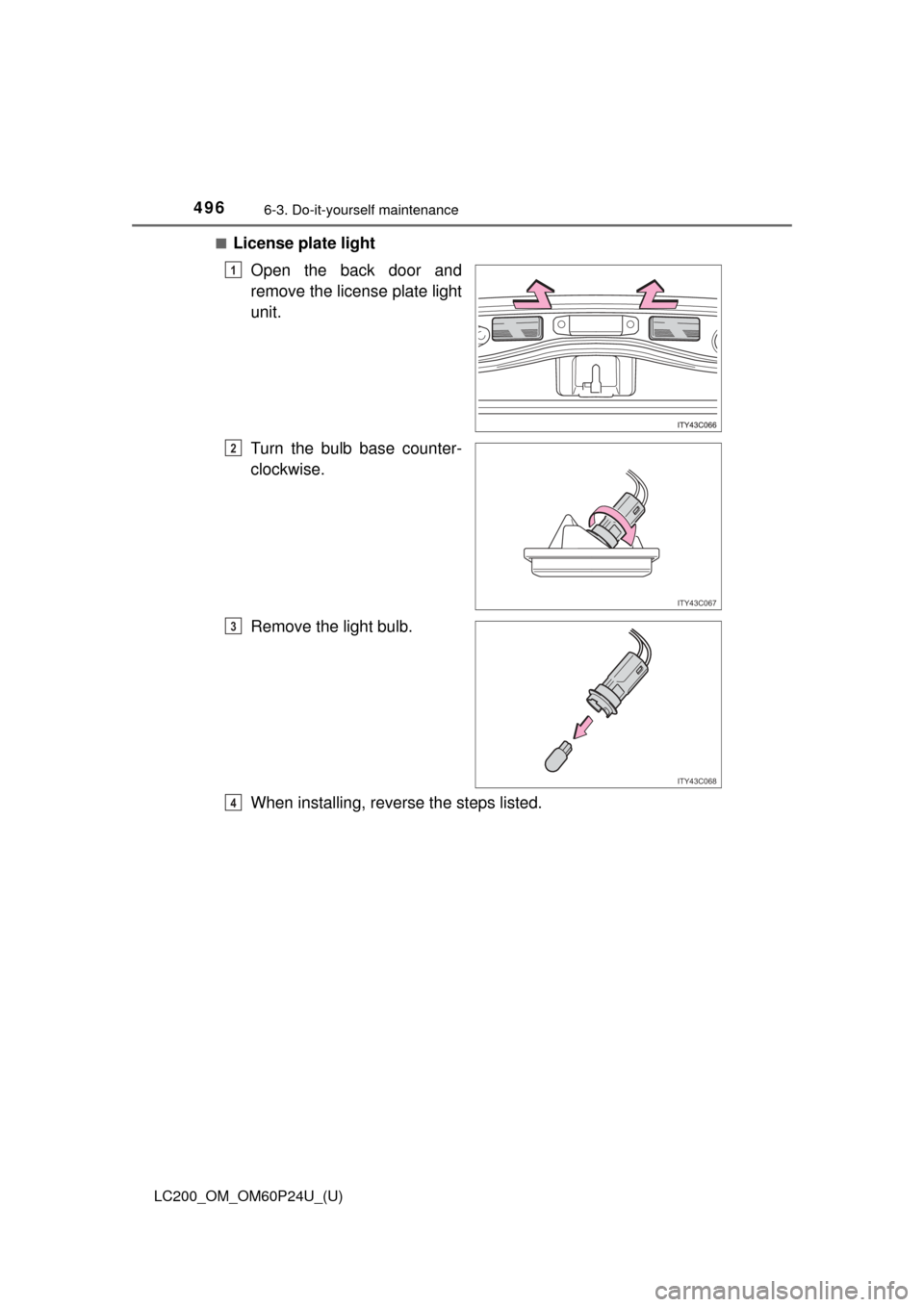

■License plate lightOpen the back door and
remove the license plate light
unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
ITY43C067
2
ITY43C068
3
4
