2017 NISSAN ROGUE HYBRID Dismantling Guide

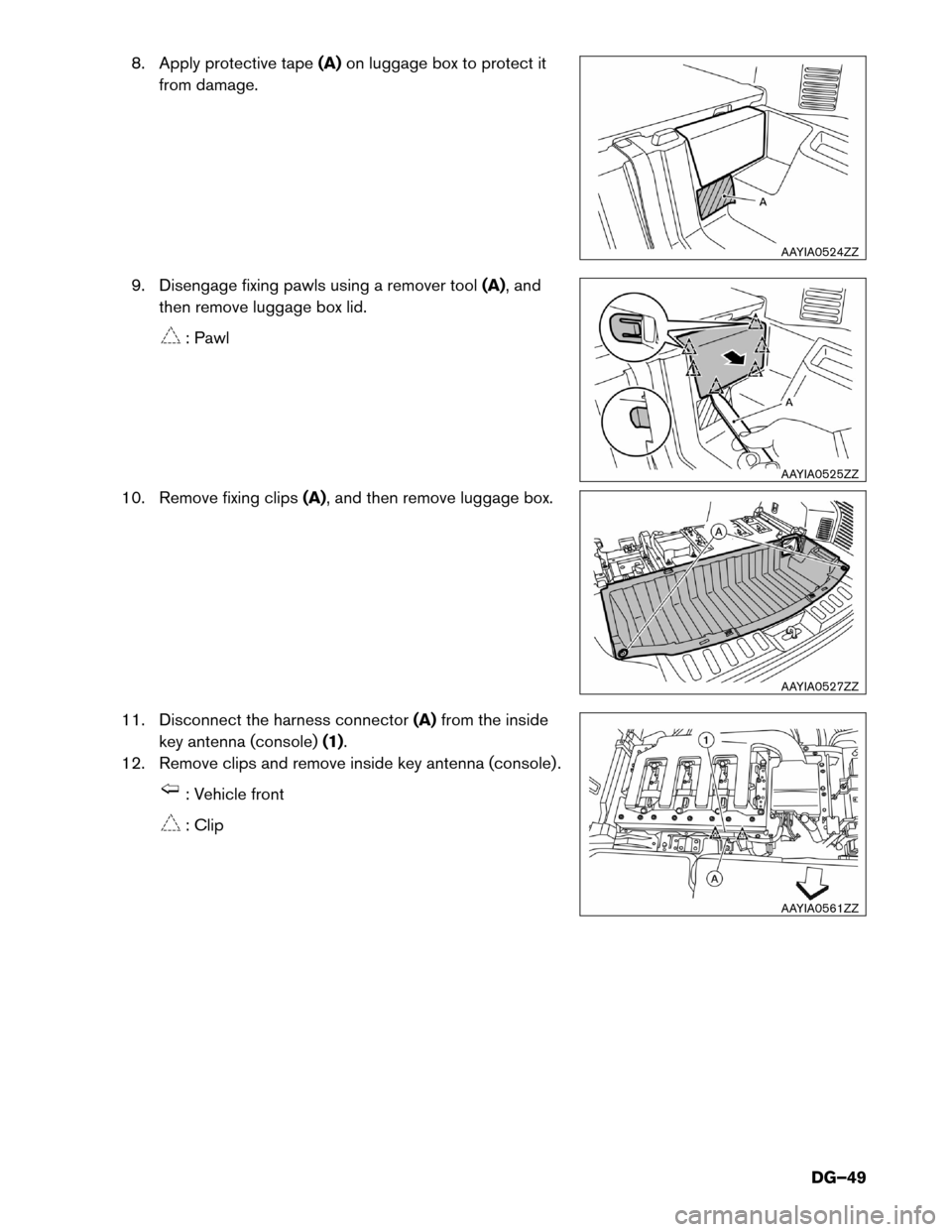

8. Apply protective tape
(A)on luggage box to protect it
from damage.
9. Disengage fixing pawls using a remover tool (A), and
then remove luggage box lid. : Pawl
10.

Remove fixing clips (A), and then remove luggage box.
11. Disconnect the harness connector (A)from the inside
key antenna (console) (1).
12. Remove clips and remove inside key antenna (console) . : Vehicle front
: Clip AAYIA0524ZZ
AAYIA0525ZZ
AAYIA0527ZZ
AAYIA0561ZZ
DG–49

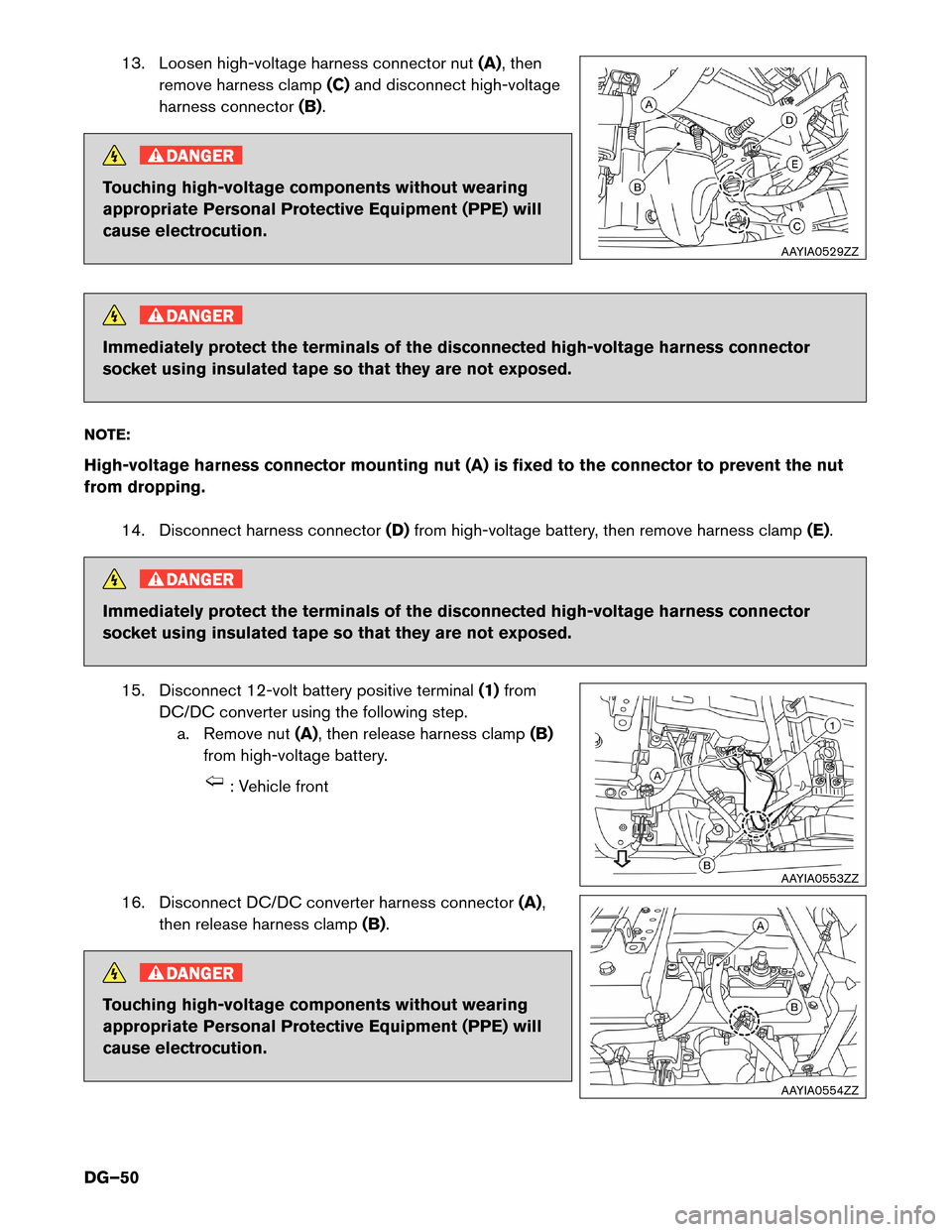

13. Loosen high-voltage harness connector nut
(A), then
remove harness clamp (C)and disconnect high-voltage
harness connector (B). DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. DANGER
Immediately protect the terminals of the disconnected high-voltage harness connector
socket

using insulated tape so that they are not exposed.
NOTE:
High-voltage harness connector mounting nut (A) is fixed to the connector to prevent the nut
from dropping. 14. Disconnect harness connector (D)from high-voltage battery, then remove harness clamp (E).DANGER
Immediately protect the terminals of the disconnected high-voltage harness connector
socket

using insulated tape so that they are not exposed.
15. Disconnect 12-volt battery positive terminal (1)from
DC/DC converter using the following step. a. Remove nut (A), then release harness clamp (B)
from high-voltage battery. : Vehicle front
16.

Disconnect DC/DC converter harness connector (A),
then release harness clamp (B).DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. AAYIA0529ZZ
AAYIA0553ZZ
AAYIA0554ZZ
DG–50

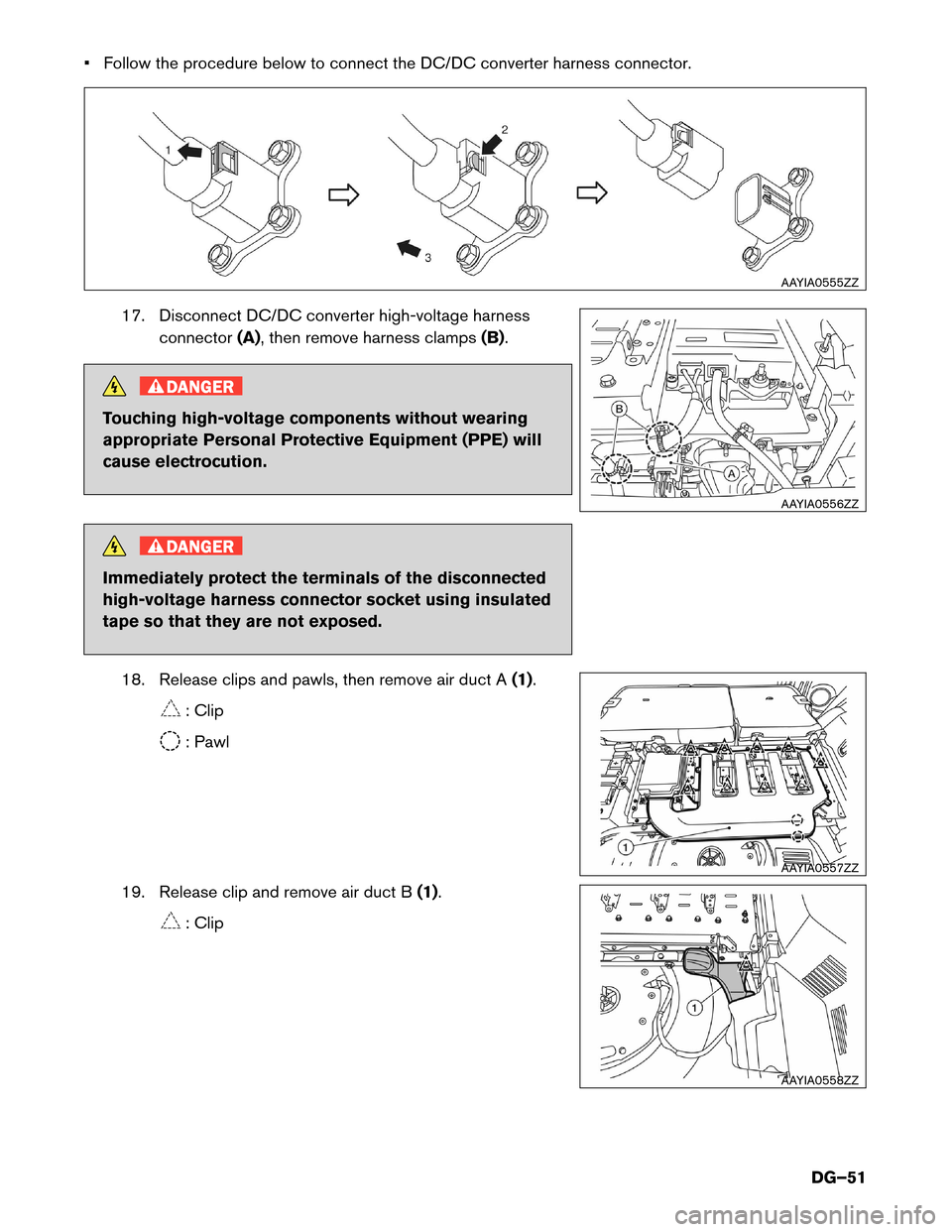

• Follow the procedure below to connect the DC/DC converter harness connector.
17. Disconnect DC/DC converter high-voltage harness
connector (A), then remove harness clamps (B).DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. DANGER
Immediately protect the terminals of the disconnected
high-voltage

harness connector socket using insulated
tape so that they are not exposed.
18. Release clips and pawls, then remove air duct A (1).: Clip
: Pawl
19.

Release clip and remove air duct B (1).: Clip AAYIA0555ZZ
AAYIA0556ZZ
AAYIA0557ZZ
AAYIA0558ZZ
DG–51

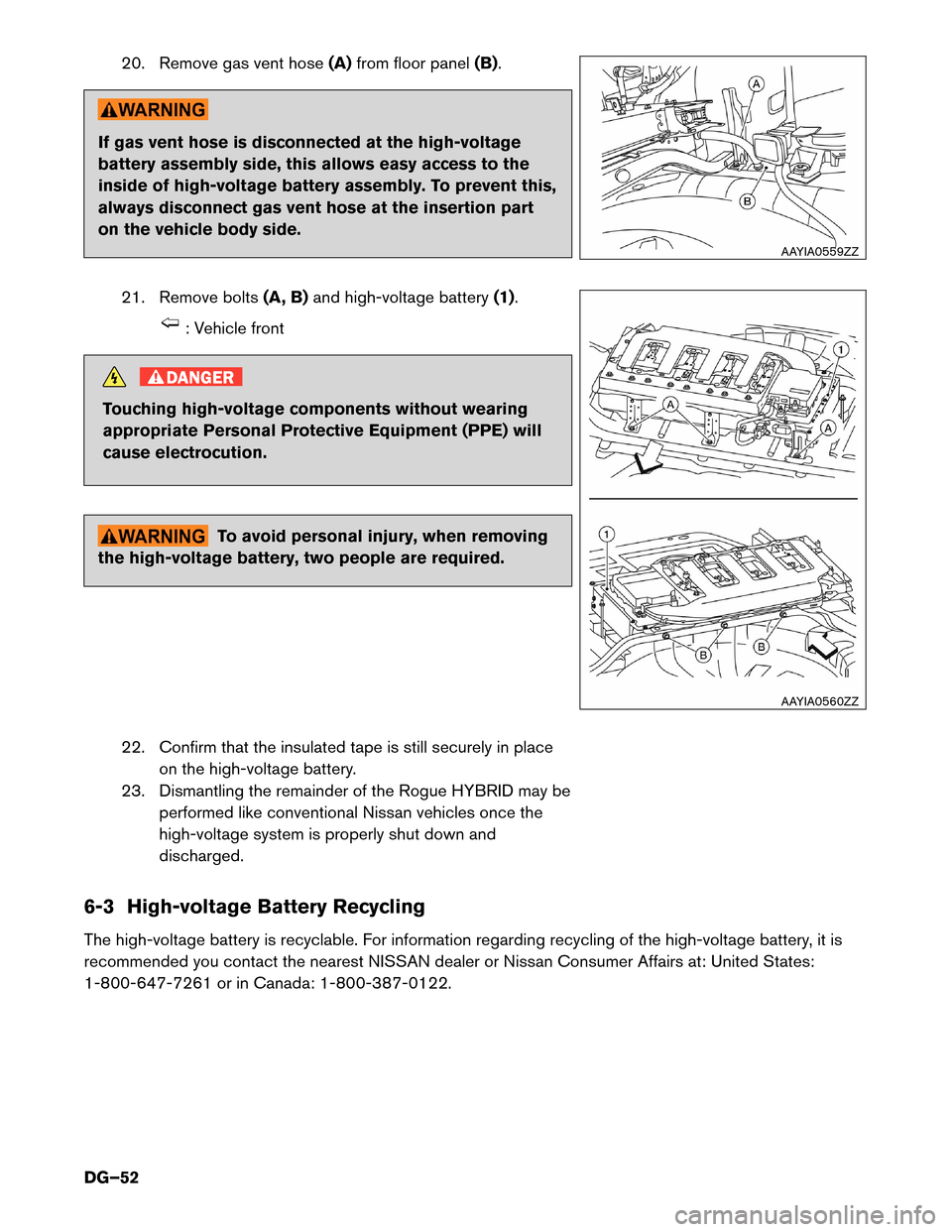

20. Remove gas vent hose
(A)from floor panel(B). If gas vent hose is disconnected at the high-voltage
battery

assembly side, this allows easy access to the
inside of high-voltage battery assembly. To prevent this,
always disconnect gas vent hose at the insertion part
on the vehicle body side.
21. Remove bolts (A, B)and high-voltage battery (1). : Vehicle front
DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. To avoid personal injury, when removing
the

high-voltage battery, two people are required.
22. Confirm that the insulated tape is still securely in place on the high-voltage battery.
23. Dismantling the remainder of the Rogue HYBRID may be performed like conventional Nissan vehicles once the
high-voltage system is properly shut down and
discharged.
6-3 High-voltage Battery Recycling
The high-voltage battery is recyclable. For information regarding recycling of the high-voltage battery, it is
recommended you contact the nearest NISSAN dealer or Nissan Consumer Affairs at: United States:
1-800-647-7261 or in Canada: 1-800-387-0122. AAYIA0559ZZ
AAYIA0560ZZ
DG–52
