2017 NISSAN ROGUE HYBRID Dismantling Guide

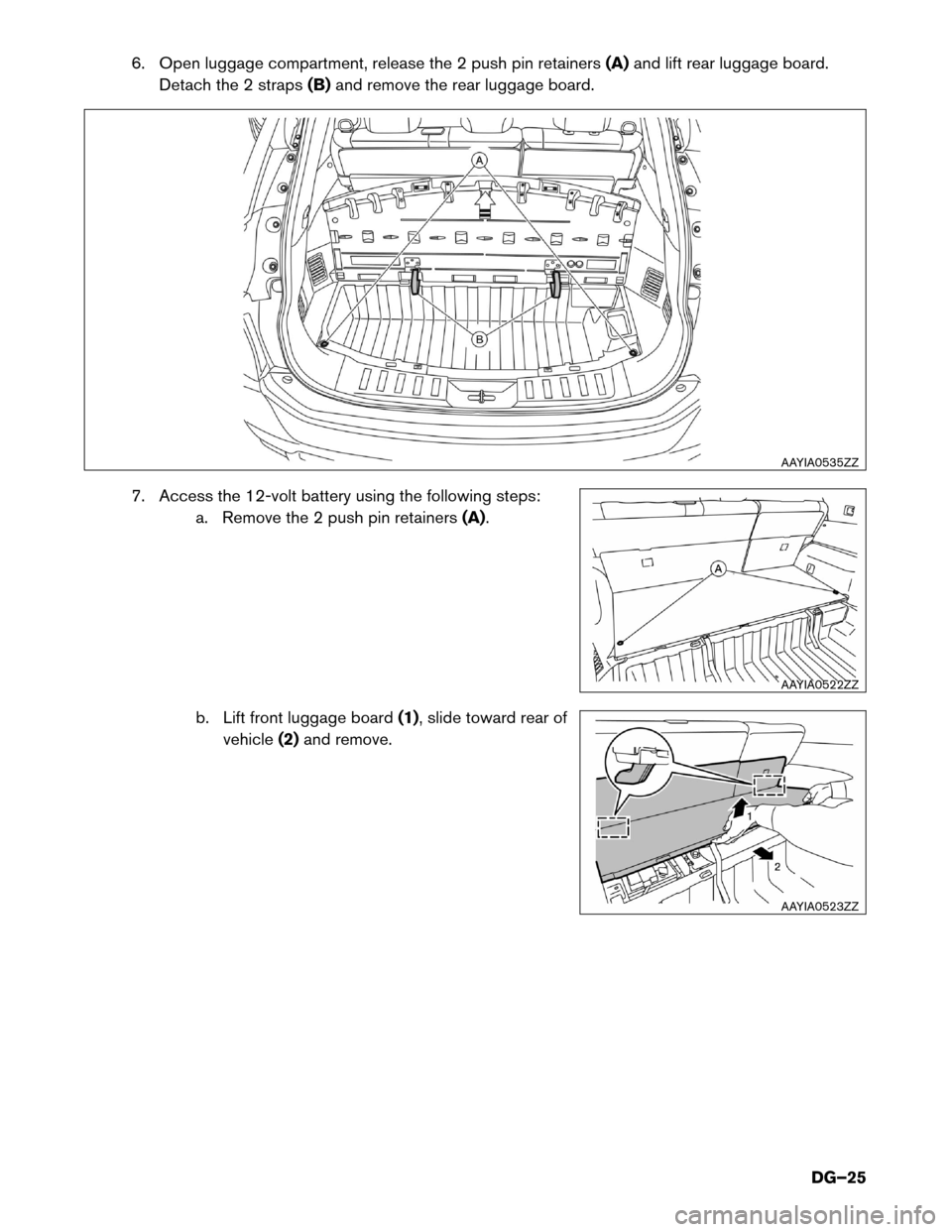

6. Open luggage compartment, release the 2 push pin retainers
(A)and lift rear luggage board.
Detach the 2 straps (B)and remove the rear luggage board.
7. Access the 12-volt battery using the following steps: a. Remove the 2 push pin retainers (A).
b. Lift front luggage board (1), slide toward rear of
vehicle (2)and remove. AAYIA0535ZZ
AAYIA0522ZZ
AAYIA0523ZZ
DG–25

8. Disconnect negative (-) battery cable and cover it with
insulated tape.
9. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the battery cable has been disconnected.
10. Perform the dismantling operation. Refer to 6. Dismantling Information (DG–43).
Alternate

Procedure 1 (Remove Fuses)
NOTE:
Before removing any fuses, if necessary, lower the windows, adjust the steering column,
adjust the seats, unlock the doors, etc. Once fuses are removed, power controls will not
operate.
1. Pull release handle located on the instrument panel and push the release lever under the hoodsideways to open hood.
2. Release clips on the narrow ends of the fuse box cover and remove it. : Vehicle front AAYIA0538ZZ
AAYIA0539ZZ
AAYIA0540ZZ
DG–26

3. Remove IGCT RLY fuse (F/L 50A IGCT RLY) .
: Vehicle front
4.
If you cannot identify the correct fuse, remove all the
fuses. To avoid unintended reinstallation and risk of
electrical
shock and severe personal injury or death, the
dismantler should carry the fuse or fuses on his/her
person and cover the fuse box with insulated tape.
5. Open luggage compartment, release the 2 push pinretainers (A)and lift rear luggage board. Detach the
2 straps (B)and remove the rear luggage board. AAYIA0176GB
AAYIA0535ZZ
DG–27

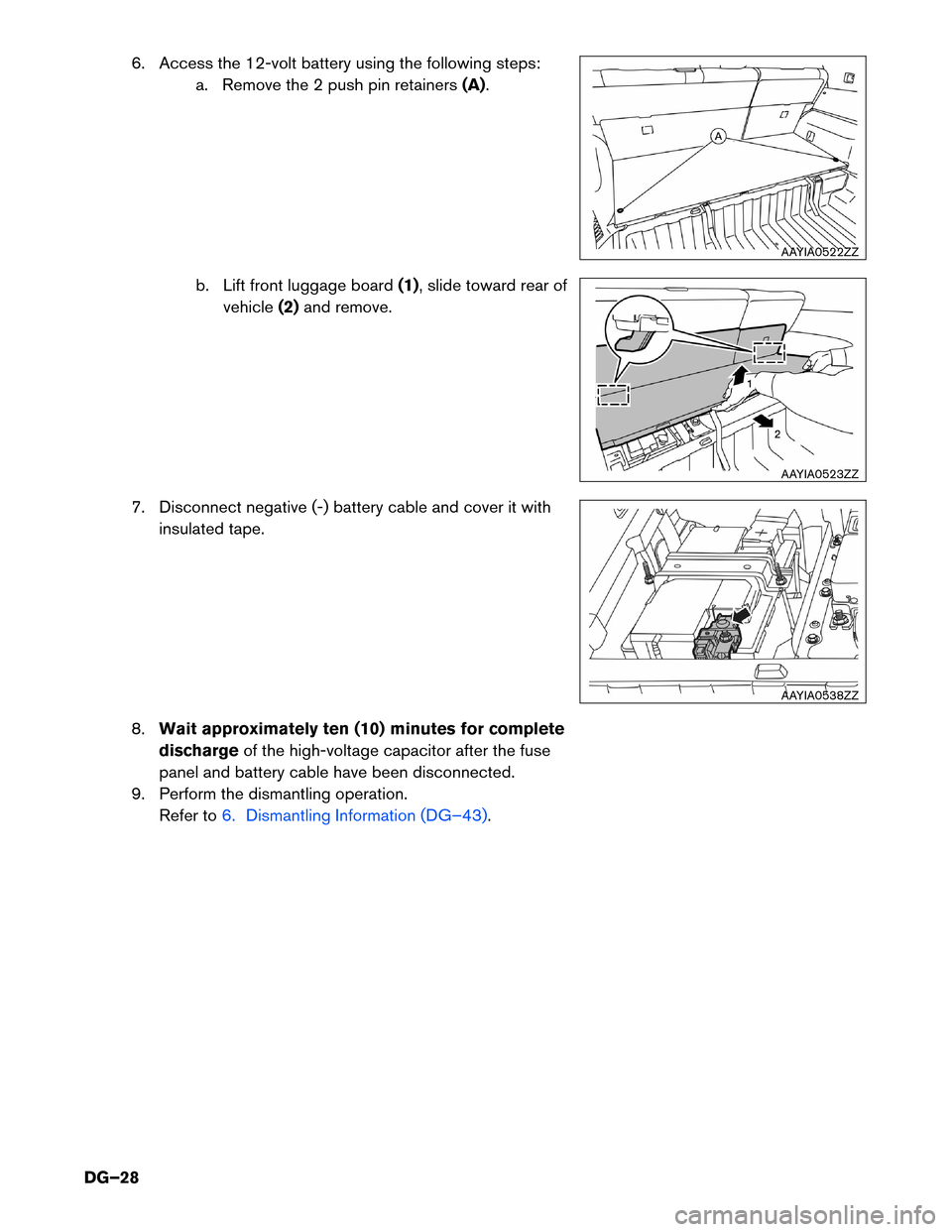

6. Access the 12-volt battery using the following steps:
a. Remove the 2 push pin retainers (A).
b. Lift front luggage board (1), slide toward rear of
vehicle (2)and remove.
7. Disconnect negative (-) battery cable and cover it with insulated tape.
8. Wait approximately ten (10) minutes for complete
discharge of the high-voltage capacitor after the fuse
panel and battery cable have been disconnected.
9. Perform the dismantling operation. Refer to 6. Dismantling Information (DG–43). AAYIA0522ZZ
AAYIA0523ZZ
AAYIA0538ZZ
DG–28

Alternate Procedure 2 (Remove Service Plug)
DANGER
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the dismantler from serious injury or death
by electrical shock.
• Immediately cover the service plug socket with insulated tape. The high-voltage
battery
retains high-voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket. To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or

death, the dismantler should carry the service plug on his/her person while work is in
progress.
NOTE: Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12-volt battery is
disconnected, power controls will not operate.
1. If possible, check the READY indicator status in the instrument cluster. If it is on, the
high-voltage

system is active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch once to turn OFF the high-voltage system. Then verify whether the
READY indicator is off.
If the READY indicator does not turn off, continue to
step 4.
4. If possible, keep the Nissan Intelligent Key
®at least
5 meters (16 feet) away from the vehicle (except to
open the liftgate as noted below) . AAYIA0516ZZ
HOLD
AAYIA0446ZZ
DG–29

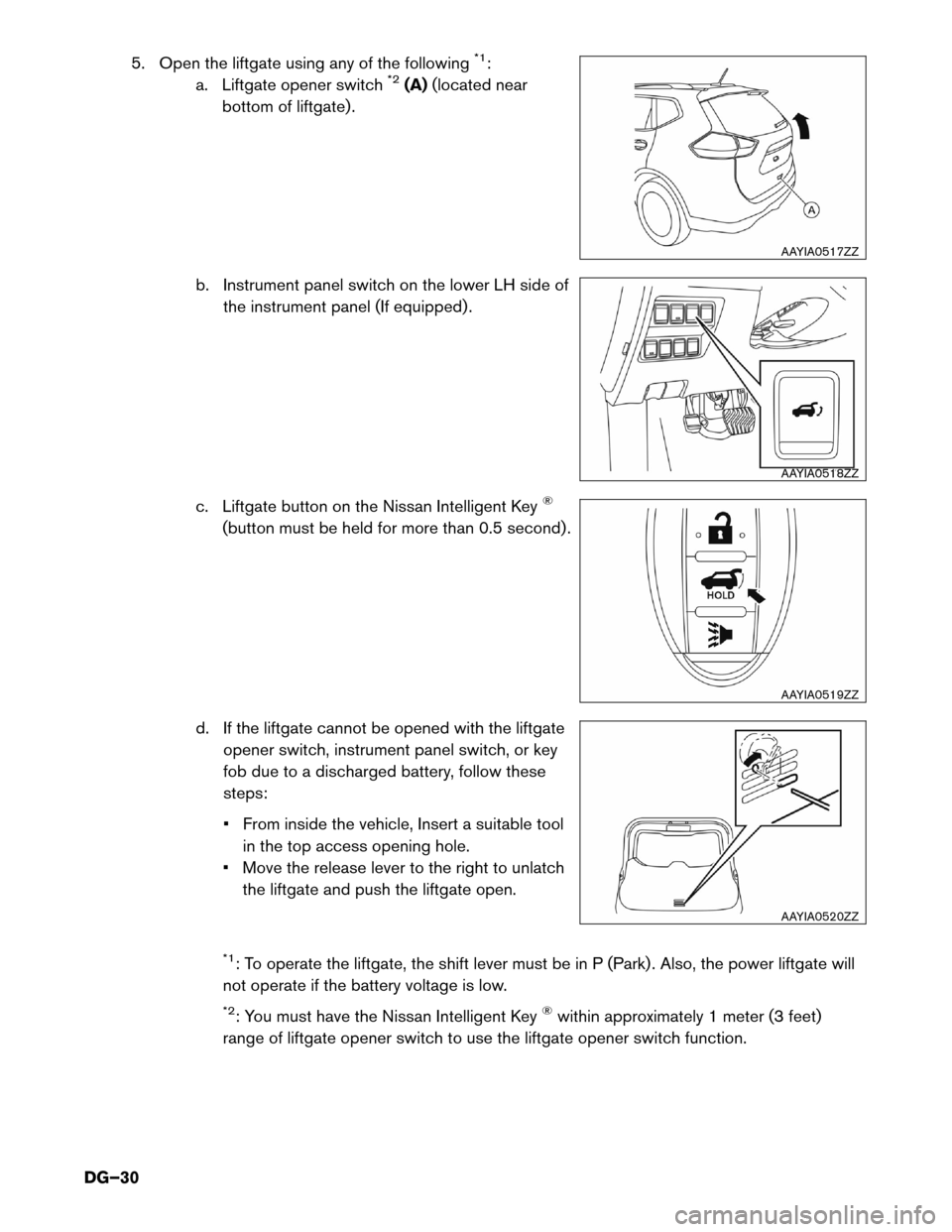

5. Open the liftgate using any of the following*1:
a. Liftgate opener switch*2(A) (located near
bottom of liftgate) .
b. Instrument panel switch on the lower LH side of the instrument panel (If equipped) .
c. Liftgate button on the Nissan Intelligent Key
®
(button must be held for more than 0.5 second) .
d. If the liftgate cannot be opened with the liftgate opener switch, instrument panel switch, or key
fob due to a discharged battery, follow these
steps:
• From inside the vehicle, Insert a suitable toolin the top access opening hole.
• Move the release lever to the right to unlatch the liftgate and push the liftgate open.
*1: To operate the liftgate, the shift lever must be in P (Park) . Also, the power liftgate will
not operate if the battery voltage is low.
*2: You must have the Nissan Intelligent Key®within approximately 1 meter (3 feet)
range of liftgate opener switch to use the liftgate opener switch function. AAYIA0517ZZ
AAYIA0518ZZ
AAYIA0519ZZ
AAYIA0520ZZ
DG–30

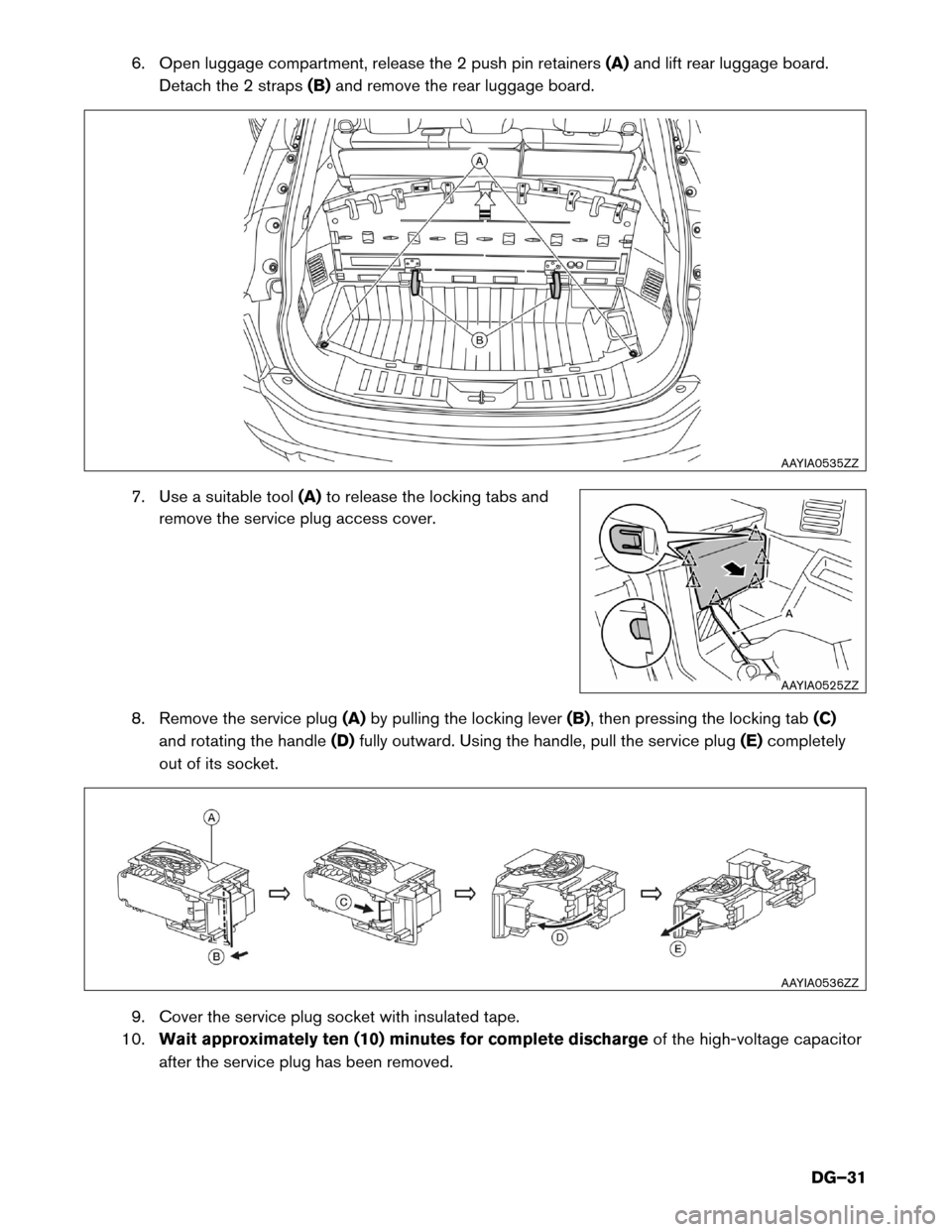

6. Open luggage compartment, release the 2 push pin retainers
(A)and lift rear luggage board.
Detach the 2 straps (B)and remove the rear luggage board.
7. Use a suitable tool (A)to release the locking tabs and
remove the service plug access cover.
8. Remove the service plug (A)by pulling the locking lever (B), then pressing the locking tab (C)
and rotating the handle (D)fully outward. Using the handle, pull the service plug (E)completely
out of its socket.
9. Cover the service plug socket with insulated tape.
10. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the service plug has been removed. AAYIA0535ZZ
AAYIA0525ZZ
AAYIA0536ZZ
DG–31

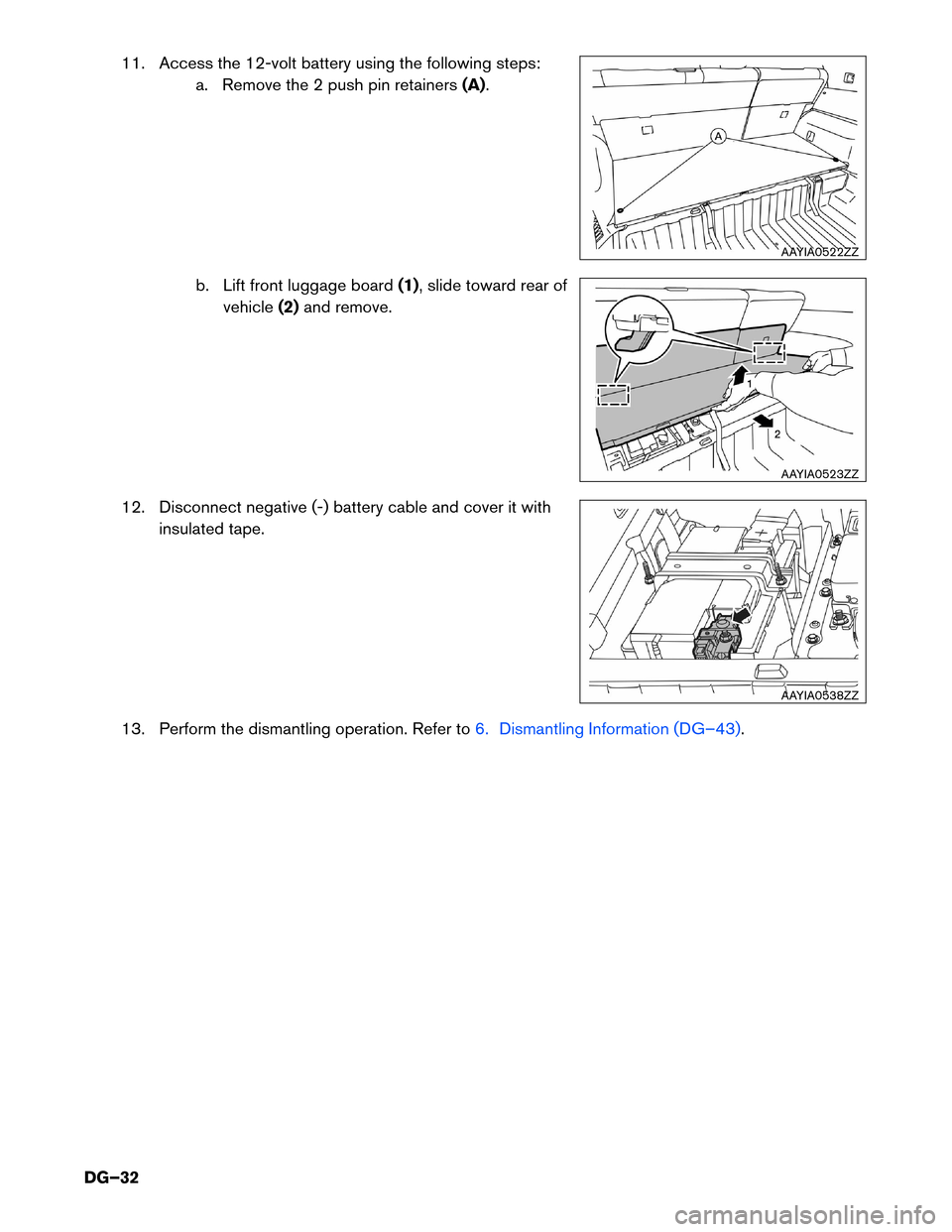

11. Access the 12-volt battery using the following steps:
a. Remove the 2 push pin retainers (A).
b. Lift front luggage board (1), slide toward rear of
vehicle (2)and remove.
12. Disconnect negative (-) battery cable and cover it with insulated tape.
13. Perform the dismantling operation. Refer to 6. Dismantling Information (DG–43). AAYIA0522ZZ
AAYIA0523ZZ
AAYIA0538ZZ
